Typical efficiency is 83.5%. Unlike smaller 5V LRS units, the LRS-350-5 uses a built-in DC fan with temperature control (fan on ≥50°C, fan off ≤40°C) inside a slim 215 × 115 × 30 mm metal case. Protection covers short circuit, overload (110–140%, hiccup/auto-recover), over voltage (5.75–6.75V), and over temperature. It operates from -25°C to +70°C, passes 5G vibration tests, runs 100% full-load burn-in, and carries a 3-year warranty—making it a proven high-current 5V platform for LED and industrial systems.
300W / 5V 60A: Heavy 5V rail for LED video walls, LED strips, dense logic boards, automation panels, and high-current digital electronics.
Switch-Selectable Input: 90–132 / 180–264V AC and 240–370V DC; withstands 300V AC surge for 5 seconds.
1U with Smart Fan: 215×115×30mm, built-in DC fan turns on at ≥50°C and off at ≤40°C—keeps 30mm profile while handling 60A heat.
Full Protection Set: Short circuit, overload (hiccup/auto-recover), over voltage 5.75–6.75V, over temperature protection.
LED/Industrial Ready: -25°C ~ +70°C, 5G vibration, 5000m altitude, power-on LED, <0.75W no-load loss, UL/IEC/EN60950-1 & 62368-1 class, 3-year warranty.

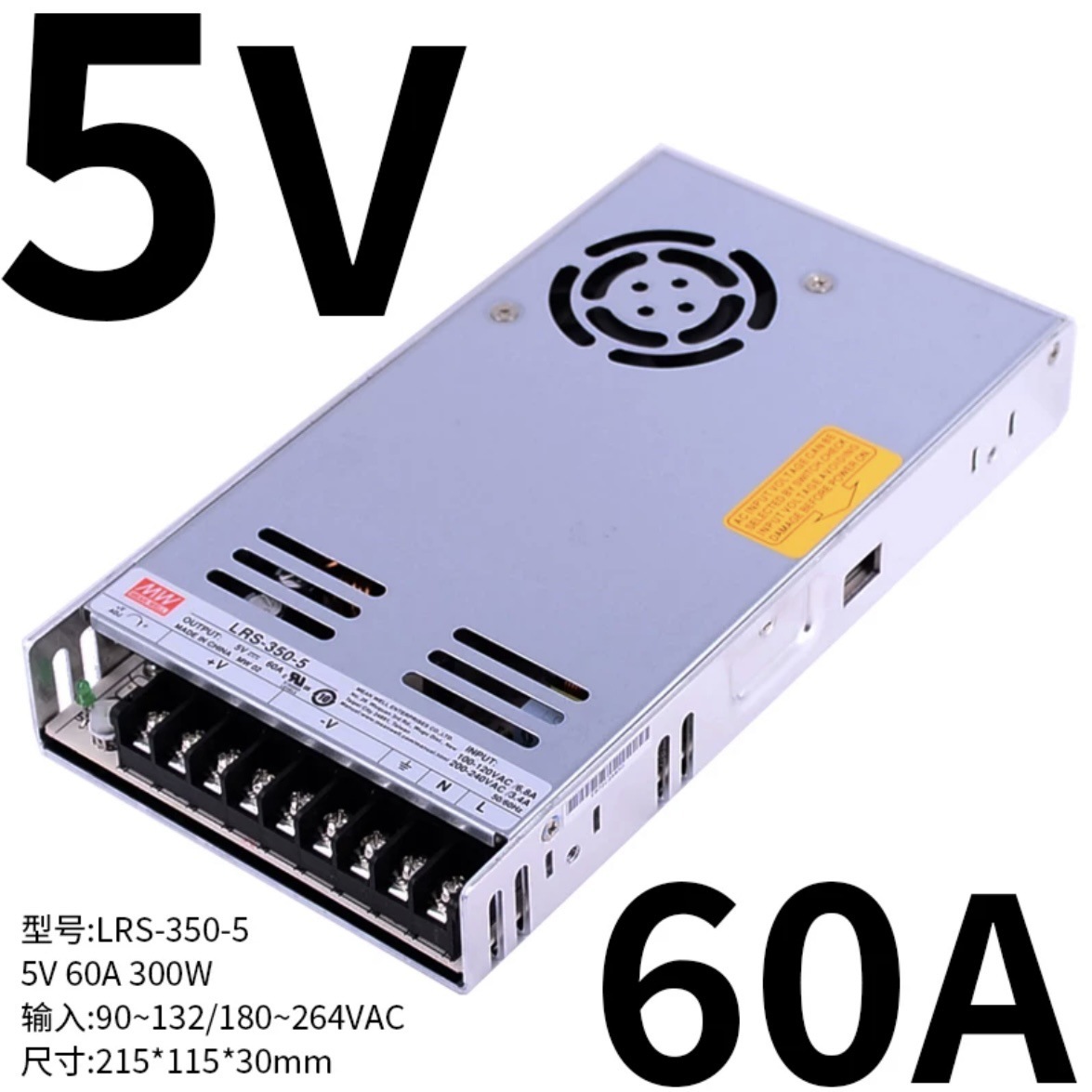

MODEL: LRS-350-5
BRAND: Mean Well
TYPE: Enclosed AC/DC Single-Output Switching Power Supply
|
Category |
Specification |
|---|---|
|
DC Output Voltage |
5V |
|
Rated Current |
60A |
|
Current Range |
0 – 60A |
|
Rated Power |
300W |
|
Voltage Adjust Range |
4.5 – 5.5V |
|
Ripple & Noise (max.) |
150mVp-p |
|
Voltage Tolerance |
±3.0% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±2.0% |
|
Setup / Rise Time |
1500ms / 50ms (full load) |
|
Hold-up Time (Typ.) |
16ms @230V AC, 12ms @115V AC |
|
Input Voltage Range |
90–132V AC / 180–264V AC (switch); 240–370V DC |
|
Input Frequency |
47–63Hz |
|
Efficiency (Typ.) |
83.5% |
|
AC Current (Typ.) |
6.8A @115V AC, 3.4A @230V AC |
|
Inrush Current (Typ.) |
Cold start 60A @115V AC, 60A @230V AC |
|
Leakage Current |
<2mA @240V AC |
|
Overload Protection |
110–140% rated power, hiccup mode, auto-recovery |
|
Over Voltage Protection |
5.75–6.75V, hiccup / shut down, re-power to recover |
|
Over Temperature Protection |
Hiccup mode, auto-recovery after cooldown |
|
Short Circuit Protection |
Hiccup mode, auto-recovery |
|
Cooling |
Built-in DC fan, temp-controlled (≥50°C ON, ≤40°C OFF) |
|
Operating Temp. |
-25°C ~ +70°C (refer to derating curve) |
|
Operating Humidity |
20–90% RH, non-condensing |
|
Storage Temp. |
-40°C ~ +85°C |
|
Vibration |
10–500Hz, 5G |
|
Isolation |
I/P-O/P: 3kV AC; I/P-FG: 2kV AC; O/P-FG: 0.5kV AC |
|
Dimensions (L×W×H) |
215 × 115 × 30 mm |
|
Weight |
Approx. 0.76 kg |
|
Indicator |
Green LED for power-on |
|
No-load Power |
<0.75W |
|
PFC |
No active PFC |
|
Certifications |
UL60950-1, TÜV EN60950-1, IEC/EN 62368-1, EN61558-1/-2-16, CCC GB4943, CE, CB, EAC, BSMI |
|
Warranty |
3 years |
