Fanless natural convection cooling reaches 89% typical efficiency with <0.5W no-load consumption. Protections cover short circuit, overload (hiccup auto-recovery), over voltage and over temperature; operating range is -30°C to +70°C with derating above 50°C. It powers two 5m rolls of 14.4W/m 24V tape, or ~5m of 18W/m RGBW, or 4–5m of 30W/m COB with injection. Ideal for commercial LED strips, controllers, CCTV, access control and industrial automation. For 24/7 use de-rate to 85% load (≈133W / 5.5A). Not waterproof—mount indoors or in a ventilated enclosure.

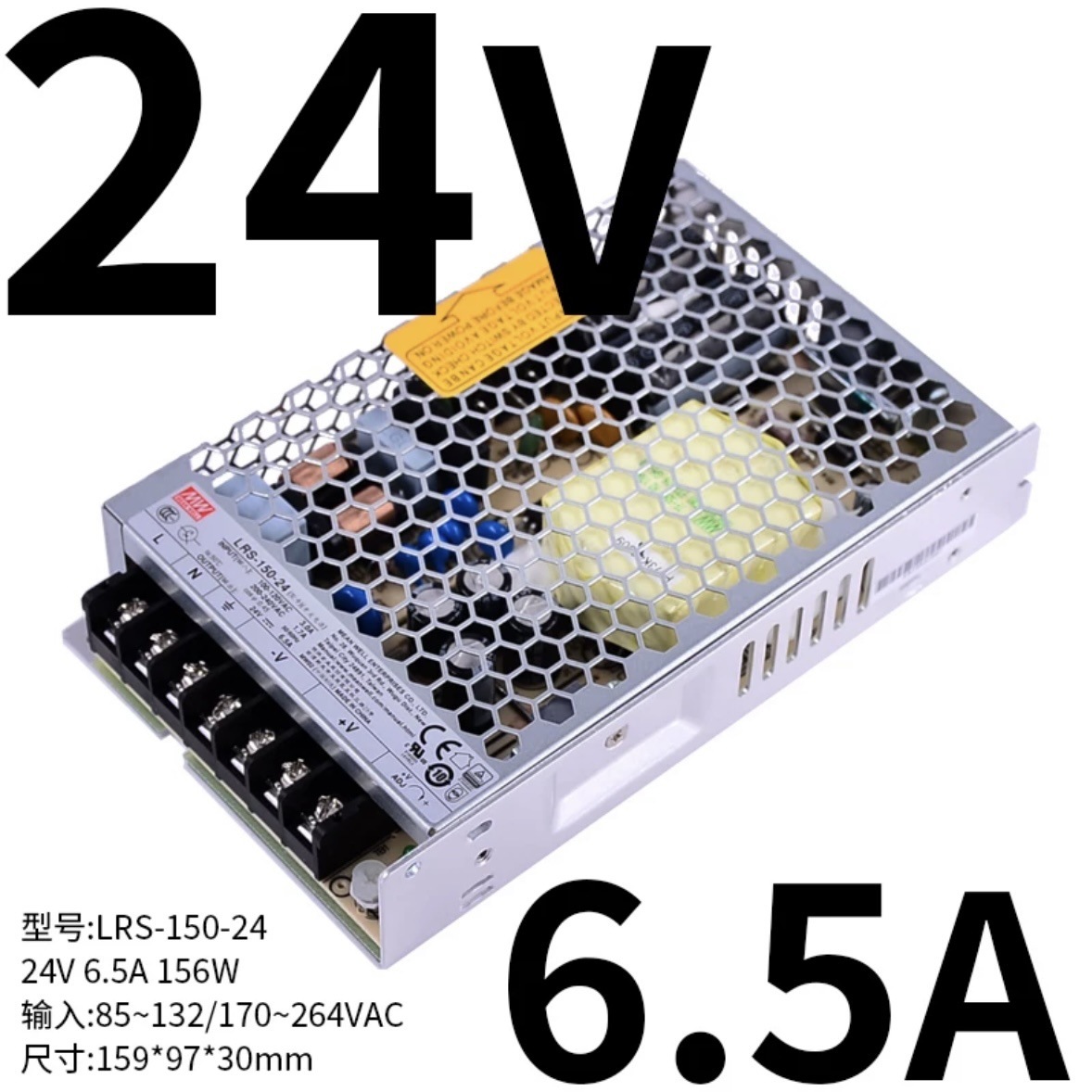

156W 24V Workhorse: 24V DC, 6.5A, 156W rated; output trims 21.6–28.8V to compensate for cable drop on long 24V runs.
Switchable Global AC Input: 115/230VAC physical selector; 85–132VAC / 170–264VAC / 240–370VDC; withstands 300VAC surge for 5s.
Fanless 1U Profile: 159×97×30mm, free-air convection, ~89% efficiency, power-on LED, 5G vibration resistant, 3-year warranty.
Full Protection Suite: Short circuit (auto recovery), overload 110–140% (hiccup), over voltage 28.8–33.6V (shut down + restart), over temp shutdown; UL/TÜV/EN60335/EN61558/CCC/CE.
LED & Automation Ready: Two 5m 14.4W/m rolls, ~5m 18W/m RGBW, 4–5m 30W/m COB (with injection); controllers, CCTV, PLCs, sensors, signage all on one supply.
|
Item |
Specification |
|---|---|
|
Model |
LRS-150-24 |
|
Manufacturer |
MEAN WELL |
|
Series |
LRS-150 (Enclosed, single output) |
|
Output Voltage |
24V DC |
|
Voltage Adjust Range |
21.6–28.8V |
|
Rated Current |
6.5A |
|
Rated Power |
156W（标称 150W 级） |
|
Input Voltage |
85–132VAC / 170–264VAC（physical switch）, 240–370VDC |
|
Frequency |
47–63Hz |
|
Efficiency |
89% typ @ 230VAC |
|
Ripple & Noise |
200mVp-p max |
|
Inrush Current |
Cold start 60A @ 230VAC |
|
No-Load Power |
<0.5W |
|
Protections |
Short circuit (auto recovery), Overload 110–140% (hiccup), Over voltage 28.8–33.6V (shut down + re-power), Over temp (shut down + re-power) |
|
Cooling |
Free air convection, no fan |
|
Operating Temp |
-30°C ~ +70°C（derating above 50°C） |
|
Safety |
UL60950-1, TÜV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943, CE, CB, RoHS |
|
EMC |
EN55022 Class B, EN55014, EN61000-3-2/-3, EN61000-4-x heavy industry level |
|
Terminals |
Screw terminal block（AC L/N/FG, DC +/-） |
|
Housing / IP |
Metal case, IP20 indoor |
|
Dimensions |
159 × 97 × 30 mm (L×W×H) |
|
Weight |
~0.48 kg |
|
Continuous Load Rule |
De-rate to 85% → ≈133W / 5.5A for 24/7 |
|
Typical Use |
Two 5m 24V LED rolls, RGBW/CCT COB, signage, CCTV, access control, PLC, sensors, industrial control |
|
Not For |
Outdoor exposed use, 12V strips, non-dimmable AC lamps, very long 40W/m COB without injection/amplifier |
|
Warranty |
3 years |
