With typical efficiency of 87.5%, fanless free-air convection cooling, and a slim 159 × 97 × 30 mm metal mesh case, it fits 1U/tight enclosures while maintaining excellent thermal performance from -30°C to +70°C. Built-in short circuit, overload, over voltage, and over temperature protection improve system safety. A power-on LED, low no-load consumption, 5G vibration resistance, and 3-year warranty make the LRS-150-12 a reliable, cost-effective choice for demanding 12V industrial applications.
150W High Capacity: 12V @ 12.5A, suitable for larger LED loads, PLCs, relays, motors drivers, and multi-device 12V systems.
Switch-Selectable Universal Input: 85–132 / 170–264V AC and 240–370V DC; withstands 300V AC surge for 5s.
Slim Fanless Industrial Design: Only 30mm profile, metal mesh enclosure, free-air convection, silent and low-maintenance.
Complete Protection Set: Short circuit, overload (110–140%, hiccup/auto-recover), over voltage (13.8–16.2V), and over temperature protection.
Field-Proven Reliability: -30°C ~ +70°C operation, 5G vibration resistance, power-on LED, MTBF 601K hrs, UL/TÜV/CCC/CE-class safety, 3-year warranty.

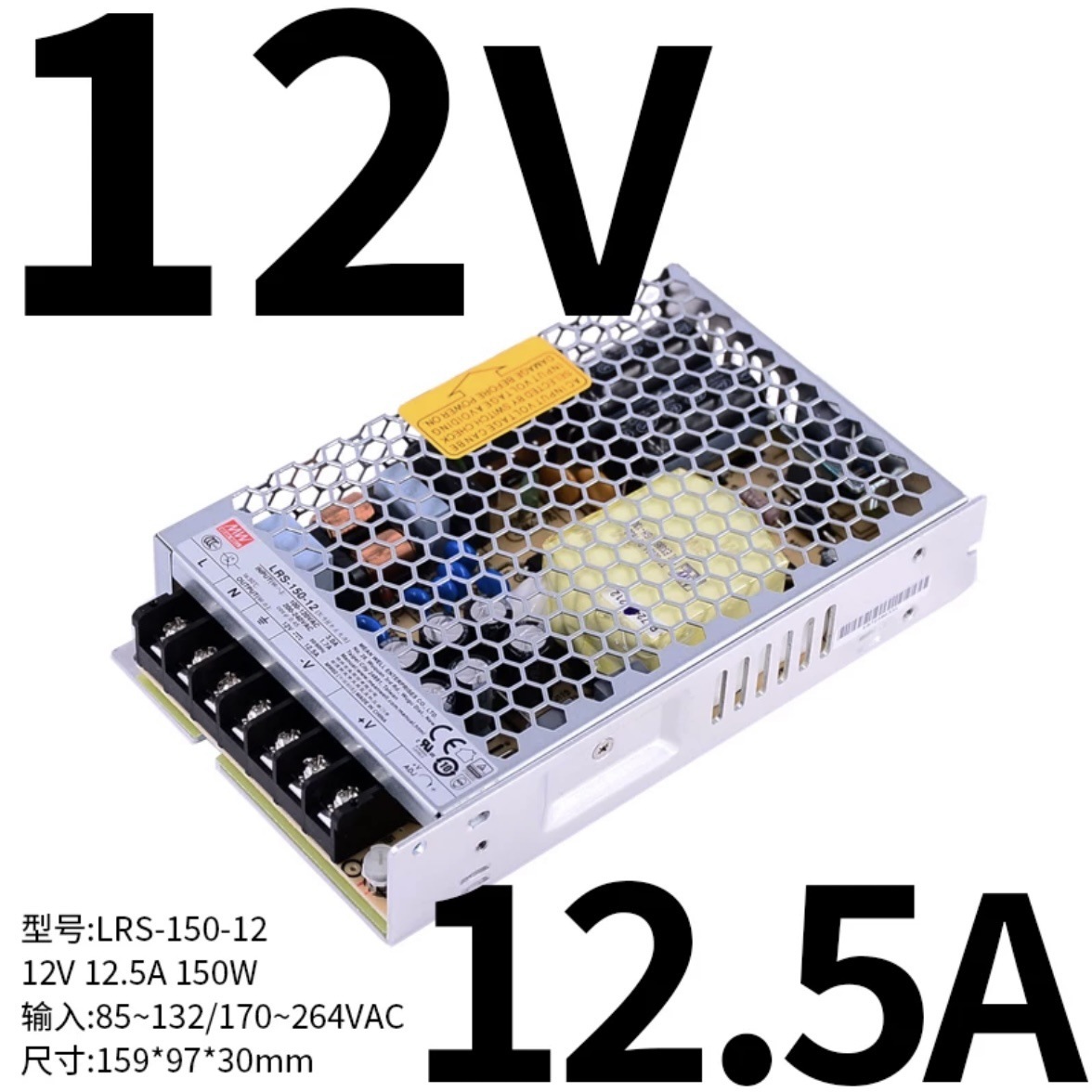

MODEL: LRS-150-12
BRAND: Mean Well
TYPE: Enclosed AC/DC Single-Output Switching Power Supply
|
Category |
Specification |
|---|---|
|
DC Output Voltage |
12V |
|
Rated Current |
12.5A |
|
Current Range |
0 – 12.5A |
|
Rated Power |
150W |
|
Voltage Adjust Range |
10.2 – 13.8V |
|
Ripple & Noise (max.) |
150mVp-p |
|
Voltage Tolerance |
±1.0% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Setup / Rise Time |
500ms / 30ms (full load) |
|
Hold-up Time (Typ.) |
40ms @230V AC, 35ms @115V AC |
|
Input Voltage Range |
85–132V AC / 170–264V AC (switch); 240–370V DC |
|
Input Frequency |
47–63Hz |
|
Efficiency (Typ.) |
87.5% |
|
AC Current (Typ.) |
3A @115V AC, 1.7A @230V AC |
|
Inrush Current (Typ.) |
Cold start 60A @230V AC |
|
Leakage Current |
<0.75mA @240V AC |
|
Overload Protection |
110–140% rated power, hiccup mode, auto-recovery |
|
Over Voltage Protection |
13.8–16.2V, shut down output, re-power to recover |
|
Over Temperature Protection |
Shut down output, recover after temperature drops |
|
Short Circuit Protection |
Hiccup mode, auto-recovery |
|
Cooling |
Free air convection (fanless) |
|
Operating Temp. |
-30°C ~ +70°C (refer to derating curve) |
|
Operating Humidity |
20–90% RH, non-condensing |
|
Vibration |
10–500Hz, 5G |
|
Isolation |
I/P-O/P: 3.75kV AC; I/P-FG: 2kV AC; O/P-FG: 1.25kV AC |
|
Dimensions (L×W×H) |
159 × 97 × 30 mm |
|
Weight |
Approx. 0.48 kg |
|
Indicator |
Green LED for power-on |
|
Certifications |
UL60950-1, TÜV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943 |
|
Warranty |
3 years |
