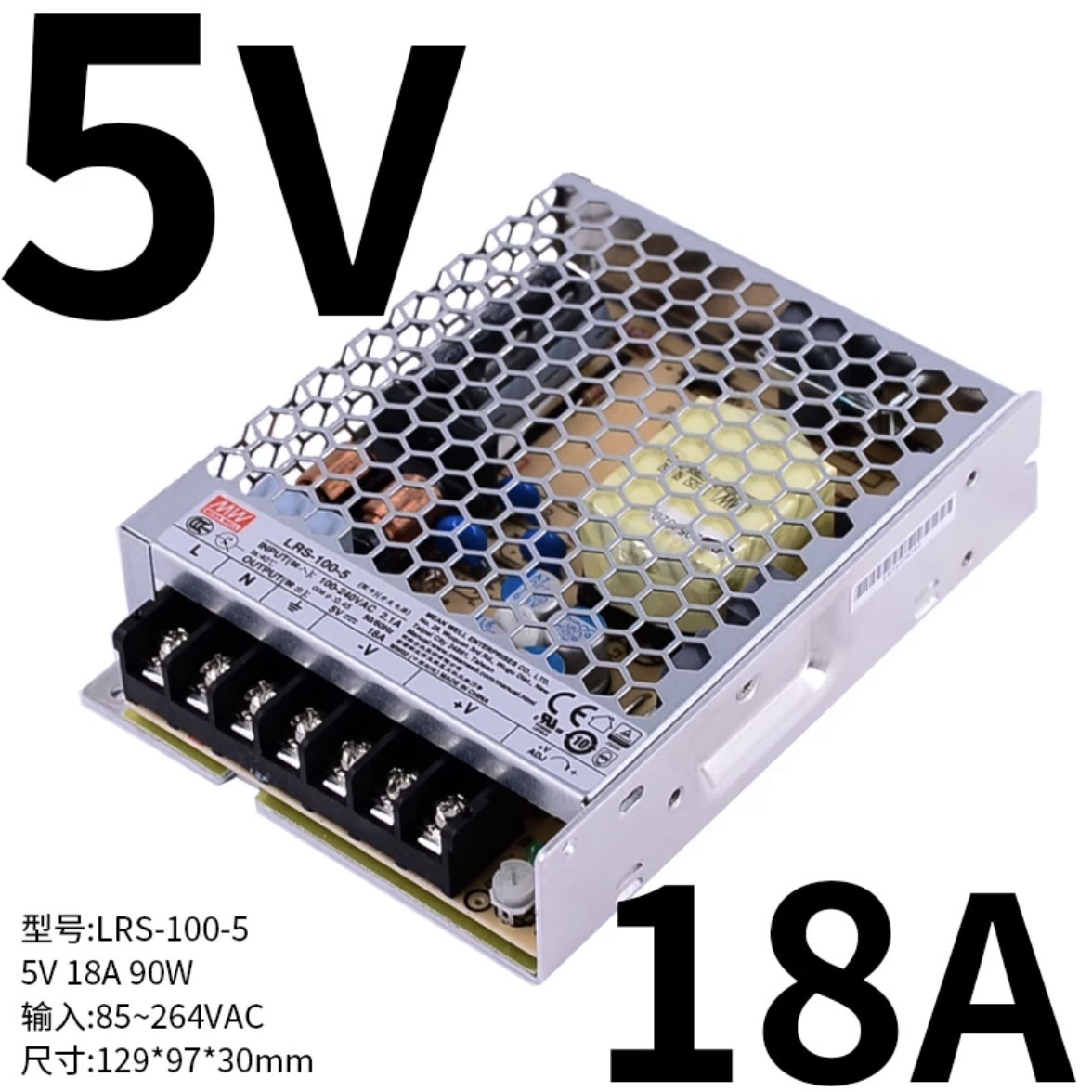

Achieving 87% typical efficiency, it is fully fanless with free-air convection cooling inside a slim 129 × 97 × 30 mm metal mesh case. Built-in short circuit, overload (hiccup mode, auto-recovery), and over voltage protection safeguard connected equipment. It operates from -30°C to +70°C with derating, withstands 300V AC surge for 5 seconds, passes 5G vibration tests, and includes a power-on LED. With 100% full-load burn-in and a 3-year warranty, the LRS-100-5 is the ideal high-current 5V solution for space-limited industrial installations.
5V 18A / 90W Output: Highest-current fanless 5V LRS model—powers multi-board SBC clusters, dense relay/sensor banks, LED logic, and automation controllers.
Universal Input, No Switch: 85–264V AC / 120–373V DC, global deployment ready.
1U Fanless Design: 129×97×30mm, only 30mm thick, metal mesh case, silent convection cooling, zero maintenance.
Full Protection Suite: Short circuit, overload (110–150%, hiccup/auto-recover), over voltage (5.75–6.75V), auto-recovery.
Industrial Reliability: -30°C ~ +70°C, 300V AC surge 5s, 5G vibration, power-on LED, 100% burn-in, UL/TÜV/CE/CCC/EN62368-class, 3-year warranty.
MODEL: LRS-100-5
BRAND: Mean Well
TYPE: Enclosed AC/DC Single-Output Switching Power Supply
|
Category |
Specification |
|---|---|
|
DC Output Voltage |
5V |
|
Rated Current |
18A |
|
Current Range |
0 – 18A |
|
Rated Power |
90W |
|
Voltage Adjust Range |
4.5 – 5.5V |
|
Ripple & Noise (max.) |
100mVp-p |
|
Voltage Tolerance |
±2.0% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±1.0% |
|
Setup / Rise Time |
500ms / 30ms (full load) |
|
Hold-up Time (Typ.) |
60ms @230V AC, 12ms @115V AC |
|
Input Voltage Range |
85–264V AC / 120–373V DC |
|
Input Frequency |
47–63Hz |
|
Efficiency (Typ.) |
87% |
|
AC Current (Typ.) |
1.8A @115V AC, 1.1A @230V AC |
|
Inrush Current (Typ.) |
Cold start 65A @230V AC |
|
Leakage Current |
<0.75mA @240V AC |
|
Overload Protection |
110–150% rated power, hiccup mode, auto-recovery |
|
Over Voltage Protection |
5.75–6.75V, shut down output, re-power to recover |
|
Short Circuit Protection |
Hiccup mode, auto-recovery |
|
Cooling |
Free air convection (fanless) |
|
Operating Temp. |
-30°C ~ +70°C (refer to derating curve) |
|
Operating Humidity |
20–90% RH, non-condensing |
|
Storage Temp. |
-40°C ~ +85°C |
|
Vibration |
10–500Hz, 5G |
|
Isolation |
I/P-O/P: 3.75kV AC; I/P-FG: 2kV AC; O/P-FG: 1.25kV AC |
|
Dimensions (L×W×H) |
129 × 97 × 30 mm |
|
Weight |
Approx. 0.33 kg |
|
Indicator |
Green LED for power-on |
|
Surge Immunity |
300V AC for 5 seconds |
|
Certifications |
UL60950-1, TÜV EN60950-1, EN60335-1, EN61558-1/-2-16, CCC GB4943, CE, CB, RCM, KC, EAC |
|
Warranty |
3 years |
