With typical efficiency of 88%, fanless free-air convection cooling, and a slim 129 × 97 × 30 mm metal case, it fits easily into 1U racks and space-limited enclosures. Built-in protections for short circuit, overload, and over voltage help safeguard connected equipment. The unit also withstands 300V AC surge for 5 seconds, operates from -30°C to +70°C, passes 5G vibration testing, and includes a power-on LED. Backed by Mean Well quality and a 3-year warranty, the LRS-100-12 is an ideal balance of power density, safety, and cost-effectiveness.
12V 8.5A / 102W Output: Strong capacity for LED lighting, controllers, relays, and small automation systems.
Universal Input & 300V Surge Tolerance: 85–264V AC / 120–373V DC, with 5-second surge immunity for unstable grids.
Slim Fanless Design: Only 30mm profile, natural convection cooling, silent operation, lower maintenance.
Full Protection Suite: Short circuit, overload (hiccup mode, auto-recover), and over voltage protection built in.
Industrial Reliability: -30°C to +70°C operation, 5G vibration resistance, power-on LED, <0.3W no-load loss, 3-year warranty.

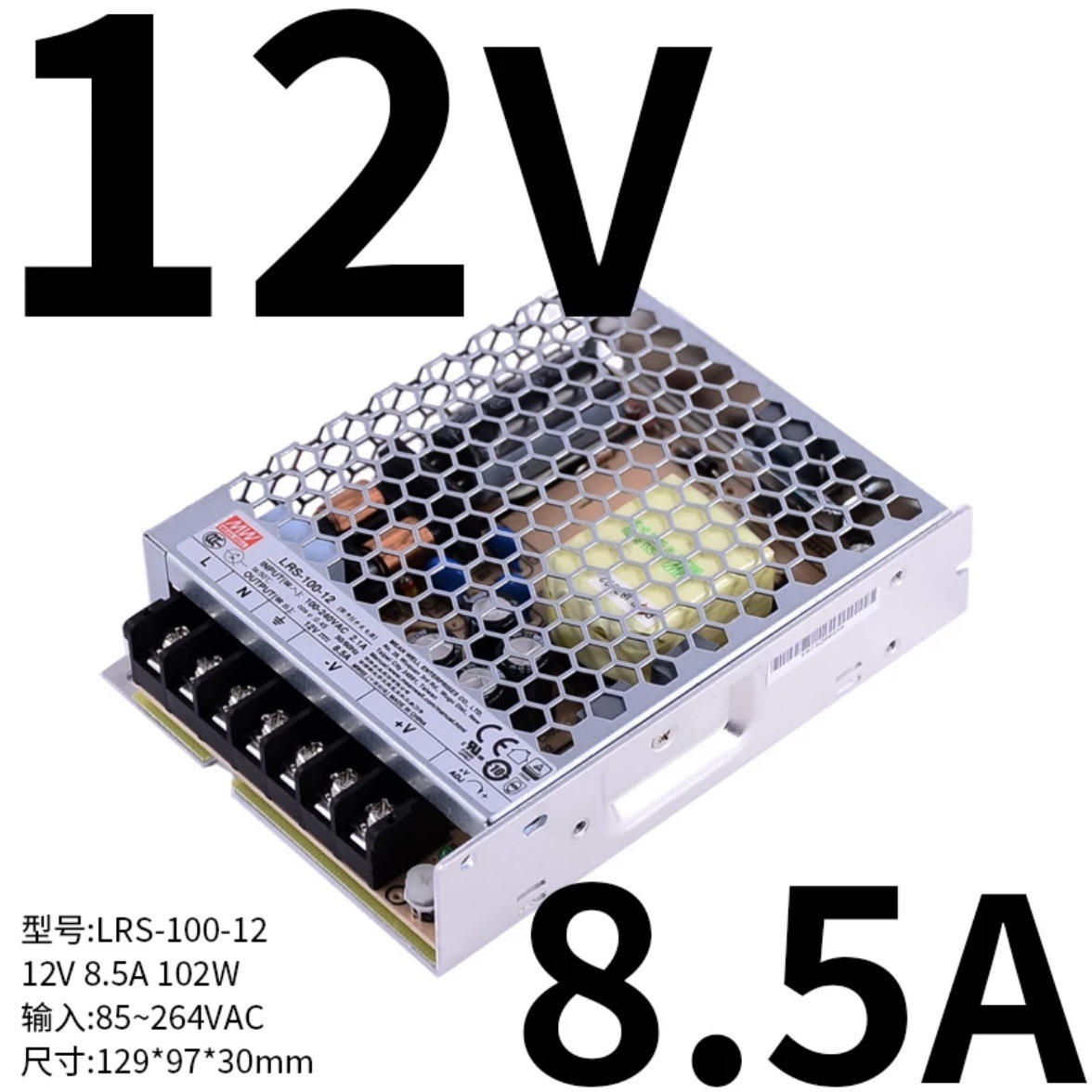

MODEL: LRS-100-12
BRAND: Mean Well
TYPE: Enclosed AC/DC Single-Output Switching Power Supply
|
Category |
Specification |
|---|---|
|
DC Output Voltage |
12V |
|
Rated Current |
8.5A |
|
Current Range |
0 – 8.5A |
|
Rated Power |
102W |
|
Voltage Adjust Range |
10.2 – 13.8V |
|
Ripple & Noise (max.) |
120mVp-p |
|
Voltage Tolerance |
±1.0% |
|
Line Regulation |
±0.5% |
|
Load Regulation |
±0.5% |
|
Input Voltage Range |
85–264V AC / 120–373V DC |
|
Input Frequency |
47–63Hz |
|
Efficiency (Typ.) |
88% |
|
AC Current (Typ.) |
1.9A @115V AC, 1.2A @230V AC |
|
Inrush Current (Typ.) |
Cold start 50A @230V AC |
|
Leakage Current |
<0.75mA @240V AC |
|
Overload Protection |
110–150% rated power, hiccup mode, auto-recovery |
|
Over Voltage Protection |
13.8–16.2V, shut down output, recover after re-power |
|
Short Circuit Protection |
Hiccup mode, auto-recovery |
|
Cooling |
Free air convection |
|
Operating Temp. |
-30°C ~ +70°C (refer to derating curve) |
|
Operating Humidity |
20–90% RH, non-condensing |
|
Vibration |
10–500Hz, 5G |
|
Isolation |
I/P-O/P: 3.75kV AC; I/P-FG: 2kV AC; O/P-FG: 1.25kV AC |
|
Dimensions (L×W×H) |
129 × 97 × 30 mm |
|
Weight |
Approx. 0.33–0.34 kg |
|
Indicators |
Green LED for power-on |
|
Certifications |
UL, TUV, CB, CE, CCC, EAC (model family) |
|
Warranty |
3 years |
