Cooling is by a built-in temperature-controlled DC fan; the unit is 1U low-profile (325×107×41mm) with up to 37W/in³ density. Advanced functions include output voltage / constant-current programming, remote ON/OFF, remote sense, auxiliary power, DC-OK / alarm, PMBus (CANBus optional), built-in OR-ing FETs for hot-swap, and active current sharing—up to 12800W in one 19" rack shelf (DHP-1UT) and 25600W in 7+1 system. Protection covers SCP, OLP (105–115% → constant-current, shutdown after 5s), OVP (63–75V), and OTP. With -30°C ~ +70°C operation and a 5-year warranty, DRP-3200-48 is built for redundant rack power, not basic enclosed use.
3216W / 48V 67A: High-density 48V rail for telecom, automation, charging, test benches, 48V DC bus.
Universal Input + 94.5% Efficiency: 90–264V AC / 127–370V DC, PF 0.97, best-in-class 48V efficiency.
Digital / Communicable: PMBus standard, CANBus optional; programmable Vout + constant-current level; remote ON/OFF, sense, aux, DC-OK, alarm.
Hot-Swap Rack Platform: Built-in OR-ing FETs, active current sharing, DHP-1UT shelf → 12800W, 7+1 system → 25600W.
Redundant-Grade Reliability: SCP / OLP / OVP / OTP, -30°C ~ +70°C, 1U 325×107×41mm, UL/TÜV/EN 62368-1, 5-year warranty.

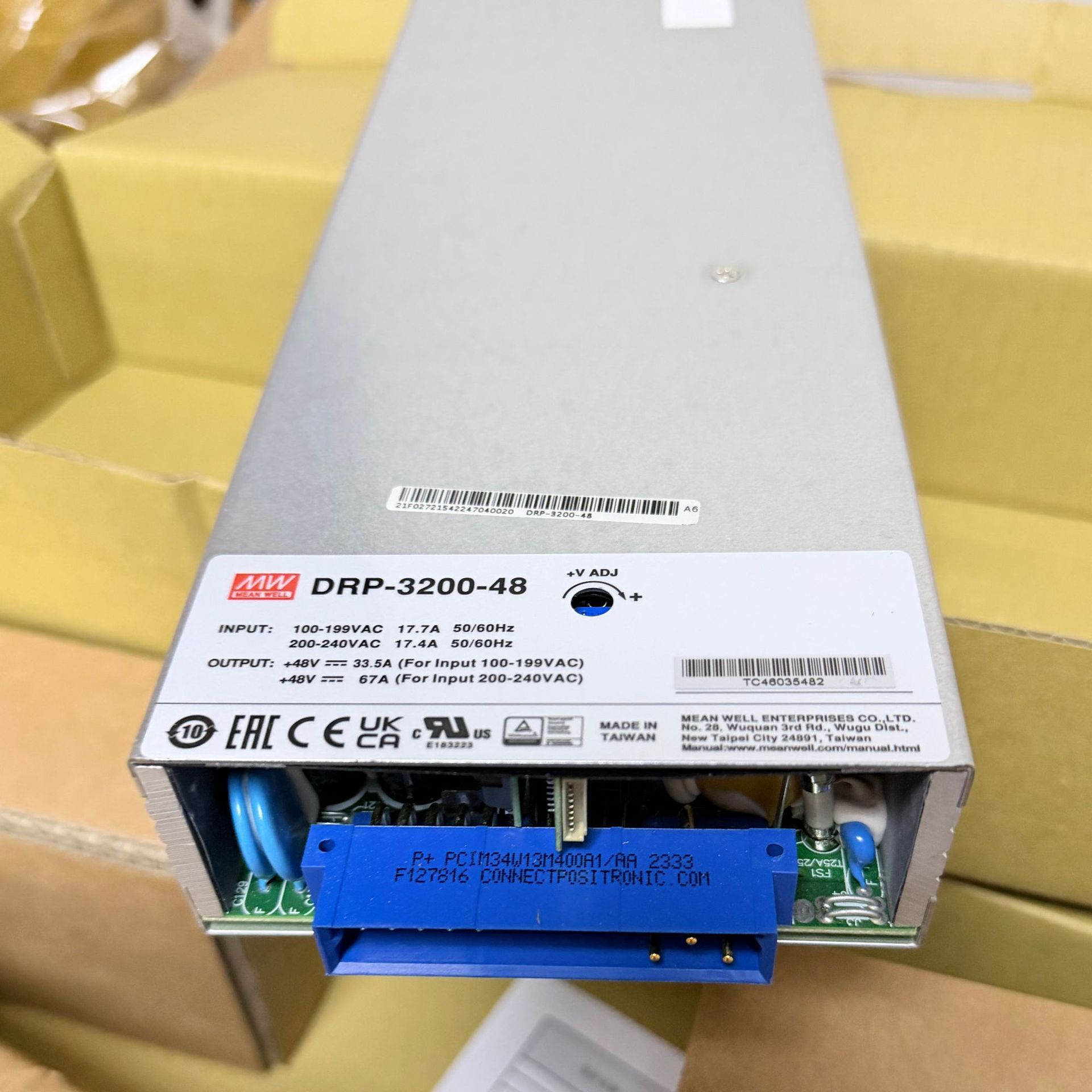

MODEL: DRP-3200-48
BRAND: Mean Well
TYPE: 3200W 1U Rack / Enclosed AC/DC Front-End Power Supply (48V)
|
Category |
Specification |
|---|---|
|
DC Output Voltage |
48V |
|
Rated Current |
67A |
|
Current Range |
0 – 67A |
|
Rated Power |
3216W |
|
Voltage Adjust Range |
47.5 – 58.8V |
|
Ripple & Noise (max.) |
480mVp-p |
|
Voltage Tolerance |
±1.0% |
|
Line / Load Regulation |
±0.5% / ±0.5% |
|
Setup / Rise Time |
1500ms / 60ms @230V AC full load |
|
Hold-up Time (Typ.) |
16ms @75% load, 9ms @full load, 230V AC |
|
Input Voltage Range |
90–264V AC / 127–370V DC |
|
Frequency |
47–63Hz |
|
Power Factor (Typ.) |
0.97 @230V AC full load |
|
Efficiency (Typ.) |
94.5% |
|
AC Current (Typ.) |
17A @230V AC |
|
Inrush Current (Typ.) |
Cold start 55A @230V AC |
|
Leakage Current |
<1.5mA @230V AC |
|
Overload Protection |
105–115% → constant-current limit, shutdown after 5s, re-power to recover |
|
Over Voltage Protection |
63–75V → shutdown output, re-power to recover |
|
Over Temperature Protection |
Shutdown output, auto-recover after cooldown |
|
Short Circuit Protection |
Constant-current / shutdown per overload logic |
|
Cooling |
Built-in temperature-controlled DC fan |
|
Digital Functions |
PMBus (std) / CANBus (opt), Vout + CC programming, remote ON/OFF, remote sense, aux power, DC-OK, alarm |
|
Hot-Swap / Parallel |
Built-in OR-ing FETs; active current share; DHP-1UT shelf 12800W; 7+1 system 25600W |
|
Operating Temp. |
-30°C ~ +70°C (derating applies) |
|
Operating Humidity |
20–90% RH, non-condensing |
|
Isolation |
I/P-O/P: 3kV AC; I/P-FG: 2kV AC; O/P-FG: 1.5kV AC (1 min) |
|
Dimensions (L×W×H) |
325 × 107 × 41 mm |
|
Weight |
Approx. 2.65 kg |
|
Mounting |
Chassis / 19" rack shelf (DHP-1UT) |
|
Certifications |
UL 62368-1, CSA C22.2, TÜV EN 62368-1, CB, CE, EAC TP TC 004 |
|
Warranty |
5 years |
