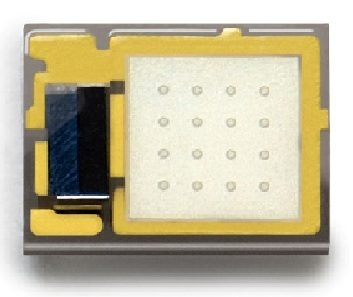

Ultra-Compact 0705 Footprint – Only 1.70 × 1.30 mm (2.2 mm²), enabling high-density LED arrays, tight pixel pitches, and space-constrained optical engines.
Royal Blue 440–460 nm Precision – Typical 450 nm peak/binned royal-blue output, ideal for remote phosphor, stage/architecture color mixing, UV-cure excitation, machine vision, and specialty lighting.
Undomed Micro Emitter for Optical Control – Flat, lens-free die design gives superior beam/shaping control with secondary optics, lenses, reflectors, or light guides.
High Drive Current & Flux Density – 500 mA test current, up to 1 A max, ~550 mW radiometric power in a tiny SMD package for extreme flux-per-area performance.
Thermal & Manufacturing Ready – Low package thermal resistance (~5 °C/W), SMT 0705 package, MSL1, RoHS/REACH compliant—built for automated production and reliable commercial/industrial luminaires.
Product Parameters / Specifications
|
Parameter |
Value |
|---|---|
|
Dominant Wavelength (Blue) |
440 nm – 460 nm |
|
Viewing Angle / Beam Angle |
125° |
|
Operating Temperature |
-40°C ~ +135°C |
|
Forward Voltage (Vf) – Blue |
2.85 V |
|
Forward Current – Blue |
1000 mA |
Or in plain text / bullet style:
Dominant Wavelength (Blue): 440 nm ~ 460 nm
Beam Angle / Light Emitting Angle: 125°
Operating Temperature: -40°C to +135°C
Forward Voltage (Vf) – Blue: 2.85 V
Forward Current – Blue: 1000 mA
