Fully compatible with Nicolaudie, Sunlite, and Daslight network consoles, it supports master-slave operation with hundreds of offline controllers. Ideal for stage, fountain, and architectural projects requiring seamless DMX-to-IP integration without proprietary hardware.
Dual DMX Input: 2 independent DMX channels, each capable of triggering up to 120 RS485/UDP output commands for massive device coverage.

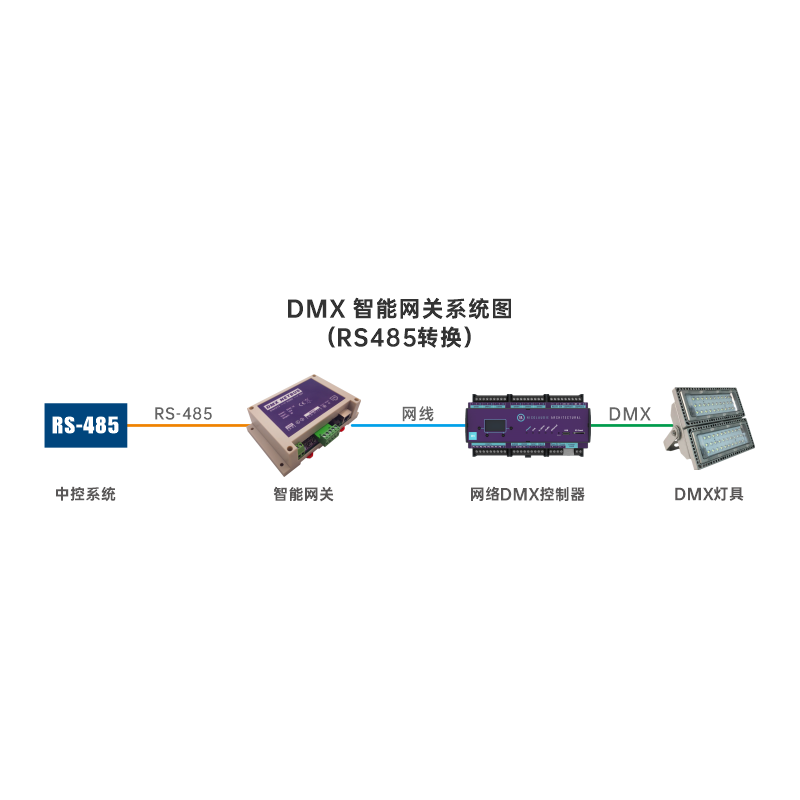

Protocol Conversion: DMX → UDP, DMX → RS485, and short RS485 → long UDP expansion—eliminates the need for multiple protocol gateways.
Universal Console Support: Works with Nicolaudie, Sunlite, Daslight all network DMX controllers; plug-and-play integration with existing lighting systems.

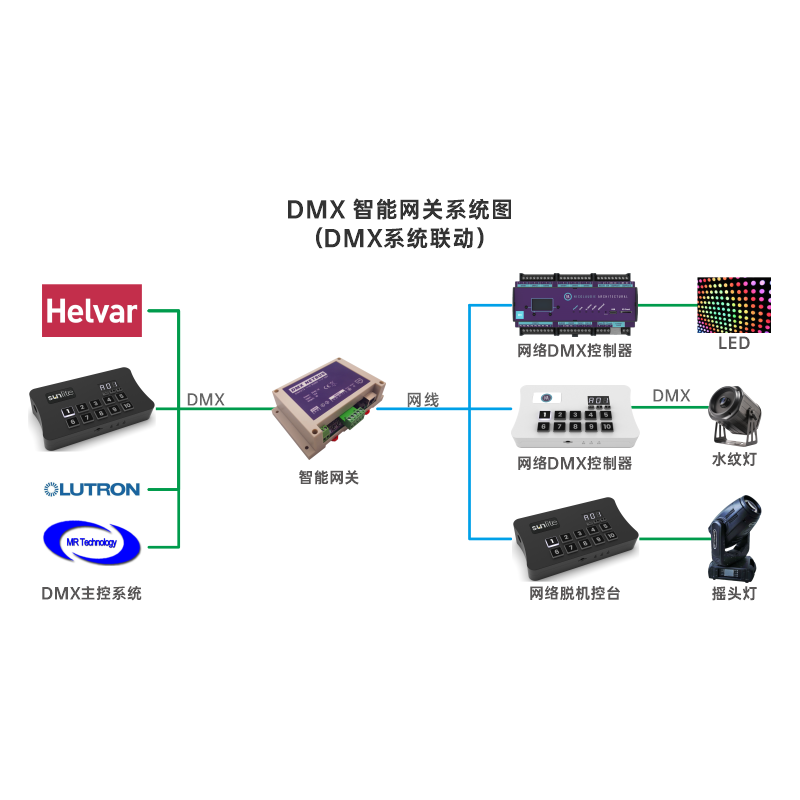

One-Master-Multiple-Slave: Supports hundreds of network offline controllers in a daisy-chain or star topology for large-scale installations.
Wide Device Compatibility: Controls projectors, smart lighting modules, RS485 relays, UDP-enabled AV gear, and any TCP/UDP/RS485 device.

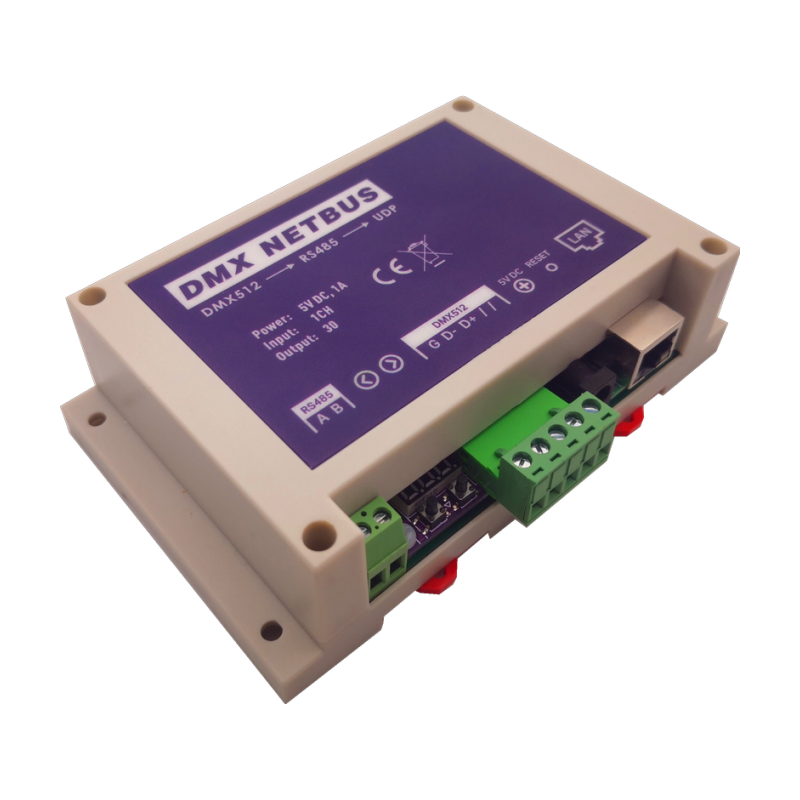

DMX-UDP DMX Smart Gateway
|
Category |
Specification |
|---|---|
|
Model |
DMX-UDP |
|
Product Type |
DMX to UDP / RS485 Protocol Gateway |
|
DMX Input |
2 Channels (DMX512 standard) |
|
Output Interface |
UDP (Ethernet), RS485 |
|
Command Capacity |
Up to 120 RS485/UDP instructions per DMX channel |
|
Conversion Modes |
DMX → UDP, DMX → RS485, Short RS485 → Long UDP |
|
Compatible Consoles |
Nicolaudie, Sunlite, Daslight (all network DMX controllers) |
|
Control Topology |
One-master, multiple-slave; supports 100+ network offline controllers |
|
Target Devices |
Projectors, smart lighting modules, RS485 devices, UDP/TCP equipment |
|
Network |
Ethernet (UDP output), RS485 terminal |
|
Configuration |
Console-based mapping, web interface (factory dependent) |
|
Installation |
Desktop / DIN rail / rack mount (confirm with manufacturer) |
