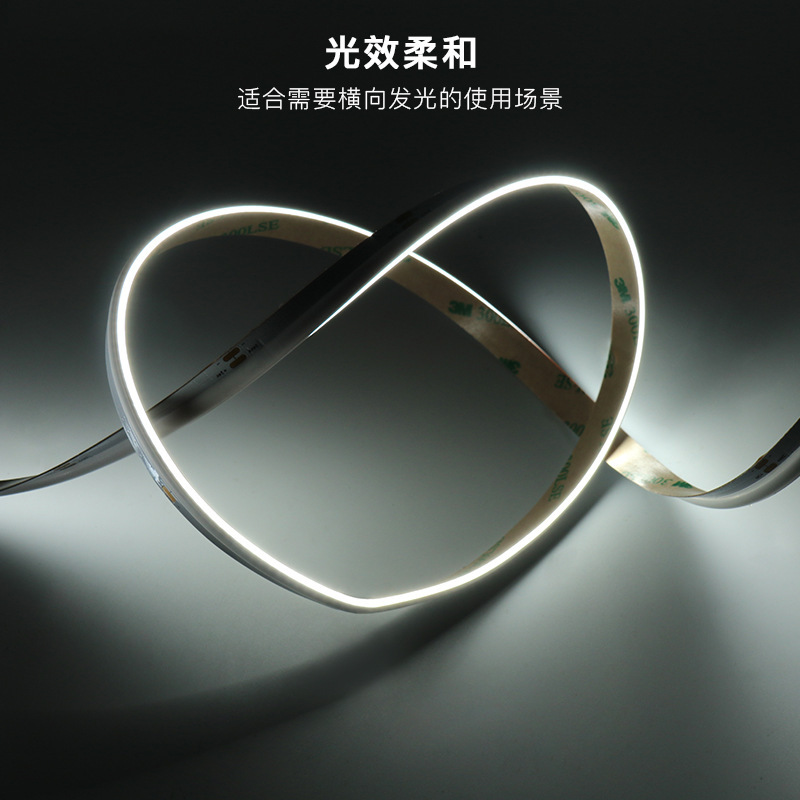

High CRI (Ra ≥90 / ≥95 optional) keeps wood grain, fabric and skin tones natural, while 2700K–6500K options cover cozy wardrobe glow to crisp task light. The 10mm flexible FPC bends into curves and tucks into 12mm+ profiles. Pair with a PWM / 0-10V / DALI dimmable driver for soft morning-to-night dimming. It’s the quiet detail that makes kitchens, closets and display furniture look professionally designed.
➡️ True Side Emission: Light exits from the strip side, not the top—ideal for recessed grooves, shelf lips, wardrobe back panels and edge-lit profiles with zero direct glare.

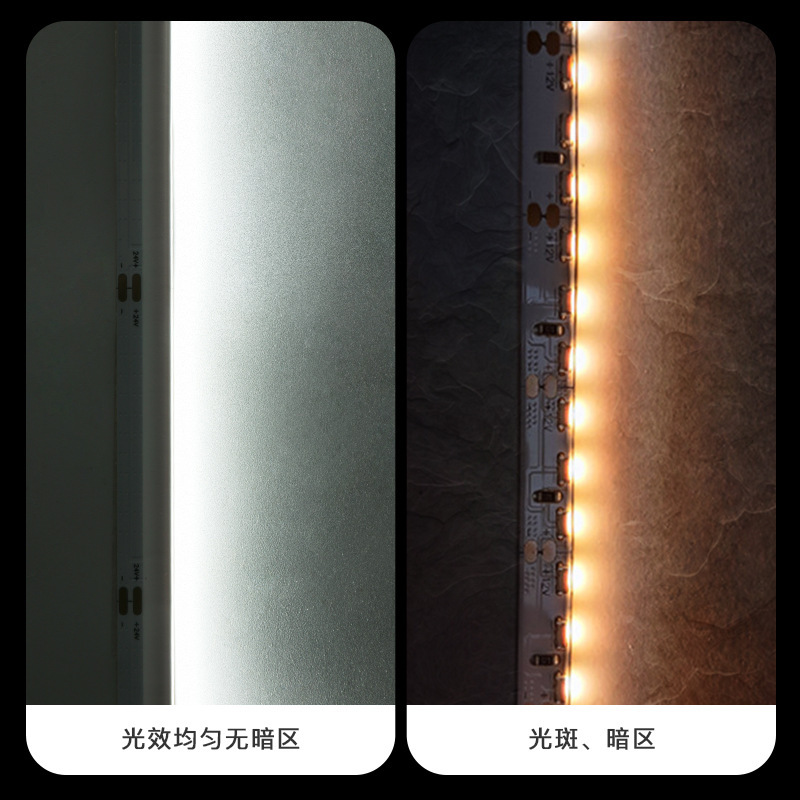

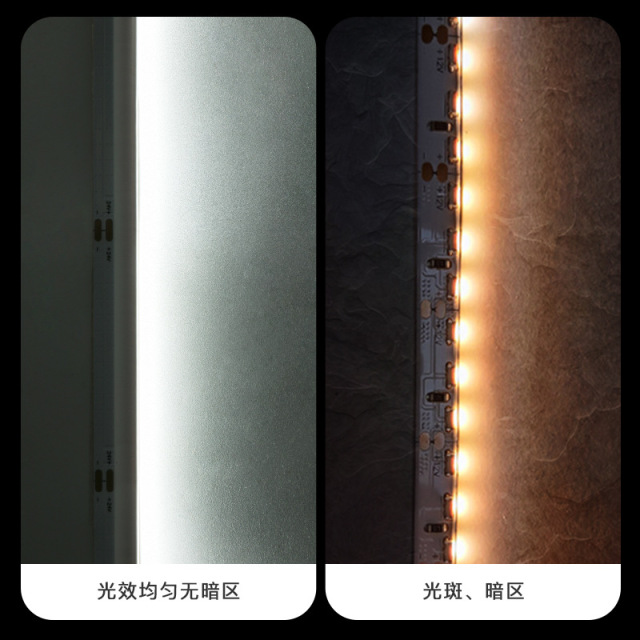

✨ 378/m COB = Dot-Free: High-density Chip-on-Board coating creates one continuous light line; no visible diodes, no hotspot, even before adding a diffuser.
🪵 Furniture-Grade CRI: Ra ≥90 standard (≥95 optional), 3-step MacAdam—wood, marble, lacquer and clothing colors stay accurate under cabinet/wardrobe light.
🔌 24V 15W/m Stable: Low-current CV input, less voltage drop, longer safe runs; ~15W/m gives bright task light without overheating thin plywood or MDF.
🚪 Cabinet & Wardrobe Ready: 10mm width hides in 12mm aluminum channels; cut marks, 3M backing, IP20/IP65 options—built for kitchen carcasses, closet valances, showcase trims.
Product Specification Sheet — 10mm COB Side-Emitting LED Strip
|
Category |
Item |
Specification |
|---|---|---|
|
General |
Type |
10mm COB Side-View / Side-Emitting LED Strip |
|
LED Tech |
COB (Chip-on-Board), white mono |
|
|
Density |
378 LEDs/m |
|
|
Electrical |
Voltage |
DC 24V Constant Voltage |
|
Power |
~15W/m (75W / 5m roll) |
|
|
Current |
~0.625A/m |
|
|
Optical |
CCT |
2700K / 3000K / 4000K / 5000K / 6500K |
|
CRI |
Ra ≥90 (≥95 optional) |
|
|
SDCM |
3-step |
|
|
Lumen |
~1350–1500 lm/m (depends on CCT/bin) |
|
|
Beam |
Side-emit, ~120° lateral fan (top glare suppressed) |
|
|
Mechanical |
PCB |
10mm wide, 2oz copper FPC |
|
Thickness |
~1.6–2.5mm |
|
|
Cut Unit |
~55.5mm / 2.19in (24V COB side-view common) |
|
|

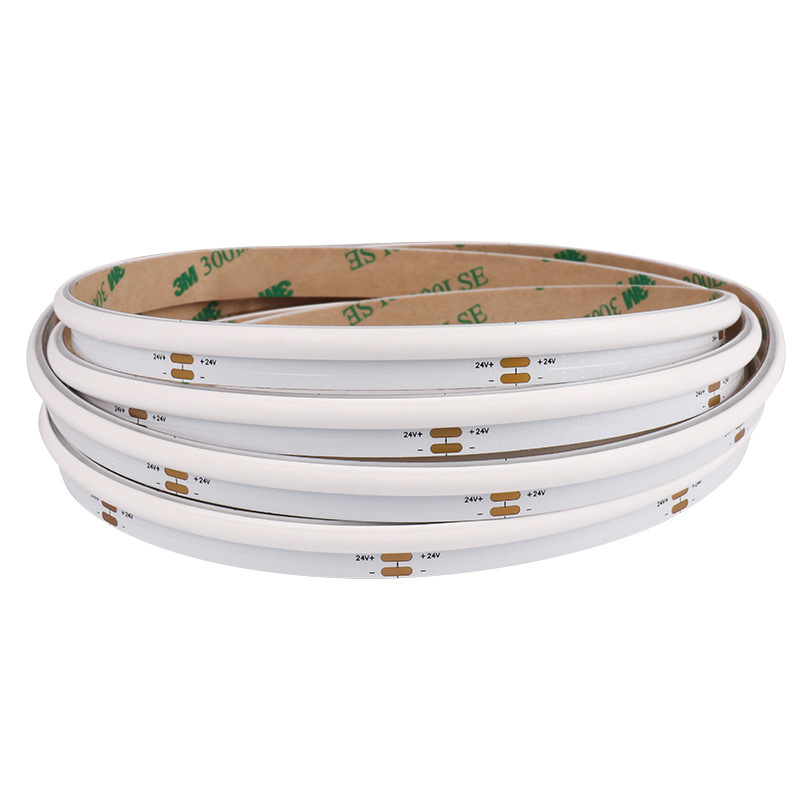

Roll |
5m standard |
|
|
Adhesive |
3M 300LSE / 9495LE |
|
|
Control |
Dimming |
PWM / 0-10V / DALI / Triac driver (non-addressable) |
|
Environment |
IP |
IP20 standard; IP65/IP67 optional |
|
Temp |
-20℃ ~ +60℃ |
|
|
Life |
50,000h (L70) |
|
|
Application |
Cabinet side groove, wardrobe interior, shelf edge, toe kick, cove, display case, furniture reveal, closet valance |
