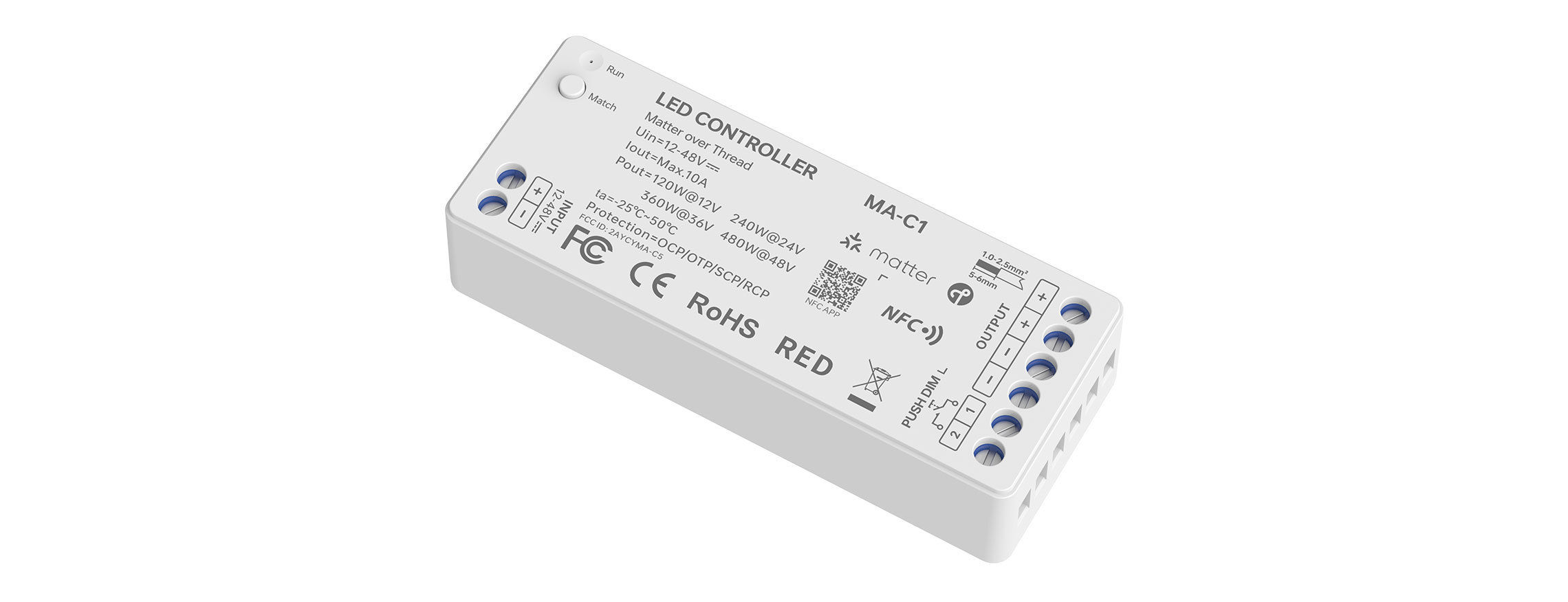

The MA-C1 features advanced NFC programming, allowing you to configure dimming curves, fade times, and power-on states instantly via smartphone—no disassembly required. With built-in PUSH dim support and comprehensive protection against short circuits and overheating, it offers reliable, user-friendly operation. Seamlessly integrate into Apple Home, Google Home, Alexa, and SmartThings ecosystems for unified smart control. Its compact, IP20-rated design and tool-free NFC setup make it ideal for architects, integrators, and DIY enthusiasts seeking a future-proof, high-performance lighting solution.
Matter over Thread Connectivity: Ensures low-latency, stable performance and universal compatibility across Apple Home, Google Home, Alexa, and SmartThings ecosystems.
One-Touch NFC Programming: Easily configure dimming parameters, fade times, and power-on states via smartphone NFC—no need to disassemble or enter complex app settings.
High Power & Wide Voltage: Supports 12–48VDC input and 10A max output, handling up to 480W load to drive long runs of single-color LED strips.
Versatile Control Options: Offers smooth 0–100% dimming with optional PUSH switch support for manual on/off and brightness adjustment.
Robust Protection & Reliability: Built-in safeguards against short circuits, over-temperature, over-current, and reverse polarity, ensuring long-lasting, safe operation.
|
Category |
Specification |
|---|---|
|
Model |
MA-C1 |
|
Product Type |
1-Channel DIM (Single Color) |
|
Protocol |
Matter over Thread |
|
Input Voltage |
12–48 VDC |
|
Max Output Current |
10 A |
|
Max Output Power |
120W (12V) / 240W (24V) / 360W (36V) / 480W (48V) |
|
Dimming Range |
0–100% |
|
Dimming Method |
PWM (Frequency configurable via NFC) |
|
NFC Programmable |
Yes (Fade time, min/max brightness, power-on state, etc.) |
|
PUSH Dim Support |
Yes (Single click: On/Off; Long press: Dim up/down) |
|
Protection |
Short circuit, Over-temperature, Over-current, Reverse polarity |
|
IP Rating |
IP20 |
|
Dimensions (L×W×H) |
91 × 37 × 21 mm |
|
Weight |
46 g |
|
Operating Temp. |
-25 ℃ ~ 50 ℃ |
|
Lifespan |
100,000 hours |
