The addition of a dedicated white chip delivers pure, natural white light for everyday illumination, eliminating the blueish tint common in RGB-only strips. Operating at 12V, it offers better power stability over longer runs compared to 5V alternatives. Perfect for architectural accents, home theaters, retail displays, and DIY smart lighting projects. Control it easily via Arduino, ESP32 (WLED), or standard SPI controllers. Bring your creative visions to life with brilliant color and true white in one versatile strip.

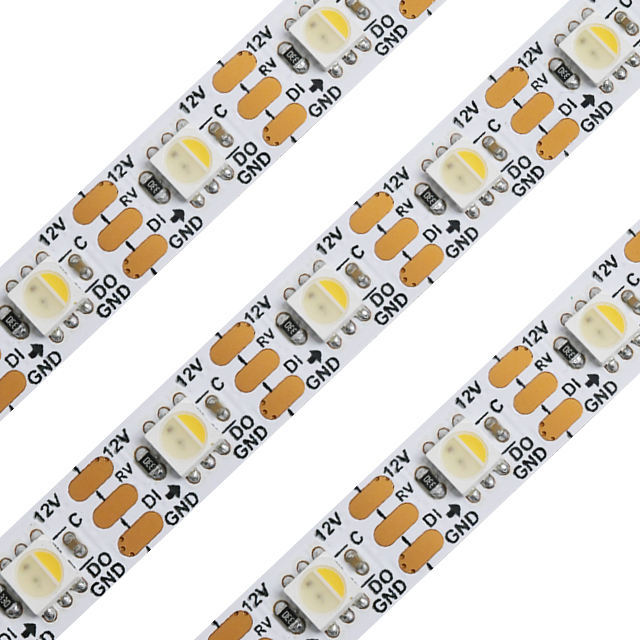

True RGBW Color Mixing: Each 5050 LED integrates Red, Green, Blue, and a dedicated White chip (3000K/4000K/6000K options) for both vibrant colors and practical, high-CRI white light.
Individually Addressable Pixels: Built-in LC8816E IC (SK6812 compatible) allows single-point control—each of the 60 LEDs per meter can display a different color and effect simultaneously.
Stable 12V Operation: Runs on DC12V, reducing voltage drop and allowing longer runs with fewer power injection points compared to 5V addressable strips.
High-Density & Cuttable: 60 pixels/meter for smooth visual effects; cuttable every single LED (16.7mm) to fit exact lengths without damaging the rest of the strip.
Wide Compatibility: Works seamlessly with popular controllers and software, including Arduino (FastLED library), ESP32/ESP8266 (WLED), SP series controllers, and DMX512 systems.
|
Parameter |
Specification |
|---|---|
|
Product Type |
Addressable RGBW LED Strip Light |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
IC Type |
LC8816E (Compatible with SK6812 RGBW) |
|
Working Voltage |
DC 12V |
|
Pixel Density |
60 LEDs / 60 Pixels per meter |
|
Power Consumption |
18–28W/m (Max. brightness, RGBW full on) |
|
Gray Scale |
256 levels per channel (16.7 million colors) |
|
Color Options |
RGB + White (3000K Warm / 4000K Natural / 6000K Cool) |
|
Cutting Unit |
Every 1 LED (16.7 mm) |
|
PCB Width |
10mm / 12mm (optional) |
|
Beam Angle |
120° |
|
IP Rating |
IP20 (Non-waterproof) / IP65 / IP67 (optional) |
|
Standard Length |
5 meters/reel (300 pixels) |
|
Data Protocol |
Single-wire return-to-zero (RZ) |
|
Compatible Controllers |
Arduino, ESP32 (WLED), SP105E, T-1000S/K-1000C, DMX SPI Decoder |
|
Operating Temp. |
-20°C to +60°C |
|
Warranty |
2 Years |
