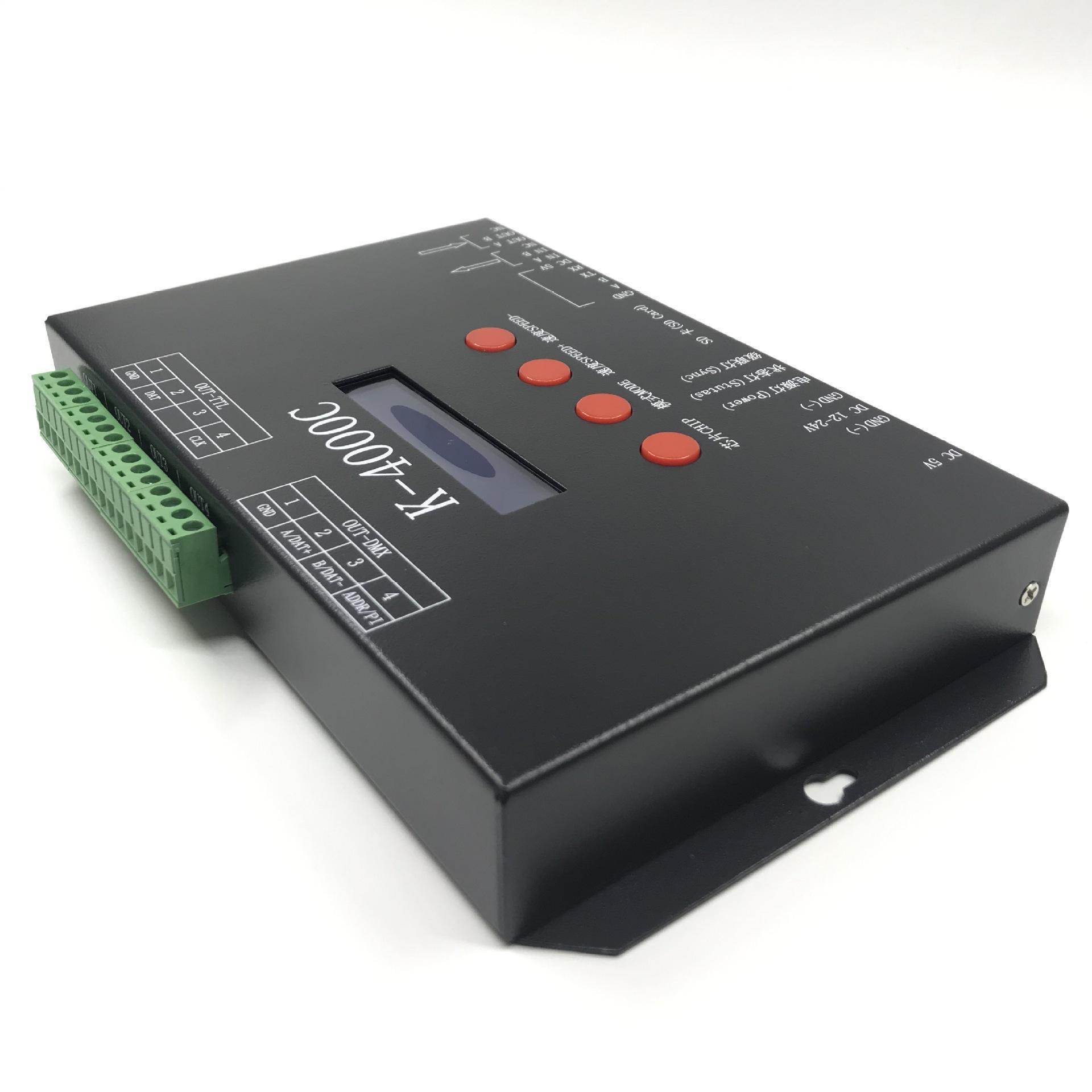

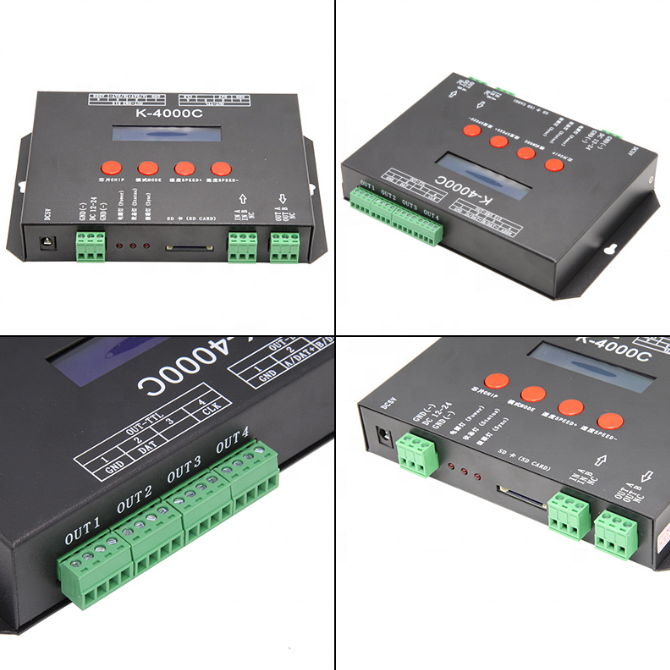

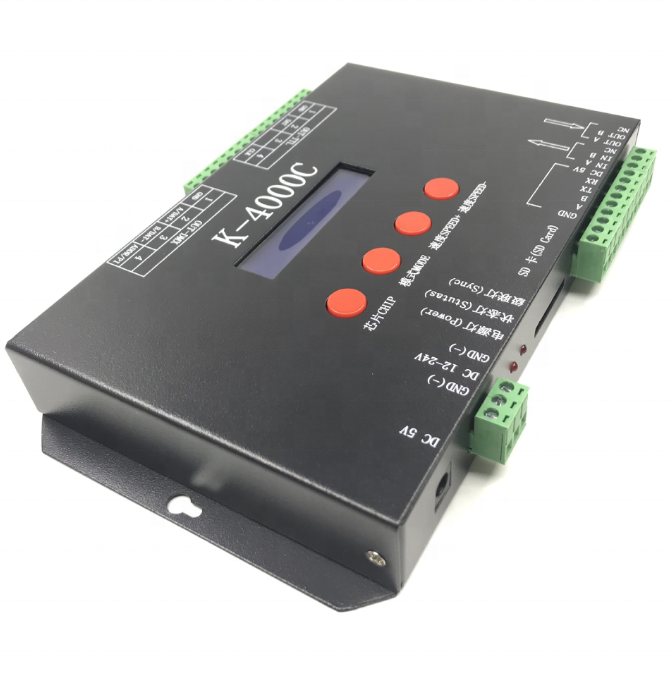

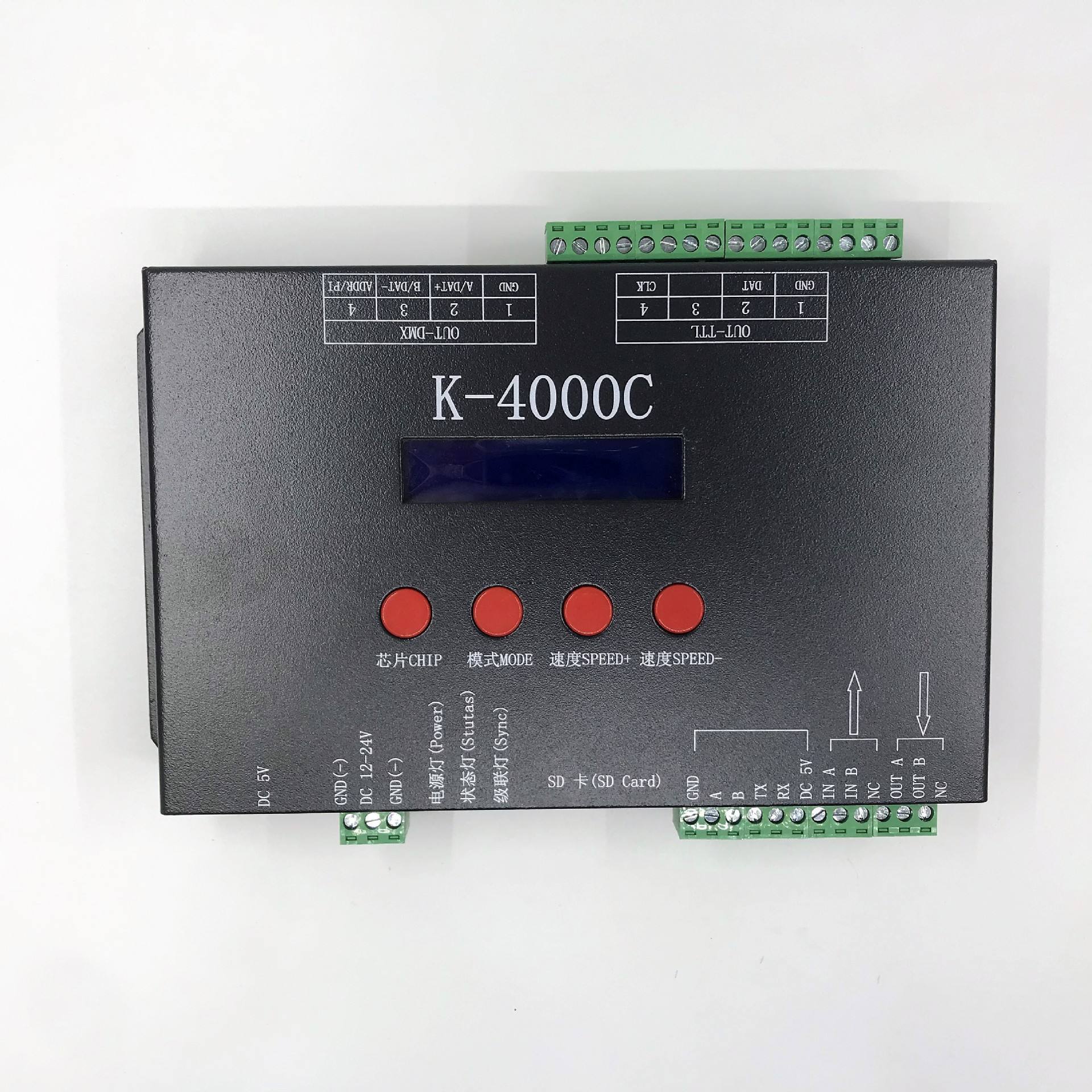

With 4 output ports, it can drive up to 4096 pixels simultaneously, making it ideal for large-scale installations. The controller features a wide voltage input (DC5V-24V) for compatibility with various LED strips and fixtures. Its robust design ensures stable performance in commercial advertising, architectural decoration, and stage lighting. Easy to program via LED Edit software, the K-4000C offers both flexibility and reliability for professionals seeking high-quality visual effects.
Universal Compatibility: Supports various SPI chips (WS2811, WS2812, SK6812, etc.) and standard DMX512 output, suitable for most pixel LEDs.
Offline Operation: Plays effects directly from an SD card (FAT32 format), eliminating the need for a PC to run continuously.
High Capacity: Features 4 output ports, controlling up to 1024 pixels per port (total 4096 pixels) for large-scale displays.
Wide Voltage Range: Operates on DC5V, 12V, or 24V, adapting to different power supply environments easily.
User-Friendly Software: Compatible with LedEdit-K for easy effect design, file export, and DMX address writing.
|
Item |
Specification |
|---|---|
|
Model |
K-4000C |
|
Input Voltage |
DC 5V / 12V / 24V |
|
Output Signal |
SPI (TTL) / DMX512 (RS485) |
|
Control Method |
SD Card (Offline) |
|
SD Card Support |
FAT/FAT32, Max 32GB |
|
Max Pixels |
1024 pixels/port, 4096 pixels total |
|
Max DMX Channels |
512 channels/port |
|
Refresh Rate |
30fps (512 pixels), 22fps (1024 pixels) |
|
Software |
LedEdit-K |
|
Supported ICs |
WS2811, WS2812, WS2813, SK6812, WS2801, APA102, etc. |
|
Working Temp. |
-30°C to 85°C |
|
Dimensions |
Approx. 130mm x 70mm x 25mm |
|
Application |
LED Strip, Pixel Screen, Advertising Sign, Stage Light |
