High Capacity – Controls up to 2048 pixels (SPI/TTL) or 512 DMX channels, suitable for most small-to-medium pixel projects.

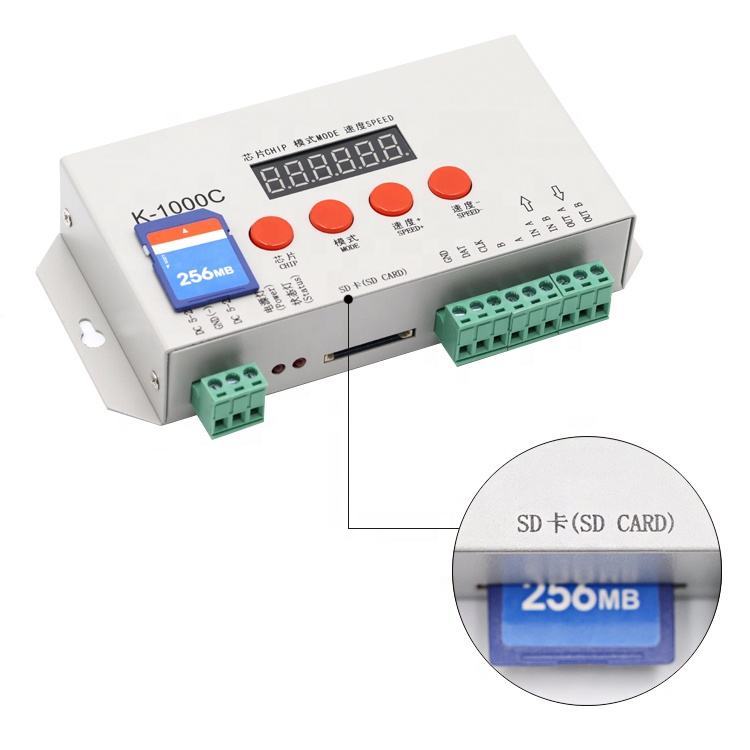

Standalone Operation – Program via PC with LedEdit-K, load .led files to SD card, and play without a computer; supports FAT/FAT32, up to 32GB.
Wide IC Compatibility – Works with WS2811, WS2812B, SK6812, WS2801, SM16703, APA102, SK9822, P9813, and more; easy chip selection via button or software.
Multi-Unit Synchronization – Optical-isolated A/B ports enable cascade connection of multiple controllers up to 150m apart for large-scale synchronized displays.
User-Friendly & Reliable – LCD display, CHIP/MODE/SPEED buttons, 22 built-in test patterns, 5–24V wide voltage, Gamma correction, and industrial-grade stability.
|
Item |
Specification |
|---|---|
|
Model |
K-1000C |
|
Power Supply |
DC 5–24V |
|
Data Output |
1 × SPI/TTL port (DAT/CLK), A/B differential (DMX/sync) |
|
Max Pixels (SPI) |
2048 points |
|
Max DMX Channels |
512 (recommended ≤320 for stability) |
|
Gray Scale |
32–65536 levels, software Gamma correction |
|
Storage |
SD card, 128MB–32GB, FAT/FAT32, root directory .led files |
|
Frame Rate |
~30fps @512px, ~25fps @1024px, ~15fps @2048px |
|
Cascade Sync |
Optical-isolated A/B ports, up to 150m |
|
Built-in Effects |
22 test patterns |
|
Control Buttons |
CHIP, MODE, SPEED+, SPEED− |
|
Software |
LedEdit-K (PC) |
|
Compatible ICs |
WS2811/WS2812B/SK6812/WS2801/SM16703/APA102/SK9822/P9813, etc. |
|
Dimensions |
Compact metal enclosure (approx. 135×45×25mm, varies by batch) |
|
Applications |
LED signage, pixel strips, contour lighting, stage & shop decoration |
