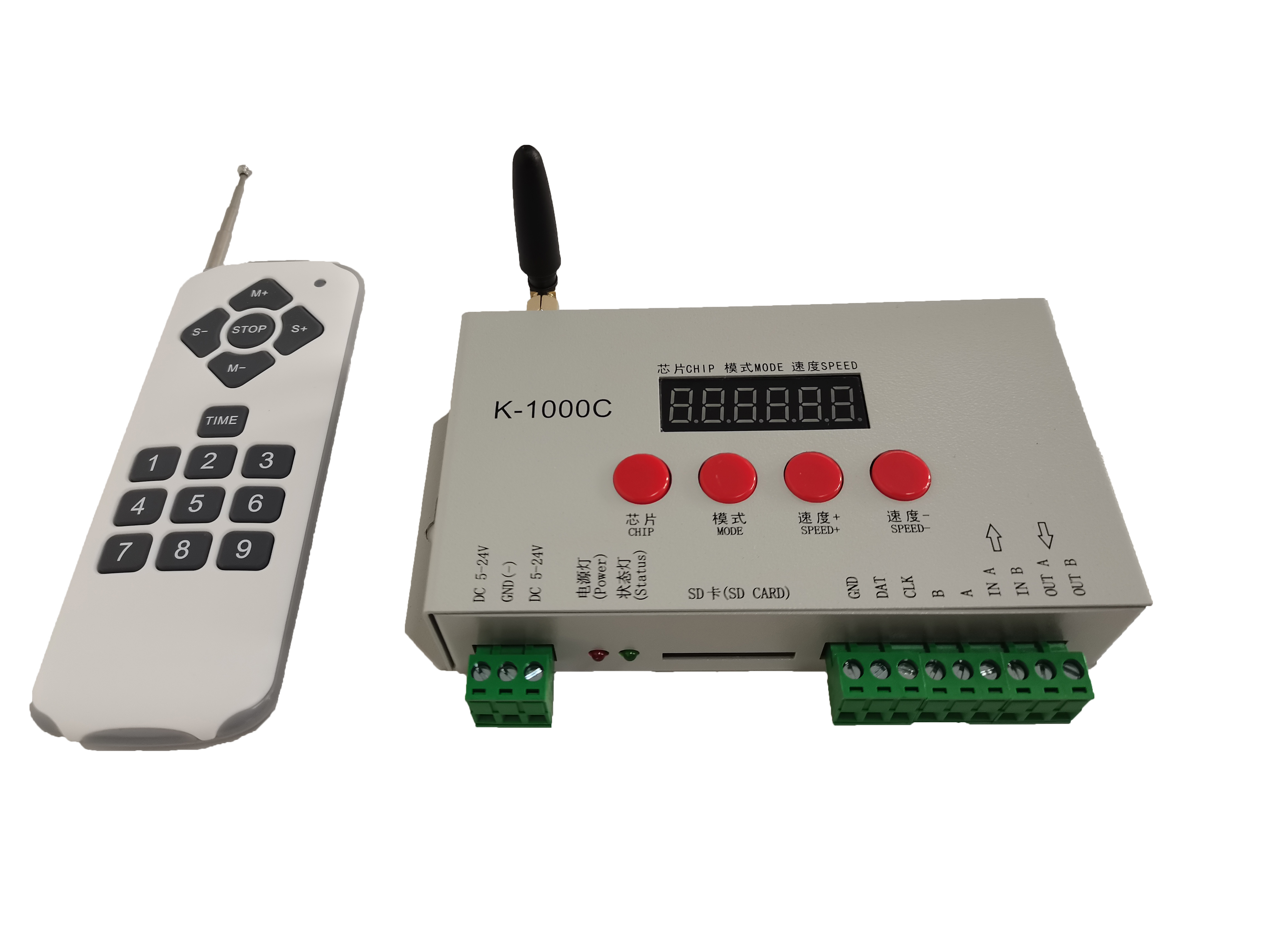

It supports a wide range of IC chips including WS2811, WS2812B, WS2813, SK6812, SM16716, APA102, and DMX512, making it highly versatile for LED strips, pixel bars, and modules. With a max output of 2048 pixels and wide voltage input (DC5-24V), it fits everything from home ambience to stage and architectural lighting. The compact design, easy chip-switching via buttons, and reliable RF control make it a favorite among lighting designers. Whether you're building a music-reactive wall, a holiday display, or commercial signage, the K-1000C delivers stable, vivid, and customizable pixel effects with minimal setup.
📡 2.4G RF Remote Control — Wireless operation up to 10m; switch modes, adjust speed, and power on/off without line-of-sight.
💾 SD Card Offline Playback — Load .ledeffect files onto an SD card (FAT32) for standalone operation; no PC required after setup.
🔧 Wide IC Compatibility — Supports WS2811, WS2812B, WS2813, WS2815, SK6812, SM16716, APA102, DMX512 and more via CHIP button selection.
⚡ High Capacity & Voltage Flexibility — Drives up to 2048 pixels; DC 5–24V input matches various LED strip voltages safely.
🎨 Easy to Program — Use free LedEdit software to create custom animations, then export to SD card; intuitive onboard buttons for chip and mode selection.
|
Item |
Specification |
|---|---|
|
Product Model |
K-1000C LED Controller |
|
Remote Type |
2.4G RF Remote (Battery: 23A 12V, not included) |
|
Control Method |
Offline SD card playback + RF remote / onboard buttons |
|
Supported IC Types |
WS2811, WS2812B, WS2813, WS2815, SK6812, SM16716, APA102, DMX512, etc. |
|
Max Pixel Count |
2048 pixels (depending on IC and refresh rate) |
|
SD Card Support |
FAT/FAT32, max 32GB (recommended 8–16GB) |
|
Effect File Format |
|
|
Input Voltage |
DC 5V–24V (match to LED strip voltage) |
|
Output Interface |
DAT (Data), CLK (Clock for some ICs), GND |
|
Dimensions |
Approx. 85 × 50 × 25 mm |
|
Working Temp. |
-20°C to 60°C |
|
Applications |
LED strips, pixel bars, matrix panels, outdoor signs, stage lighting, holiday decoration |
Always format SD card to FAT32 before copying .ledfiles.
Set the correct IC type using the CHIP button before first use.
Do not hot-plug LED strips; power off before wiring.
Remote requires line-of-sight for best range; avoid metal obstructions.
