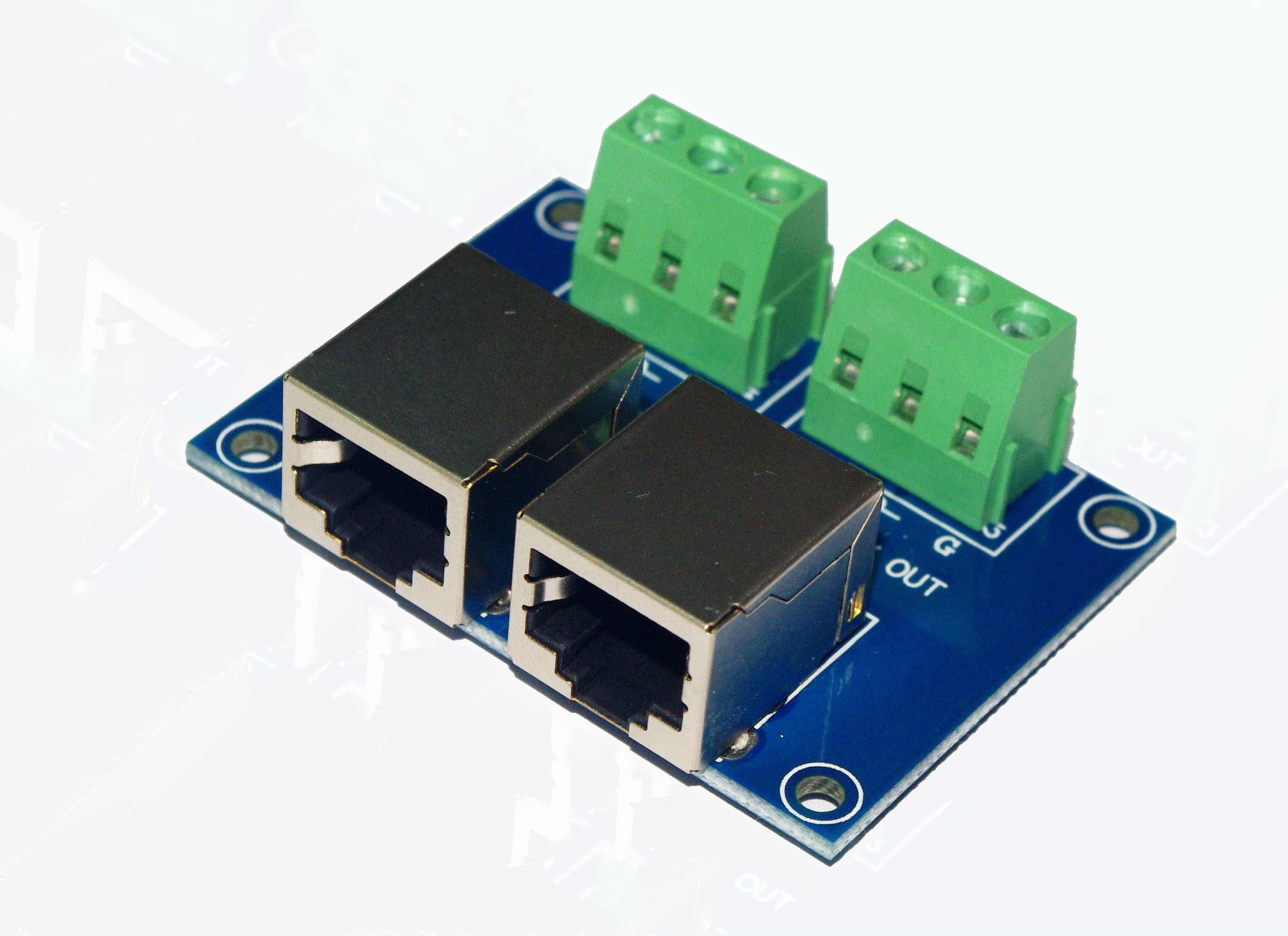

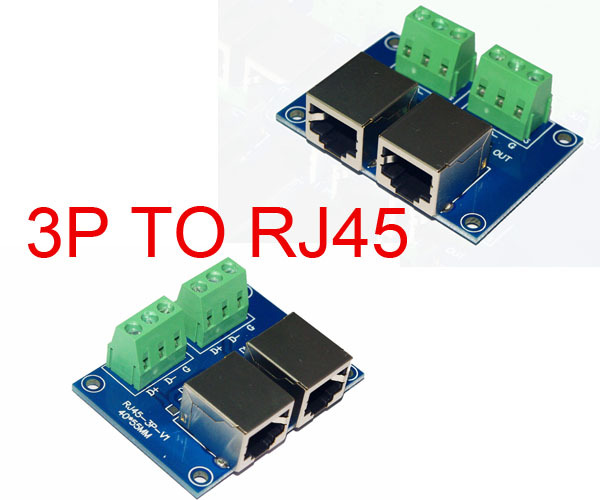

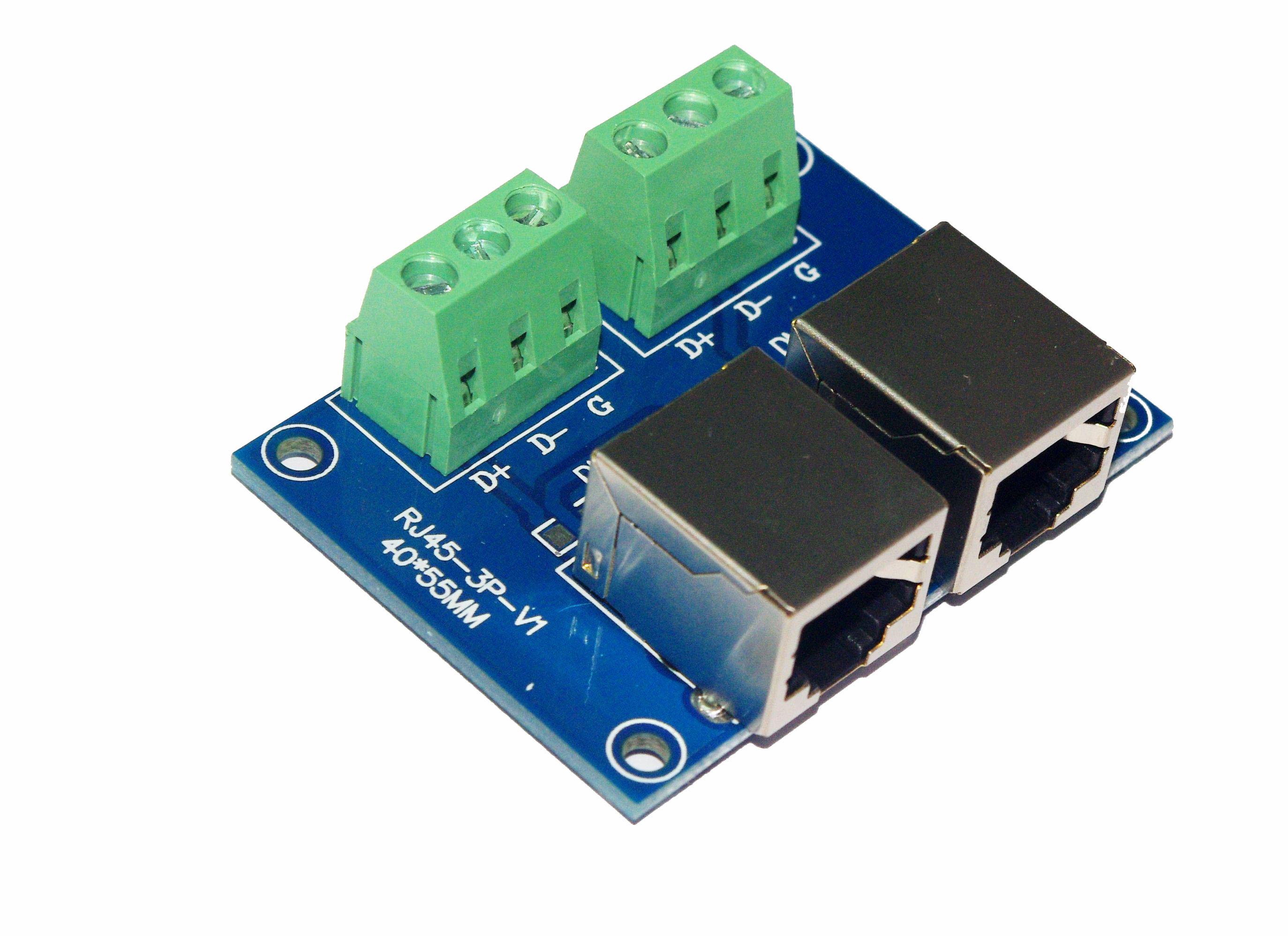

Versatile Compatibility: Specifically designed for RS485, serial data, and CCTV applications, supporting 3-pin configurations while maintaining a standard RJ45 form factor.
Durable Construction: Made from high-quality, flame-retardant ABS plastic to withstand industrial environments and ensure long-term durability.
Tool-Free Installation: Features a user-friendly design that allows for quick and easy wiring without the need for specialized crimping tools.
Space-Saving Design: The 3-pin setup minimizes wiring complexity, making it perfect for compact control panels and streamlined installations.
Secure Connection: Provides a stable and interference-resistant link for critical data transmission, ensuring signal integrity in security and automation systems.
|
Parameter |
Specification |
|---|---|
|
Product Type |
RJ45 3-Pin Modular Connector |
|
Positions/Contacts |
3P3C (3 Positions, 3 Conductors) |
|
Housing Material |
ABS Plastic (Flame Retardant) |
|
Contact Material |
Phosphor Bronze with Gold Plating |
|
Cable Compatibility |
CAT5, CAT5e, CAT6 (Solid or Stranded) |
|
Wire Gauge Range |
24-26 AWG |
|
Shielding |
Unshielded (UTP) |
|
Operating Temperature |
-20°C to +75°C |
|
Application |
RS485, Serial Communication, CCTV, Access Control |
|
Installation Method |
Screw Terminal / Tool-Free |
