The 24V constant voltage platform ensures stable output under heavy load. Requiring robust aluminum profiles and high-capacity drivers, this powerhouse strip is built for demanding environments that need relentless, uniform illumination. Cuttable every 50mm for precision layout. The ultimate high-power solution when only raw light output will do.
(103 words)
Massive 7500 lm/m Output: Extreme brightness for high-bay, warehouse, and large architectural spaces where maximum illumination is critical.
Selectable CRI (Ra80/90/95): Scales from cost-effective industrial utility to premium retail and display environments requiring accurate color.
Heavy-Duty 24V Constant Voltage: Engineered for high-current operation with proper power delivery; supports long runs with adequate gauge wiring.
Precision 50mm Cut Unit: Cut every 50mm (12 LEDs) for exact layout planning in large-scale installations.
Built for Industrial Use: Designed to pair with heavy-duty aluminum profiles and high-capacity drivers for reliable, continuous operation.
|
Item |
Specification |
|---|---|
|
Product Name |

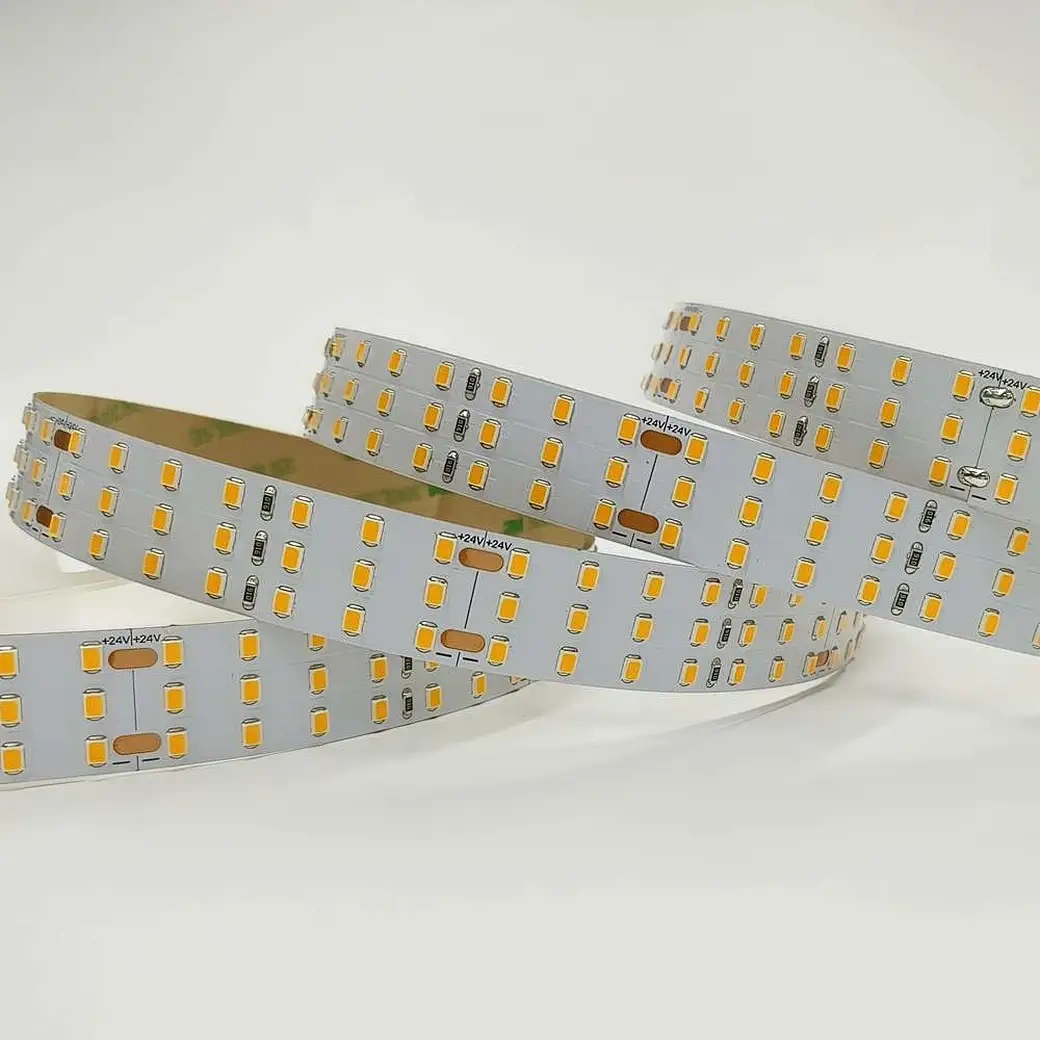

Industrial High-Power 2835 LED Strip Light |
|
LED Type |
SMD 2835 (High-Power Grade) |
|
LED Density |
240 LEDs/meter (estimated) |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
48W/meter (max. rated) |
|
Luminous Efficacy |
~156 lm/W (system level) |
|
Luminous Flux |
7500 lm/m (rated output) |
|
Color Rendering Index |
Ra80 / Ra90 / Ra95 (selectable) |
|
Color Temperature |
2700K / 3000K / 4000K / 5000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 50mm (12 LEDs) |
|
PCB Width |
12mm / 15mm / 20mm (optional, 3oz copper recommended) |
|
Roll Length |
5 meters/reel (max. 2m continuous recommended) |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV high-capacity power supply (30% power margin minimum) |
|
Heat Dissipation |
Required — heavy-duty aluminum profile with thermal transfer tape |
|
Wiring |
20AWG minimum; parallel feed recommended every 2m |
|
Applications |
High-bay warehouse, industrial production line, large cove, stadium, tunnel, parking garage |
|
Warranty |
3–5 years (varies by supplier) |
