Class-Leading 2880 lm/m Output: Packs massive brightness at only 16W/m—perfect for high-ambient spaces, task lighting, and large-scale architectural installs.
180lm/W Ultra-High Efficacy: Industry-leading luminous efficiency keeps energy costs and heat generation remarkably low for such high output.
Selectable CRI (Ra80/90/95): One SKU covers all project grades—from budget-conscious utility (Ra80) to premium color-critical environments (Ra95).
Stable DC24V Constant Voltage: Minimal voltage drop ensures consistent brightness over extended runs; safe low-voltage operation throughout.
Precision 37.5mm Cut & Fully Dimmable: Cut every 37.5mm (6 LEDs) for exact length control; compatible with PWM, 0-10V, and DALI systems.
|
Item |
Specification |
|---|---|
|
Product Name |

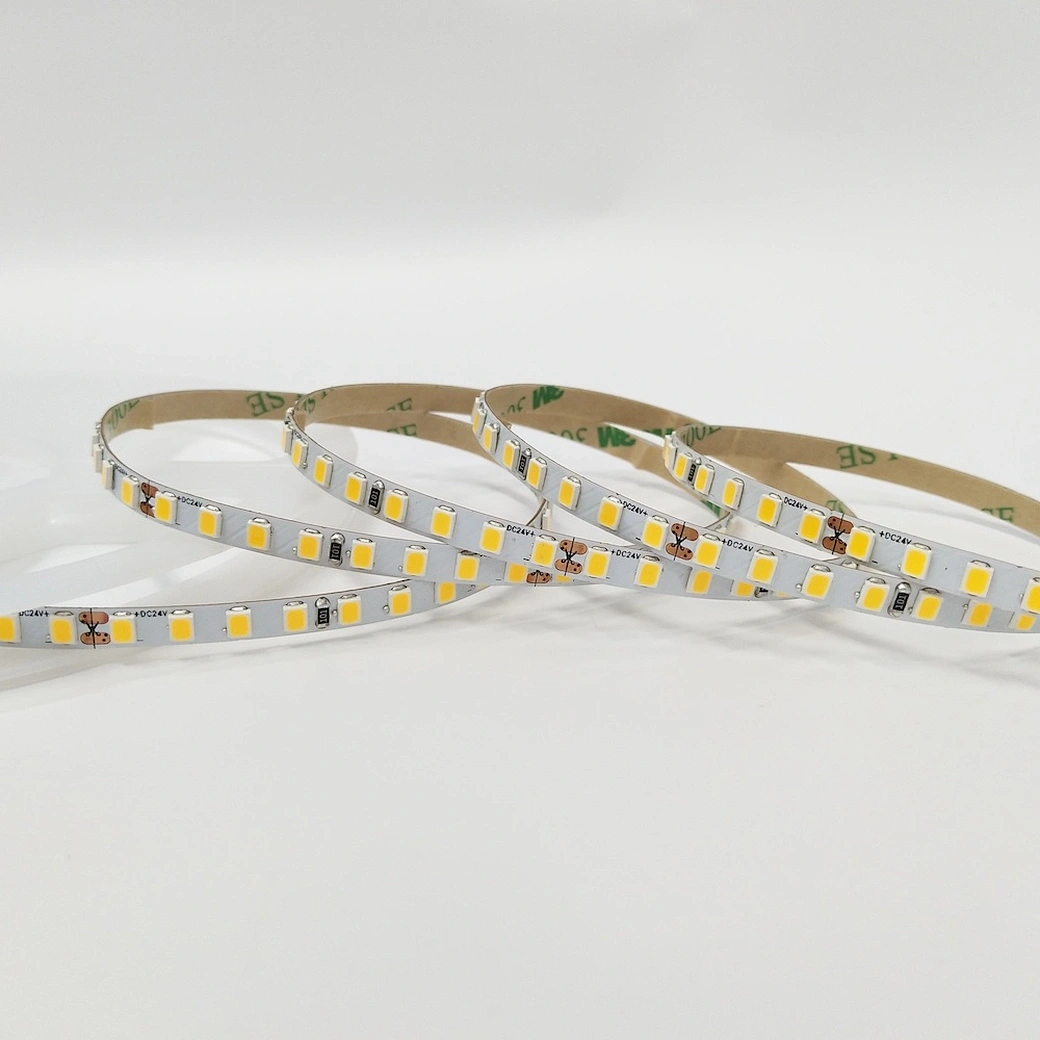

High-Output 2835 LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
160 LEDs/meter |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
16W/meter (max. rated) |
|
Luminous Efficacy |
180 lm/W (LED/module level) |
|
Luminous Flux |
2880 lm/m (rated output) |
|
Color Rendering Index |
Ra80 / Ra90 / Ra95 (selectable) |
|
Color Temperature |
2700K / 3000K / 4000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 37.5mm (6 LEDs) |
|
PCB Width |
10mm / 12mm (optional) |
|
Roll Length |
5 meters/reel |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV LED power supply (20–30% power margin) |
|
Heat Dissipation |
Recommended with aluminum profiles |
|
Applications |
High-output cove, retail display, hotel lobby, task lighting, architectural flood, linear fixtures |
|
Warranty |
3–5 years (varies by supplier) |
