High Lumen Output (2592 lm/m): Exceptional brightness from just 14.4W/m—ideal for ambient fills, cove lighting, and retail displays that need strong illumination without high power draw.
180lm/W High Efficacy: Industry-leading luminous efficiency reduces energy costs and thermal load, enabling longer runs with lighter heat management.
Selectable CRI (Ra80/90/95): One platform scales from cost-effective general lighting (Ra80) to high-fidelity color rendering (Ra95) for premium interiors.
Stable DC24V Constant Voltage: Low voltage drop ensures consistent brightness over 5m+ runs; safe low-voltage operation for residential and commercial projects.
Precision Cut & Fully Dimmable: Cut every 50mm (6 LEDs) for exact length matching; compatible with PWM, 0-10V, and DALI dimming systems.
|
Item |
Specification |
|---|---|
|
Product Name |

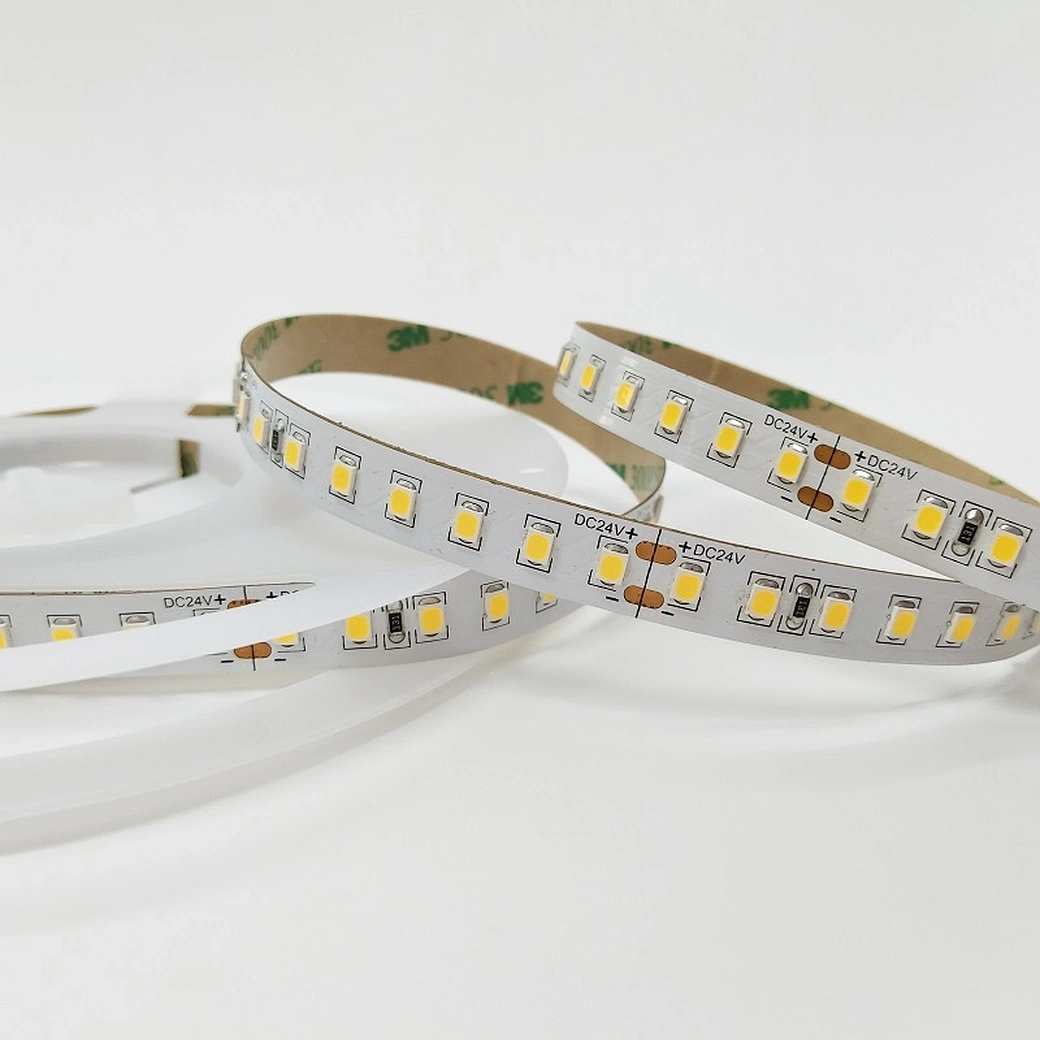

High-Lumen 2835 LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
128 LEDs/meter |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
14.4W/meter (max. rated) |
|
Luminous Efficacy |
180 lm/W (LED/module level) |
|
Luminous Flux |
2592 lm/m (rated output) |
|
Color Rendering Index |
Ra80 / Ra90 / Ra95 (selectable) |
|
Color Temperature |
2700K / 3000K / 4000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 50mm (6 LEDs) |
|
PCB Width |
10mm (standard) |
|
Roll Length |
5 meters/reel |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV LED power supply (20–30% power margin) |
|
Heat Dissipation |
Recommended with aluminum profiles |
|
Applications |
High-output cove, retail display, architectural flood, hotel lobby, task accent |
|
Warranty |
3–5 years (varies by supplier) |
