High-Density 192 LEDs/m: Provides uniform, near dot-free light output—perfect for shallow diffusers and close-proximity viewing.
160lm/W High Efficacy: Maximizes brightness while minimizing power draw and heat, reducing both energy costs and thermal management needs.
Selectable CRI (Ra80/90/95): Flexible color rendering options to match any project budget and quality requirement, from commercial to museum-grade.
Stable DC24V Constant Voltage: Low voltage drop enables reliable long runs; safe, low-voltage operation suitable for residential and commercial installations.
Precision Cut & Fully Dimmable: Cut every 31.25mm (6 LEDs) for exact length control; compatible with PWM, 0-10V, and DALI dimming systems.
|
Item |
Specification |
|---|---|
|
Product Name |

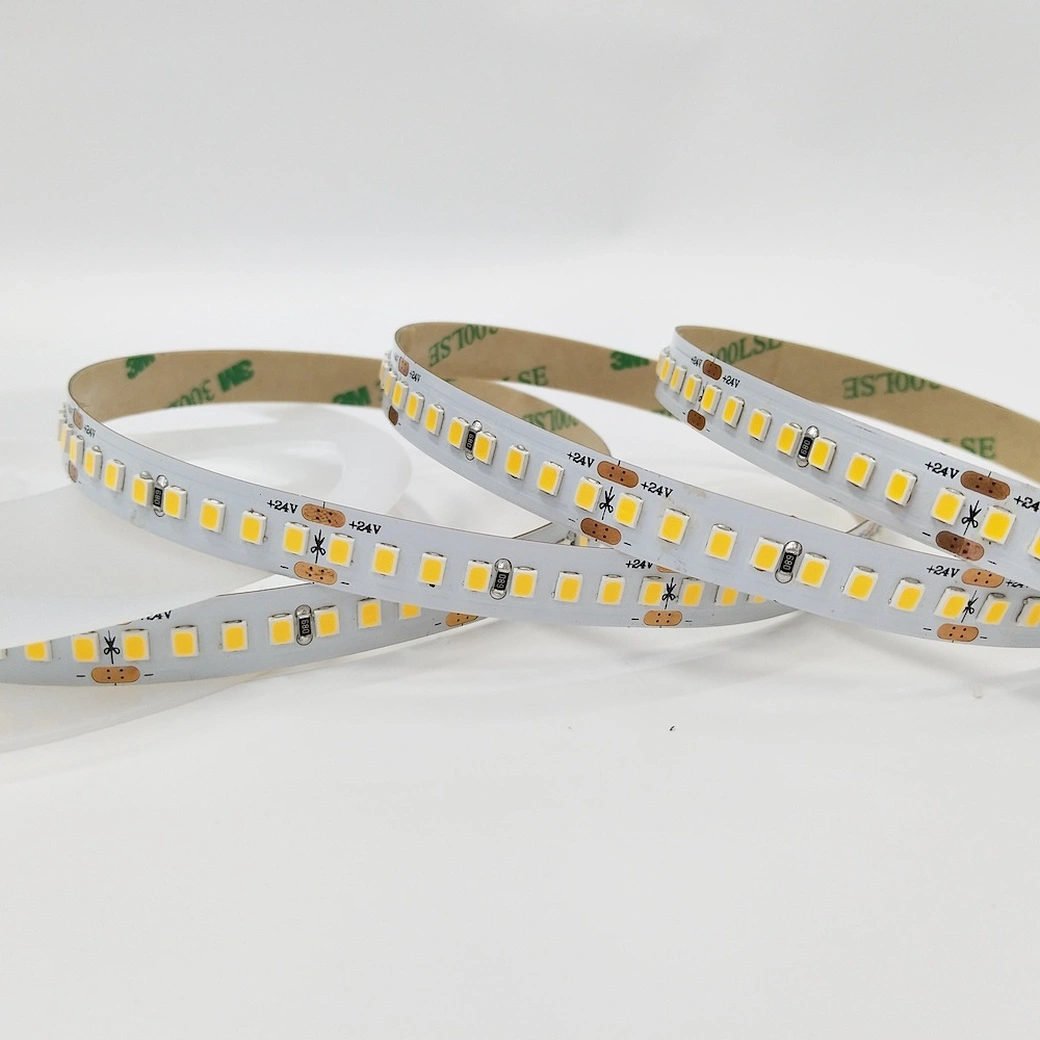

High-Density 2835 LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
192 LEDs/meter |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
20W/meter (max. rated) |
|
Luminous Efficacy |
160 lm/W (LED/module level) |
|
Luminous Flux |
Approx. 3200 lm/m (theoretical max.) |
|
Color Rendering Index |
Ra80 / Ra90 / Ra95 (selectable) |
|
Color Temperature |
2700K / 3000K / 4000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 31.25mm (6 LEDs) |
|
PCB Width |
10mm / 12mm (optional) |
|
Roll Length |
5 meters/reel |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV LED power supply (20–30% power margin) |
|
Heat Dissipation |
Recommended with aluminum profiles (20W/m thermal load) |
|
Applications |
Cove lighting, cabinet & shelf, retail display, hotel & hospitality, linear fixtures |
|
Warranty |
3–5 years (varies by supplier) |
