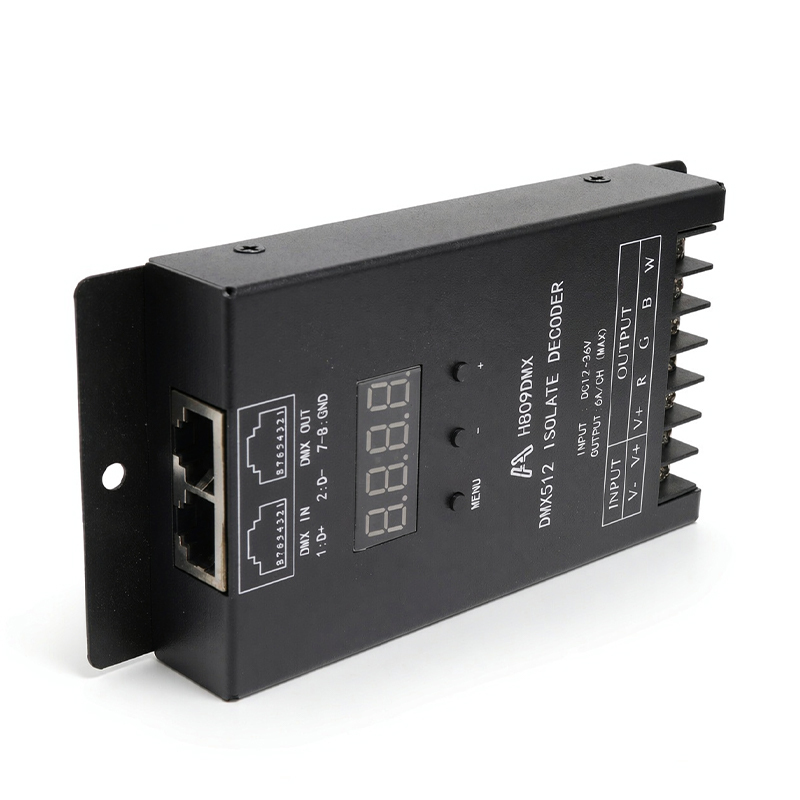

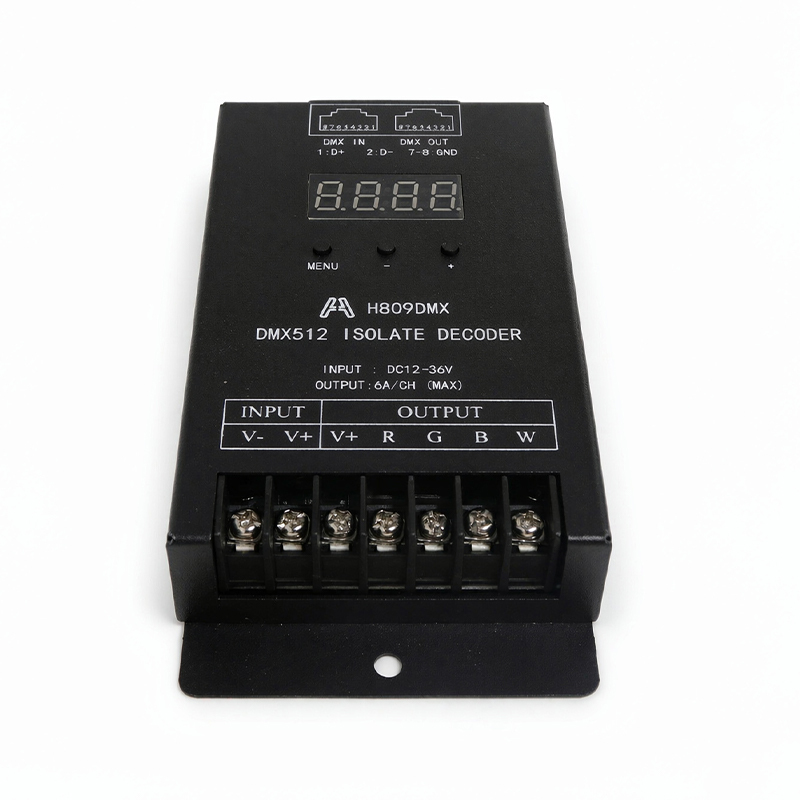

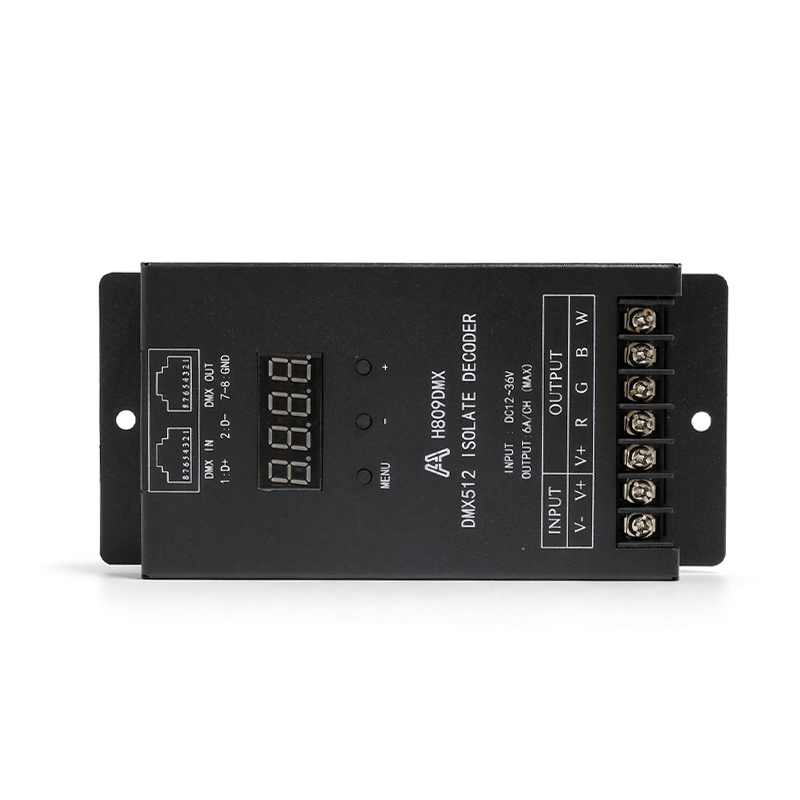

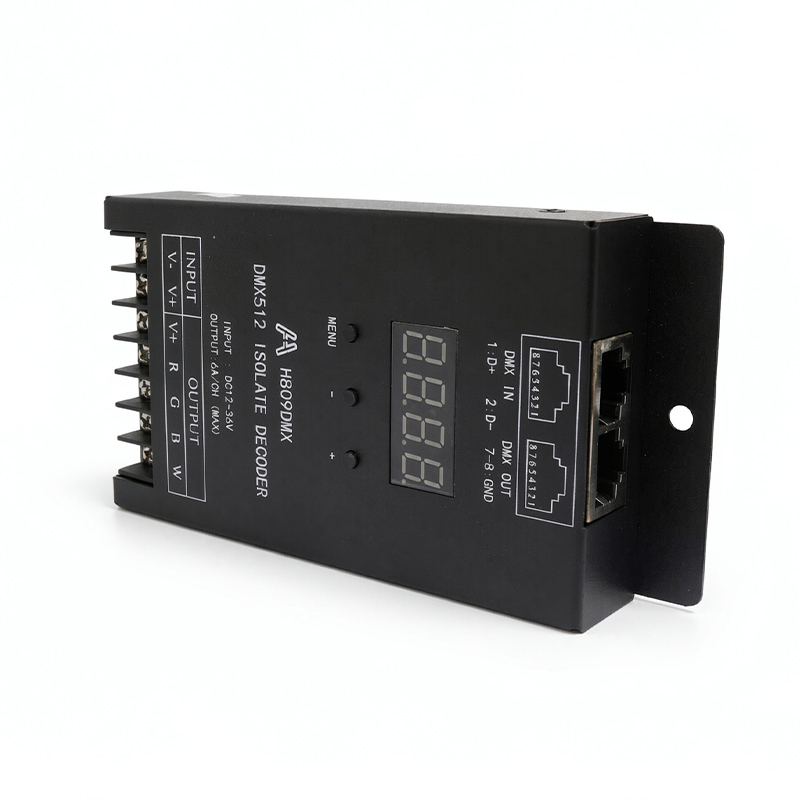

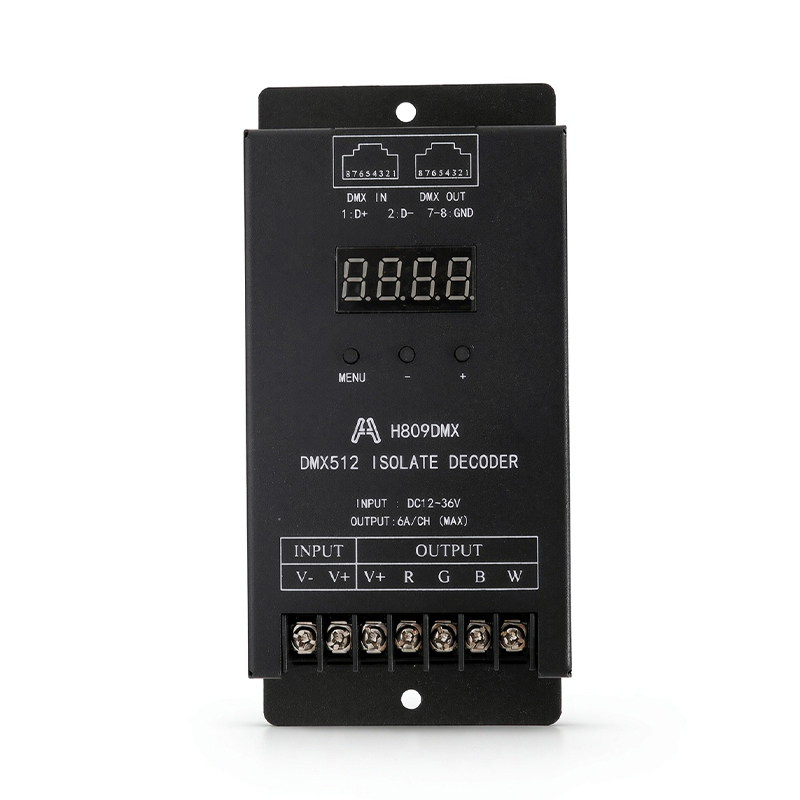

The H809DMX constant-voltage DMX512 decoder converts standard DMX512 signals into smooth PWM dimming for single-color, CCT, RGB, or RGBW LED strips. Compatible with 12V/24V systems, it supports up to 5A per channel for high-power installations. DIP-switch addressing enables quick setup without software. Built-in auto programs provide standalone chase and fade effects when DMX signal is absent. Ideal for stage lighting, architectural facades, retail displays, and hotel ambient control. Rugged metal housing and screw terminals ensure reliable professional deployment. Pair it with COB strips, neon flex, or any constant-voltage LED fixture for seamless DMX integration.
True Constant-Voltage PWM Output: Delivers flicker-free dimming for single-color, tunable white, RGB, and RGBW LED strips (12V/24V).
Standard DMX512 Compatibility: Works with any DMX console, splitter, Art-Net/sACN node, or RDM-enabled system.
DIP Switch Addressing: Set start address in seconds—no PC, no app, no complicated menu navigation.
High Load Capacity: Up to 5A per channel (total 15A–20A depending on model), suitable for long LED runs.
Standalone Auto Modes: Built-in fade, jump, chase, and static presets for non-DMX backup operation.
|
Item |
Specification |
|---|---|
|
Model |
H809DMX (Constant Voltage) |
|
Input Signal |
DMX512 / DMX1990 |
|
Input Voltage |
DC12V / DC24V (select per model) |
|
Output Type |
Constant Voltage PWM |
|
Output Channels |
3CH (RGB) / 4CH (RGBW) / 1CH / 2CH (configurable by wiring) |
|
Max Load per Channel |
5A (typical) |
|
Total Max Load |
15A–20A (model dependent) |
|
DMX Channels Occupied |
1CH / 2CH / 3CH / 4CH |
|
Addressing |
10-bit DIP switch (1–512) |
|
PWM Frequency |
500Hz–8kHz (model dependent) |
|
Connectors |

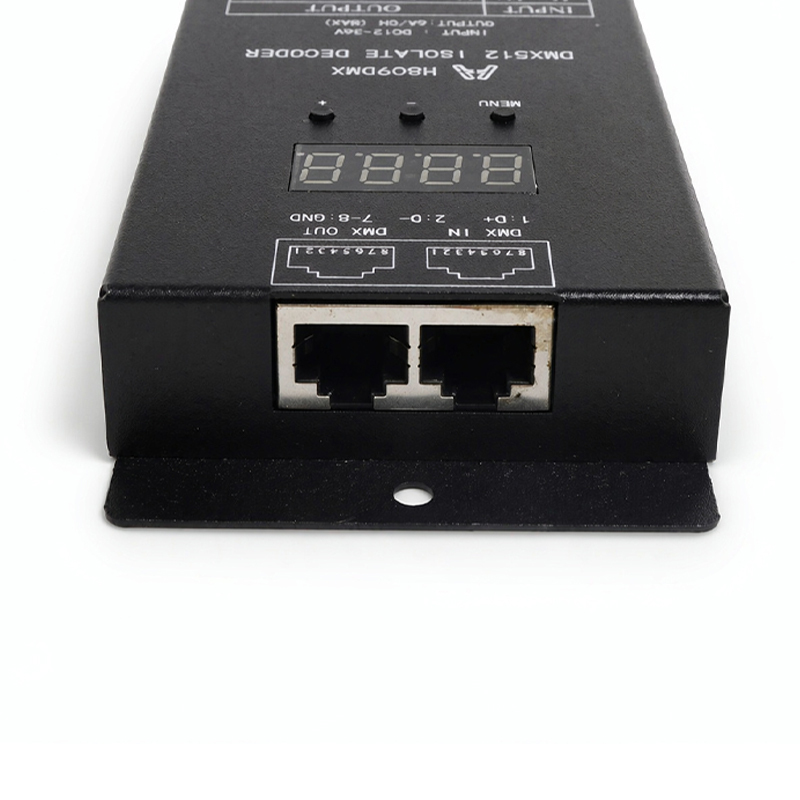

Screw terminal for LED; XLR-3 / RJ45 for DMX |
|
Auto Mode |
Fade, jump, chase, static |
|
Housing |
Aluminum / ABS |
|
Dimensions |
≈125 × 52 × 40 mm |
|
Operating Temp |
-20°C to +60°C |
|
Applications |
Stage, architecture, cove, facade, retail, hospitality |
