With 13 DMX channels, users can control brightness, RGB foreground/background color, built-in running effects, speed, grouping and pixel count. No DMX signal? It auto-plays comet-tail and gradient effects. Perfect for stage lighting, architectural pixel mapping, KTV, bars and signage.
DMX512 Console Ready: Directly controlled by standard DMX512 lighting consoles.
SPI Pixel Compatible: Works with WS2811, WS2812, WS2813, SK6812, UCS1903, SM16703, etc.
1024 Pixels Support: Controls up to 1024 pixels; 3 ports output same data for easy wiring.
13-Channel Smart Control: Brightness, RGB, effects, speed, grouping, background color, flash and pixel count.
Standalone Backup Mode: Without DMX data, it runs built-in comet/gradient effects automatically.

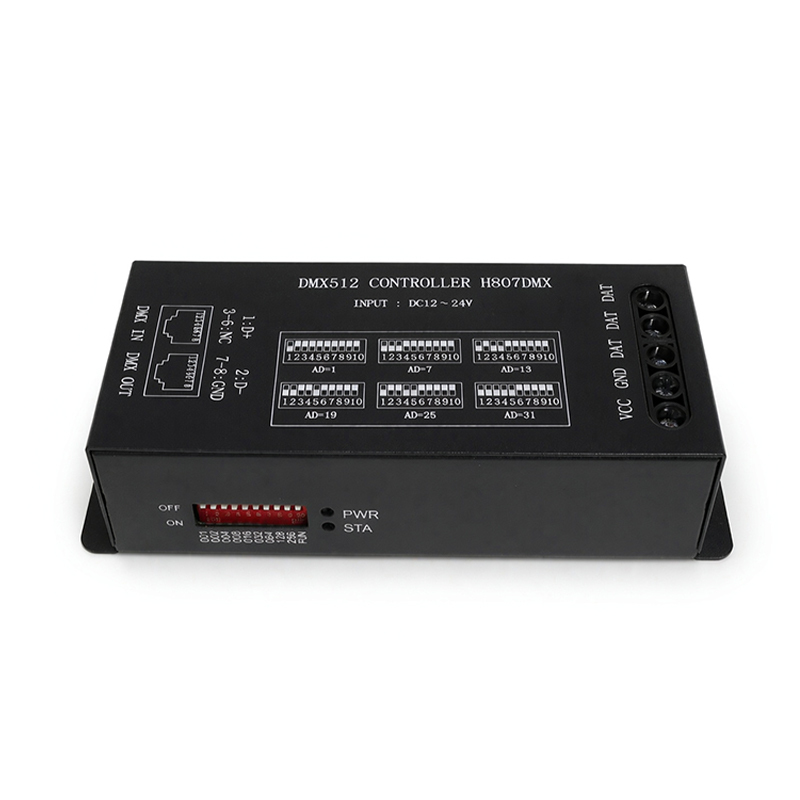

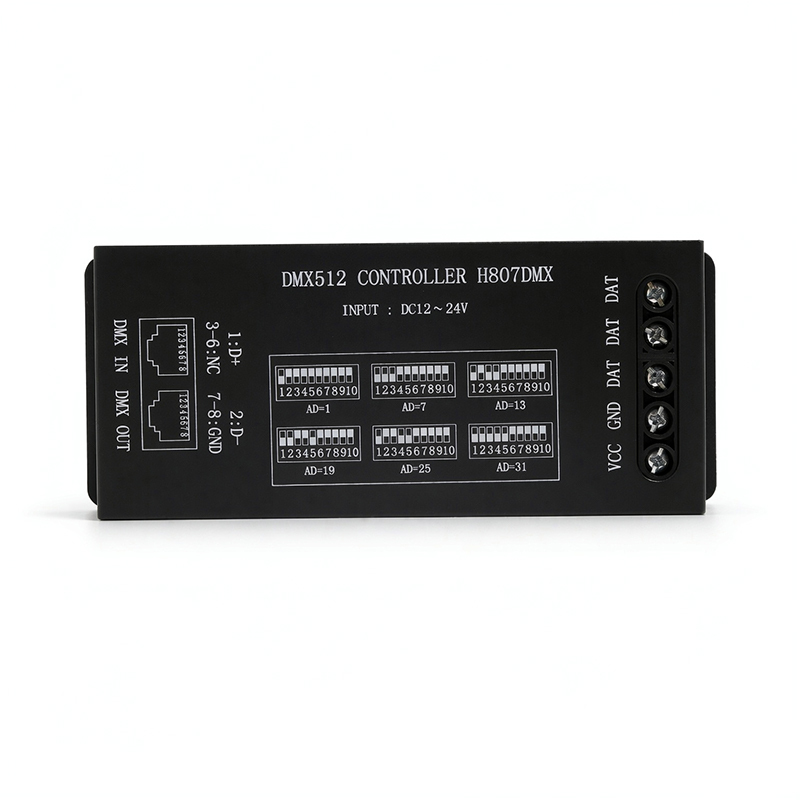

Model: H807DMX
Type: DMX512 to SPI Pixel Decoder / Controller
Input Voltage: DC12V–24V（some listings DC5–24V）
Power Consumption: < 1W（typical）
DMX Protocol: Standard DMX512
DMX Channels: 13 channels per decoder
Pixel Capacity: Max 1024 pixels
Output Ports: 3 ports, same SPI data
Supported ICs: WS2811, WS2812, WS2812B, WS2813, SK6812, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SM16703, SM16709, SM16712, INK1003, P943, P9411, P9883 etc.

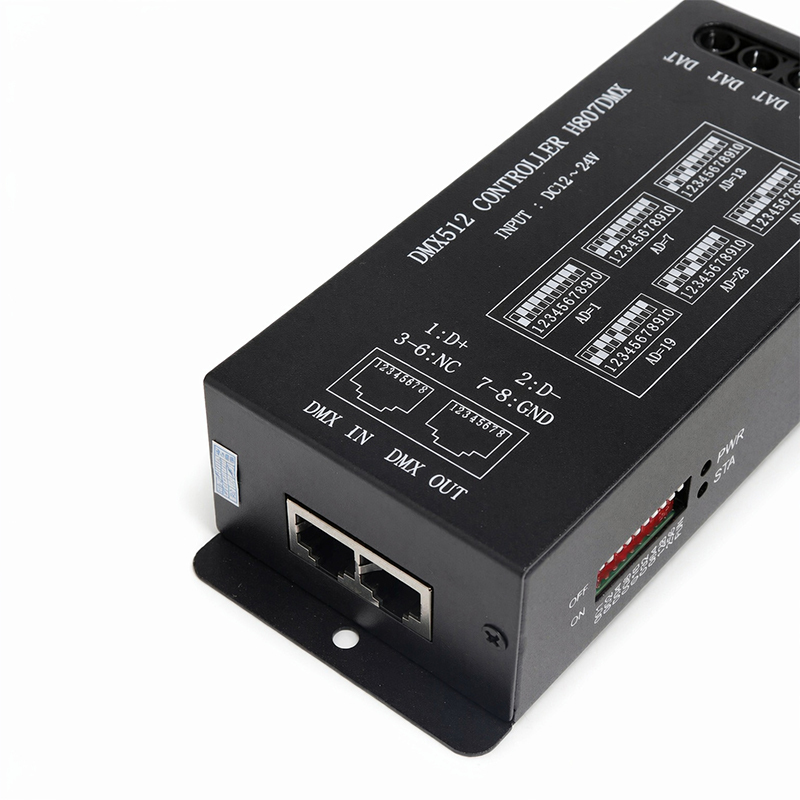

Address Setting: 10-bit DIP switch（switch 10 unused）, sets start DMX address

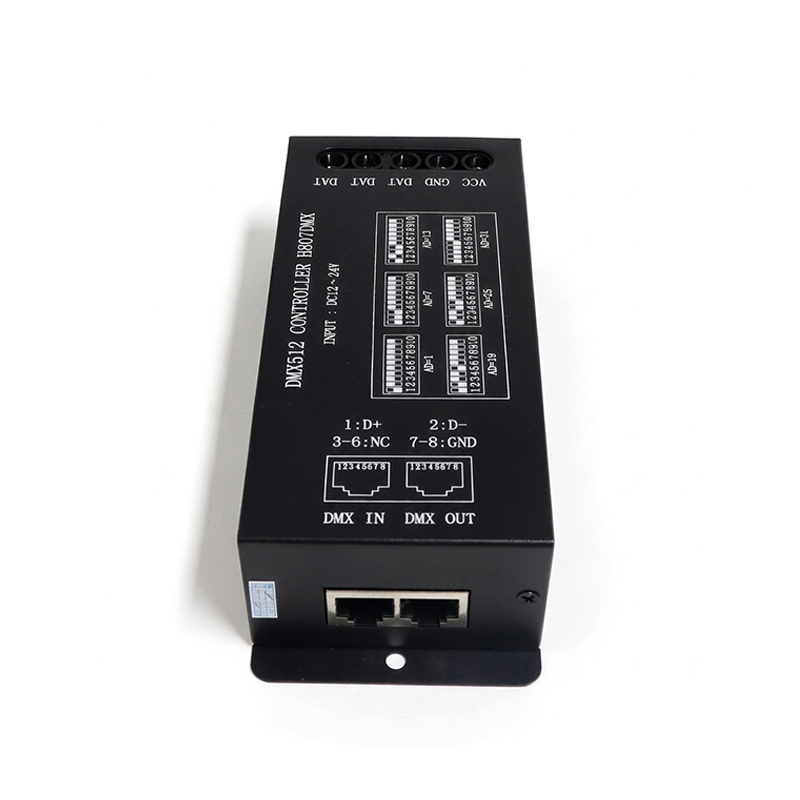

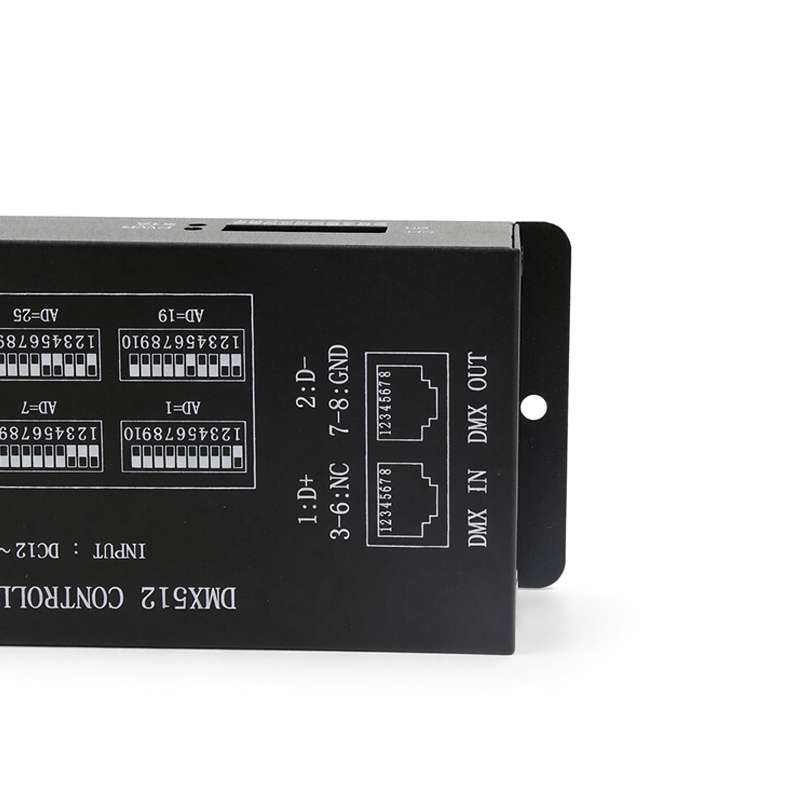

DMX Interface: RJ45 / screw terminal（D+, D-, GND depending on version）

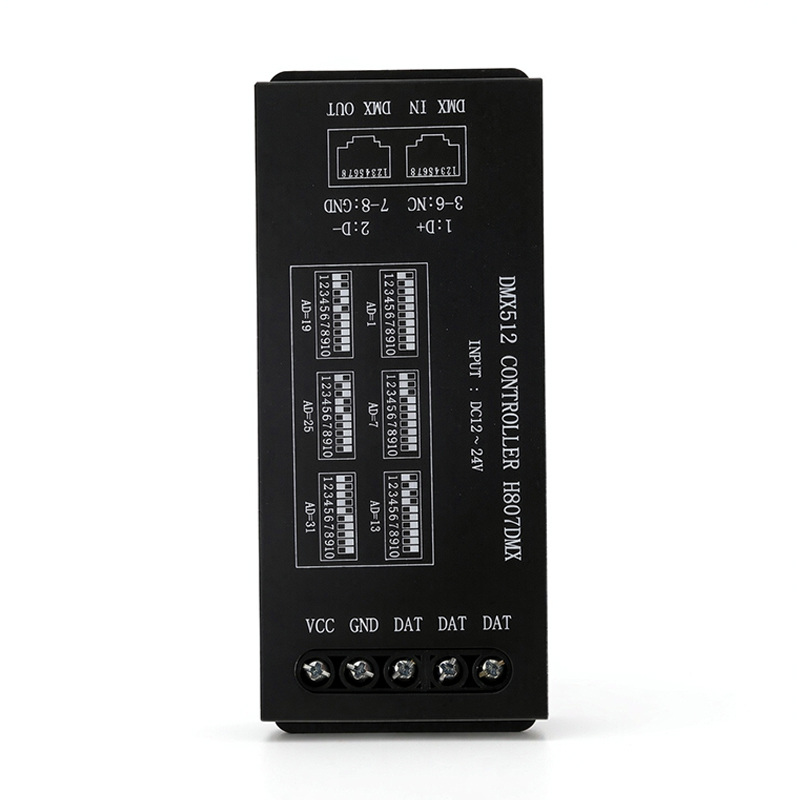

SPI Output: VCC / GND / DAT
Built-in Effects: Comet tail, gradient, segment move, star flash, fill, spring, shuttle
No-Signal Mode: Auto run built-in effects
Size: approx. 164 × 65 × 40 mm
Working Temp.: -20°C – 60°C
Application: Stage, bar, KTV, building outline, pixel tube, point light, 3D matrix
Brightness
Foreground Red
Foreground Green
Foreground Blue
Effect Mode
Speed / Direction
Group Length
Background/Black Length
Background Red
Background Green
Background Blue
Flash
Pixel Count
