External GS8206 IC: 12V ready, constant-current drive, 3-channel RGB, more stable heat performance than built-in-IC strips.

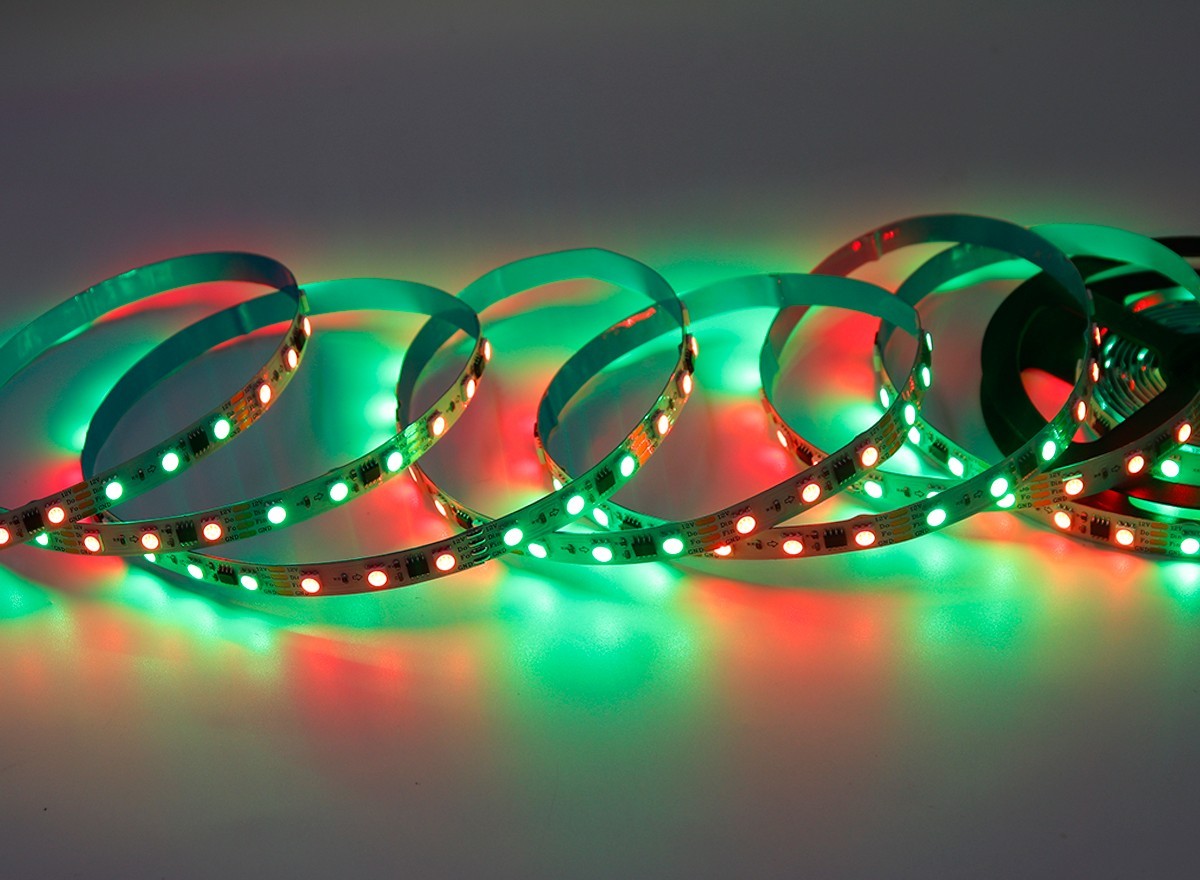

20 Pixels/m: 1 IC controls 3 × 5050 RGB LEDs; good balance between pixel detail and power/price.

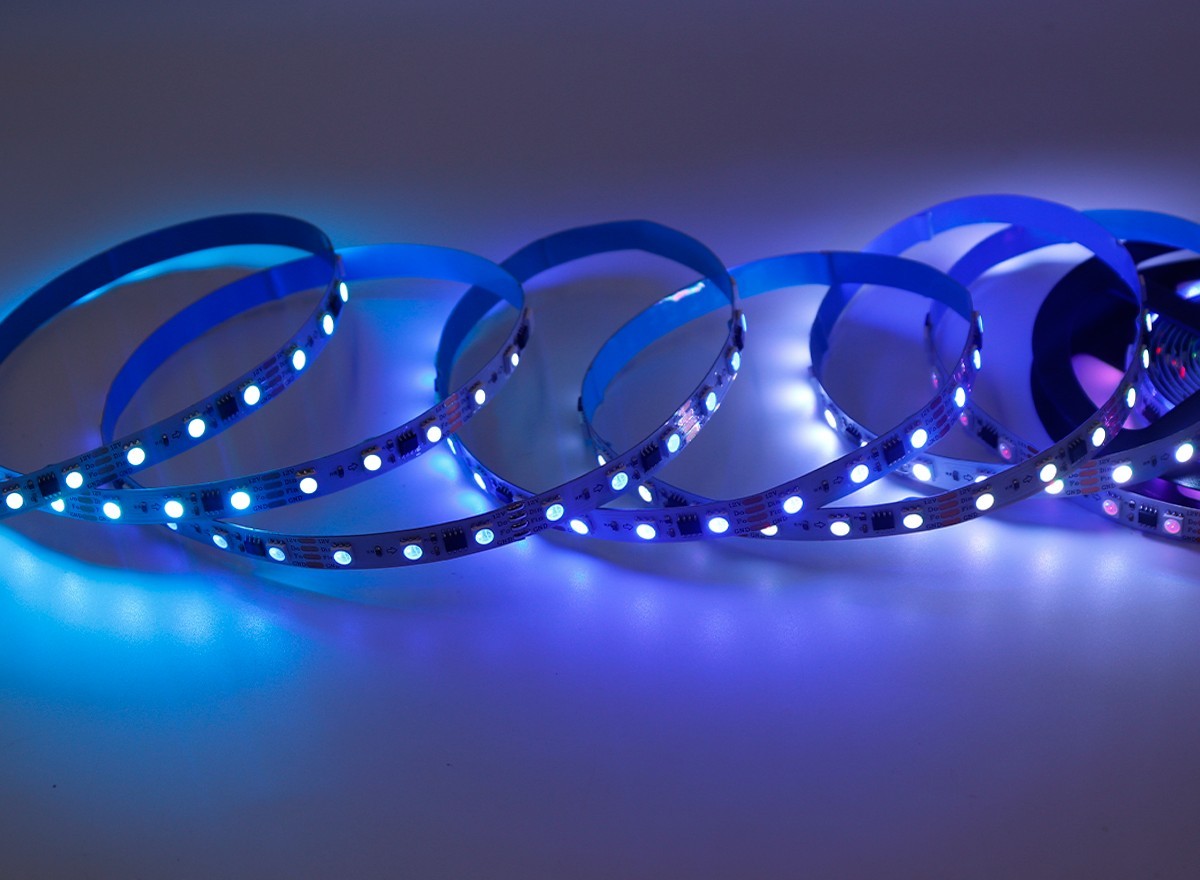

Breakpoint Continue: dual data path / backup signal; one damaged pixel does not kill the whole run.

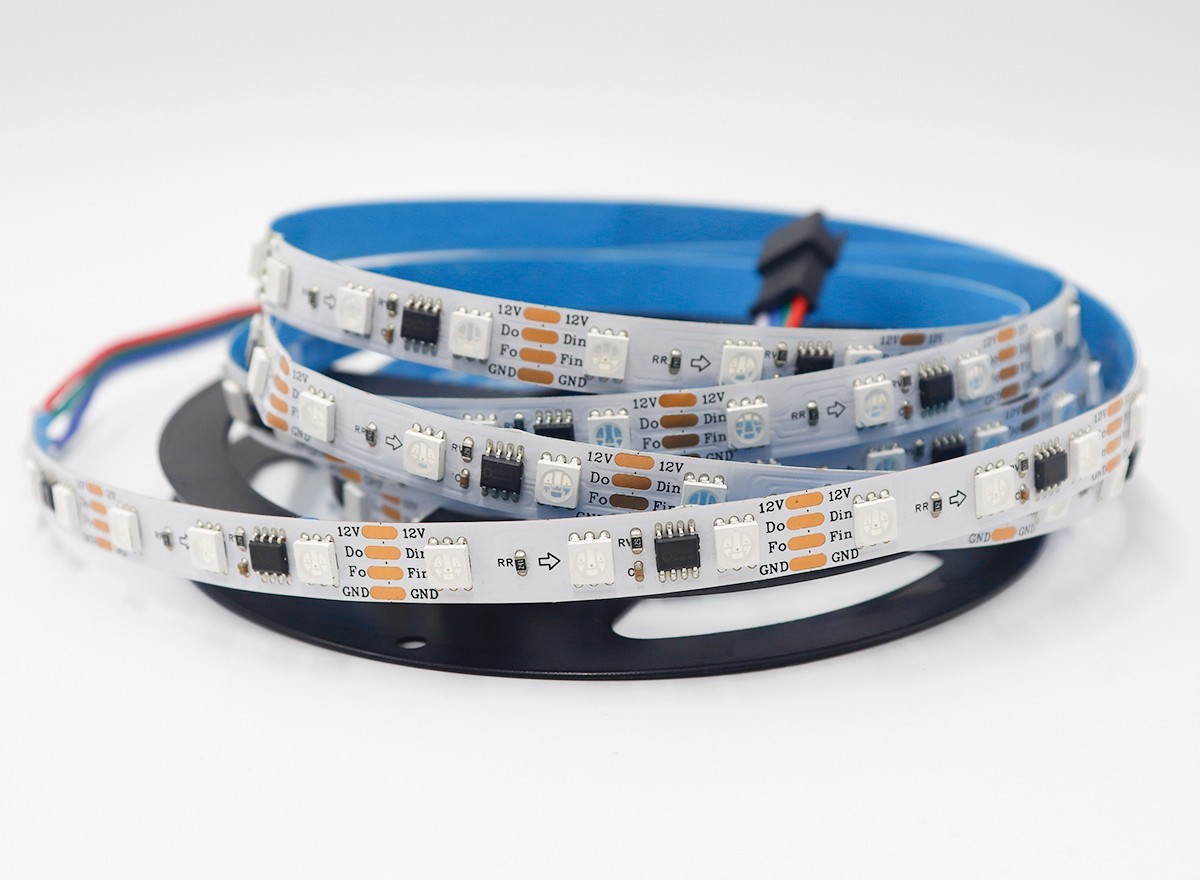

12V + 10mm PCB: less voltage drop than 5V pixel strips; slim board fits profiles, letters, shelves, coves.
Cut Every 50mm: easy customization, IP20/IP65/IP67/IP68 optional, SPI/DMX/Art-Net ready, 30k–50k hrs life.
|
Parameter |
Specification |
|---|---|
|
Model |
GS8206-5050RGB-60D-12V-10mm |
|
LED Type |
SMD 5050 RGB (3-in-1) |
|
IC Type |
GS8206 (external IC, 3-channel) |
|
Voltage |
DC 12V |
|
LEDs/m |
60 LEDs/m |
|
Pixels/m |
20 pixels/m |
|
Control Unit |
1 IC controls 3 LEDs |
|
Cutting Unit |
Every 3 LEDs / 50 mm |
|
Power |
14.2–14.4 W/m typical |
|
Channels |
R / G / B |
|
Grayscale |
256 levels/channel (8-bit) |
|
PWM |
~2 kHz typical; some GS8206/GS8208 family up to 6–8 kHz |
|
Data Rate |
800 kbps |
|
Signal |
Single-line SPI; dual-signal/backup data versions available |
|
Feature |
Breakpoint continue / signal reshaping |
|
PCB Width |
10 mm |
|
PCB Color |
White / Black |
|
Copper |
2 oz optional |
|
Roll Length |
5 m/reel |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Controller |
T-1000S / K-1000C / Arduino / DMX512+decoder / Art-Net / Madrix |
|
Life |
30,000–50,000 h |
|
Cert. |
CE / RoHS |
