Its robust IP65-rated waterproof enclosure ensures reliable performance in outdoor and humid environments, from garden landscapes to outdoor eaves and patio accents. Setup is effortless: simply power on, connect to the "WLED-AP" hotspot, and configure via the intuitive web interface or mobile app. Seamlessly integrate with your smart home ecosystem, including Home Assistant, Alexa, and MQTT.
Whether you're creating dynamic holiday displays, ambient room lighting, or professional installations, the GL-C-012WL delivers unmatched versatility, reliability, and vibrant control. Experience the perfect blend of performance and durability—ready to bring your creative visions to light.
Pre-flashed with WLED & ESP32 Chip: Ready to use out of the box. Enjoy fast response times, stable performance, and compatibility with the vast WLED ecosystem without manual firmware flashing.

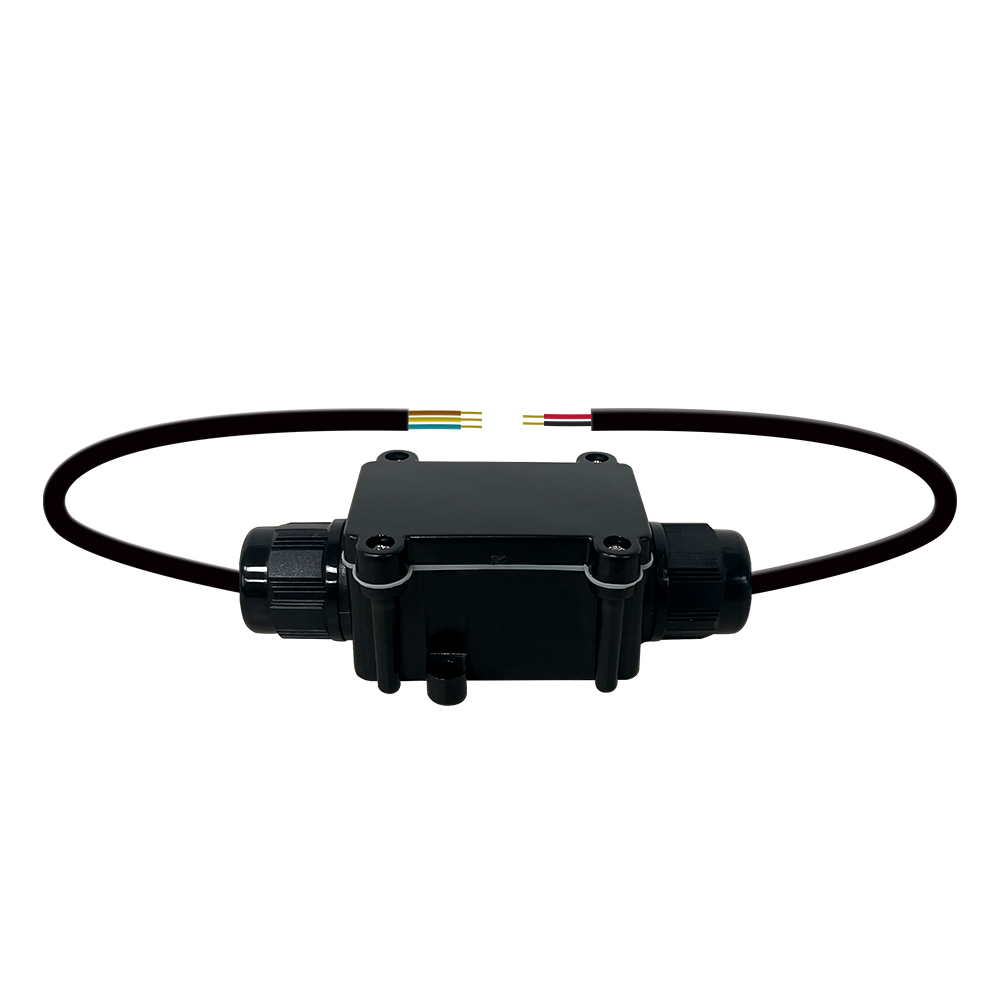

IP65 Waterproof Enclosure: Features a durable, weather-resistant housing with cable glands, making it ideal for outdoor applications like eaves, gardens, and patios (Note: Not submersible).
Wide Voltage & High Power Support: Compatible with DC 5V, 12V, and 24V addressable strips, supporting up to 10A (240W max), providing ample power for extensive LED installations.
Supports Up to 800 Pixels: Capable of controlling up to 800 individual LEDs, allowing for complex, pixel-perfect animations and effects on various digital strips (WS2811, WS2812B, SK6812, etc.).
Smart Home Integration: Easily connects to your local WiFi network and works with the WLED app, web UI, Home Assistant, Alexa, and MQTT for seamless voice and automation control.
|
Model |
GL-C-012WL |
|---|---|
|
Chipset |
ESP32 |
|
Firmware |
WLED (Pre-installed) |
|
Input Voltage |
DC 5–24V |
|
Max Output Current |
10A |
|
Max Output Power |
240W (at 24V) |
|
Output Type |
1 × Data Line (for Addressable/Digital LEDs) |
|
Max Pixels Supported |
800 Pixels / ICs |
|
Waterproof Rating |
IP65 (Weatherproof enclosure with cable glands) |
|
Compatible LED Types |
WS2811, WS2812B, WS2813, WS2814A, WS2815, SK6812, SK6812RGBW, TM1814, GS8208, SM16703(P), WS2805, etc. |
|
Connectivity |
WiFi (2.4GHz), MQTT, HTTP, Alexa, Home Assistant |
|
Dimensions (L×W×H) |
151 × 38 × 16 mm |
|
Wire Length |
~300 mm Pigtails |
|

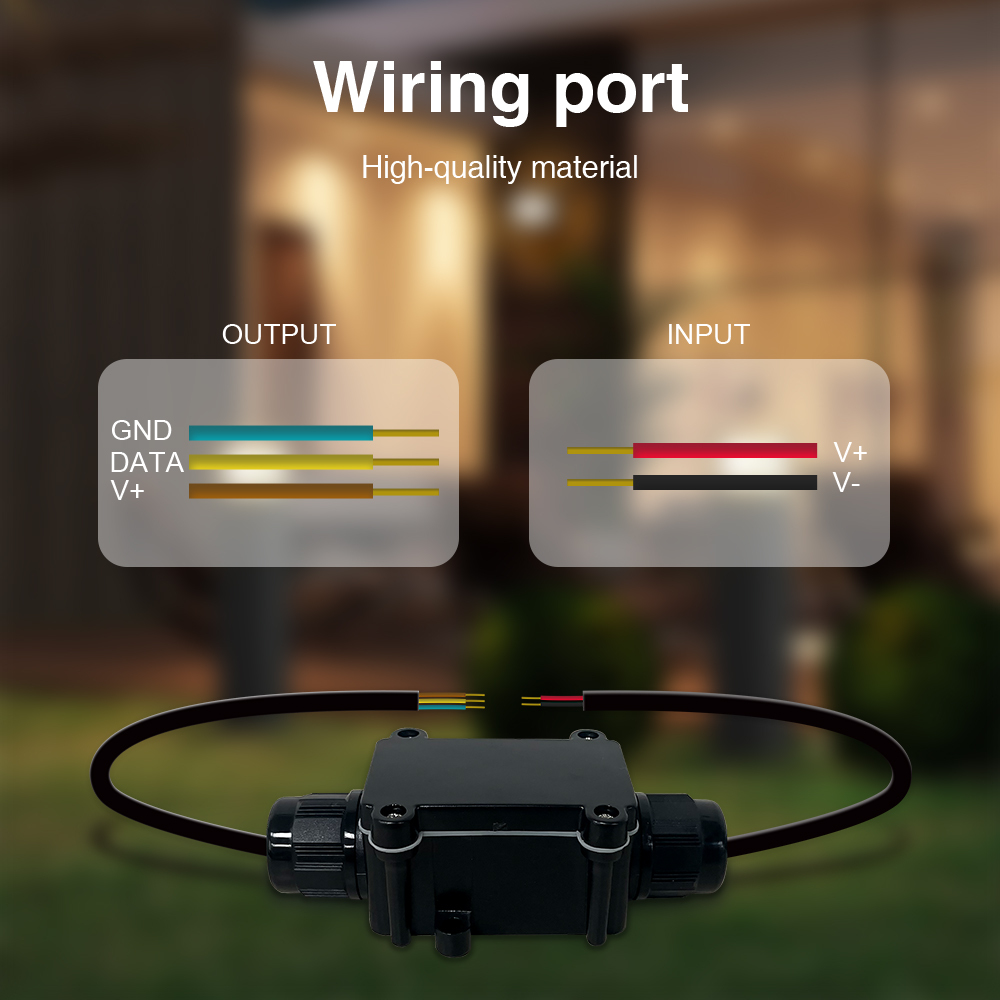

Wiring (Input) |
Red = V+, Black = V− |
|
Wiring (Output) |
Brown = V+, Yellow/Green = Data, Blue = GND |
|
Reset/Control Button |
Short press: On/Off; 1s hold: Cycle colors; 10s hold: Factory Reset |
