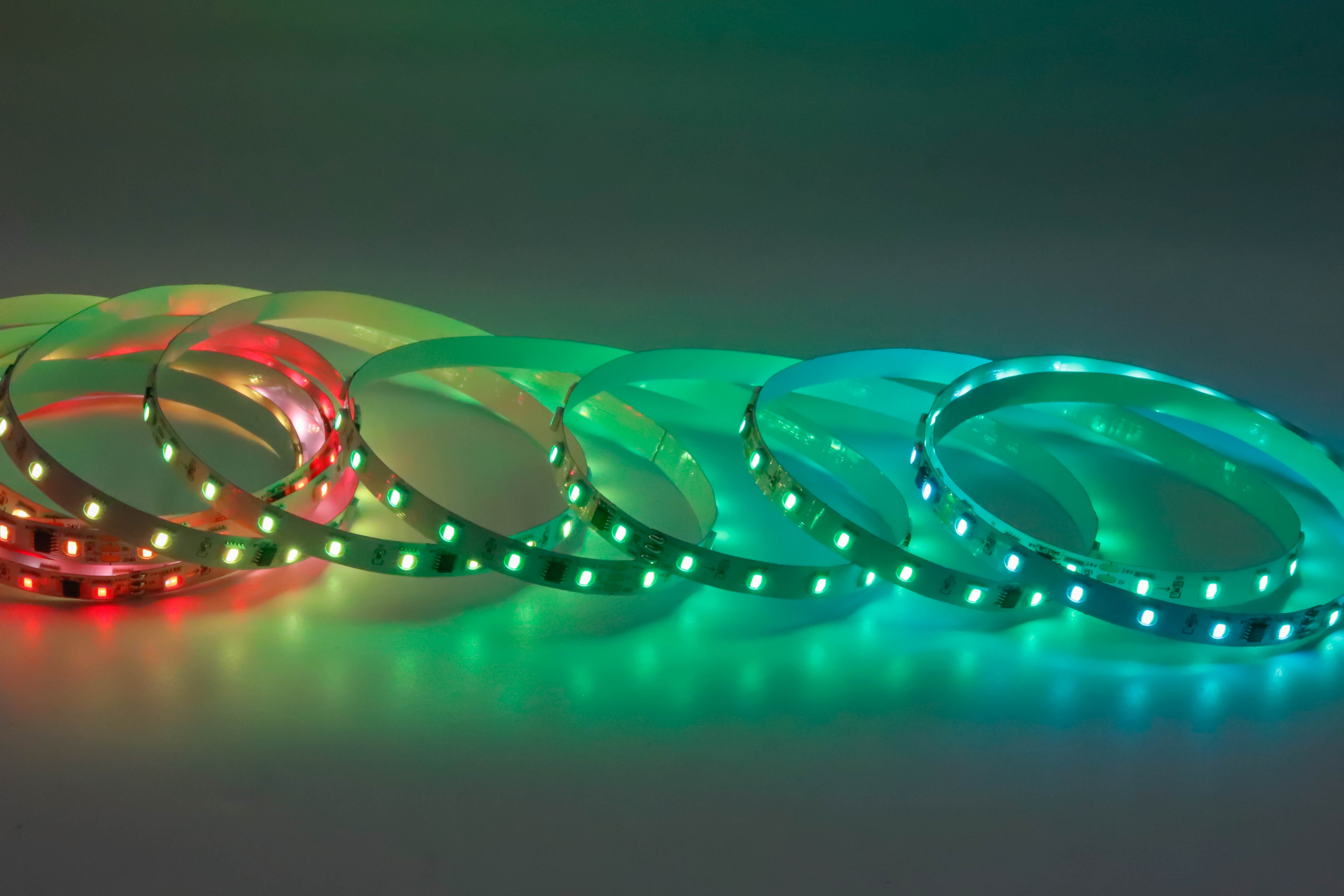

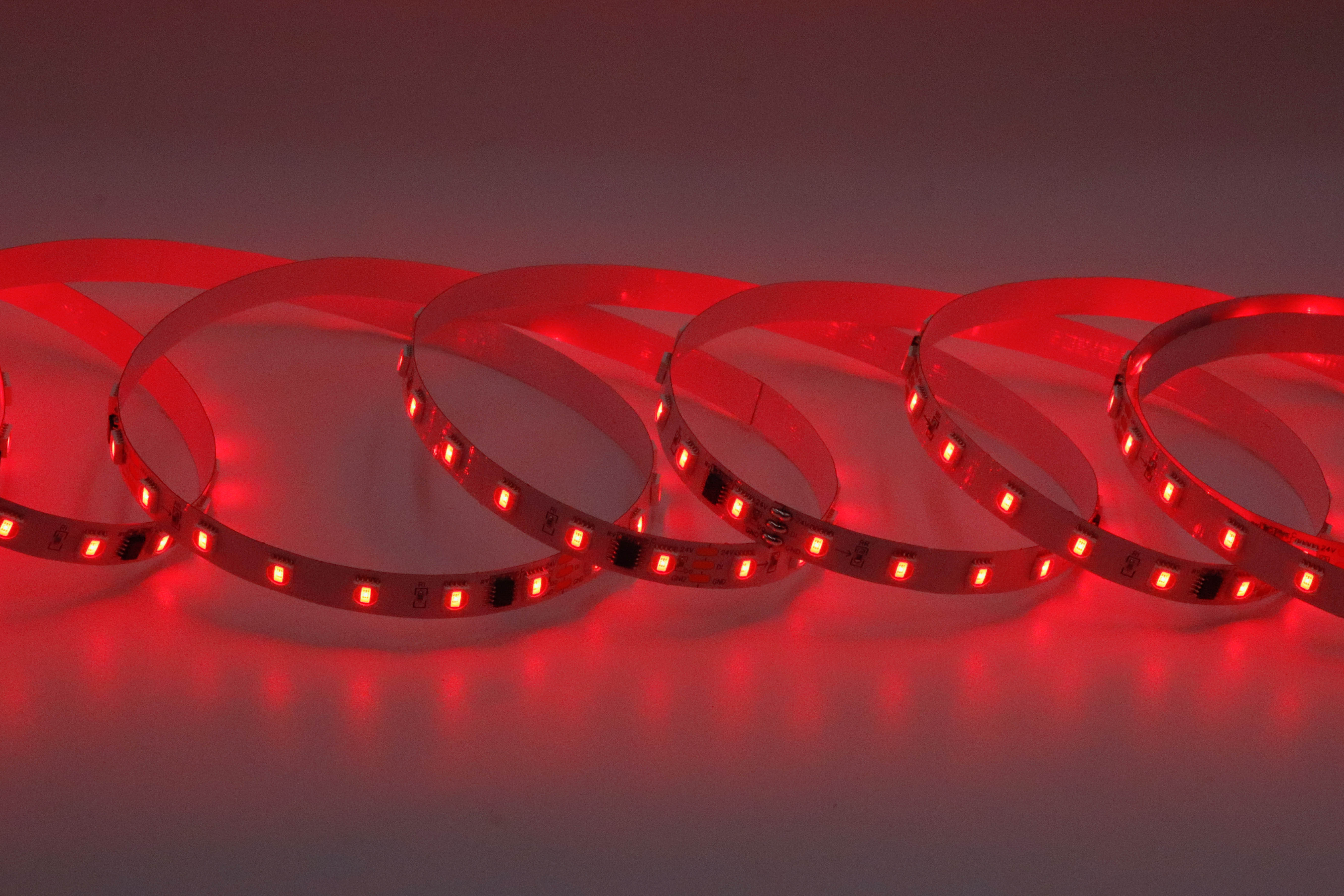

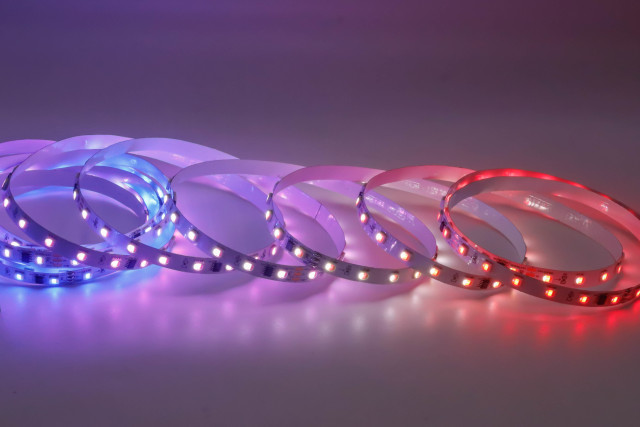

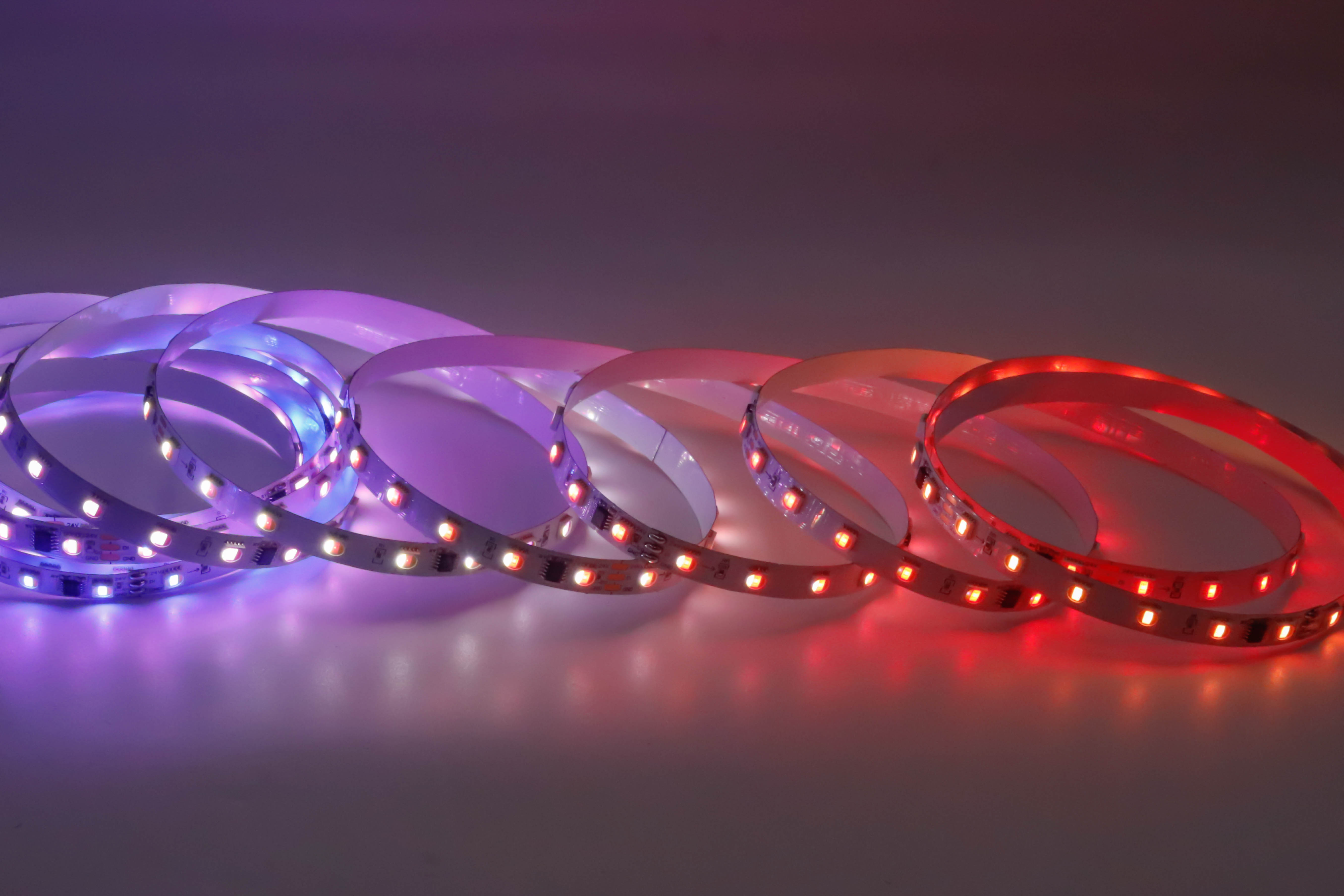

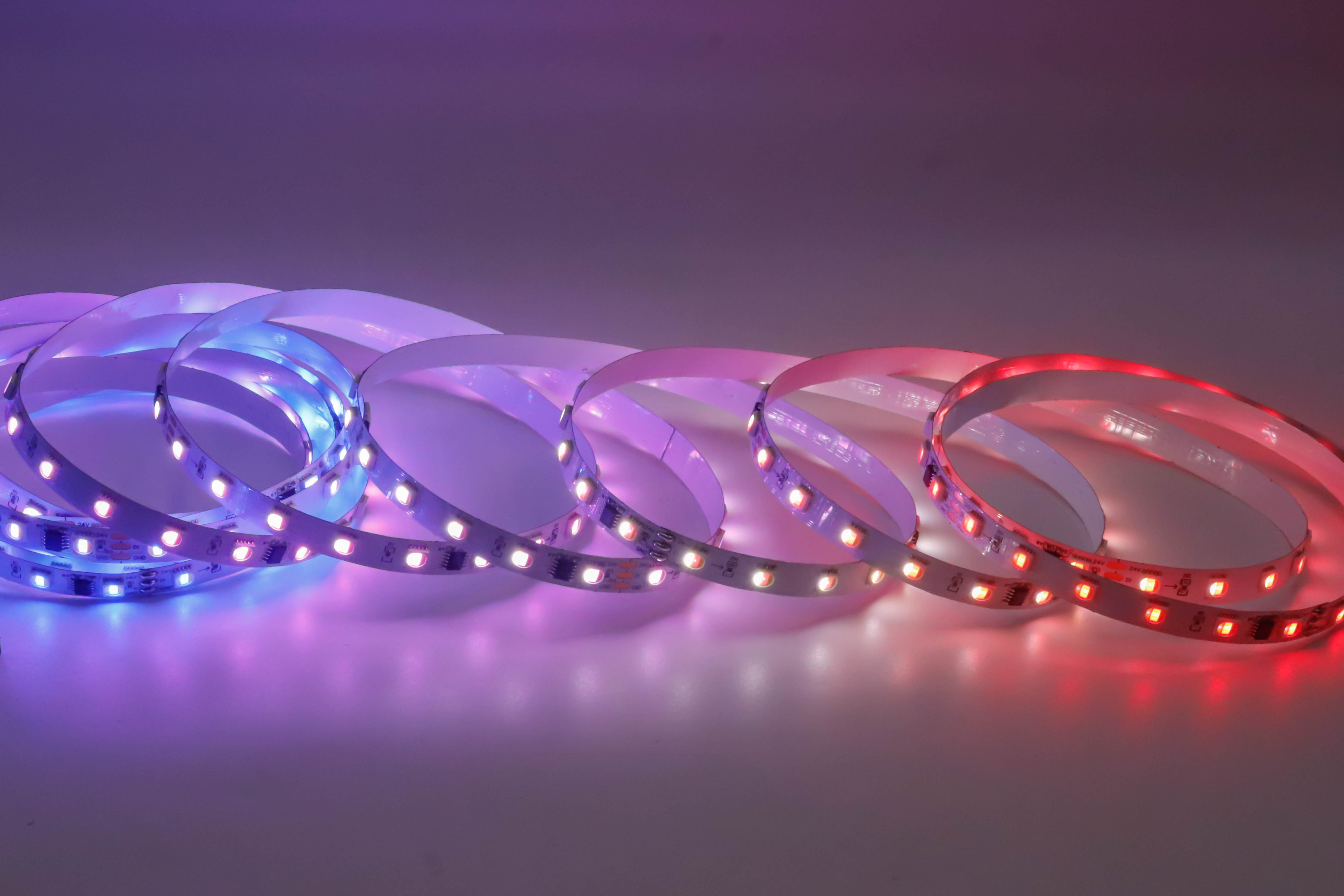

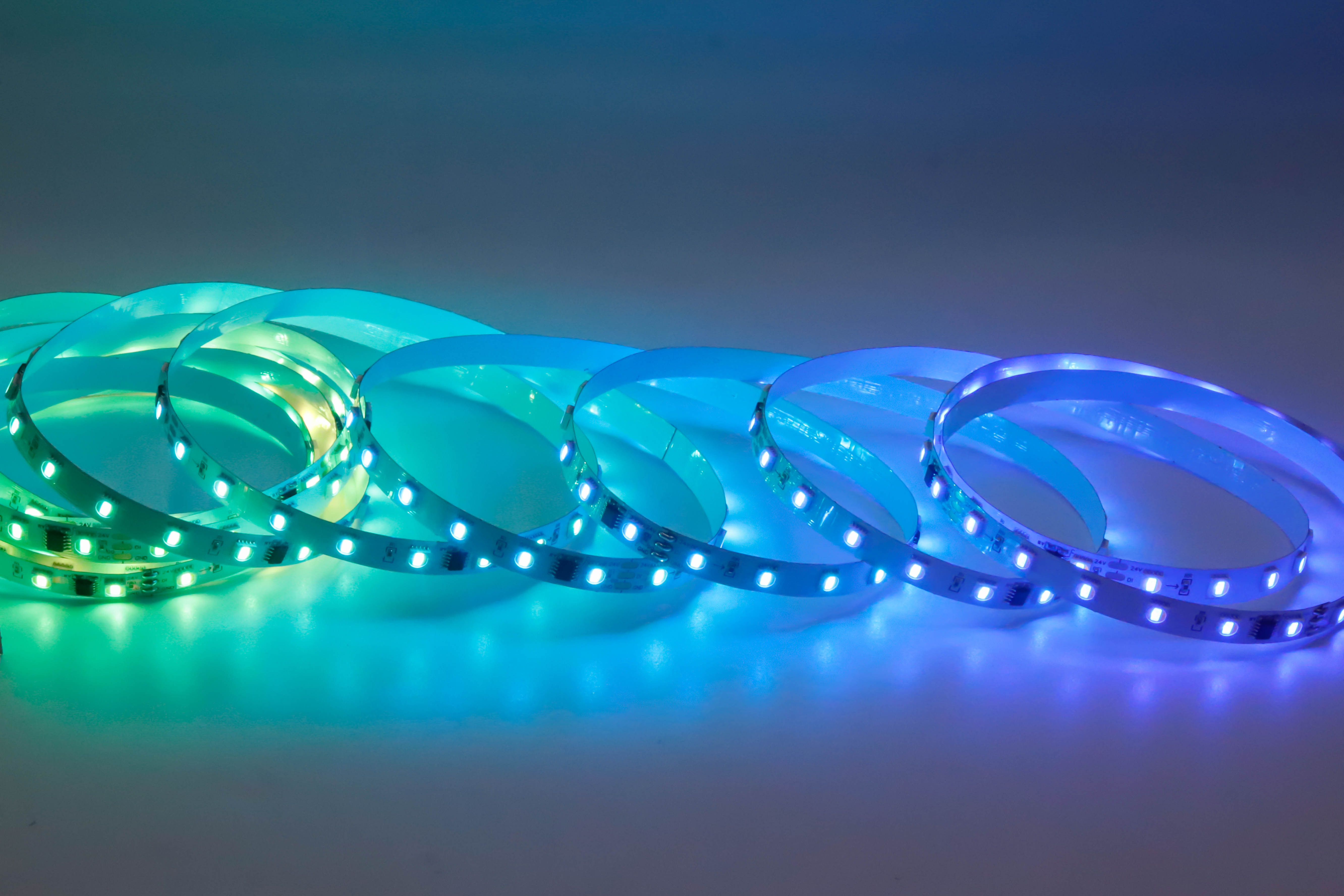

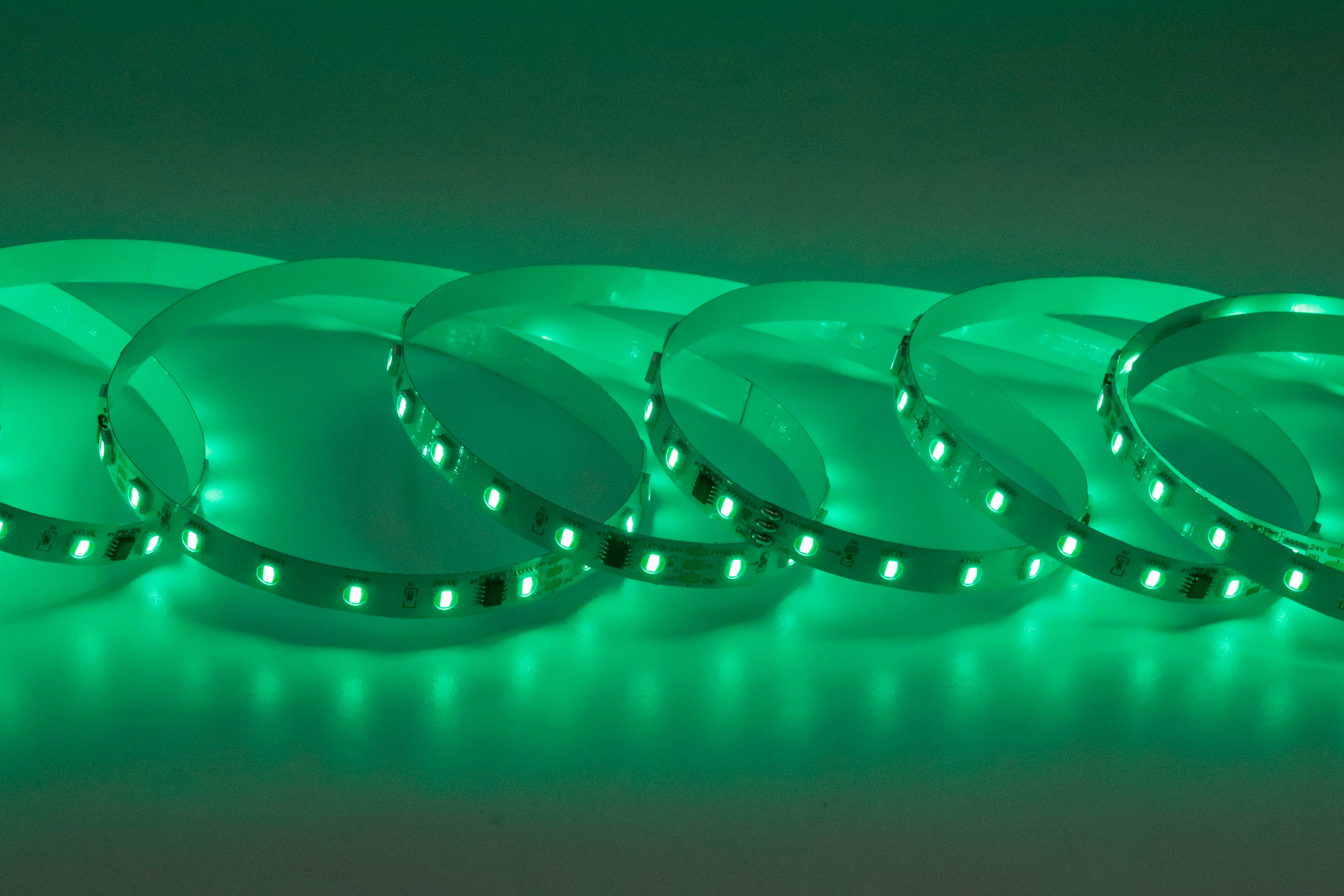

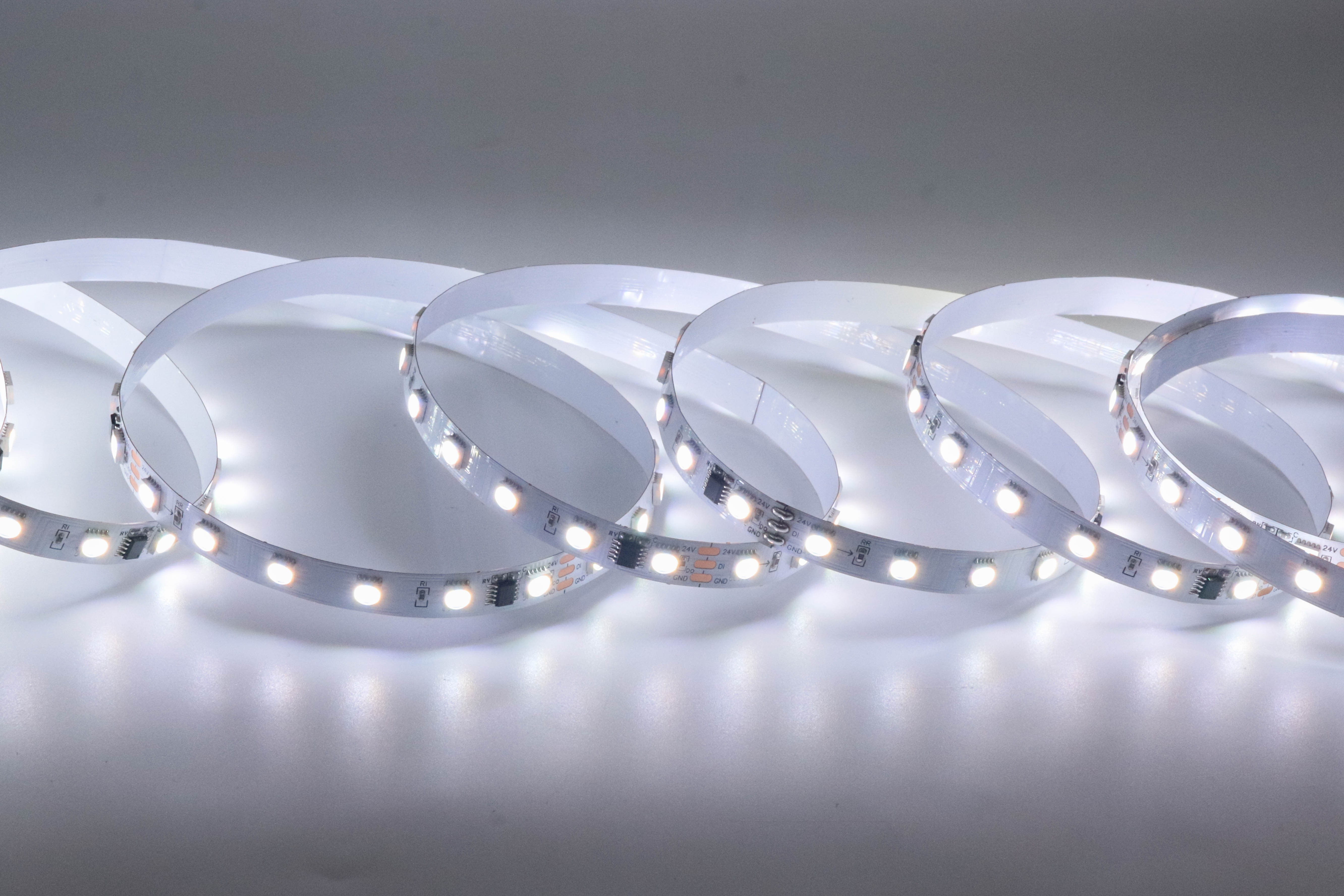

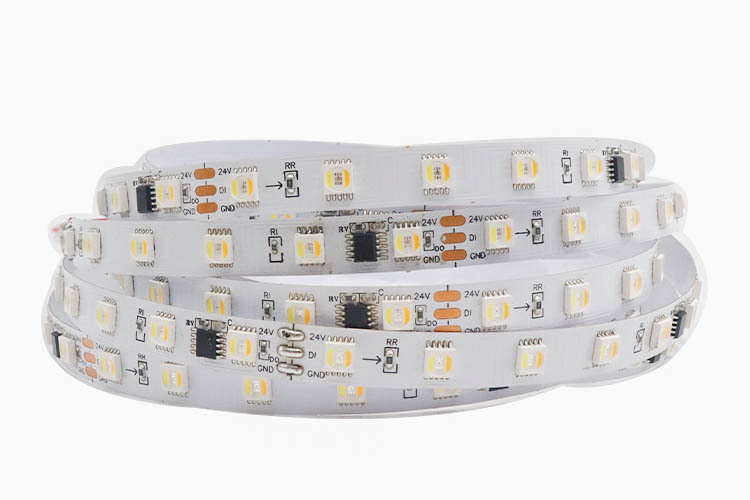

RGB + CCT in One Chip: 5050 5-in-1 RGBWW emits millions of colors plus tunable white (2700K–6500K), no separate white strip needed.
FW1906 Addressable IC: Single-data-line SPI, 10 pixels/m, each 6-LED segment independently programmable for chase/gradient/video effects.
24V Low-Drop Design: More stable brightness over long runs than 5V pixel strips; better for commercial and architectural installs.
10mm Slim PCB: Fits narrow aluminum extrusions and tight coves; cut every 100mm (6 LEDs) without damaging pixels.
Pro-Grade Control: Works with SPI/DMX/Art-Net/SD controllers; IP20/IP65/IP67 options; 50,000h lifespan for indoor/outdoor projects.
|
Parameter |
Specification |
|---|---|
|
Model |
FW1906-5050RGBWW-60D-24V-10mm |
|
LED Type |
SMD 5050 5-in-1 (R+G+B+WW+CW) |
|
IC Type |
FW1906 (external IC) |
|
Voltage |
DC 24V |
|
LEDs/m |
60 LEDs/m |
|
IC / Pixel |
10 ICs/m, 10 pixels/m |
|
Segment |
1 IC controls 6 LEDs, cut every 100mm |
|
Power |
18–22 W/m (factory-dependent) |
|
Channels |
5 channels (RGB + Warm White + Cool White) |
|
CCT Range |
2700K–6500K (tunable white) |
|
Gray Scale |
256 levels/channel |
|
PWM |
~2 kHz |
|
Data Rate |
800 kbps, single-line SPI |
|
PCB Width |
10 mm |
|
PCB Color |
White / Black |
|
Roll Length |
5 m/roll |
|
Beam Angle |
120° |
|
CRI |
Ra ≥ 80, Ra ≥ 90/95 optional |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Life |
30,000–50,000 h |
|
Cert. |
CE / RoHS |
