Optimized 160 LEDs/m Density: Strikes the ideal balance between uniform light output and cost-efficiency—smooth enough for most close-view applications without overspending.
160lm/W High Efficacy: Class-leading luminous efficiency keeps power draw to just 16W/m while delivering excellent brightness and minimal heat.
Selectable CRI (Ra80/90/95): One platform covers all quality tiers—standard Ra80 for utility, Ra90 for retail, Ra95 for design-critical spaces.
Stable DC24V Constant Voltage: Reliable operation with low voltage drop; safe low-voltage design for both residential and commercial projects.
Flexible & Easy to Install: Cut every 37.5mm (6 LEDs) for precise customization; fully compatible with PWM, 0-10V, and DALI dimming systems.
|
Item |
Specification |
|---|---|
|
Product Name |

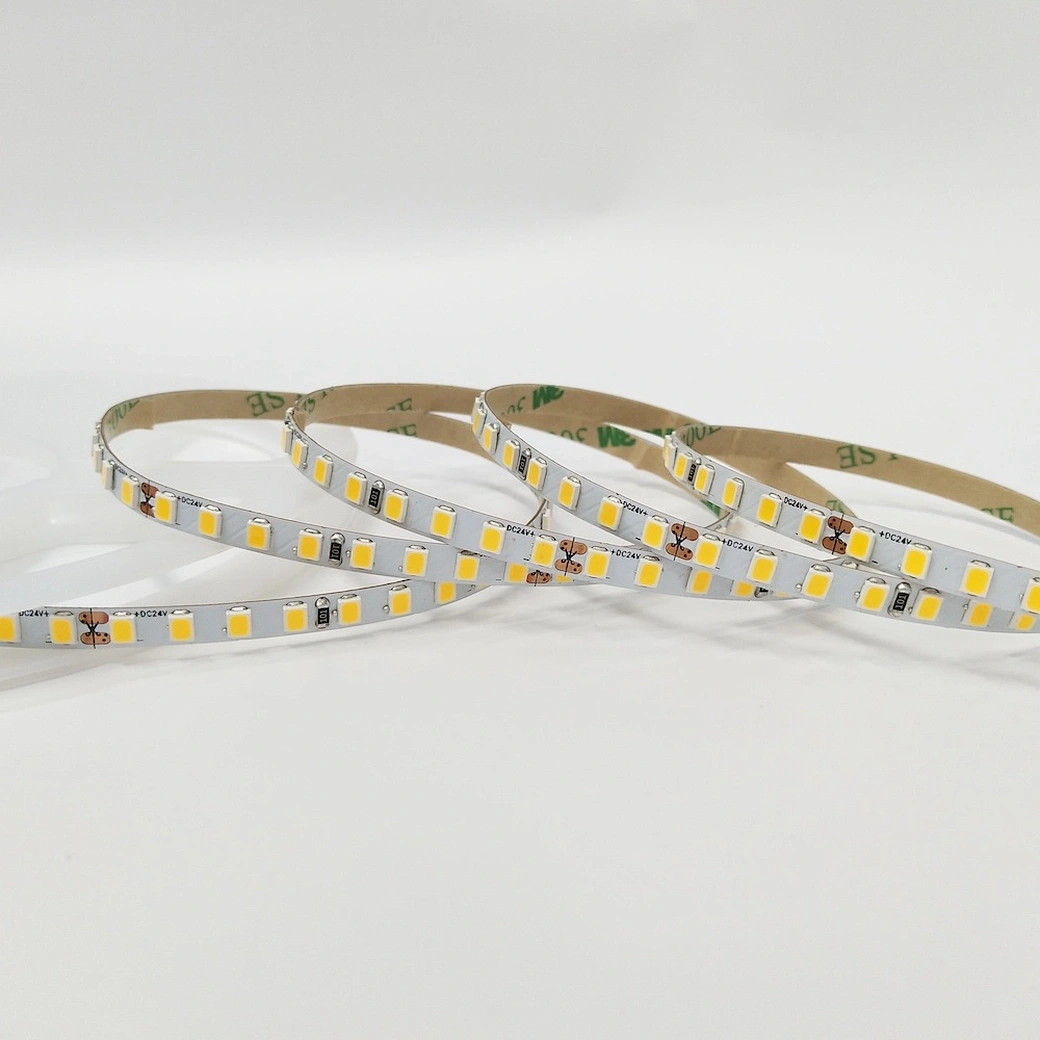

High-Efficiency 2835 LED Strip Light |
|
LED Type |
SMD 2835 |
|
LED Density |
160 LEDs/meter |
|
Working Voltage |
DC 24V Constant Voltage |
|
Power Consumption |
16W/meter (max. rated) |
|
Luminous Efficacy |
160 lm/W (LED/module level) |
|
Luminous Flux |
Approx. 2560 lm/m (theoretical max.) |
|
Color Rendering Index |
Ra80 / Ra90 / Ra95 (selectable) |
|
Color Temperature |
2700K / 3000K / 4000K / 5700K / 6500K (optional) |
|
Cutting Unit |
Every 37.5mm (6 LEDs) |
|
PCB Width |
10mm (standard) |
|
Roll Length |
5 meters/reel |
|
IP Rating |
IP20 / IP65 / IP66 / IP68 (optional) |
|
Dimming |
PWM / 0-10V / DALI compatible |
|
Recommended Driver |
24V CV LED power supply (20–30% power margin) |
|
Heat Dissipation |
Recommended with aluminum profiles |
|
Applications |
Cabinet lighting, cove lighting, shelving, retail display, architectural accent |
|
Warranty |
3–5 years (varies by supplier) |
