Setting up is effortless thanks to the built-in 10-bit DIP switch for manual address coding, allowing you to link multiple units for large-scale installations. The decoder features robust protection including short-circuit and over-temperature safeguards, ensuring long-term reliability. Whether for stage lighting, architectural facade, or commercial displays, it provides stable, high-fidelity color control. Compatible with all common DMX consoles, it is the ideal bridge between professional control systems and high-power LED fixtures.
High Current Output: Delivers a massive 8A per channel (24A total), supporting up to 576W (at 24V) to drive long runs of RGB LED strips without voltage drop issues.
Standard DMX512 Protocol: Fully compatible with DMX512/1990 standard, allowing seamless integration with professional lighting consoles and stage equipment.
Precision PWM Dimming: Features 256 levels of grayscale per channel and high-frequency PWM output, ensuring smooth, flicker-free color transitions and accurate color rendering.
Easy Addressing: Equipped with a 10-bit DIP switch for quick and accurate DMX address setting; supports cascading multiple decoders for synchronized or independent control.
Rugged Protection: Built-in short-circuit and overheat protection ensures safety and durability, suitable for continuous operation in commercial and entertainment environments.

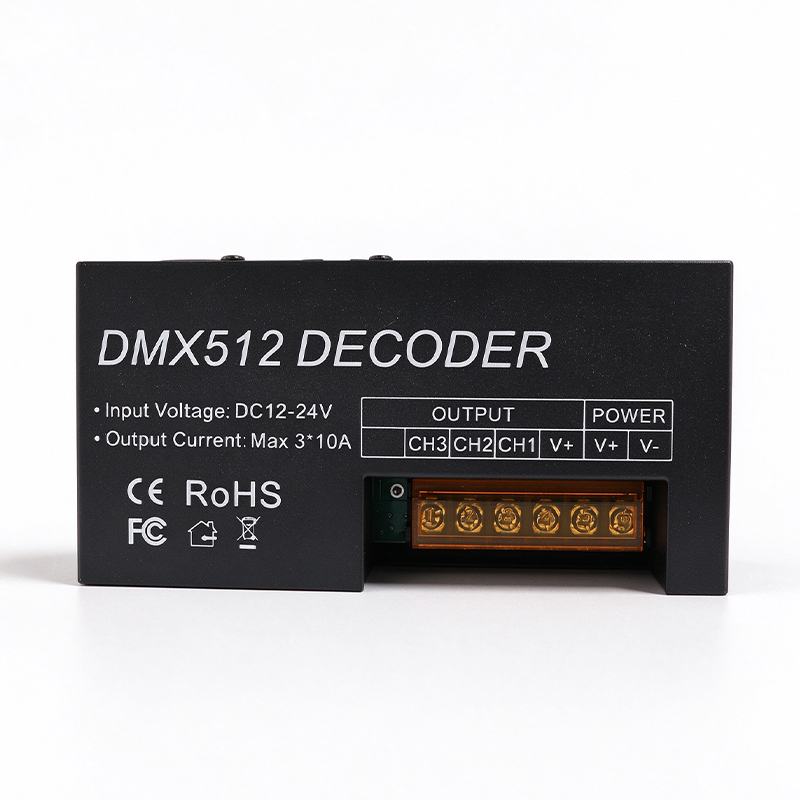

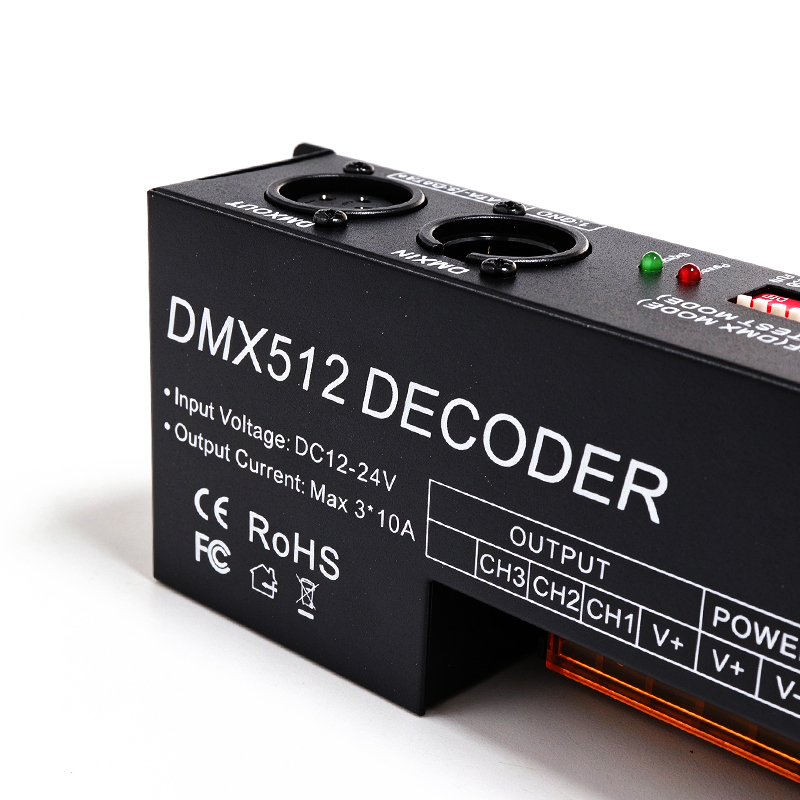

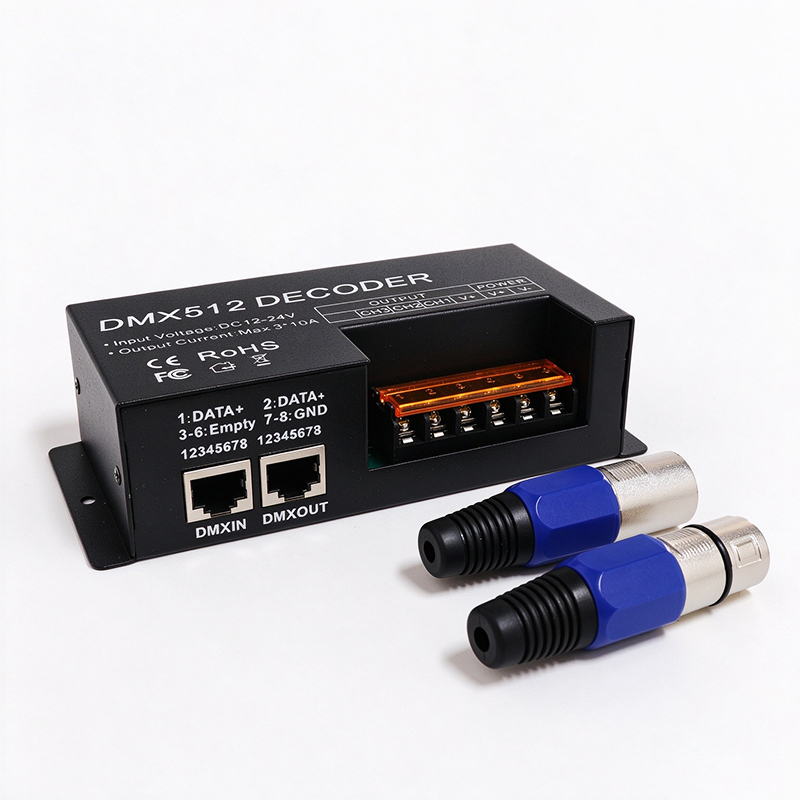

Product: DMX512 3-Channel LED Decoder
Input Voltage: DC 12V / 24V
Output Channels: 3 Channels (RGB)
Max Current: 8A/CH, 24A Total
Max Power: 288W (12V) / 576W (24V)
Control Protocol: DMX512 / 1990
DMX Address: 3 Channels (R, G, B)
Gray Scale: 256 levels / channel
Output Type: PWM Constant Voltage

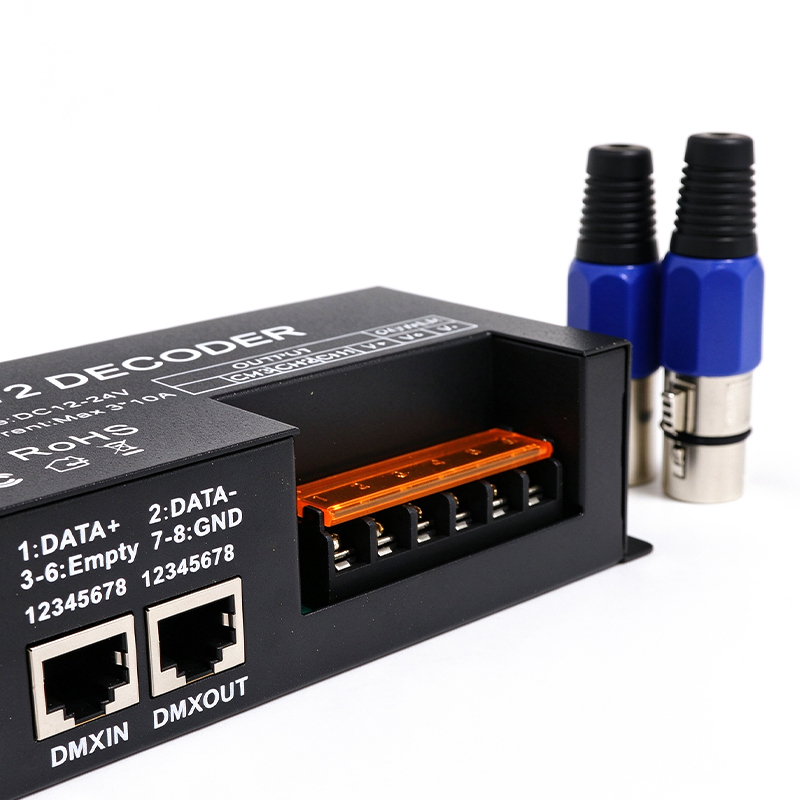

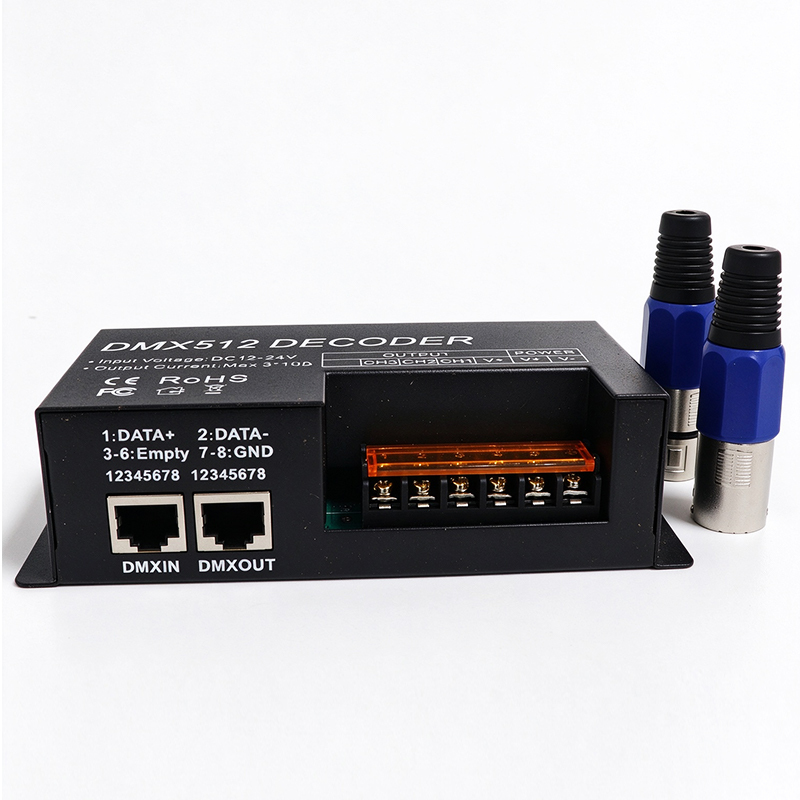

Connection: Screw Terminal (Power/Load), XLR-3/RJ45 (DMX)

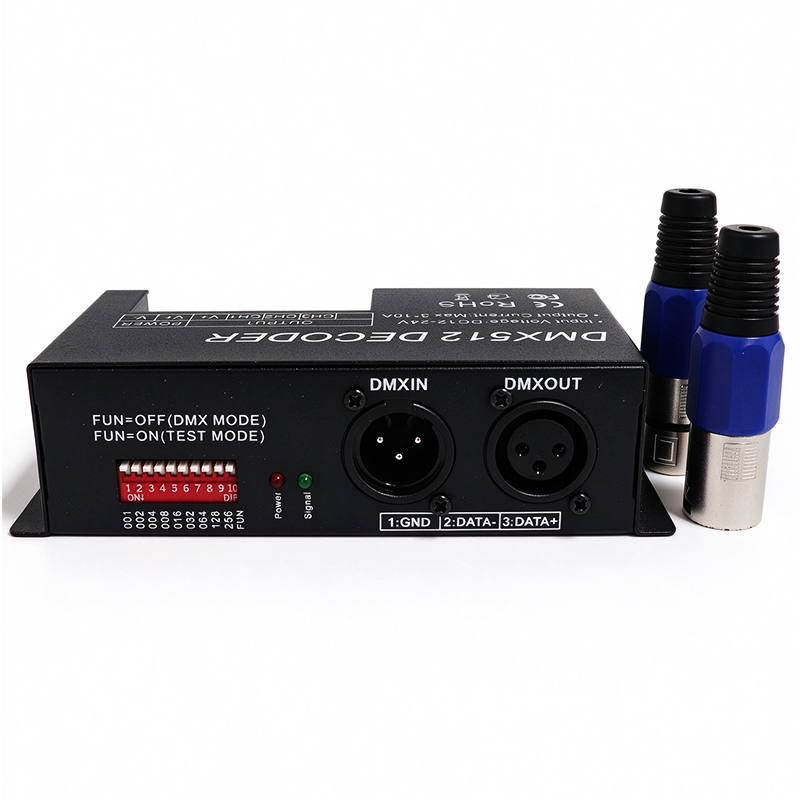

Address Setting: 10-bit DIP Switch
Protection: Short-circuit / Overheat
Dimensions: 164 × 65 × 39 mm
Application: RGB LED Strip, Module, Stage & Architectural Lighting
