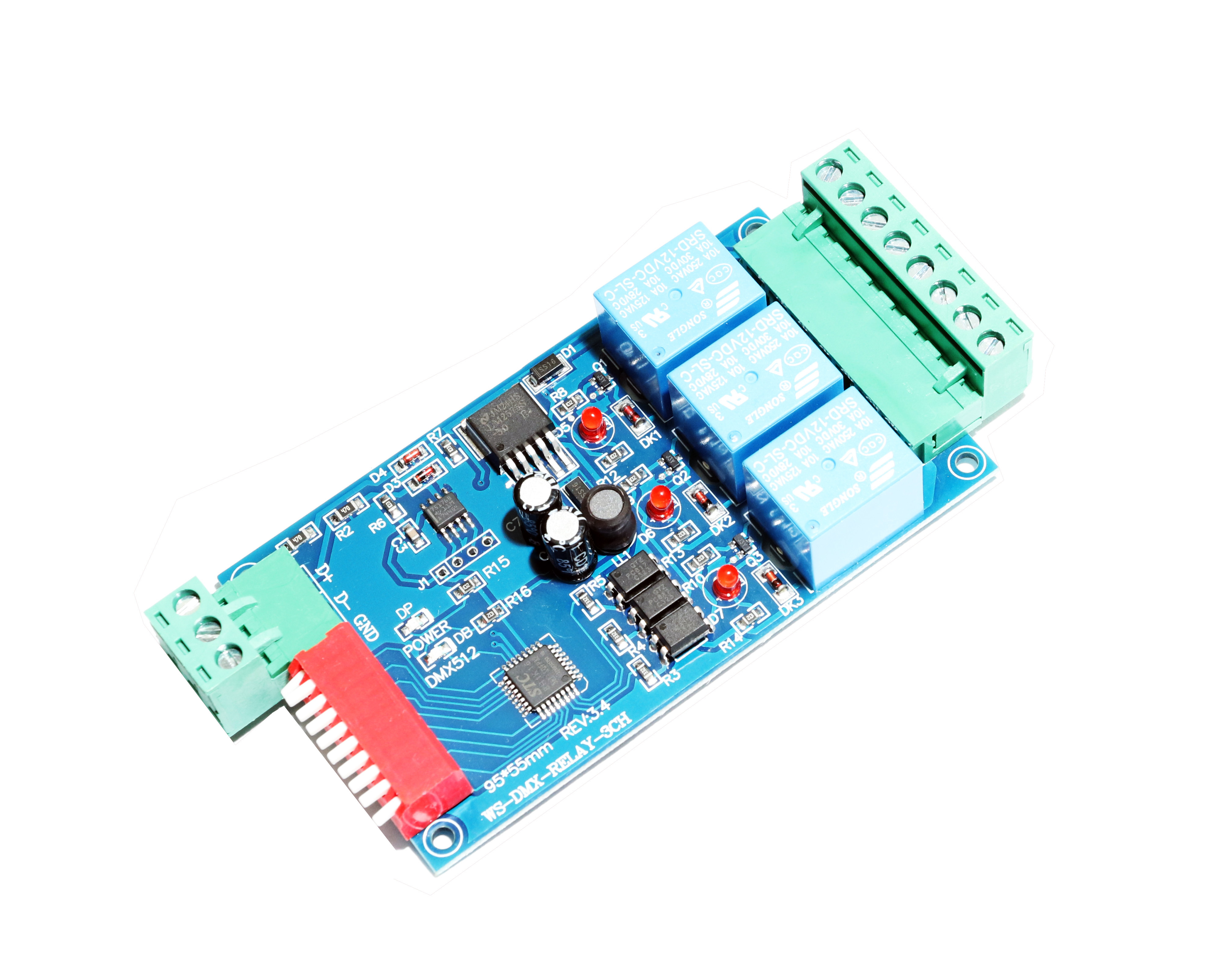

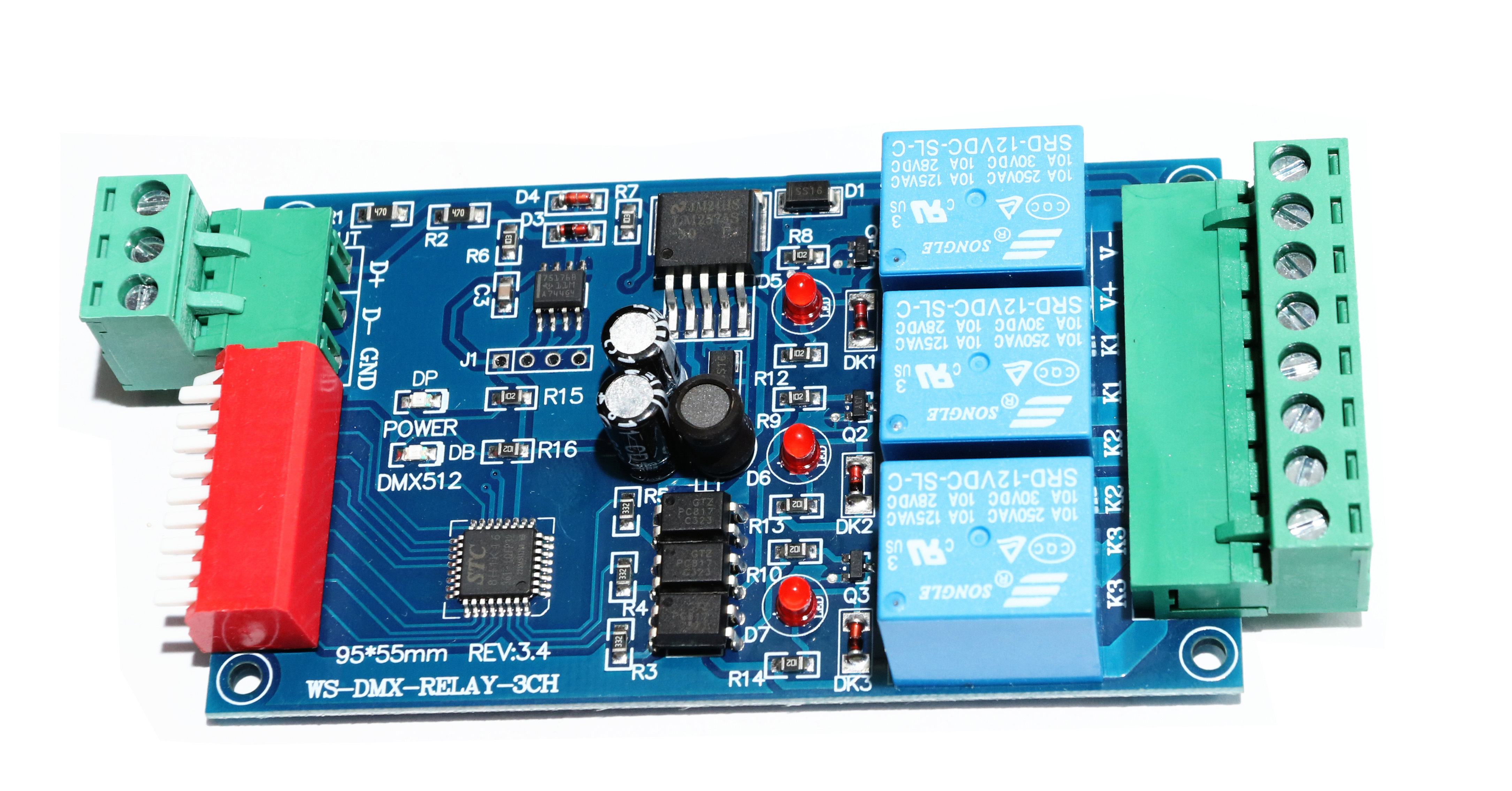

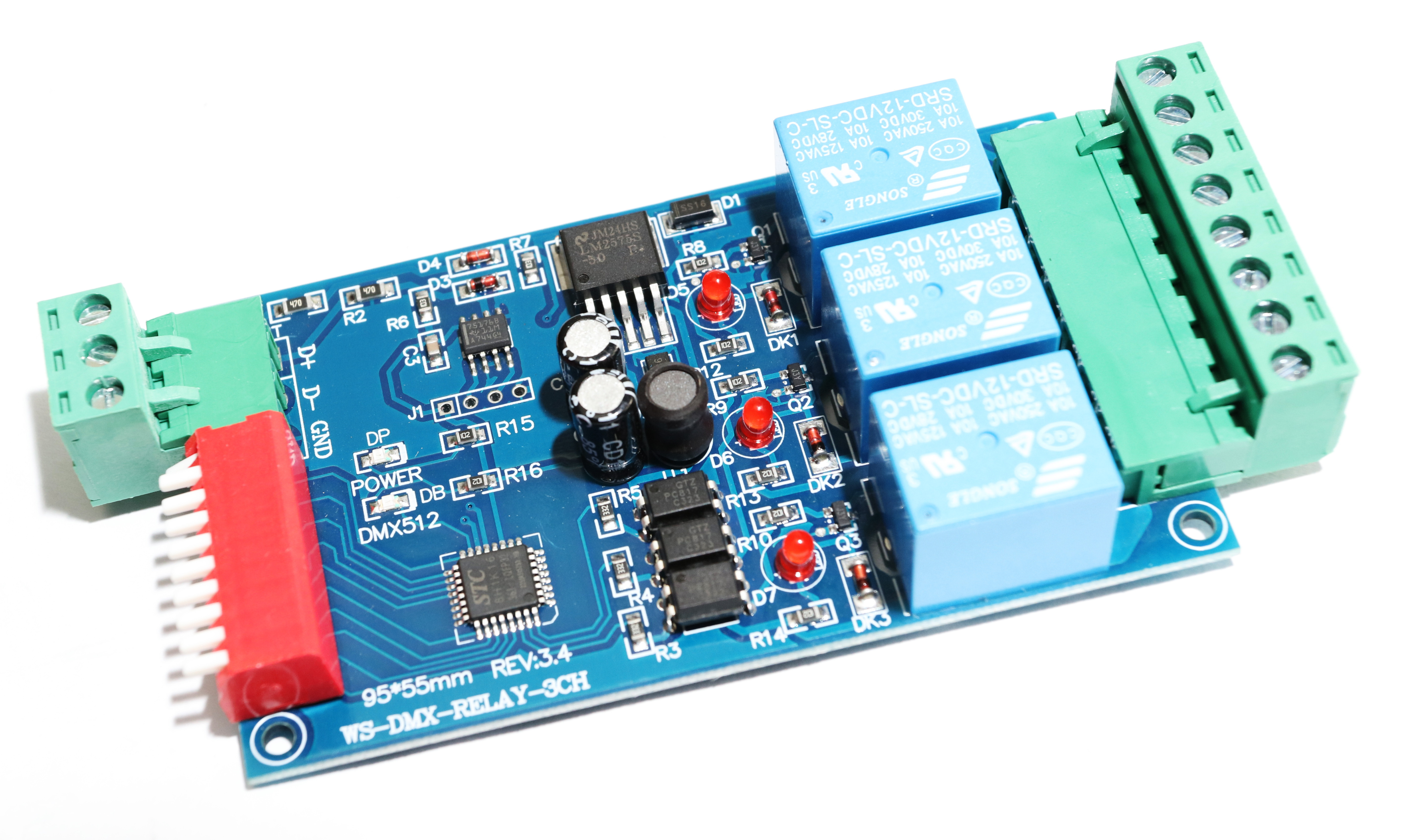

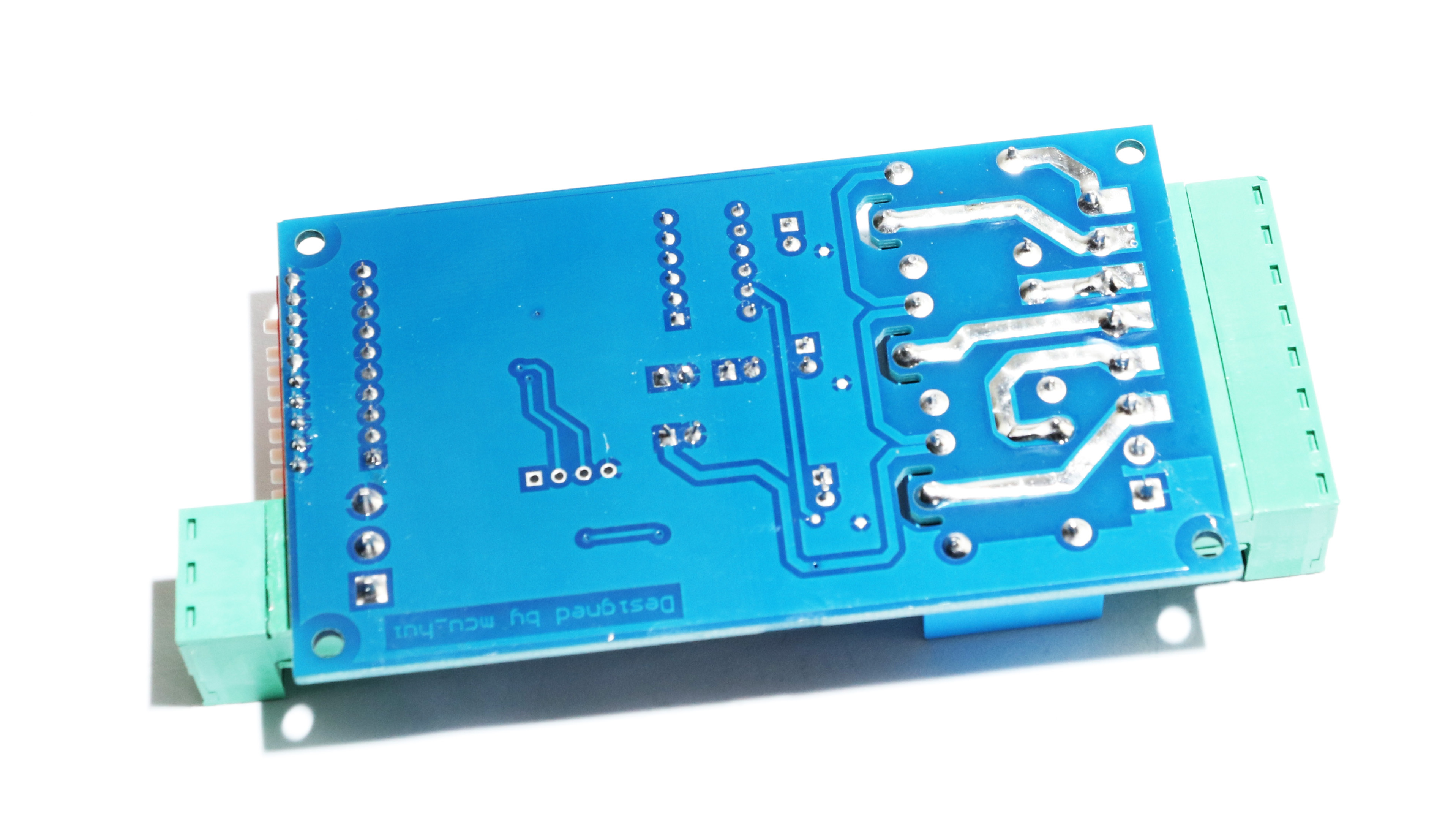

3CH Relay Output (NO): 3 normally-open relays for on/off switching of AC/DC loads via DMX.
Load Rating AC5V-250V / 10A: Suitable for incandescent/AC lamps/small loads; plan inrush & margin.

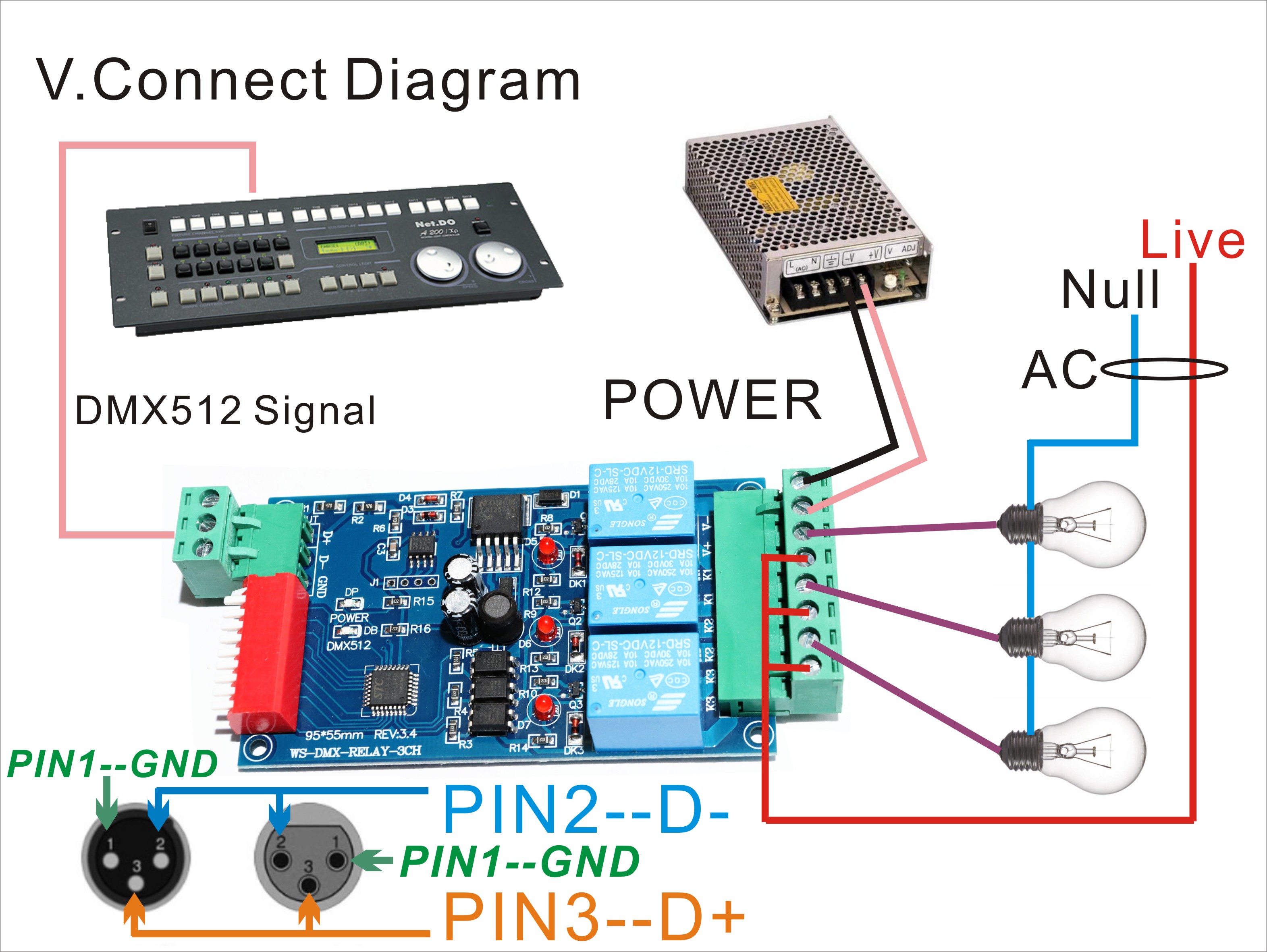

DC12V Controller Supply: Control side uses DC12V; DMX IN/OUT for daisy-chain to console.

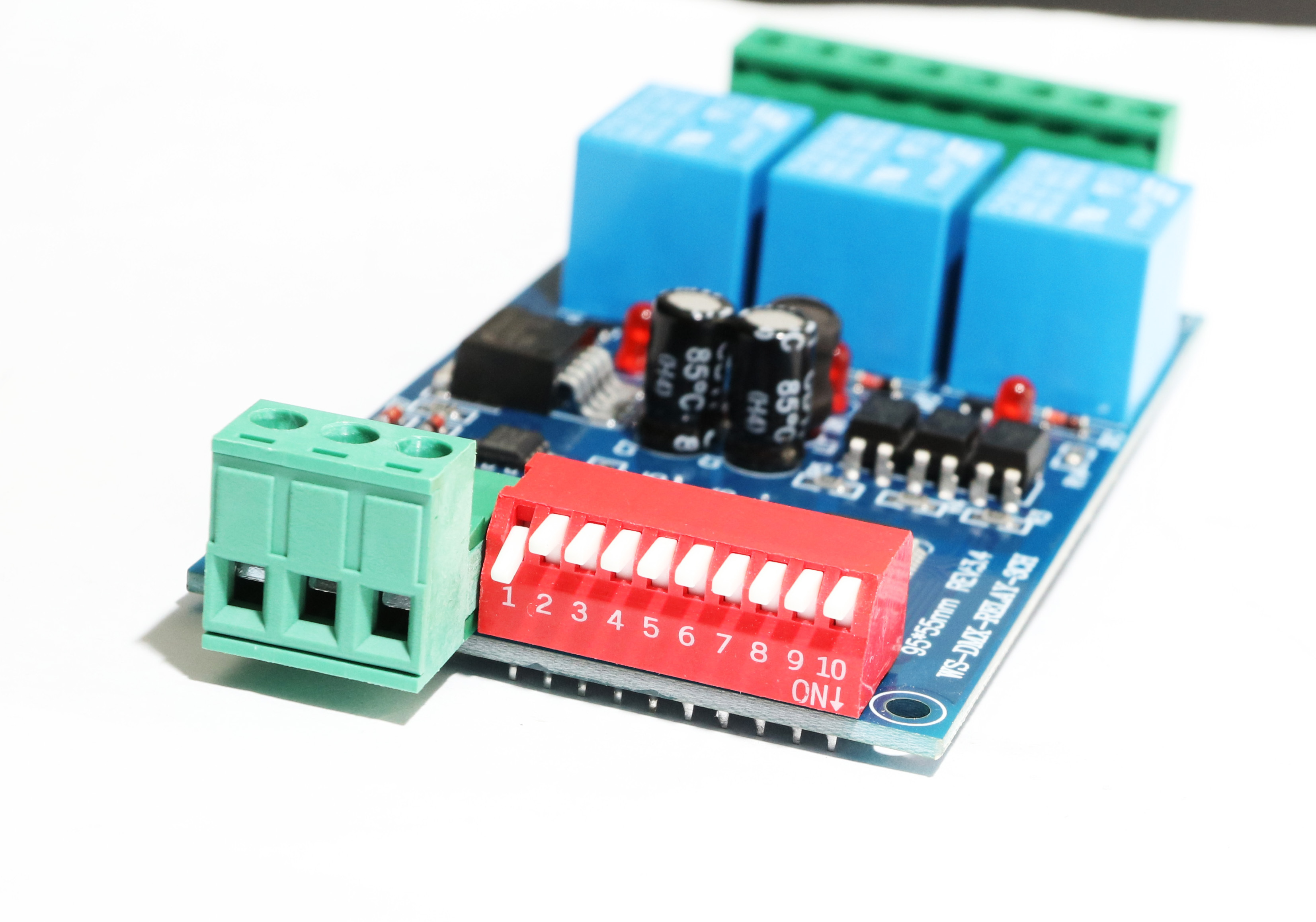

DIP Address + FUN: Binary DIP sets DMX start address; FUN=OFF receives DMX; FUN=ON for test modes.
Compact Install: ~120×55×20mm / 0.15kg; distinct from PWM LED decoders—this is relay switch, not constant-current/3A PWM RGB drive
|
Parameter |
Specification |
|---|---|
|
Model / Label |
WS-DMX-RELAY-3CH-BAN / DMX-RELAY-3CH-BAN DMX512 DECODER |
|
Type |
3-Channel DMX512 Relay Switch Decoder (Normally Open) |
|
Control/Supply |
DC12V (controller power) |
|
Relay/Load Rating |
AC5V-250V, MAX 10A (per group/output as specified) |
|
DMX Footprint |
Occupies 3 DMX addresses (default logic: 0–127 OFF, 128–255 ON) |
|
Address Setting |
DIP binary (1/2/4/8/16/32/64/128/256) + FUN(10) |
|
Function |

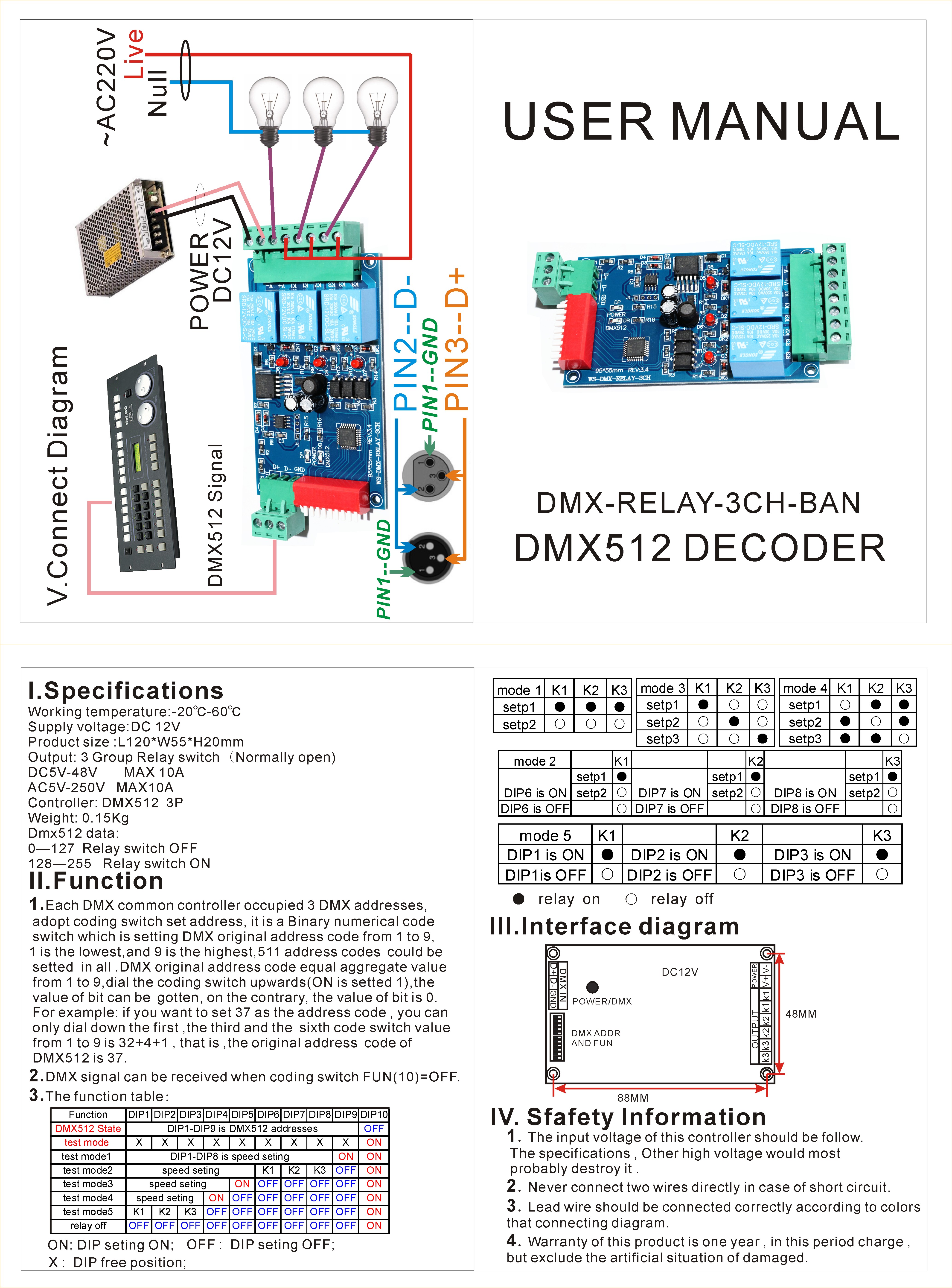

FUN=OFF: DMX512 mode; FUN=ON: test/built-in relay patterns (mode table per manual) |
|
Interface |
DMX512 3P, DMX IN/OUT, POWER/Relay terminals |
|
Working Temp. |
-20℃ ~ 60℃ |
|
Dimension |
~120 × 55 × 20 mm |
|
Weight |
0.15 kg |
|
Application |
AC lamp/bulb switching, stage/props, signage, automation via DMX |
|
Safety |
DC12V for controller only; don’t feed AC to control input; avoid short; respect relay contact rating |
