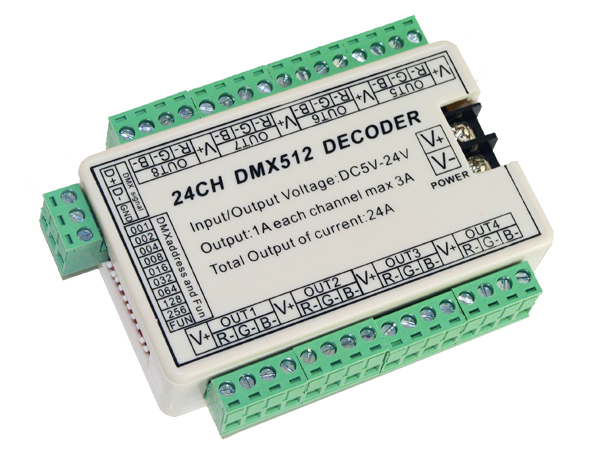

The WS-DMX-24CH is a 24-channel DMX512 LED decoder supporting DC5V-24V and driving up to 8 RGB groups (24 DMX addresses). Rated 1A per channel (max 3A/ch, 24A total reference) with terminal-block V+/R/G/B wiring. DIP switches set start address; FUN enables standalone colors, 7-color jump/gradual and speed steps. Compact 110×80×28mm, 0.19kg, links to DMX console for stage, architectural, signage and decorative LED installs. Do not connect AC mains; follow polarity, avoid shorts and reserve current/thermal margin.
24CH / 8 RGB Groups: Controls eight RGB strings via one unit, occupying 24 consecutive DMX addresses.
DC5V-24V Wide Input: Suits 5V/12V/24V common-anode LED strips/modules—not for AC HV dimmer.

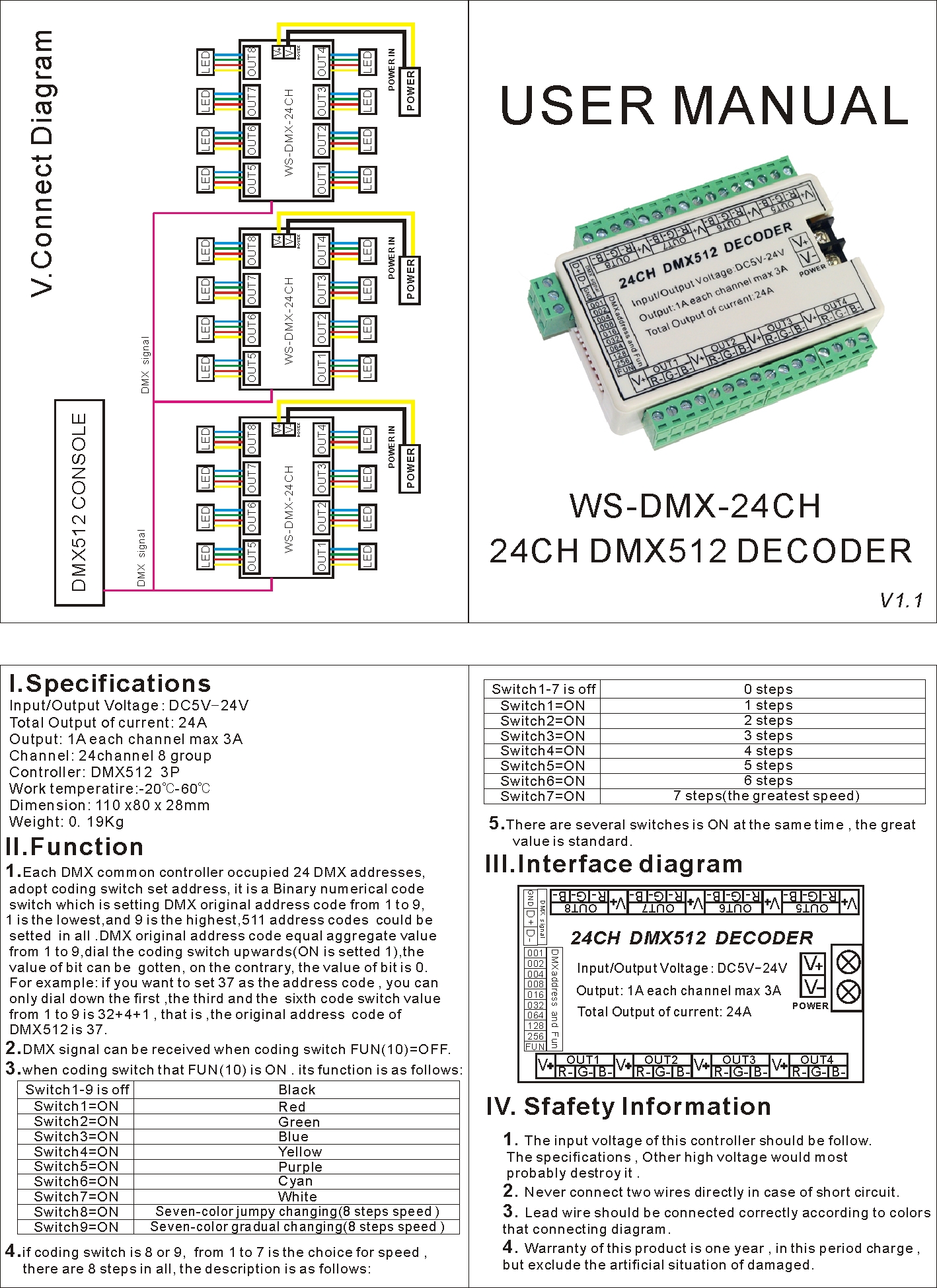

1A/CH (Max 3A/CH): Manual states 1A each channel / max 3A, 24A total reference; plan load and heat margin.
DIP + FUN Modes: Binary DMX start-address; FUN for Black/Red/Green/Blue/Yellow/Purple/White, 7-color jump/gradual and 1–7 speed steps.
Compact Terminal Design: 110×80×28mm/0.19kg with screw terminals; integrates with DMX console/daisy-chain for large LED systems.
|
Parameter |
Specification |
|---|---|
|
Model / Label |
WS-DMX-24CH / 24CH DMX512 DECODER |
|
Version |
V1.1 (per image) |
|
Type |
24-Channel DMX512 LED Decoder (8 RGB groups) |
|
Control |
DMX512 (3P/console), DMX signal chain |
|
Input/Output Voltage |
DC5V-24V |
|
Output |
24 channels (OUT1–OUT4 as V+/R/G/B groups per diagram) |
|
Output Current |
1A per channel; max 3A per channel; Total 24A (per manual, use with margin) |
|
DMX Footprint |
Occupies 24 DMX addresses |
|
Address Setting |
DIP binary (1/2/4/8/16/32/64/128/256) + FUN(10) |
|
FUN Behavior |
Switch1-9: Black/Red/Green/Blue/Yellow/Purple/White/7-color jump/7-color gradual; 8/9 + 1-7 = speed steps |
|
Working Temp. |
-20℃ ~ 60℃ |
|
Dimension |
110 × 80 × 28 mm |
|
Weight |
0.19 kg |
|
Application |
LED strip, RGB modules, signage, architectural, stage/decor |
|
Safety |
DC only; no AC/mains; correct V+/V-/RGB; no short; check DMX wiring/termination |
