The built-in power-on sequencing protects equipment from inrush surges, extending device lifespan. Its standard 1U rack-mount design fits seamlessly into any professional rack setup. Whether for live events, broadcast, or fixed installations, the DMX-PM08R provides reliable, centralized power control with industry-standard DMX integration.
Multi-Protocol Control: Supports DMX512, RDM, and RS485 for seamless integration with lighting consoles, media servers, and building automation systems.
8-Channel High Power: 8 independent outputs, each rated up to 1000W (25A total input capacity) for driving amplifiers, fixtures, and heavy AV loads.
Flexible DMX Mapping: Configurable 2/8/10-channel DMX modes adapt to different console setups and simplify addressing.
Safety & Protection: Built-in power-on sequencing prevents inrush current damage; output lockout prevents accidental switching during live shows.
Professional Rack Design: Standard 1U form factor with screw-mount installation, ideal for touring racks, fixed installations, and broadcast environments.

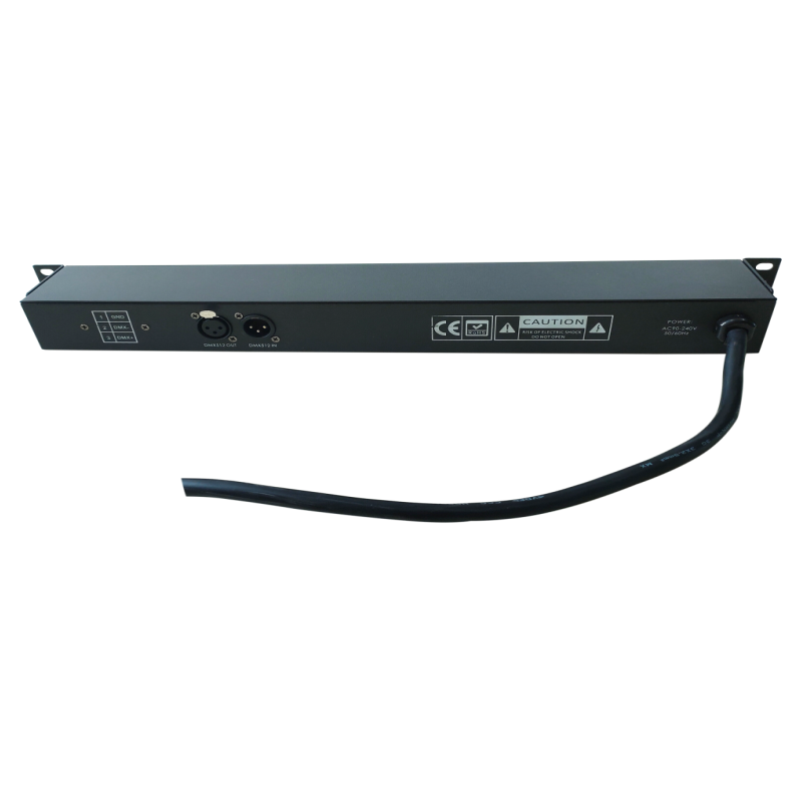

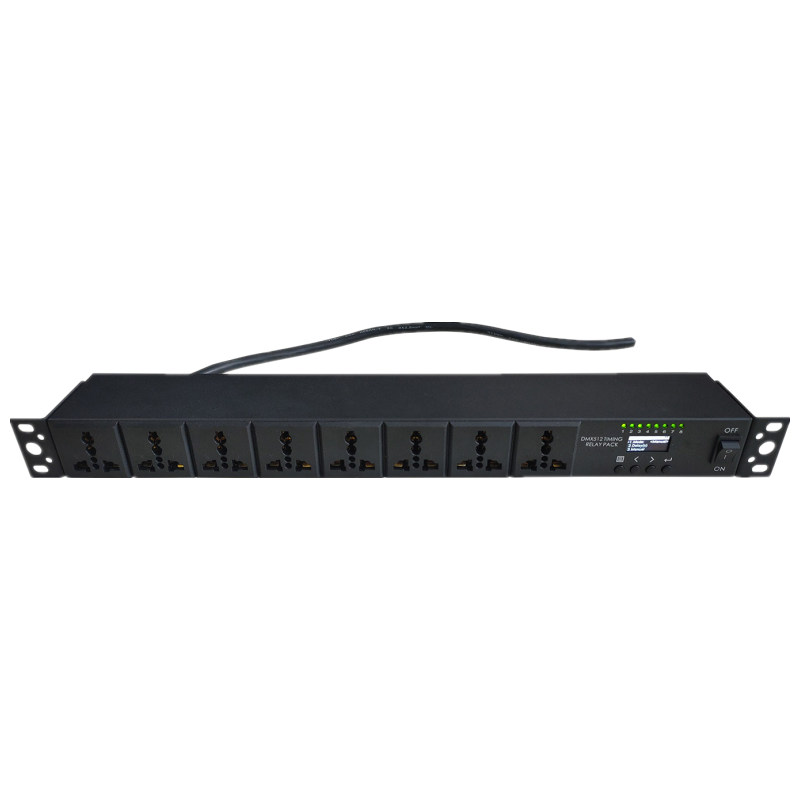

DMX-PM08R 8-Channel DMX512 Power Sequencer
|
Category |
Specification |
|---|---|
|
Model |
DMX-PM08R |
|
Product Type |
DMX512 Power Sequencer |
|
Input Voltage |
100–240V AC, 50/60Hz |
|
Input Current |
25A Max. (IEC inlet) |
|
Output Channels |
8 Channels, 1000W Max. per Channel |
|
Control Signal |
DMX512, RDM, RS485 |
|
DMX Channels |
2 / 8 / 10 CH (selectable) |
|
Functions |
Power Sequencing, Manual Control, Output Lock |
|
Display |
LED Indicators (DMX address, channel status) |
|
Installation |
1U Rack Mount, Screw Fixed |
|
Safety Features |
Inrush Protection, Output Lockout, Overload Protection |
