Compatible with all LED types—single color, CCT, RGB, RGBW, RGBWY—and DMX fixtures including wash, laser, gobo, and fountain systems. Powered via 5V USB-C or 8–15V DC terminal, it mounts on any 35mm rail for space-saving installation.
Scalable DMX Output: 2×512 channels out of the box, upgradeable to 3×512—handles small to medium installations with room to grow.
Versatile Control Methods: UDP, WiFi APP, scheduling, RF remote, sensors, and 8 dry-contact logic inputs integrate seamlessly with BMS and smart systems.

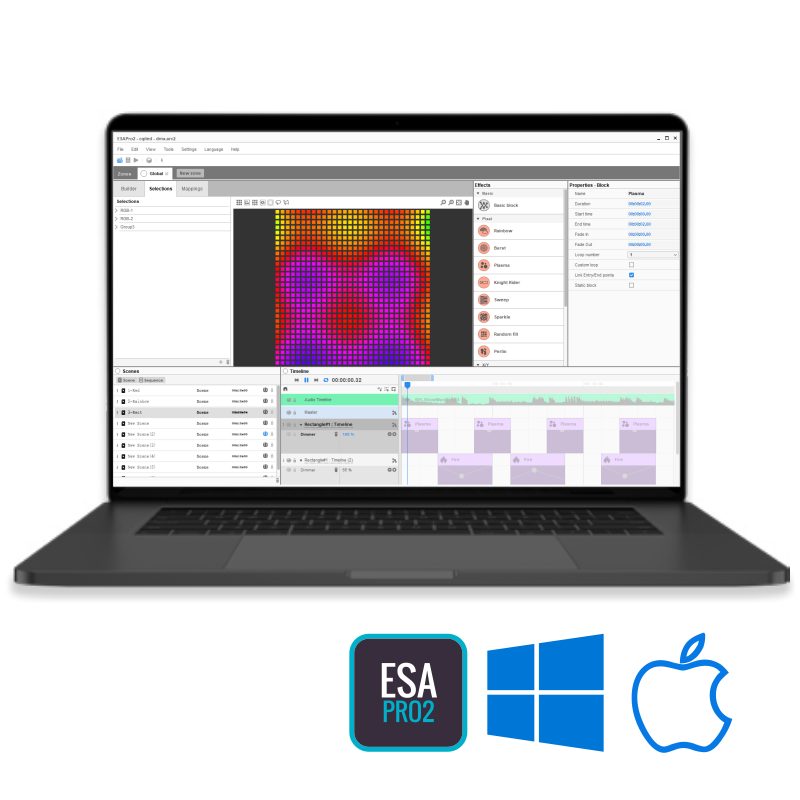

One-Click Programming & Auto-Run: Win/Mac software for real-time effects; one-button download to TF card; powers up and runs shows automatically—no PC needed.
Multi-Device Sync & RDM: Master-slave cascade for multiple controllers; RDM support for remote fixture configuration and status monitoring.
Dual Power & Compact Rail Mount: 5V USB-C or 8–15V DC terminal; 35mm DIN rail form factor fits standard electrical cabinets and enclosures

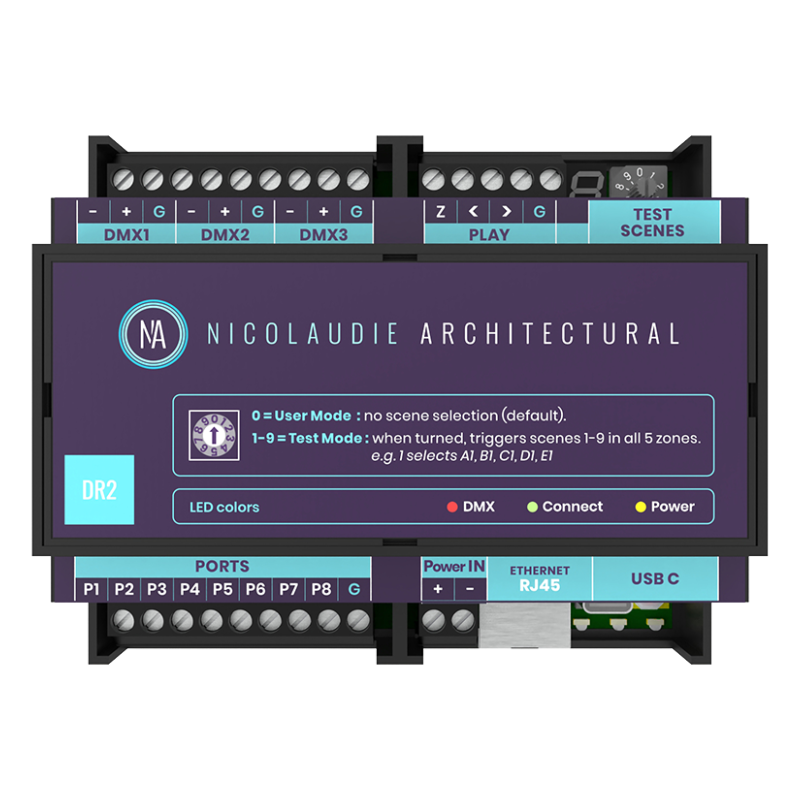

DINA-DR2 DIN-Rail Network DMX Controller
|
Category |
Specification |
|---|---|
|
Model |
DINA-DR2 |
|
DMX Output |
2 × 512 channels (upgradeable to 3 × 512) |
|
Zones / Scenes |
5 Independent Zones, 99 Scenes |
|
Control Inputs |
UDP, WiFi APP, Scheduling, RF Remote, Sensors, 8 Dry Contacts (logic) |
|
Programming |
ESA Pro 2 (Win/Mac), Real-time Effect Output |
|
Storage |
TF Card |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up |
|
Remote Control |

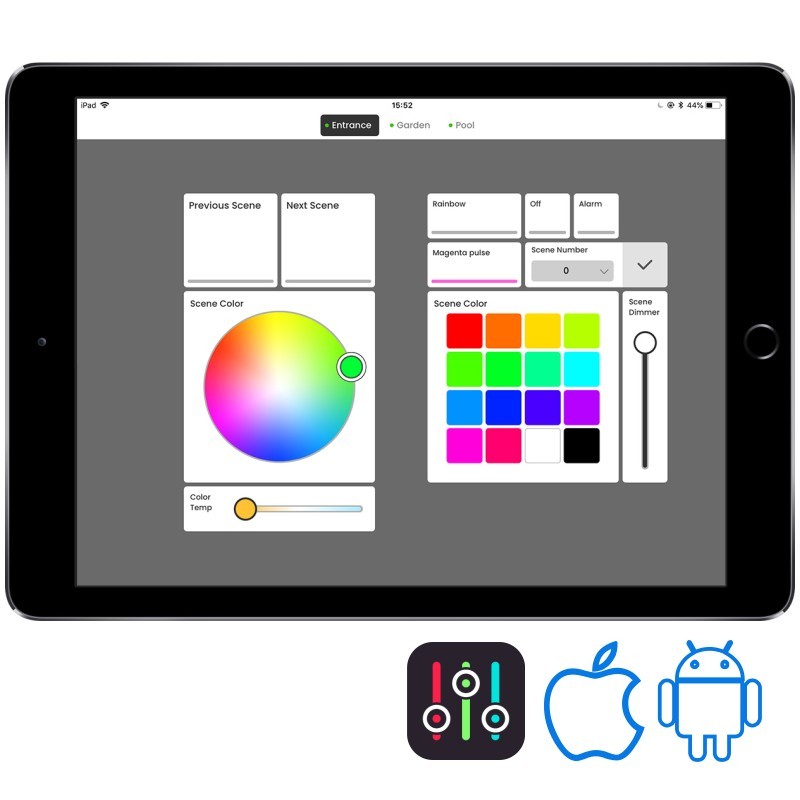

iPad / Android APP |
|
Network Topology |
One-Master-Multiple-Slave, Multi-Unit Cascade |
|
DMX Management |
RDM (Remote Device Management) |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Wash, Laser, Gobo, Fountain |
|
Power Supply |
5V DC (USB Type-C), 8–15V DC (Terminal) |
|
Installation |
35mm DIN Rail Mount |
