Control via UDP, RS232, WiFi APP, 8 dry contacts, RF, sensors, and schedule. RDM support enables remote fixture management. Powered by 5V USB-C or 8–15V DC terminal, it combines massive scalability with space-saving DIN-rail installation.

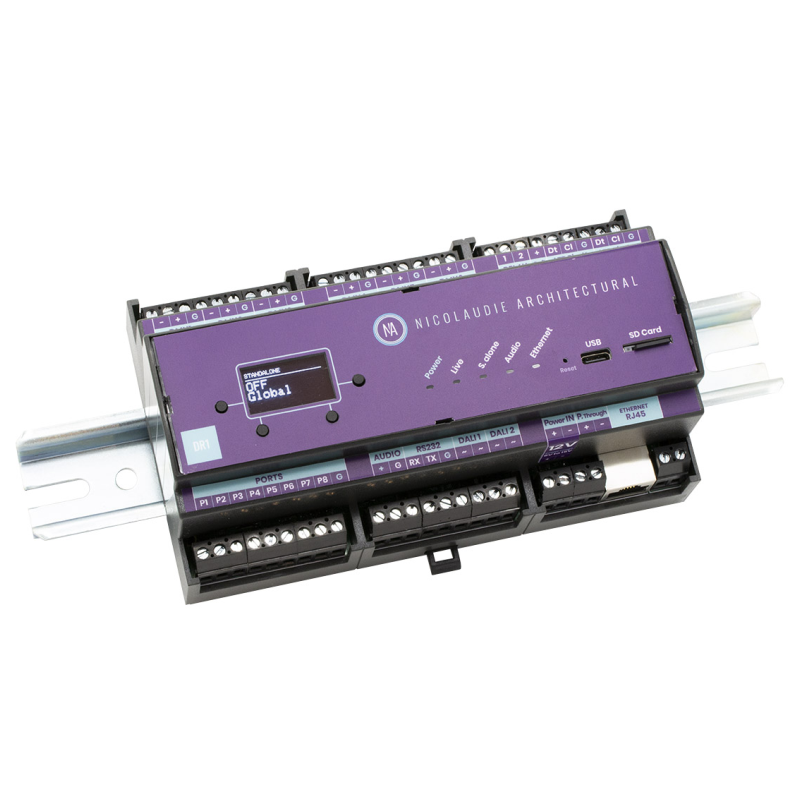

Massive Scalability in Compact Form: 6×512 DMX channels standard, upgradeable to 20×512 via Art-Net/eDMX—all in a space-saving 35mm DIN-rail enclosure perfect for electrical cabinets.
Audio-Triggered Lighting: Dedicated audio input analyzes live music and triggers synchronized lighting effects in real time—ideal for fountains, bars, retail, and live events.
Comprehensive Control Interfaces: UDP, RS232, WiFi APP, 8 dry contacts, RF remote, sensors, and scheduling integrate seamlessly with BMS, AV systems, and smart home platforms.

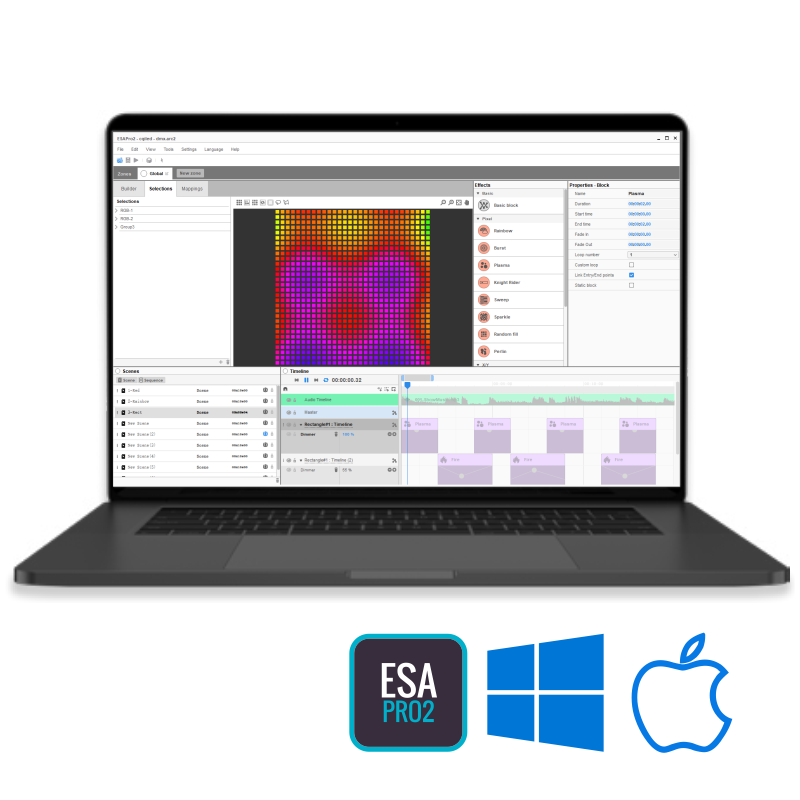

Professional Programming Suite: ESA Pro 2 (Win/Mac) with timeline, pixel mapping, and fixture library; one-click download to TF card or internal 16MB memory for PC-free standalone playback.
Dual Power & Rack Alternative: 5V USB-C or 8–15V DC terminal; pairs with DINA-SR1 rack unit for hybrid installations—same firmware, same programming, different form factor.

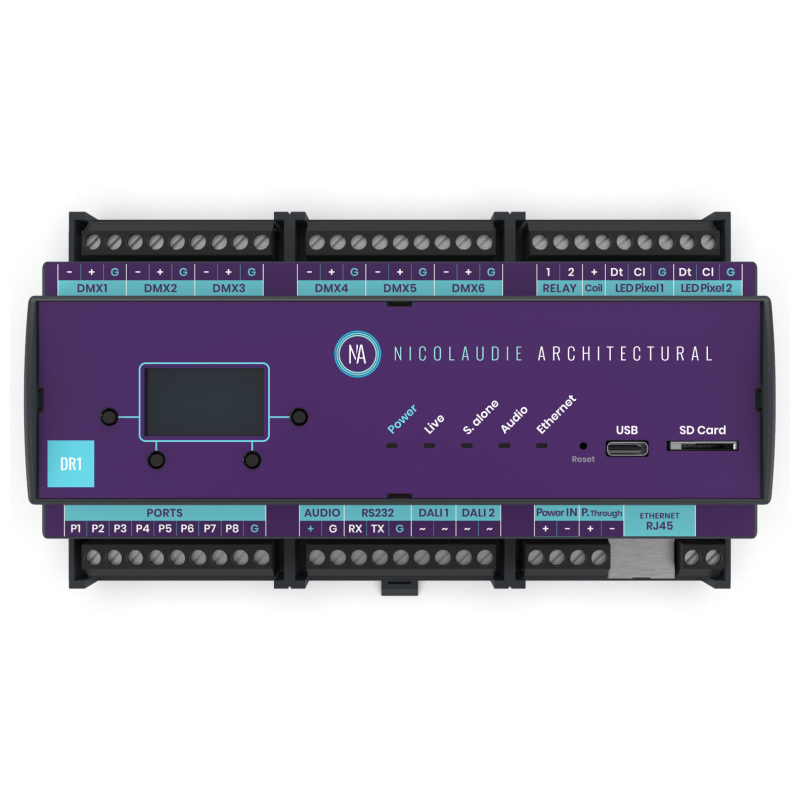

DINA-DR1 DIN-Rail Network DMX Media Controller
|
Category |
Specification |
|---|---|
|
Model |
DINA-DR1 |
|
DMX Output |
6 × 512 channels (upgradeable to 20 × 512 via Art-Net/eDMX) |
|
Zones / Scenes |
20 Independent Zones, 2000 Scenes |
|
Audio Input |
Yes — trigger lighting effects from live music/audio source |
|
Control Inputs |
UDP, RS232, WiFi APP, Scheduling, RF Remote, Sensors, 8 Dry Contacts |
|
Programming |
ESA Pro 2 (Windows/Mac), Real-time Preview |
|
Storage |
TF Card + Internal 16MB Flash |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up |
|
Remote Control |

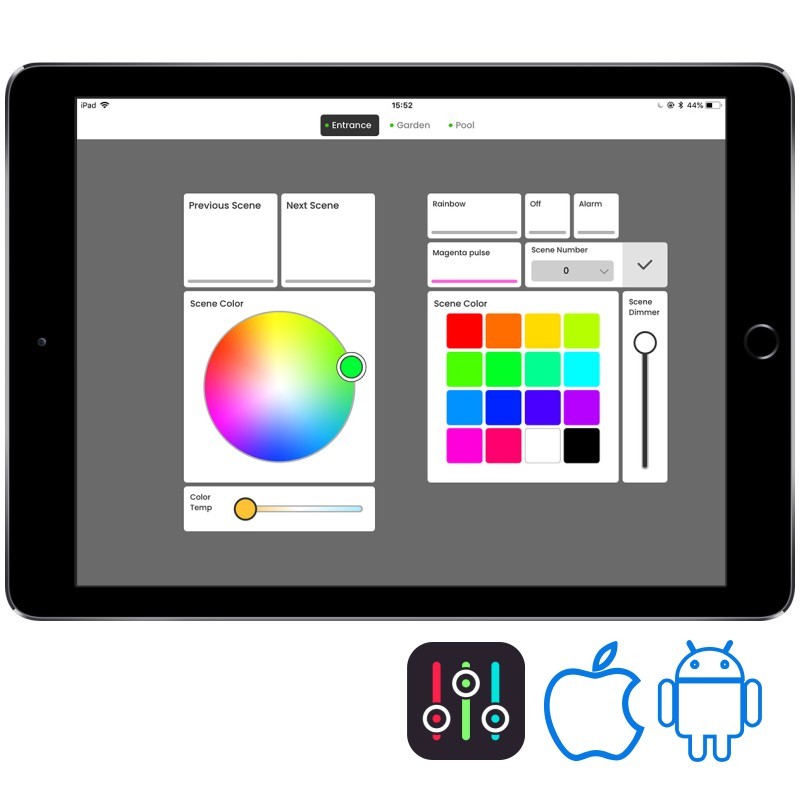

iPad / Android APP |
|
Network Topology |
One-Master-Multiple-Slave, Multi-Unit Cascade |
|
DMX Management |
RDM (Remote Device Management) |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Wash, Laser, Gobo, Fountain |
|
Power Supply |
5V DC (USB Type-C), 8–15V DC (Terminal) |
|
Installation |
35mm DIN Rail Mount |
|
Network Protocol |
Art-Net / eDMX (output mode) |
