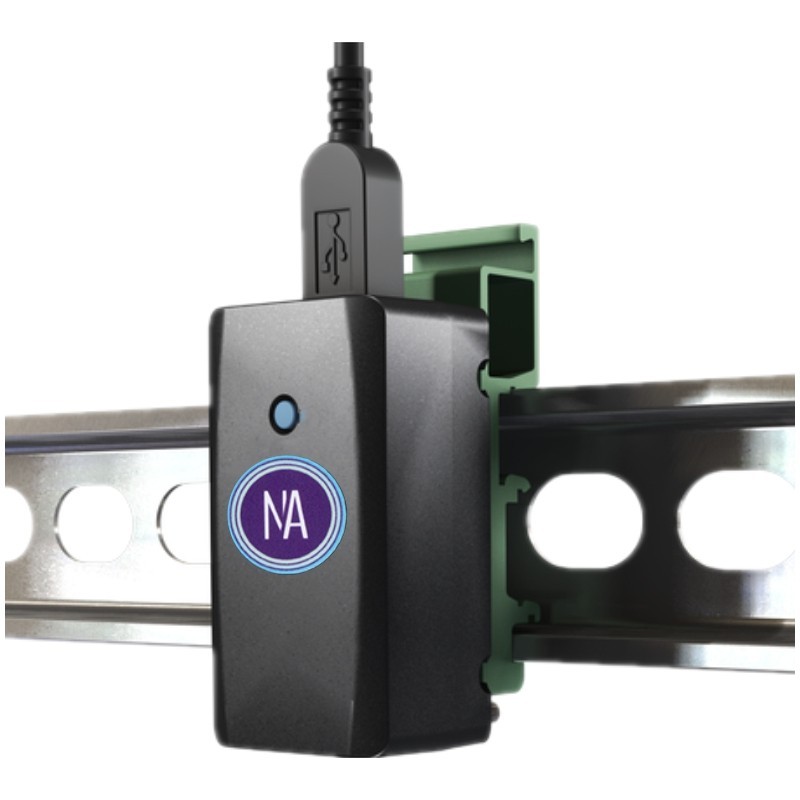

Powered via 5V USB, it fits any 35mm rail. Compatible with single-color, CCT, RGB, RGBW, RGBWY LEDs and DMX fixtures including wash, laser, and gobo lights. The perfect entry-level rail-mounted solution for cabinets, displays, and tight-space automation.
Ultra-Compact DIN-Rail Footprint: Smallest in the DINA series—fits into crowded electrical cabinets, junction boxes, and narrow enclosures where space is at a premium.
Standalone Auto-Run: Program on Win/Mac, download to controller, and it plays shows automatically on power-up—no computer needed for daily operation.
2 Dry Contact Inputs (RJ45 Version): External switch triggering via RJ45 connector for clean, tool-free wiring—ideal for wall switches or BMS integration.
Universal Fixture Support: Drives single-color, CCT, RGB, RGBW, RGBWY LEDs and DMX fixtures including wash, laser, and gobo lights from one mini unit.
USB Bus-Powered: 5V USB power eliminates extra wiring—draws power directly from programming PC or any USB adapter.

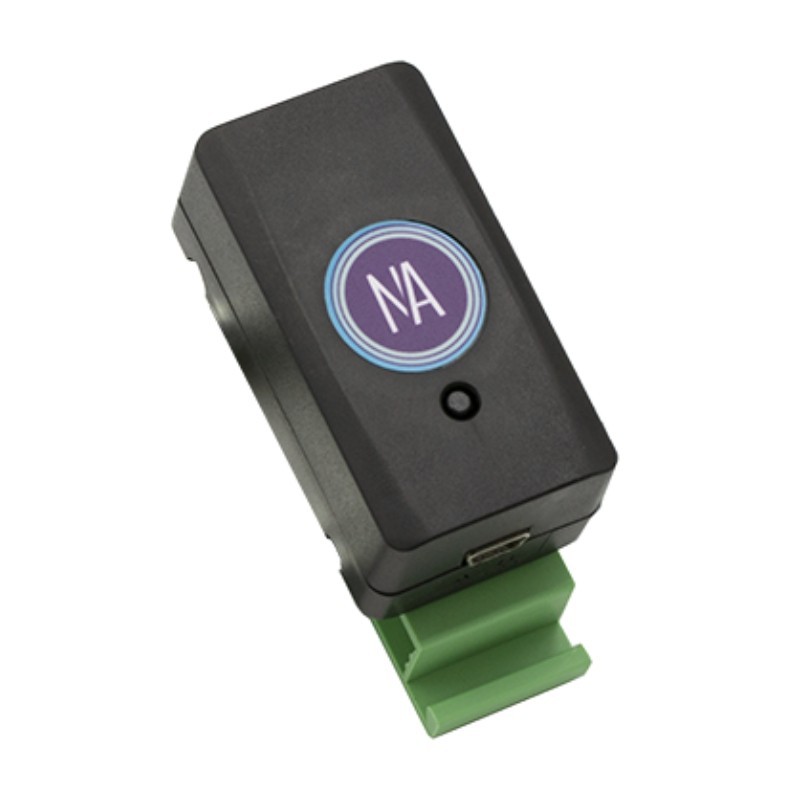

DINA-DR Micro DIN-Rail USB-DMX512 Controller
|
Category |
Specification |
|---|---|
|
Model |
DINA-DR Micro |
|
DMX Output |
60 DMX Channels (1 partial universe) |
|
Scenes |
10 Scenes |
|
Trigger Inputs |
2 Dry Contacts (RJ45 version) |
|
Programming |

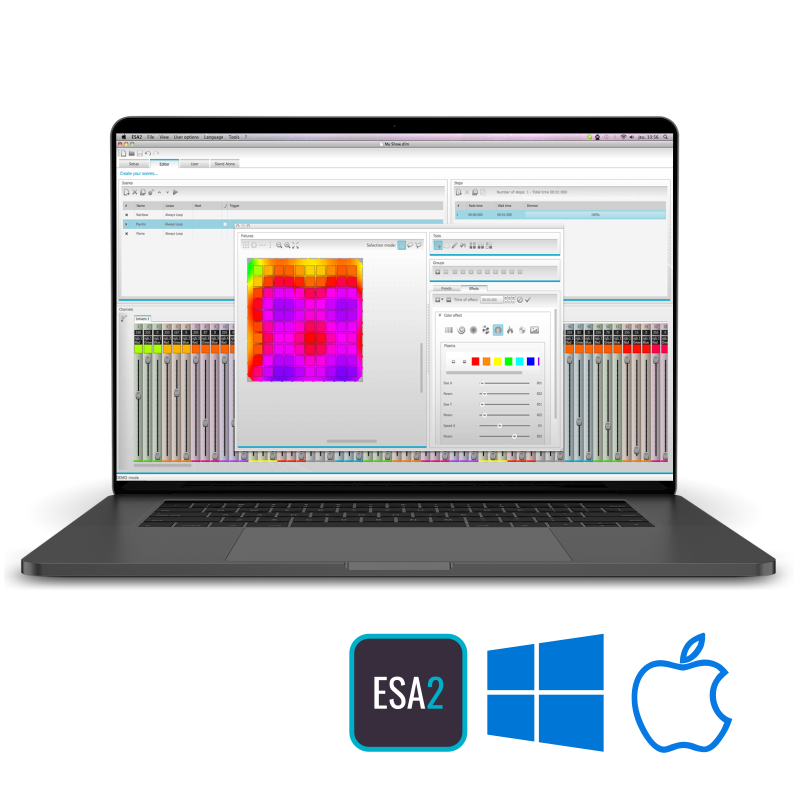

ESA Pro 2 (Windows/Mac), Real-time Preview |
|
Auto-Run |
One-click Download, Auto-Start on Power-Up |
|
Fixture Support |
Single Color, CCT, RGB, RGBW, RGBWY LEDs; Wash, Laser, Gobo |
|
Power Supply |
5V DC (USB bus-powered) |
|
Interface |
USB (programming/real-time), DMX XLR, RJ45 (dry contact) |
|
Installation |
35mm DIN Rail Mount |
|
Dimensions |
Ultra-compact enclosure (confirm exact mm) |
