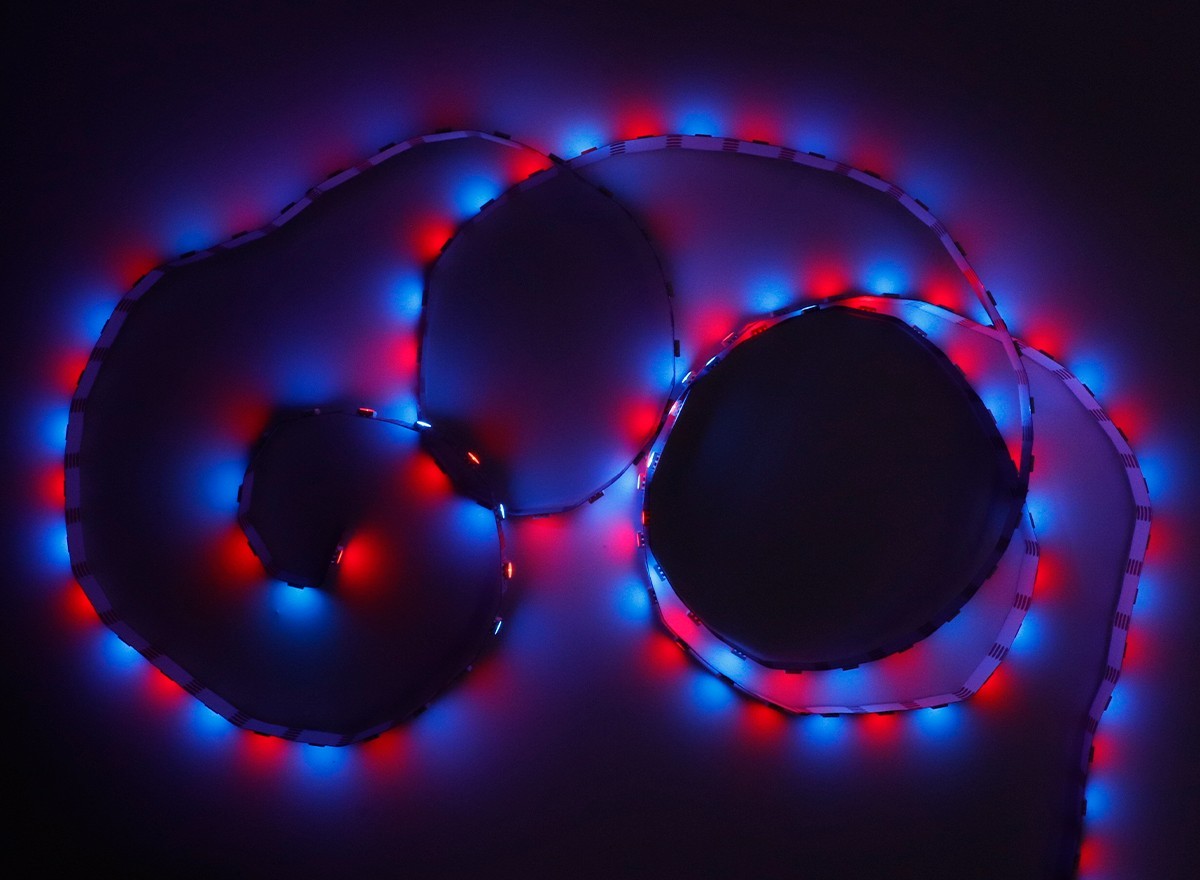

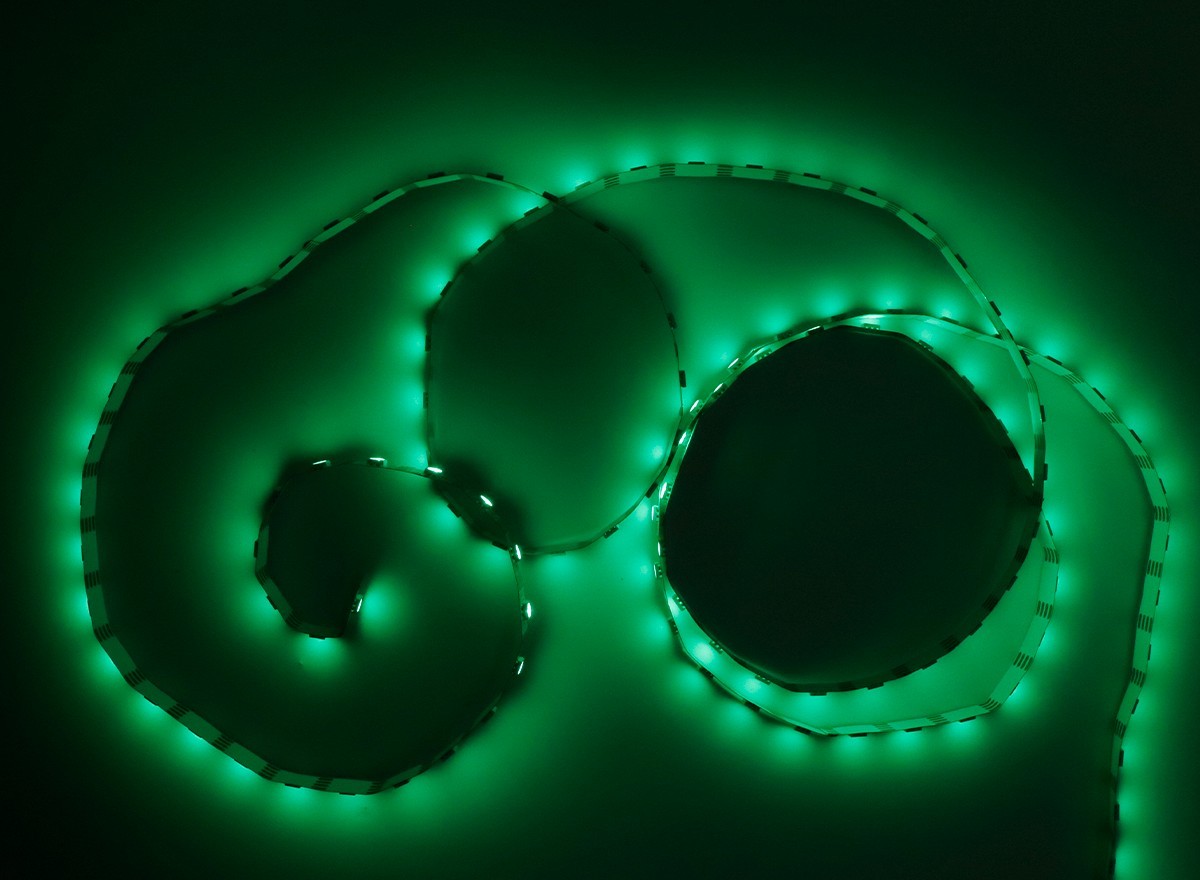

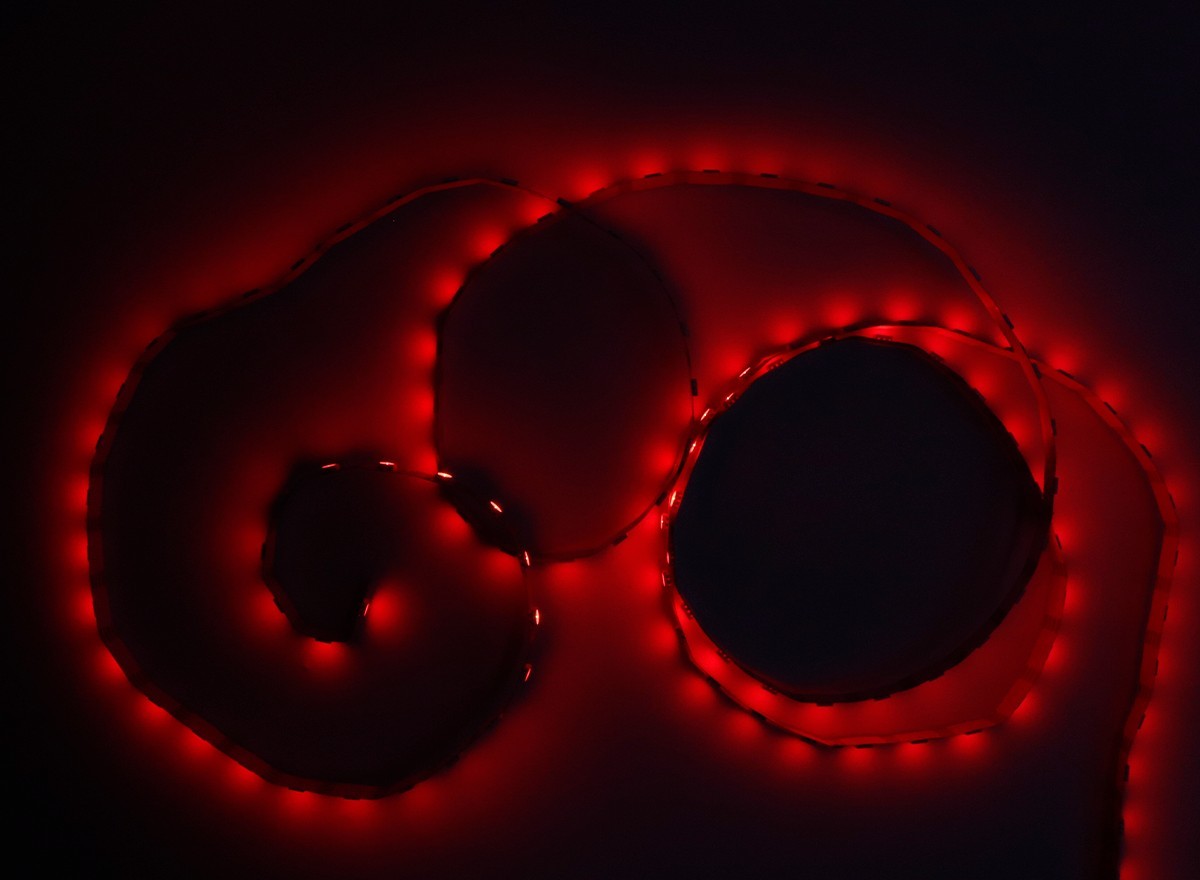

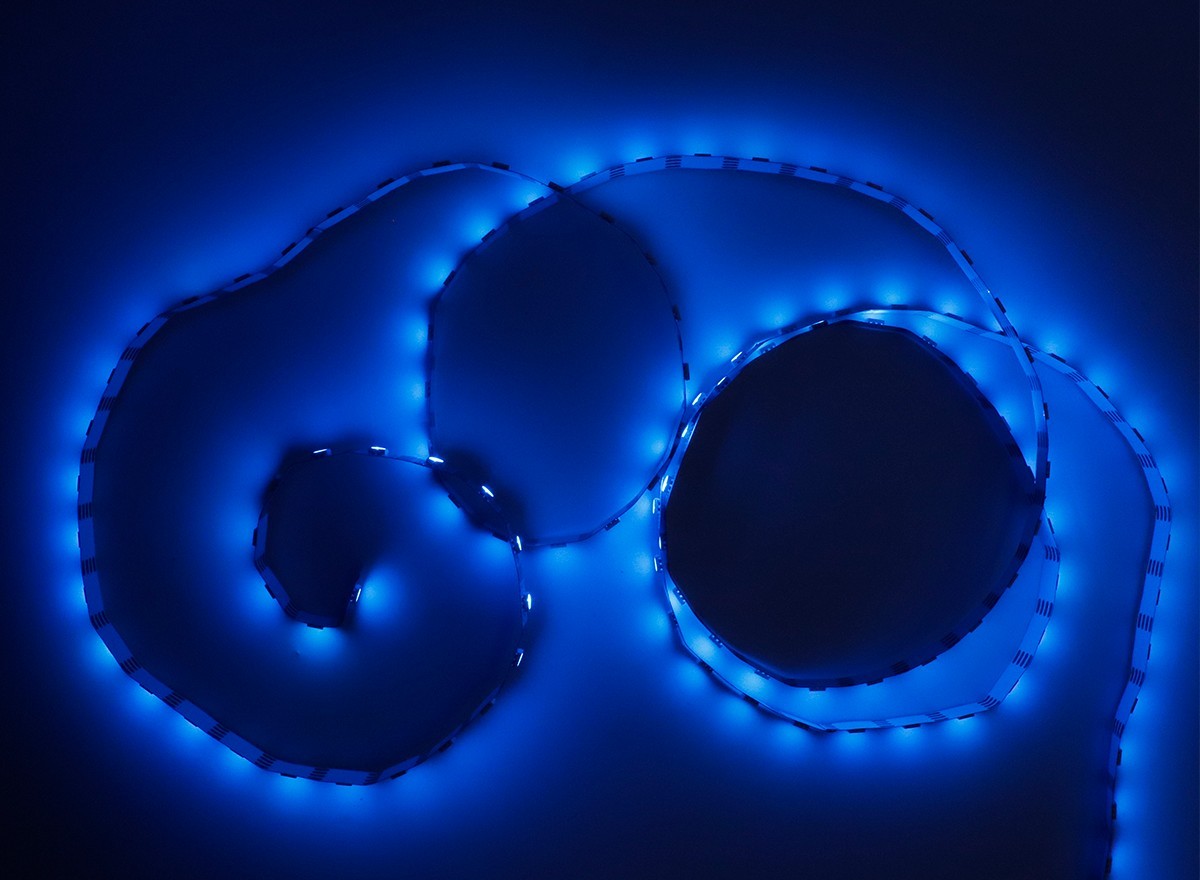

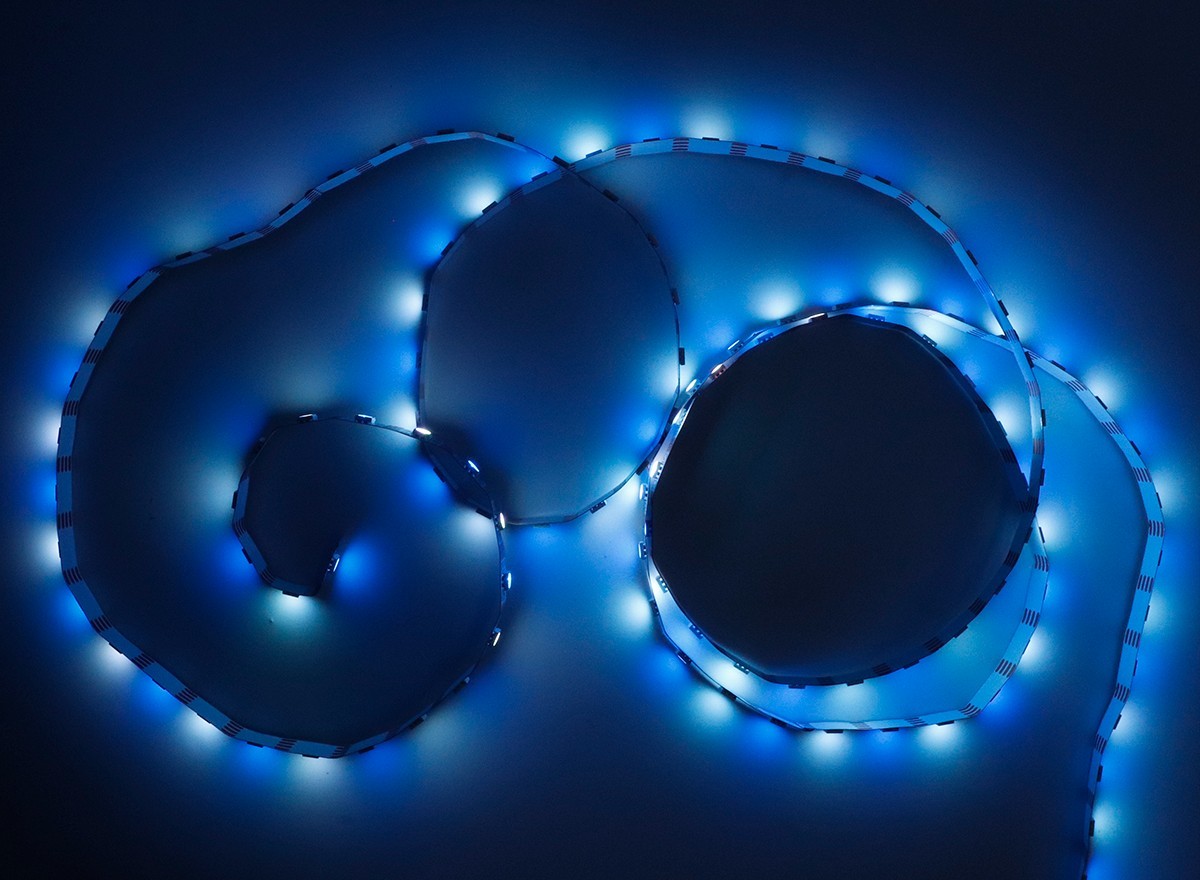

This DC5V WS2813 5050 RGB strip puts 60 addressable pixels per meter on a sleek black PCB for deeper contrast and cleaner PC/gaming/signage looks. Each 5050 LED has a built-in WS2813 IC—24-bit color, 256-level grayscale, single-pixel control. The dual data lines (DI + BI) give breakpoint-resume reliability: one dead pixel won’t break the chain. It speaks WS2812B-class single-wire timing, so Arduino/FastLED/ESP32 WLED/K-1000C/Madrix all drive it directly. 5V draws more current than 12V strips, so inject power every 1–2 m on long runs. Perfect for gaming battlestations, monitor backlights, KTV, retail logos, cosplay props and pro maker builds that need both looks and fault tolerance.
WS2813 Dual-Data Reliability: DI + BI backup channel → single-pixel failure won’t kill the whole run (unlike plain WS2812B).
Black PCB Aesthetic: Matte black board hides traces, looks premium behind glass, acrylic, PC case, shelf and signage.
60 Pixels/m Single Control: 1 IC = 1 5050 RGB LED, 16.7M colors, chase/gradient/text/audio-reactive effects.
5V Maker Ecosystem: Arduino, ESP32/WLED, FastLED, Adafruit NeoPixel libs, K-1000C, T-1000S, Madrix, SP108E ready.
Cut & Chain: Cut every 16.6mm (1 LED), 10mm wide, 3M backing, IP20/IP65/IP67 options, chain panels/strips for big pixel walls.
|
Item |
Specification |
|---|---|
|
LED Type |
SMD 5050 RGB |
|
IC |
WS2813 (built-in, WS2812B-compatible, dual-data) |
|
Density |
60 LEDs/m = 60 pixels/m |
|
Voltage |
DC 5V (abs max ~5.5V) |
|
Power |
~14.4 W/m max, ~9–11 W/m typical mixed color |
|
Current |
~2.9 A/m full white |
|
Cut Unit |
Every 1 LED / 16.67 mm |
|
PCB |
Black PCB, 10 mm (12 mm waterproof version optional) |
|
Color |
RGB, 256 gray/channel, 24-bit, 16.7M colors |
|
Signal |
Single NZR + backup (DIN / BIN), 800 kbps |
|
Refresh |
~2 kHz PWM |
|
Wiring |
5V / GND / DIN / BIN (4-pin JST or pads) |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 optional |
|
Controller |
Arduino, ESP32 WLED, FastLED, K-1000C, T-1000S, Madrix |
|
Power Rule |
Inject 5V every 1–2 m on long runs; add 1000µF cap at feed |
|
Lifespan |
30,000–50,000 hrs |
|
Note |
Addressable + breakpoint resume; not RGBW; BIN can be left floating on WS2812B controllers |
