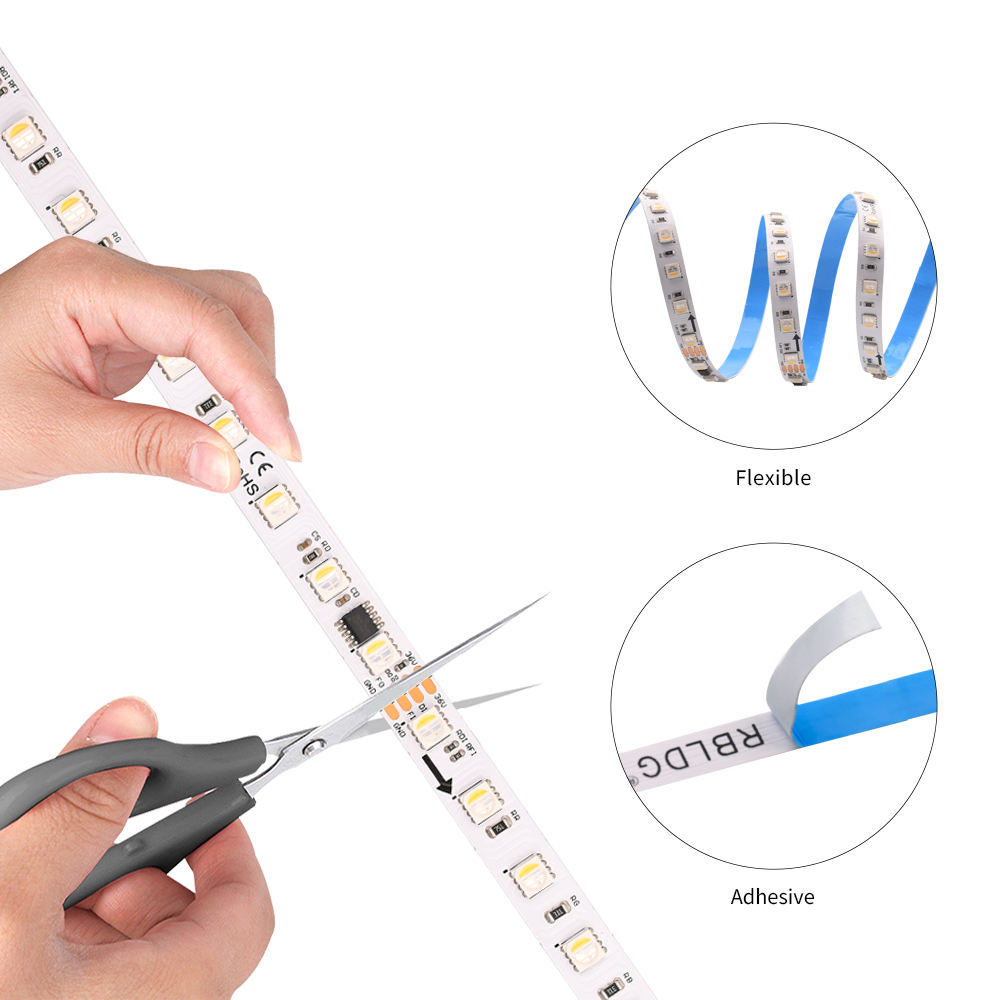

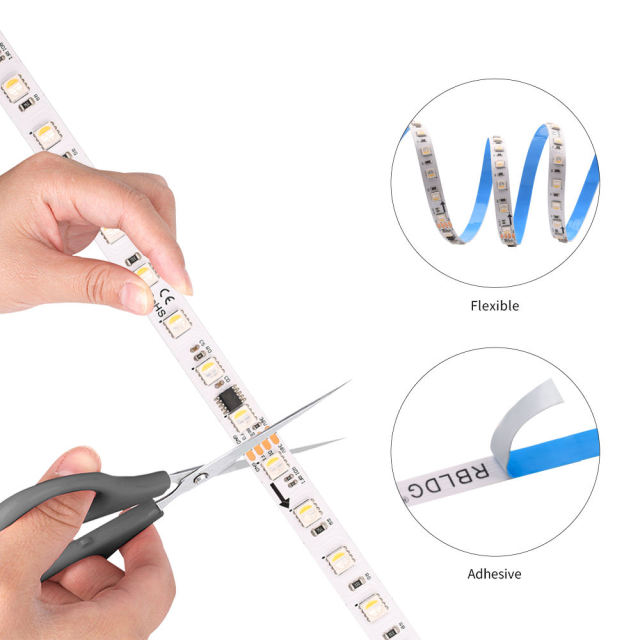

Available in IP20 (indoor), IP65 (splash-proof), and IP67 (waterproof silicone tube) to suit any environment. Each LED pixel is individually addressable via SPI/DMX protocol, compatible with mainstream controllers for dynamic chasing, gradient, and video-sync effects. Built with high-CRI SMD5050 RGBW chips, it ensures both saturated color mixing and clean white output. Engineered for reliability with low heat generation, strong flexibility, and easy cutting at marked intervals. Perfect for theaters, nightclubs, hotels, commercial buildings, and landscape lighting projects.

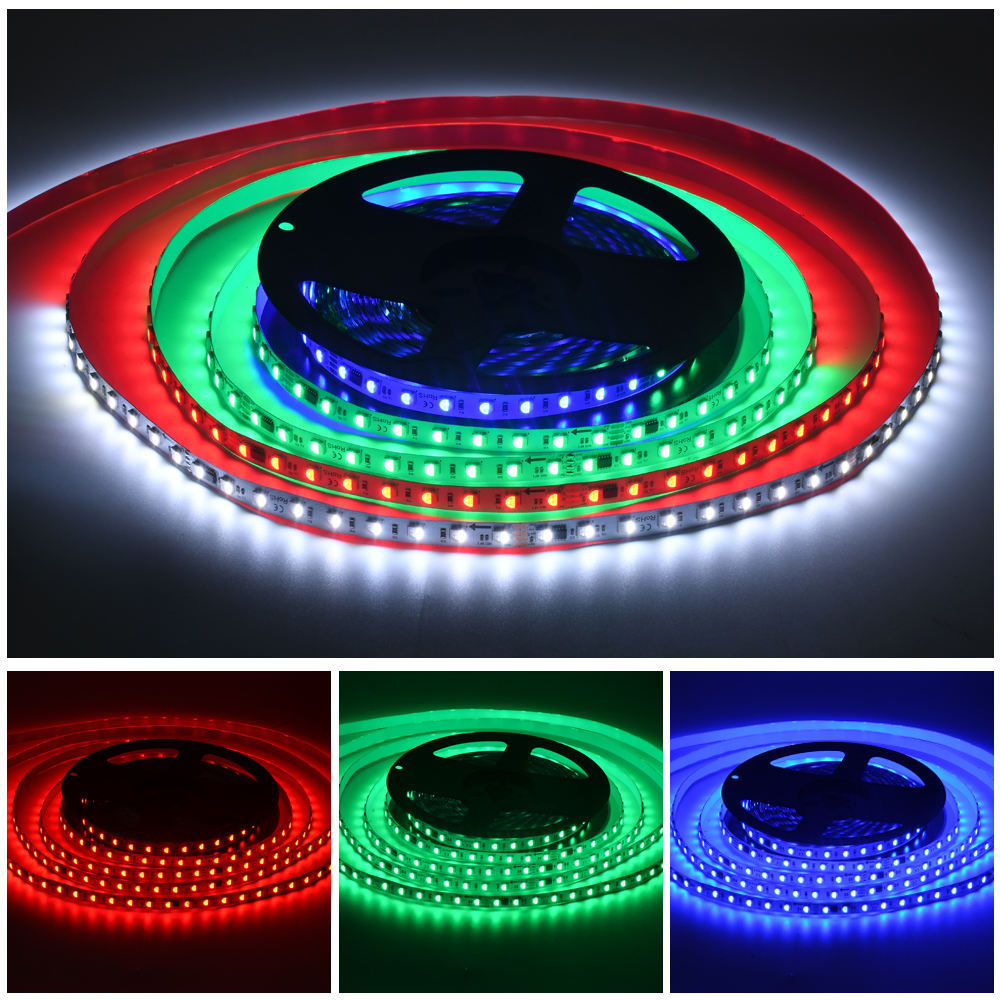

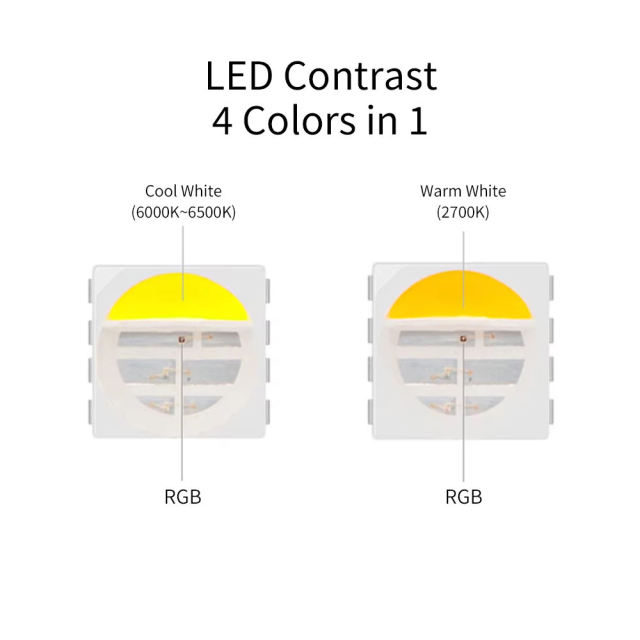

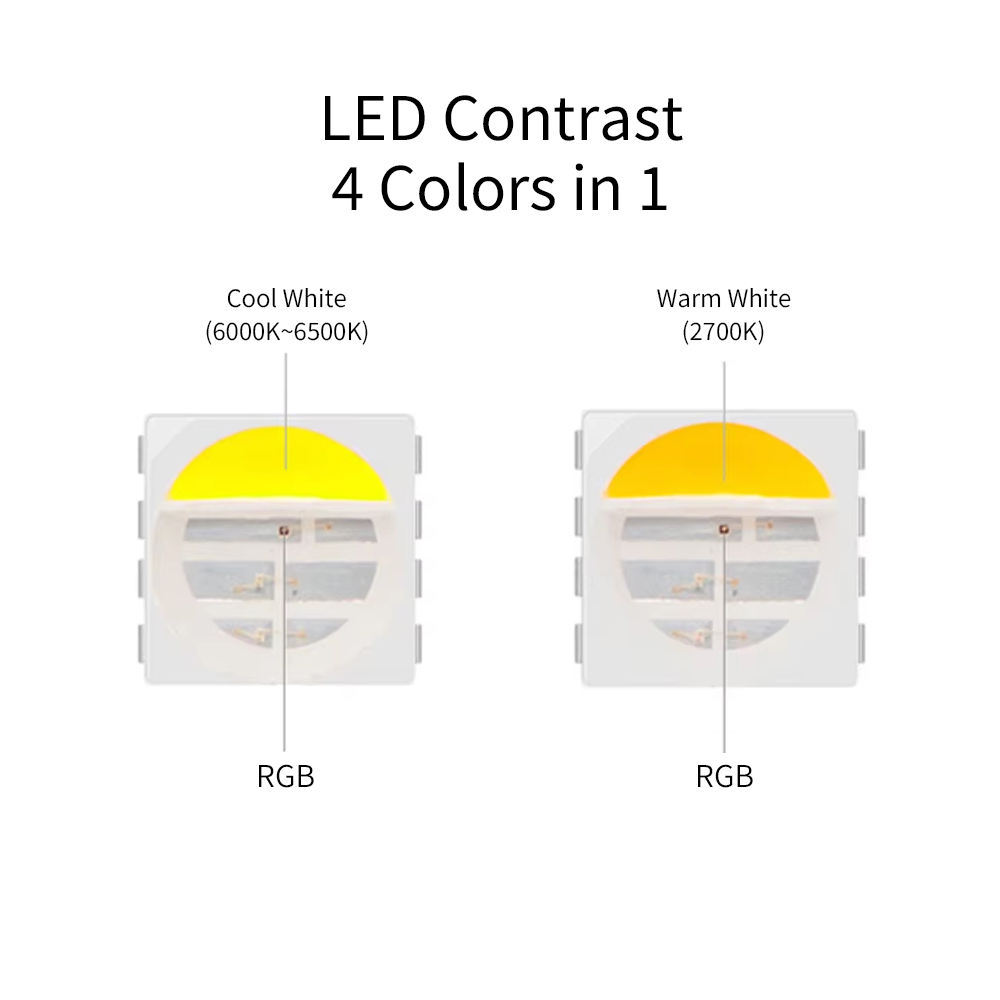

🎨 True RGBW Color + Pure White — SMD5050 RGBW 4-in-1 chips deliver rich color mixing plus dedicated white channel (2700K/4000K/6500K optional) for both ambiance and functional illumination.
⚡ DC36V High Voltage, Low Voltage Drop — Supports longer continuous runs (up to 10–15m per feed) with minimal brightness decay, reducing power injection points and installation cost.
💡 72 LEDs/m High Density — Ultra-smooth linear lighting output with 12–18 programmable pixels per meter, creating fluid visual effects without visible dotting.
🎛️ Individually Addressable Pixels — SPI/DMX512 compatible ICs enable per-pixel control for chasing, strobe, gradient, and video-mapping effects; supports Art-Net, Madrix, and mainstream controllers.
🏗️ 3 Protection Levels for Any Scene — IP20 (indoor dry), IP65 (drip-glue, damp areas), IP67 (silicone tube, full outdoor) with 10mm narrow PCB for discreet architectural integration.
|
Item |
Specification |
|---|---|
|
Product Name |
DC36V RGBW Addressable Pixel LED Strip |
|
LED Type |
SMD5050 RGBW (4-in-1) |
|
LED Density |
72 LEDs/meter |
|
PCB Width |
10mm (White/Black optional) |
|
Input Voltage |
DC36V |
|
Pixel Configuration |
6 LEDs/IC or 9 LEDs/IC (customizable) |
|
Pixel Density |
8–12 pixels/meter |
|
IC Type |
SPI / DMX512 (UCS512B3, FW1834, or equivalent) |
|
Power Consumption |
~18–22W/m (varies by IC config) |
|
White Color Options |
2700K / 4000K / 6500K |
|
Beam Angle |
120° |
|

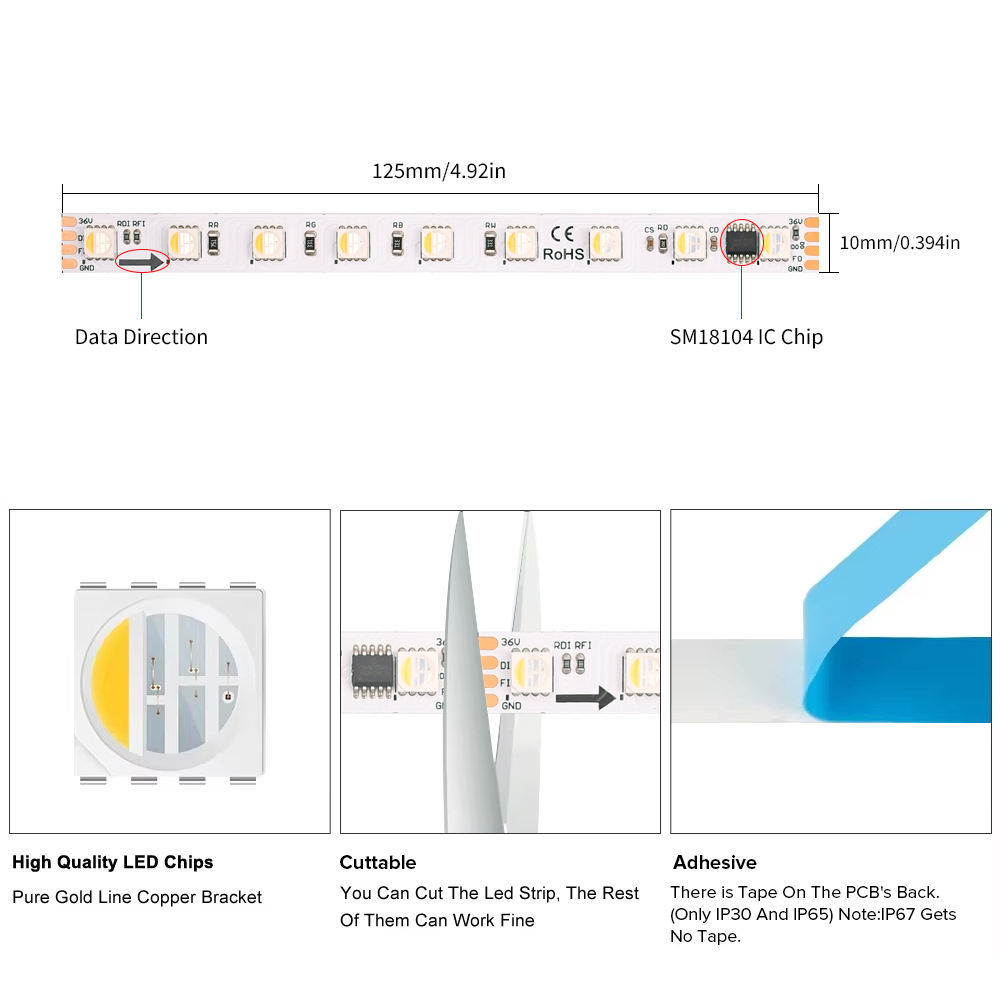

Cuttable Unit |
Every 6 or 9 LEDs (depending on IC) |
|
IP Rating |
IP20 / IP65 / IP67 |
|
Operating Temp. |
-20°C to +50°C |
|
Lifespan |
30,000+ hours |
|
Certification |
CE / RoHS (optional UL) |
|
Warranty |
3 Years |
|
Applications |
Stage lighting, architectural facade, cove lighting, bridge, hotel, nightclub, landscape |
