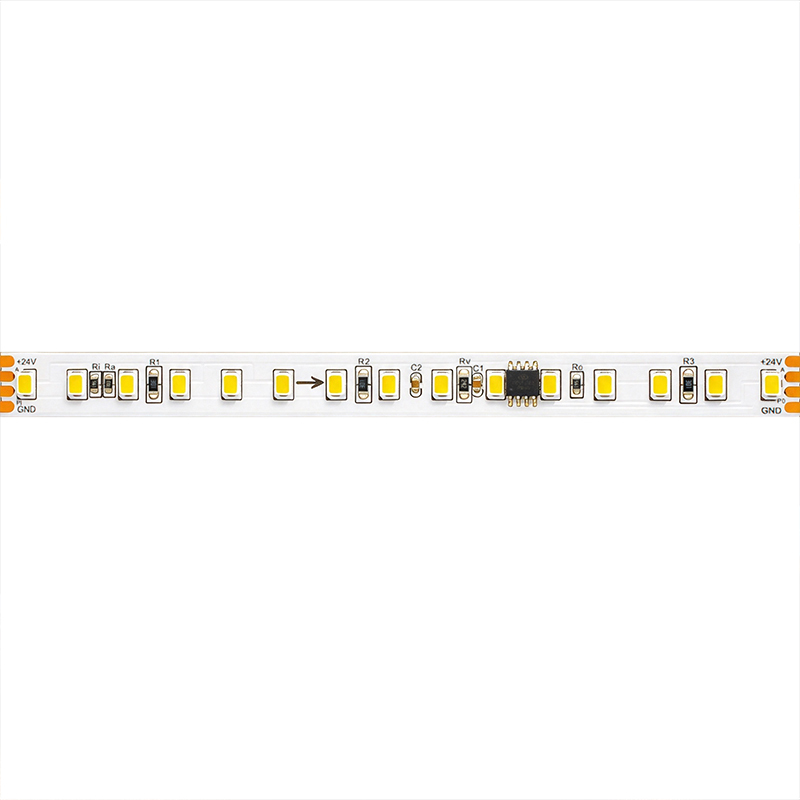

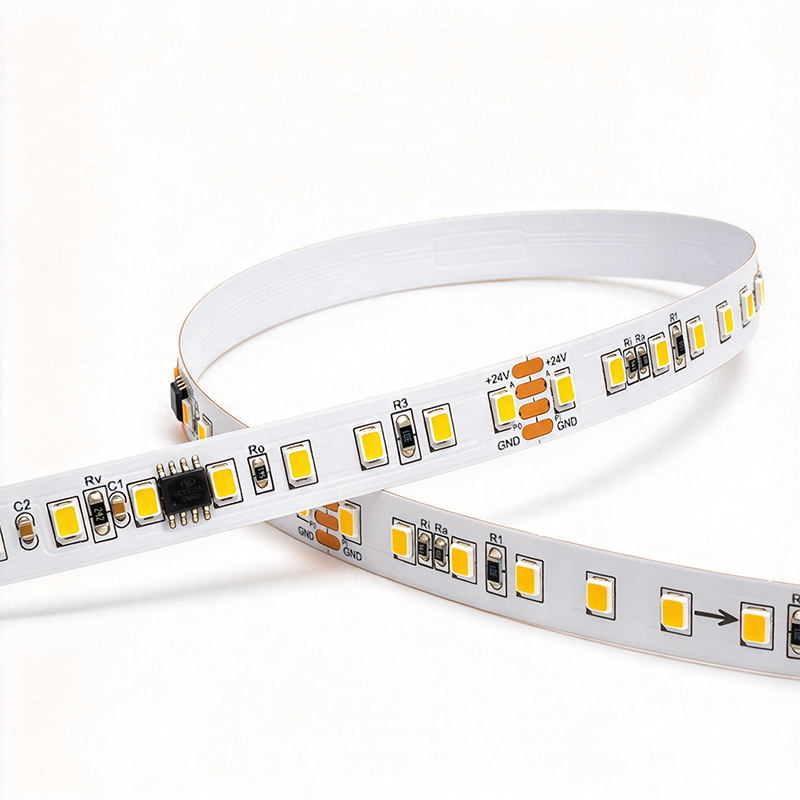

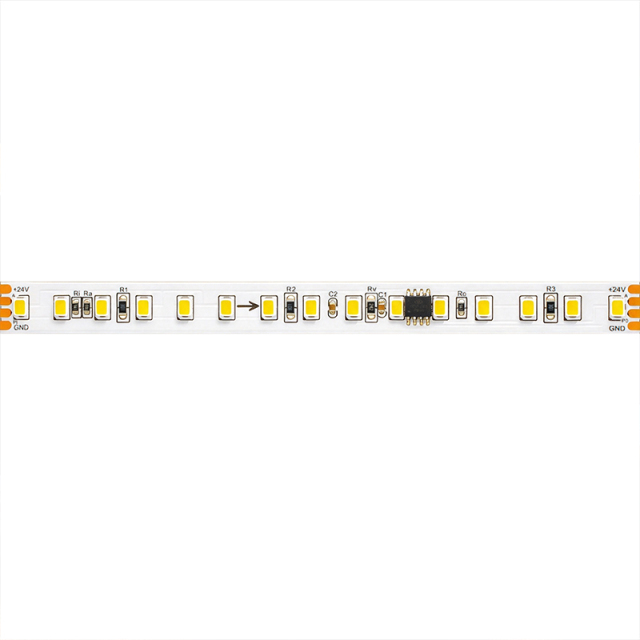

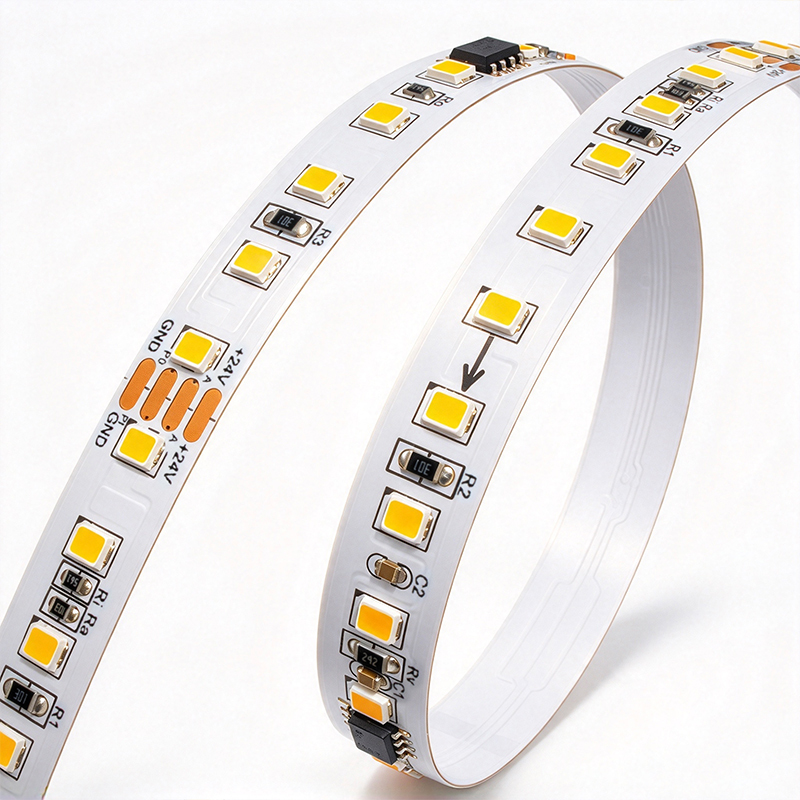

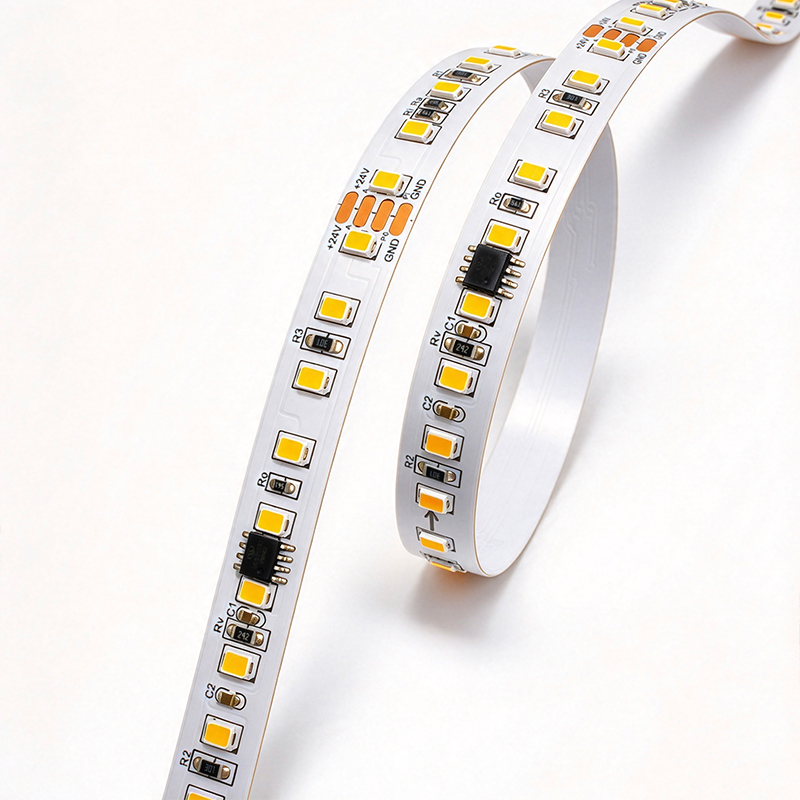

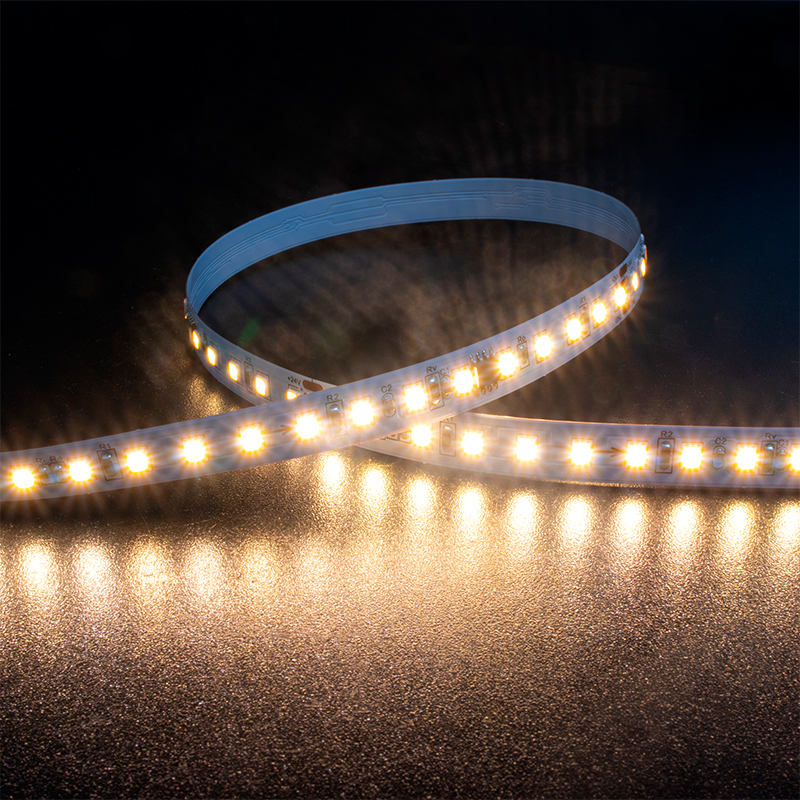

Get smooth “running water” effects on mono white light with this DC24V UCS512B3 addressable LED strip. It packs 120 SMD2835 LEDs per meter, grouped into 8 independently controlled segments (15 LEDs per pixel). Built on the DMX512-compatible UCS512B3 platform, it lets you program brightness, chase speed, breathing, and waterfall-style flow from any DMX console or SPI/DMX decoder. 24V operation reduces voltage drop, while the 10mm FPC fits aluminum profiles and coves. Unlike RGB pixel tape, this strip keeps a clean, consistent white—ideal for hotels, bars, retail shelves, stair handrails, and architectural outlines where you want motion without color noise.
8-Segment Running Water – 120 LEDs/m ÷ 8 pixels = smooth mono chase/flow, not just static glow.
UCS512B3 DMX512 IC – Standard DMX addressing, 256-step brightness, works with DMX consoles/decoders/Madrix-style systems.
DC24V Stable Long Run – Less voltage drop than 5V/12V; better for 5m rolls and architectural installs.
10mm FPC, Cut 125mm – Narrow, flexible, easy to mount; IP20/IP65/IP67/IP68 optional.
Single-Color Premium Look – 2700K–6000K white, no RGB color shift; perfect for commercial and hospitality lighting.
|
Parameter |
Specification |
|---|---|
|
Product Type |
Addressable single-color LED strip |
|
LED Type |
SMD2835 white |
|
LED Density |
120 LEDs/m |
|
IC Type |
UCS512B3 (external IC) |
|
Pixels |
8 pixels/m (15 LEDs/pixel) |
|
Input Voltage |
DC 24V |
|
Power |
~11 W/m |
|
PCB Width |
10 mm |
|
Cut Unit |
125 mm |
|
Protocol |
DMX512 (UCS512B3 single-line DMX class) |
|
Gray Scale |
256 levels |
|
CCT Options |
2700K / 3000K / 4000K / 6000K |
|
Beam Angle |
120° |
|
Roll Length |
5 m/reel |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Lifespan |
50,000 hrs |
|
Use Case |
Chase, flow, breathing, running-water white effects |
