Use a SPI/DMX/Art-Net/T-1000C/K-1000C controller to run rainbow chase, flow, strobe, gradient, and custom animations. Perfect for bars, KTV, hotels, building outlines, retail displays, and stage sets.
TM1934 External IC, 6 LEDs = 1 Pixel – 60 LEDs/m, 10 pixels/m, smooth chase/gradient effects.
Breakpoint Continue / Dual Signal – A/B data lines let the strip keep running after one point is cut or fails.
DC24V Low-Voltage System – Less voltage drop than 5V/12V, better for 5m rolls and long decorative runs.
10mm Narrow FPC – Fits aluminum profiles, light boxes, coves, stairs, shelves, and signage edges.

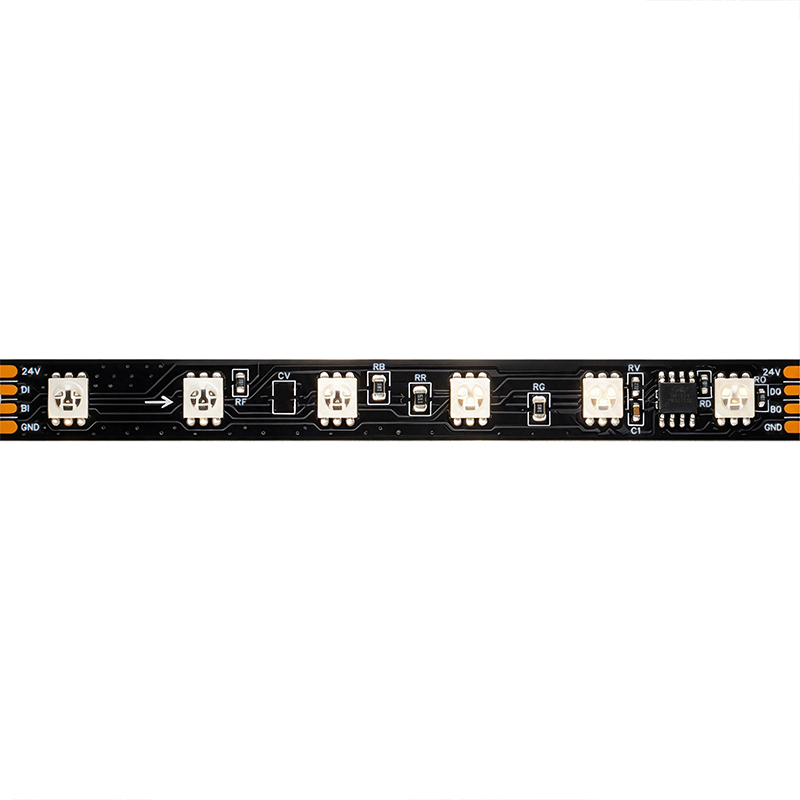

Cut Every 100mm – Marked cut points, IP20/IP65/IP67/IP68 optional, works with SPI/DMX/Arduino/Art-Net controllers.
|
Parameter |
Specification |
|---|---|
|
Product Type |
Addressable RGB pixel LED strip |
|
LED Type |
SMD5050 RGB 3-in-1 |
|
LED Density |
60 LEDs/m |
|
IC Type |
TM1934 / LB1934A (external IC) |
|
Pixels |
10 pixels/m (1 IC drives 6 LEDs) |
|
Input Voltage |
DC 24V |
|
Power |
12.8W–14.4W/m |
|
PCB Width |
10mm |
|
PCB |
2oz copper, white/black FPC |
|
Cut Unit |
100mm |
|
Signal |
SPI / TTL, dual-signal breakpoint continue |
|
Gray Scale |
256 levels per channel |
|
Beam Angle |
120° |
|
Roll Length |
5m/reel |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Controller |
SPI, T-1000C, K-1000C, Arduino, DMX decoder, Art-Net |
|
Temp Range |
-25°C to 60°C |
|
Lifespan |
30,000–50,000 hrs |
