Ideal for bars, hotels, façades, cove accents, and programmable displays. Choose IP20/IP65/IP67/IP68, pair with an SPI/DMX pixel controller, and inject power on long runs.

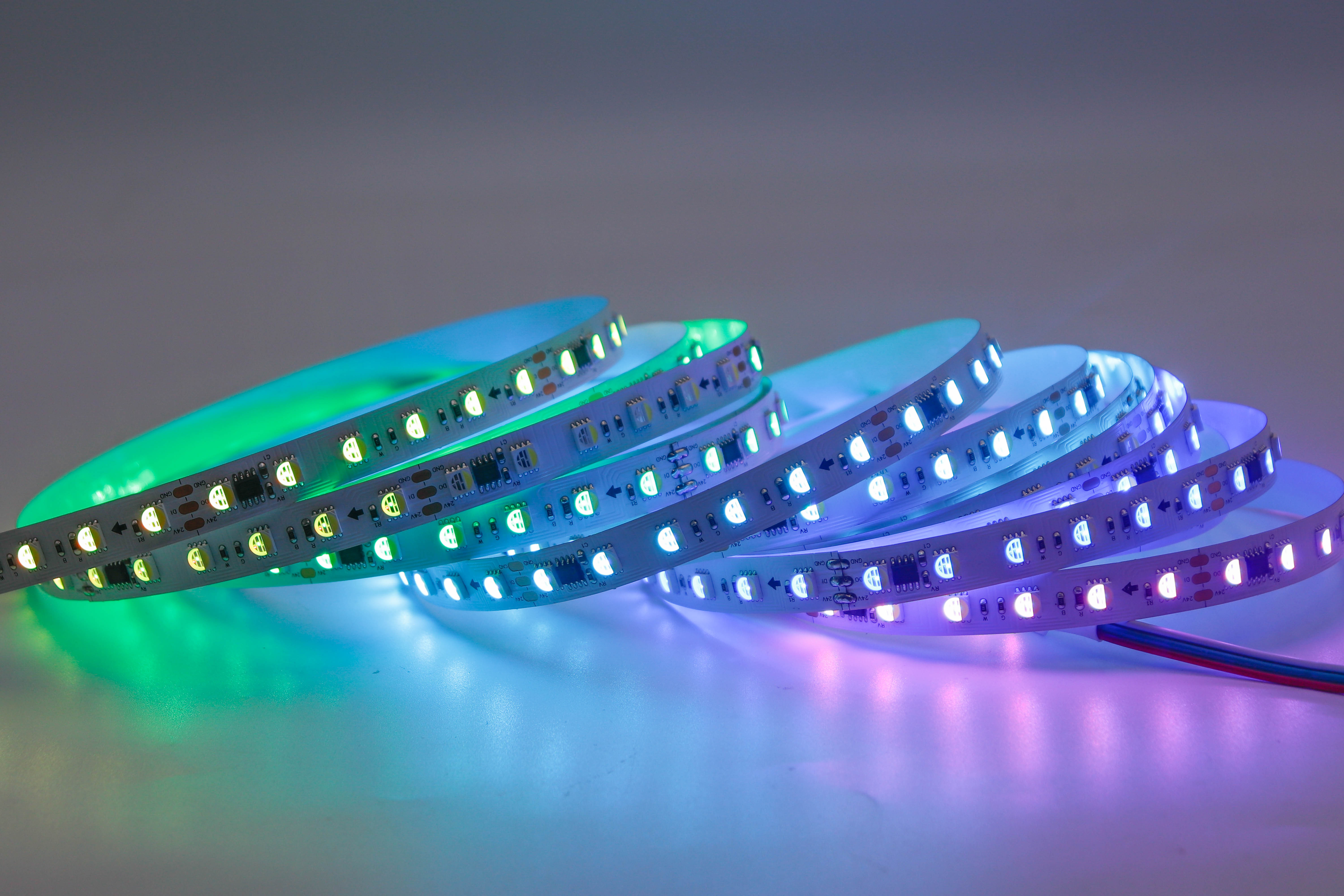

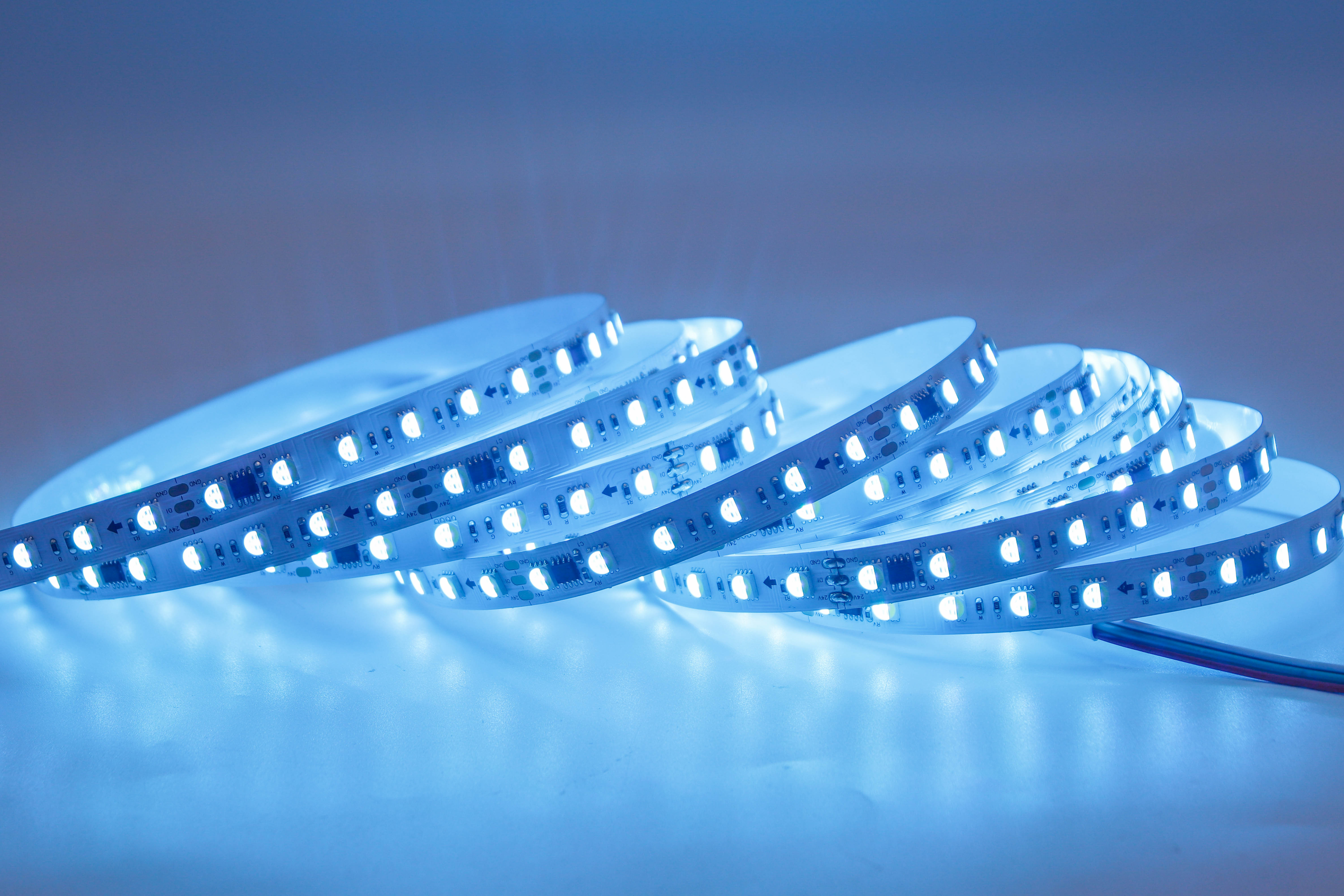

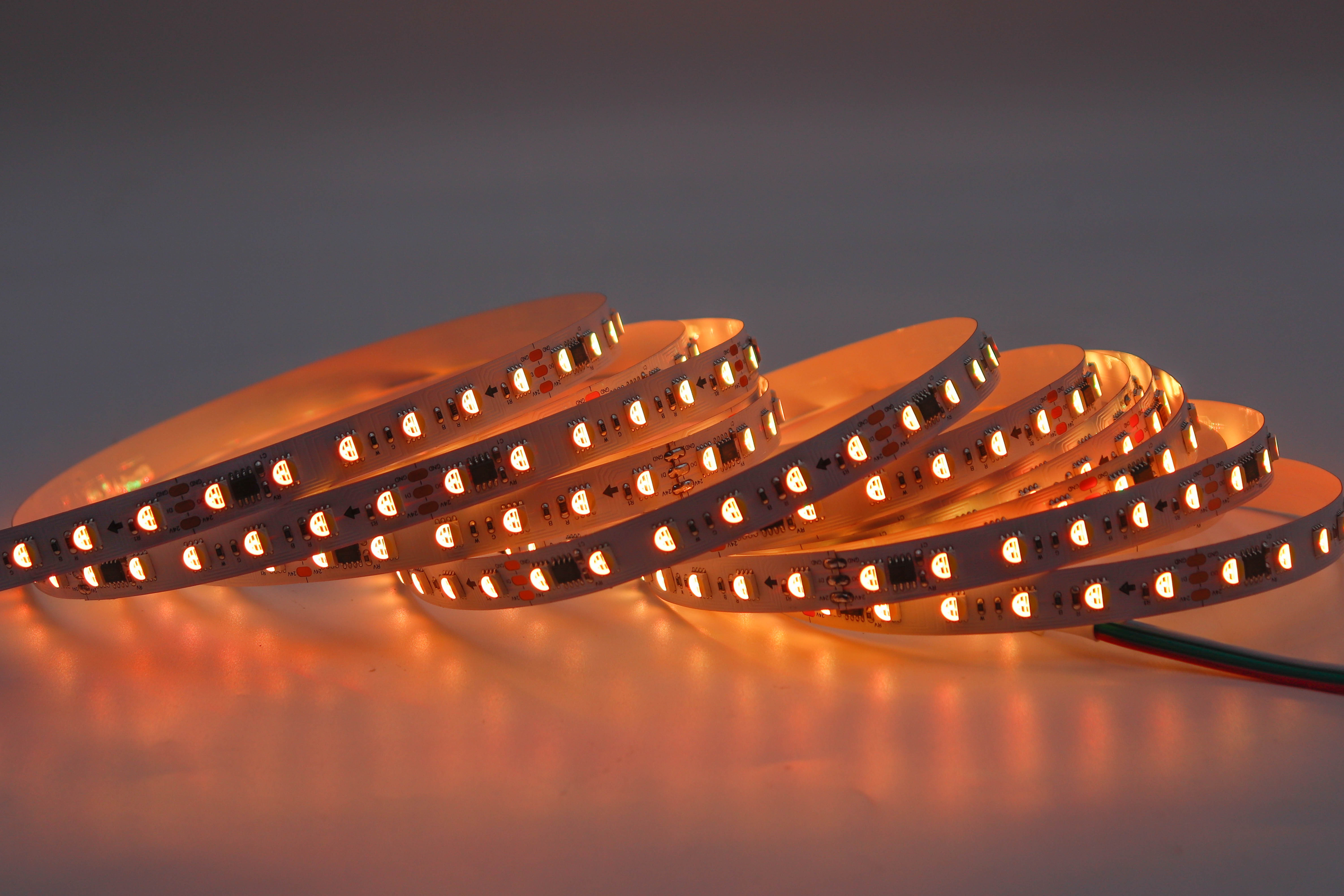

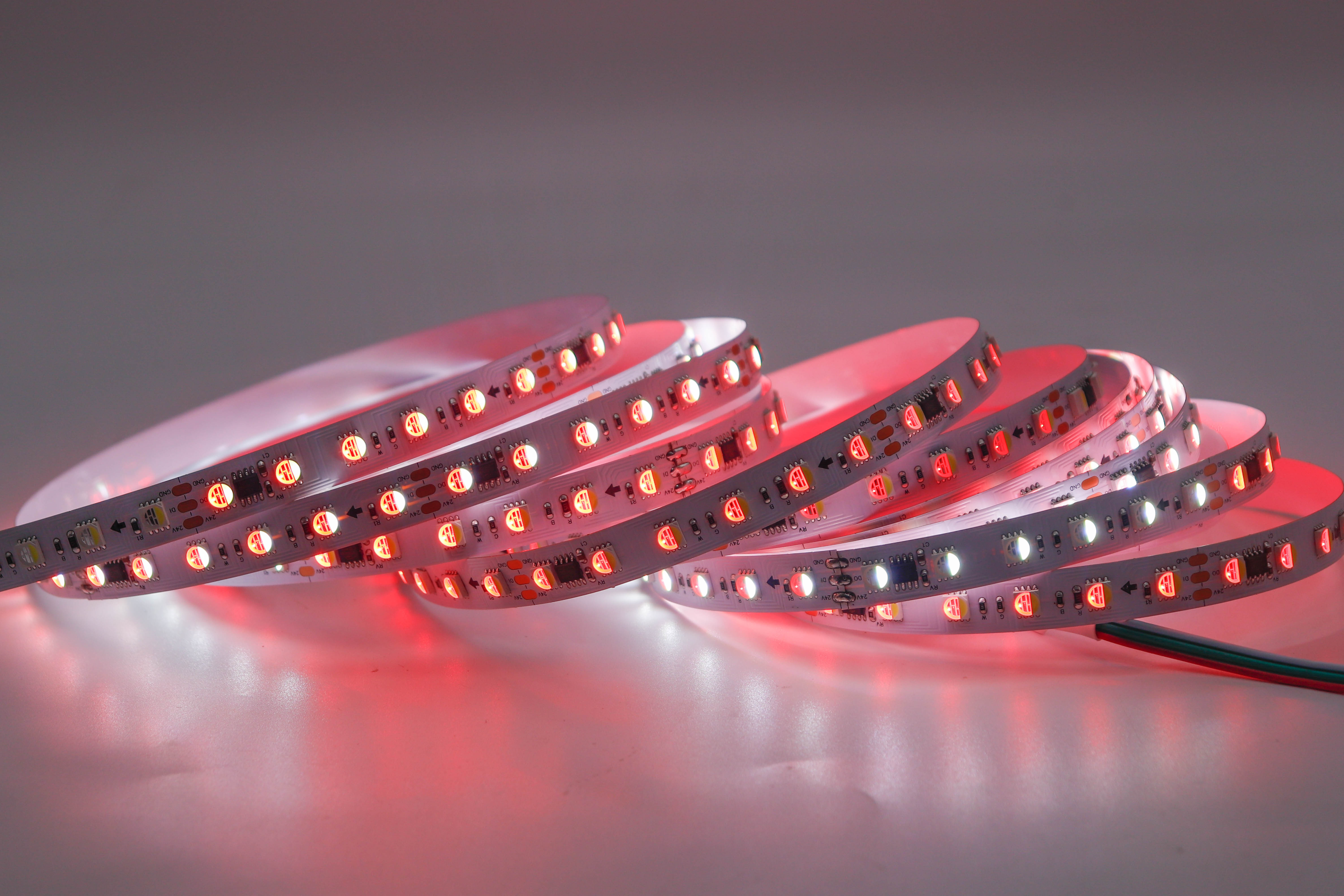

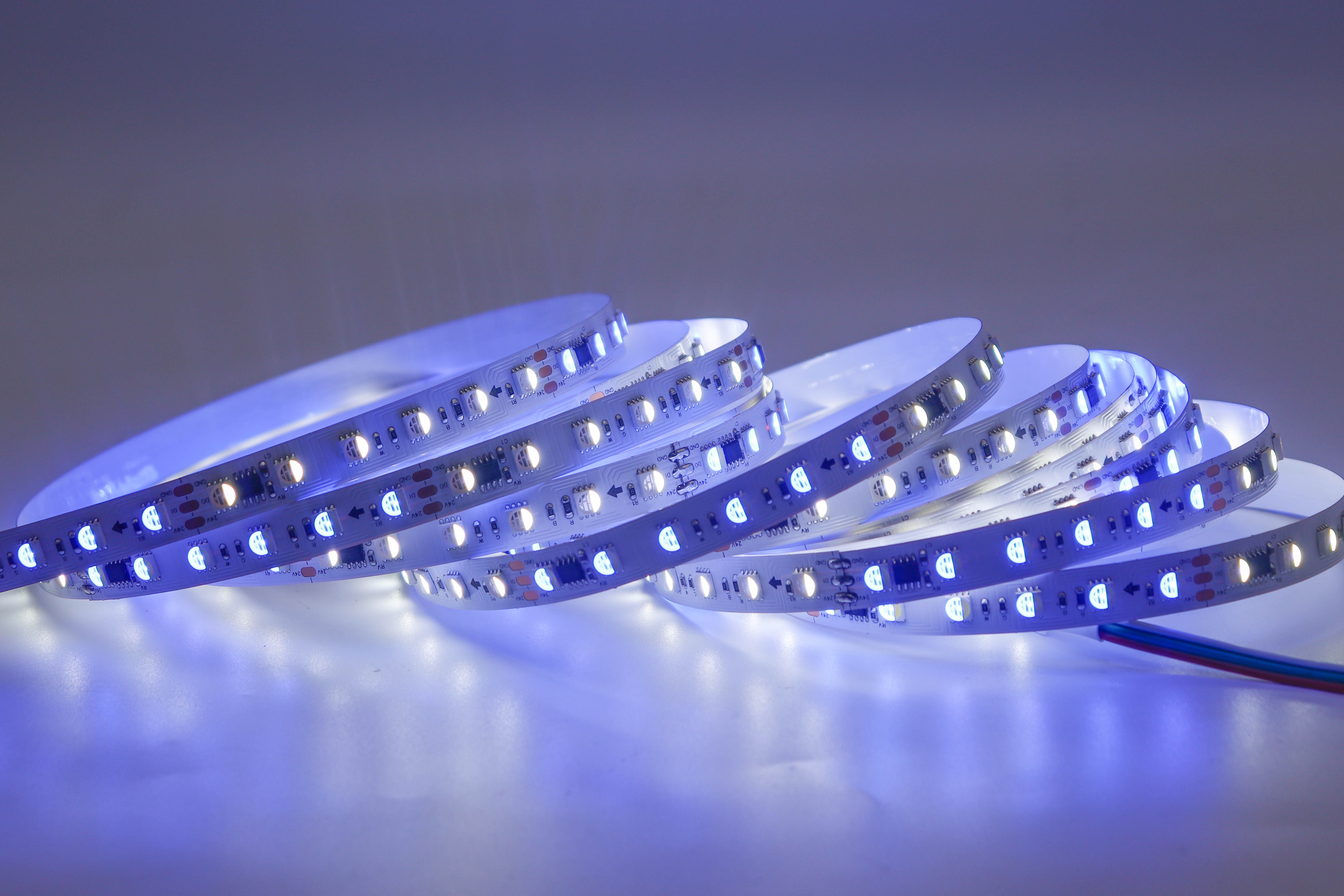

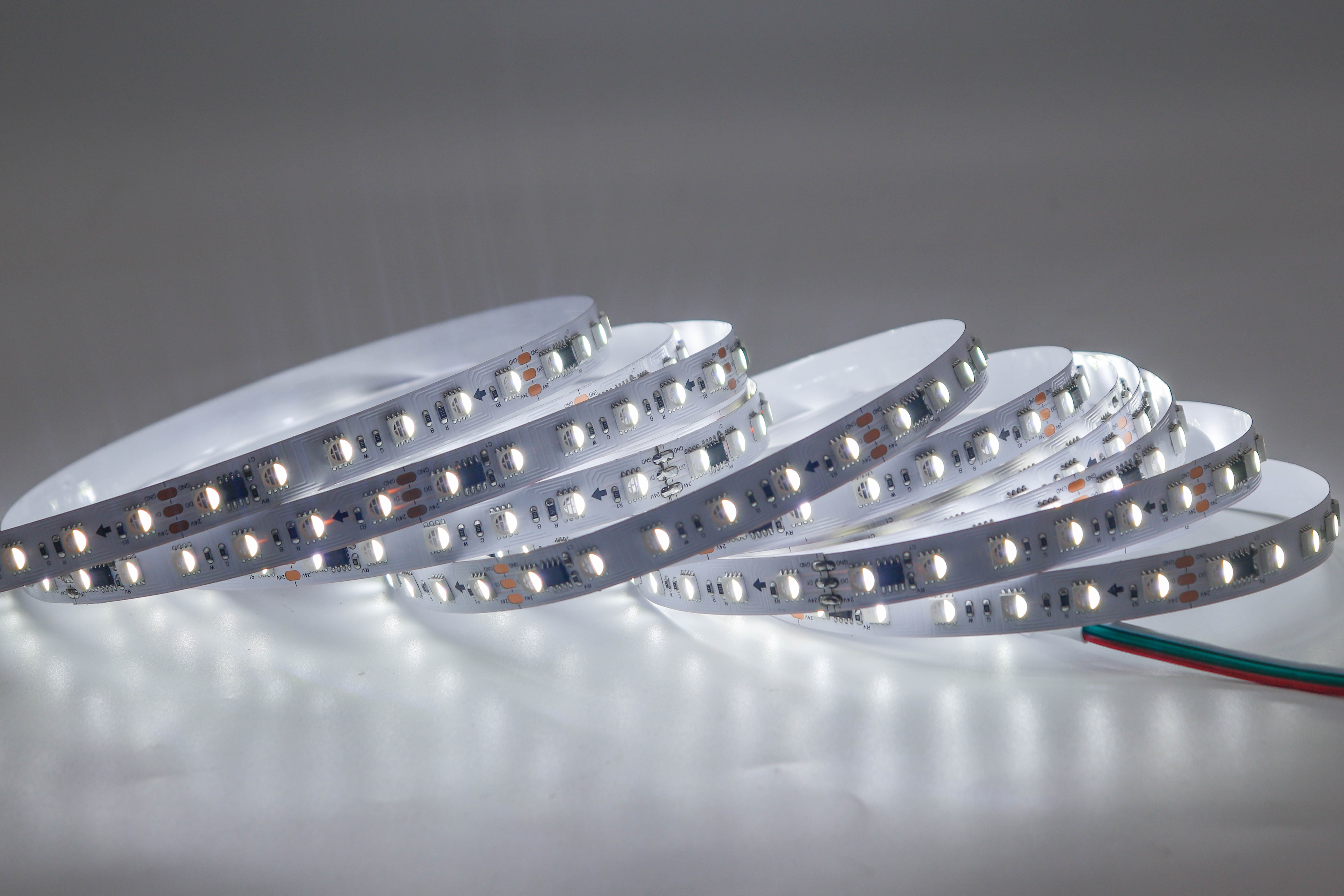

True RGBW: 5050 4-in-1 package with separate R/G/B/W chip for pure warm/cool white plus full-color effects.
24V Pixel System: 6 LEDs per TM1814 pixel; longer runs, lower current, reduced voltage drop vs 12V/5V addressable strips.
12 Pixels per Meter: 72 LEDs/m, smooth programmable chase / flow / gradient / scanning effects.
Robust 12mm PCB: Thicker copper option available, better heat dissipation, silicone jacket versions for indoor/outdoor use.
SPI / DMX Compatible: Works with TM1814 RGBW controllers, SD/Artnet/DMX systems; cut every 83.3mm, cascadable for large installs.
|
Item |
Specification |
|---|---|
|
Model |
TM1814-5050-RGBW-72D-12P-24V-12mm |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
LED Density |
72 LEDs/m |
|
Pixel Count |
12 pixels/m (6 LEDs + 1 TM1814 IC per segment) |
|
IC Type |
TM1814 (external, 4-channel, single-line data) |
|
Input Voltage |
DC 24V |
|
Power Consumption |
~22 W/m (full RGBW output) |
|
Cut Unit |
83.33 mm / segment (6 LEDs) |
|
PCB Width |
12 mm |
|
White Options |
3000K / 4000K / 6000K |
|
Grayscale |
256 levels per channel |
|
Data Rate |
800 kbps |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Lifespan |
50,000 hrs |
|
Controller |
SPI TM1814 / RGBW pixel / DMX(Artnet) controller |
|
Wiring |
V+ / GND / DATA (3-pin) |
|
Application |
Stage, bar, facade, signage, cove, pixel display |
