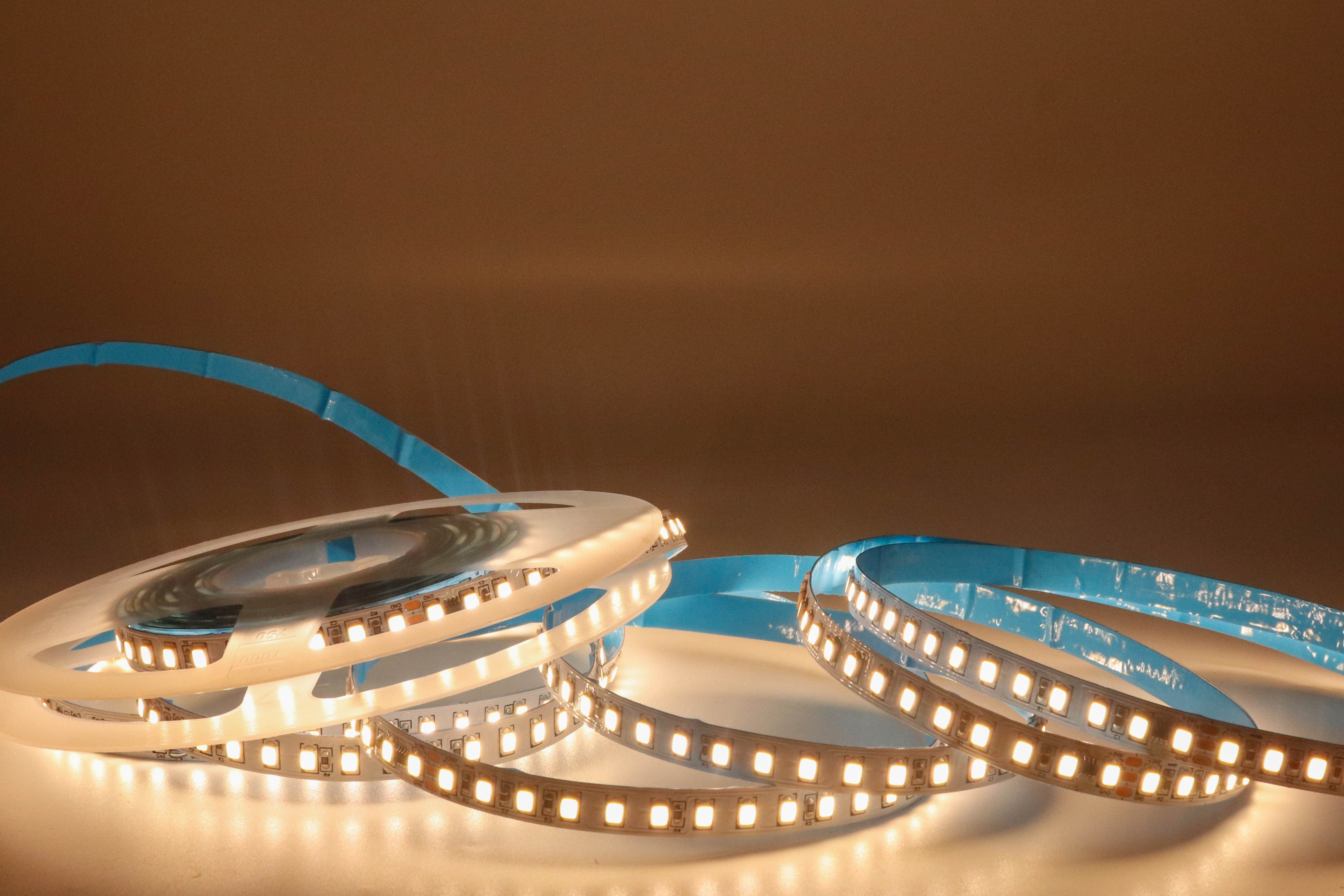

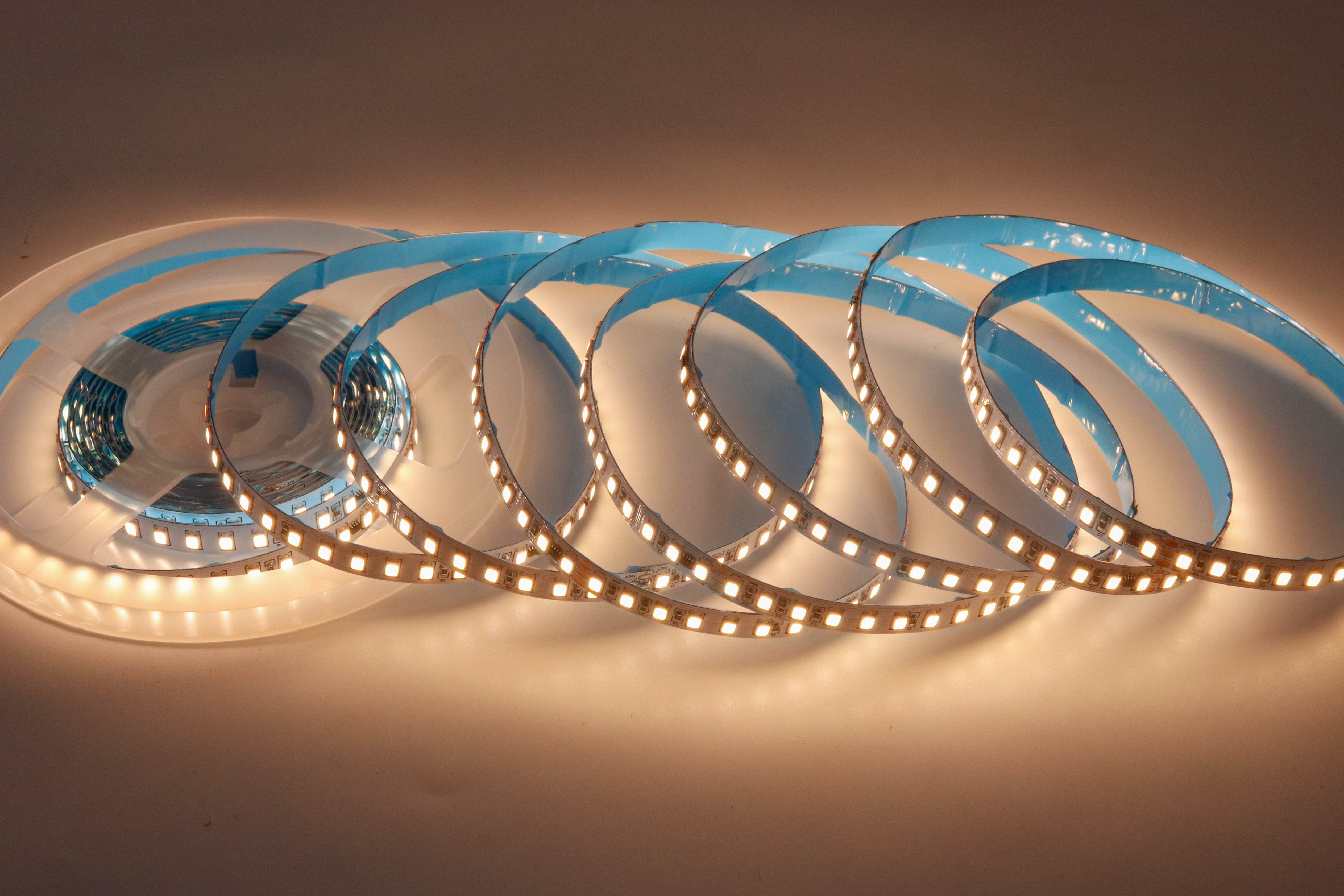

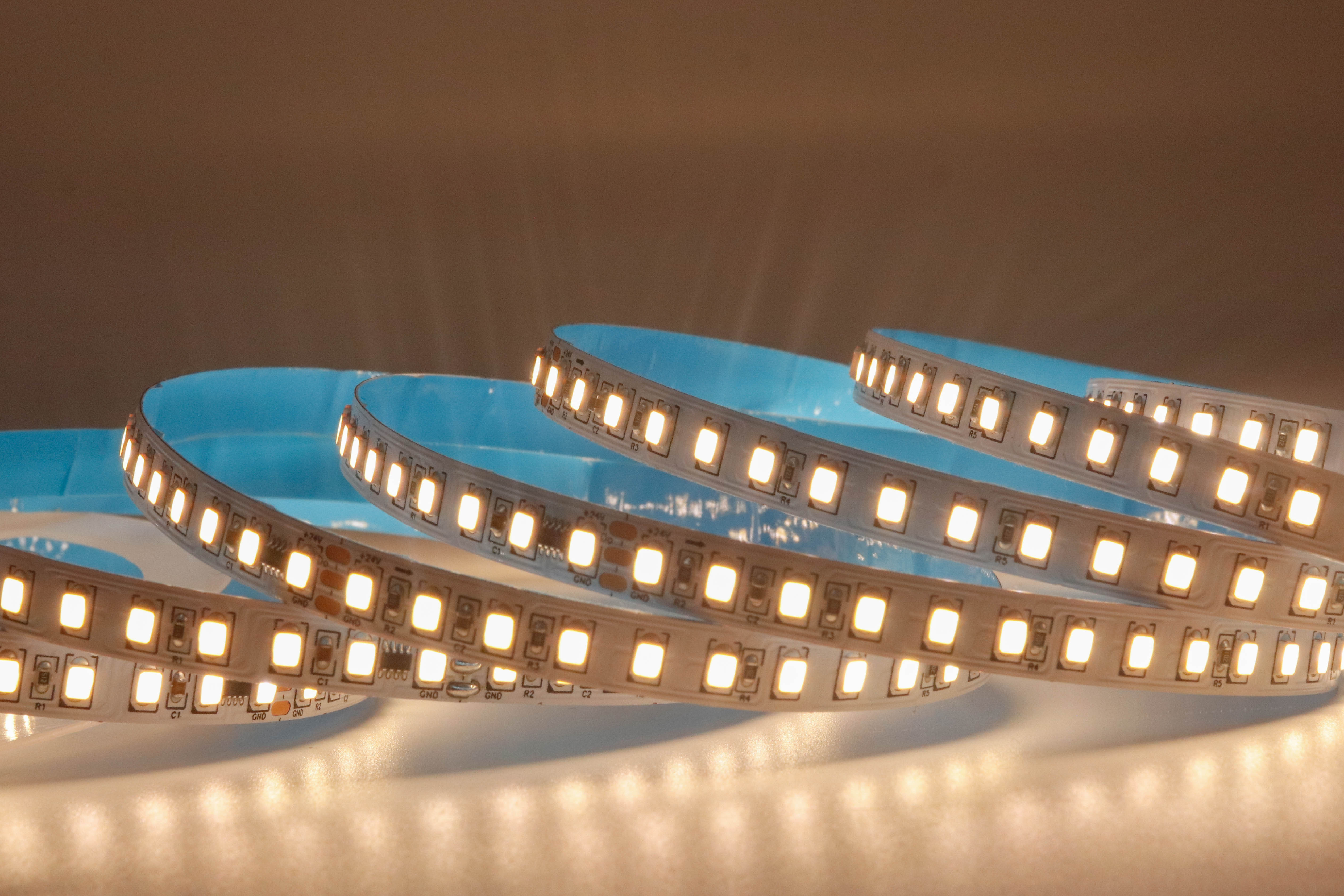

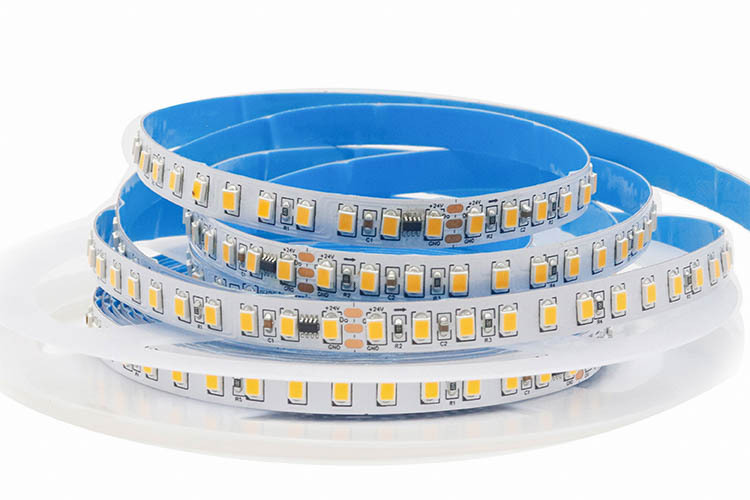

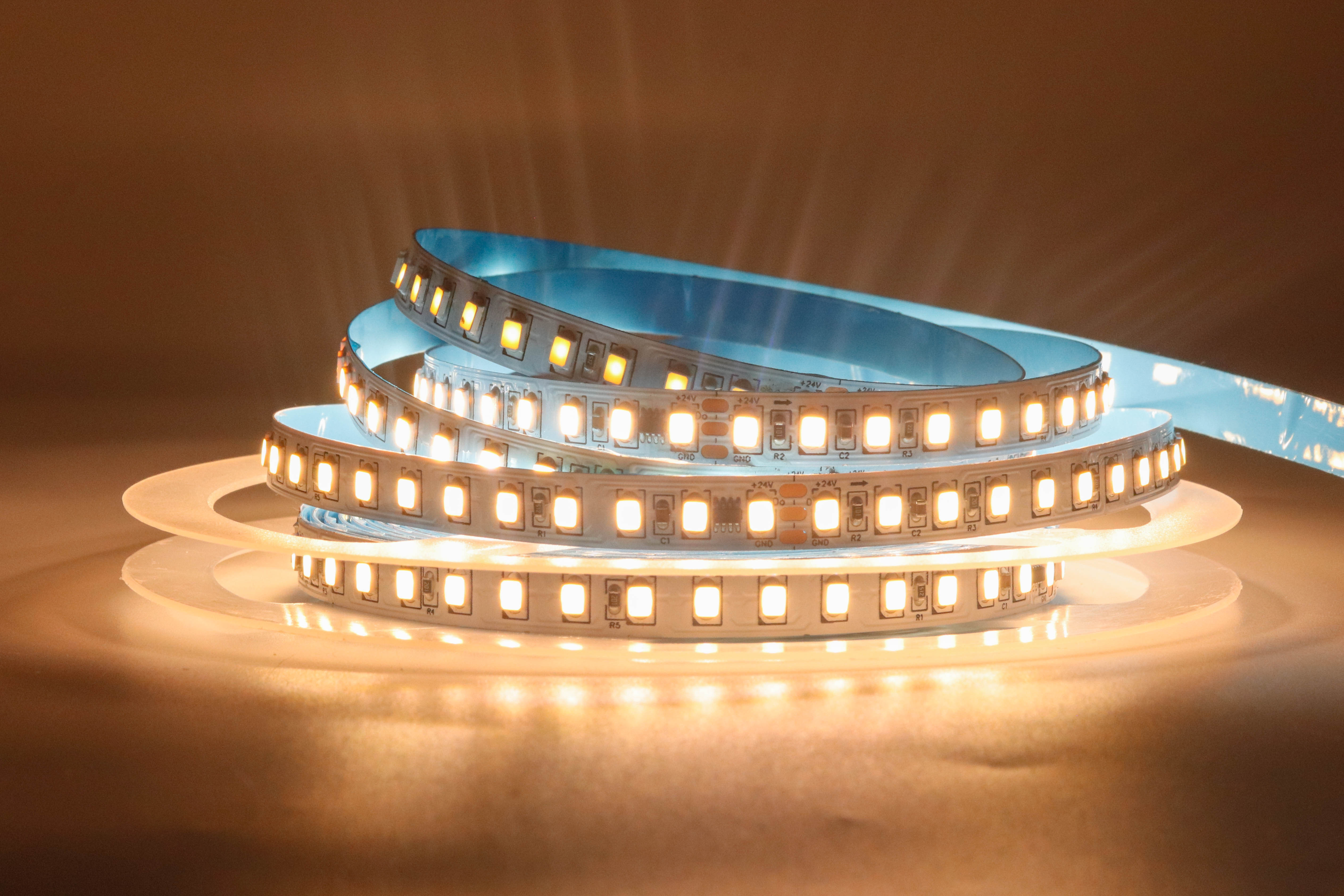

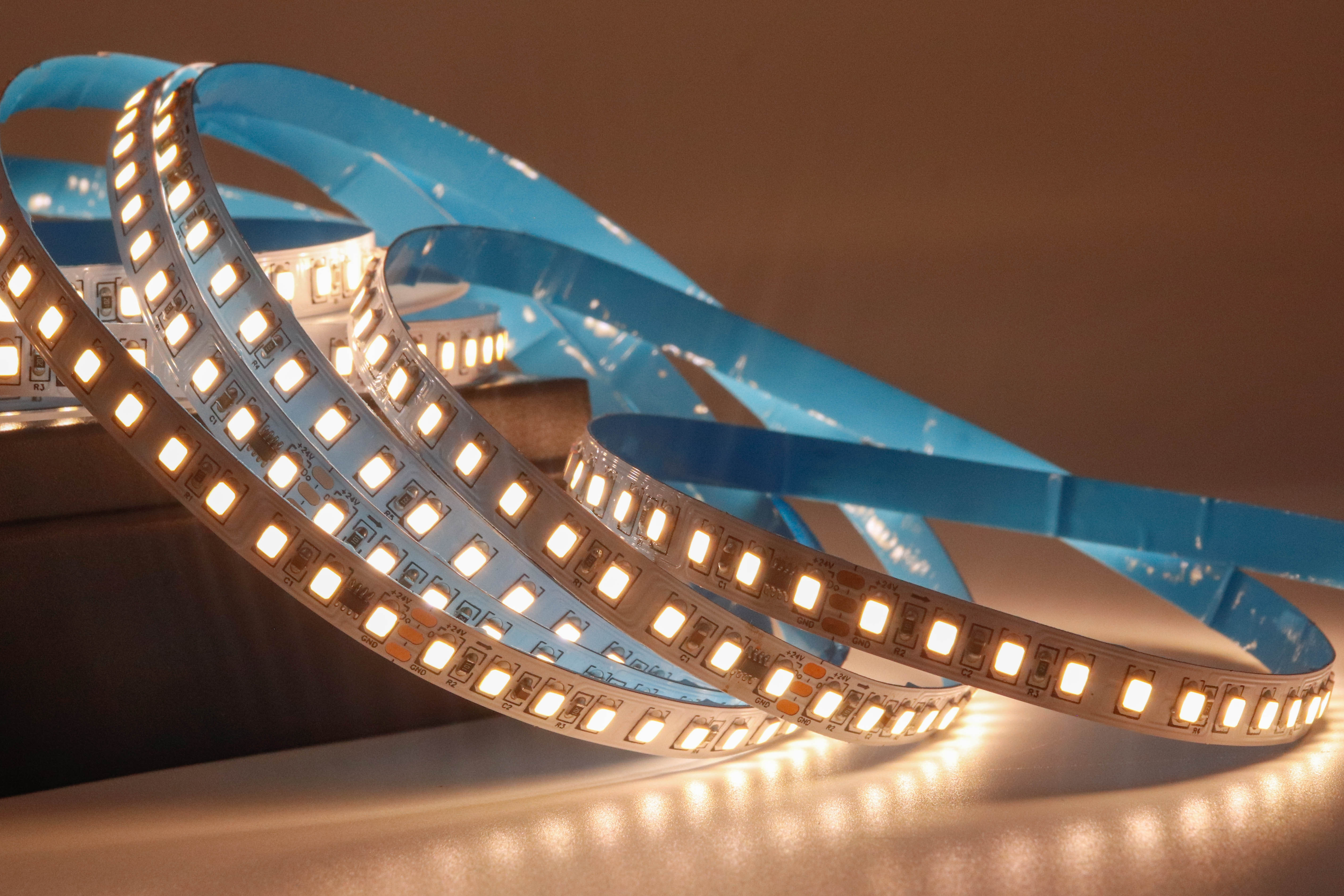

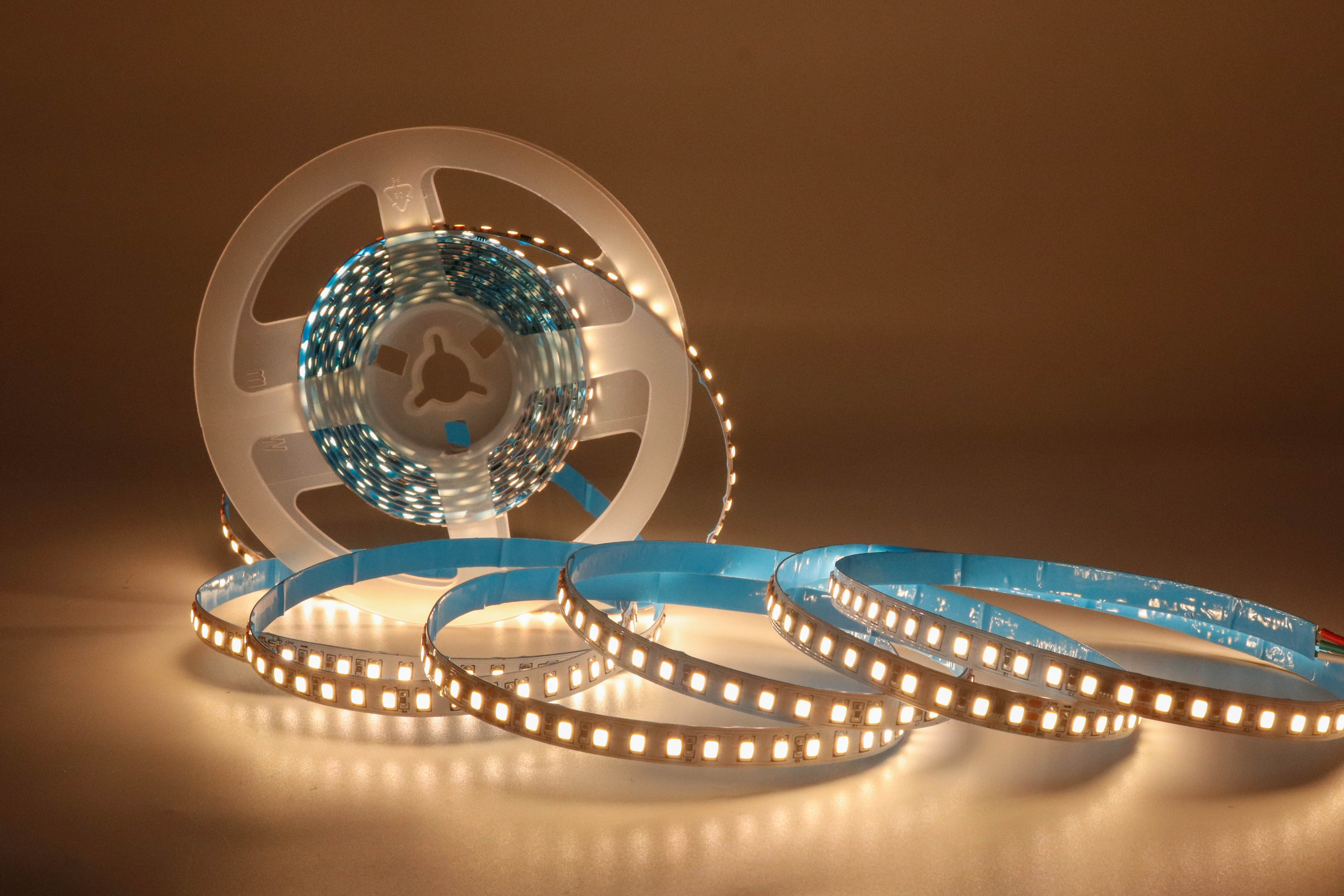

This FW1934A single-color flowing LED strip uses 144 high-density 2835 LEDs per meter with 4 IC-controlled segments, creating smooth running-water and chase effects. The slim 8mm FPC fits narrow aluminum profiles, channel letters, and display shelves. DC24V operation keeps heat low and allows longer runs with less voltage drop. With a built-in FW1934A driver, each group of 36 LEDs acts as one pixel—ideal for elegant commercial signage, hotel cove lighting, and retail displays. Cut every 250mm, pair with an SPI controller, and choose IP20/IP65/IP67. A perfect balance of high brightness, fine light mixing, and programmable single-color dynamics.
4-Segment Flow Effect: 144 LEDs/m divided into 4 IC pixels/m for soft, wide running-water and fade animations.
Ultra-High Density 2835: 144 LEDs/m delivers continuous, spot-free linear light with strong brightness.
Slim 8mm PCB: Easy to hide in narrow channels, letters, shelves, and architectural grooves.
Stable 24V System: Lower current, less voltage drop, longer safe runs than 5V/12V pixel strips.
Built-in FW1934A IC: Single-line SPI control; cut every 250 mm; IP20/IP65/IP67 available for indoor/outdoor use.
|
Item |
Specification |
|---|---|
|
Model |
FW1934A-2835-144D-4P-24V-8mm |
|
LED Type |
SMD 2835 |
|
LED Density |
144 LEDs/m |
|
Pixel / Segment |
4 pixels per meter (36 LEDs + 1 IC per segment) |
|
IC Type |
FW1934A (built-in, single-line data) |
|
Input Voltage |
DC 24V |
|
Power Consumption |
~8.2 W/m (typical, single-color white) |
|
Cut Length |
250 mm / segment |
|
PCB Width |
8 mm |
|
Color Options |
3000K / 4000K / 6000K, or single color R/G/B/Y |
|
CRI |
Ra ≥80 / Ra ≥85 / Ra ≥90 optional |
|
Beam Angle |
120° |
|
IP Rating |
IP20 / IP65 / IP67 optional |
|
Lifespan |
30,000–50,000 hrs |
|
Controller |
SPI controller compatible with FW1934A/TM1934 |
|
Application |
Channel letters, cove light, display cabinet, signage, architecture |
