True DMX512 Control: Directly connects to standard DMX consoles (e.g., MA, Avolites) without additional decoders, supporting 512 channels for professional stage and architectural programming.
RGBW 4-in-1 Color Mixing: Utilizes SMD5050 RGBW chips to produce vivid colors plus high-quality, pure white light (available in 3000K/4000K/6000K CCT).
Stable 24V System: Operates on DC24V to reduce voltage drop and heat generation, allowing for longer continuous runs compared to 5V or 12V strips.
Versatile Protection Ratings: Offered in IP20 (bare board), IP65 (epoxy coated), and IP67 (silicone tube) to suit indoor stages, semi-outdoor, and harsh outdoor environments.
High-Density & Slim Design: Features 80 LEDs/m on a narrow 10mm PCB, enabling flexible installation in tight profiles, stage trusses, and architectural coves.
|
Item |
Specification |
|---|---|
|
Product Name |
DMX512 RGBW Addressable LED Strip |
|
Part No. |
(Customizable) |
|
LED Type |
SMD5050 RGBW (4-in-1) |
|
LED Density |
80 LEDs/meter |
|
Voltage |
DC 24V |
|
Power Consumption |
16-19.2W/m (Max) |
|
Color/Channel |
RGBW (4 Channels per Pixel) |
|
Control Protocol |
Standard DMX512 / TM512 |
|
PCB Width |
10mm (12mm optional) |
|
Cutting Unit |

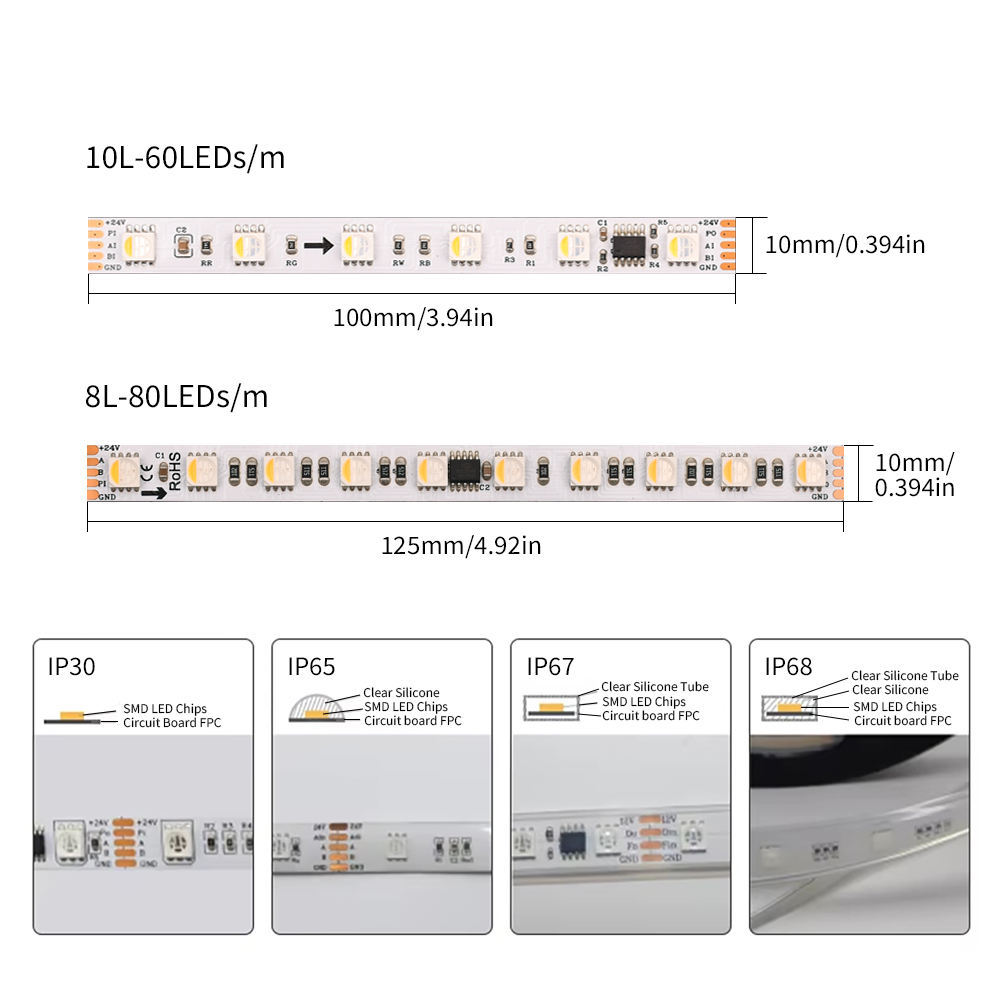

100mm / 125mm / 166.7mm (Depends on IC) |
|
IP Rating |
IP20 (Indoor), IP65 (Damp), IP67 (Waterproof) |
|
Viewing Angle |
120° |
|
Operating Temp. |
-20°C to +50°C |
|
Application |
Stage Truss, Building Facade, Bar, Bridge, Architectural Outlines |
|
Warranty |
2-3 Years |
