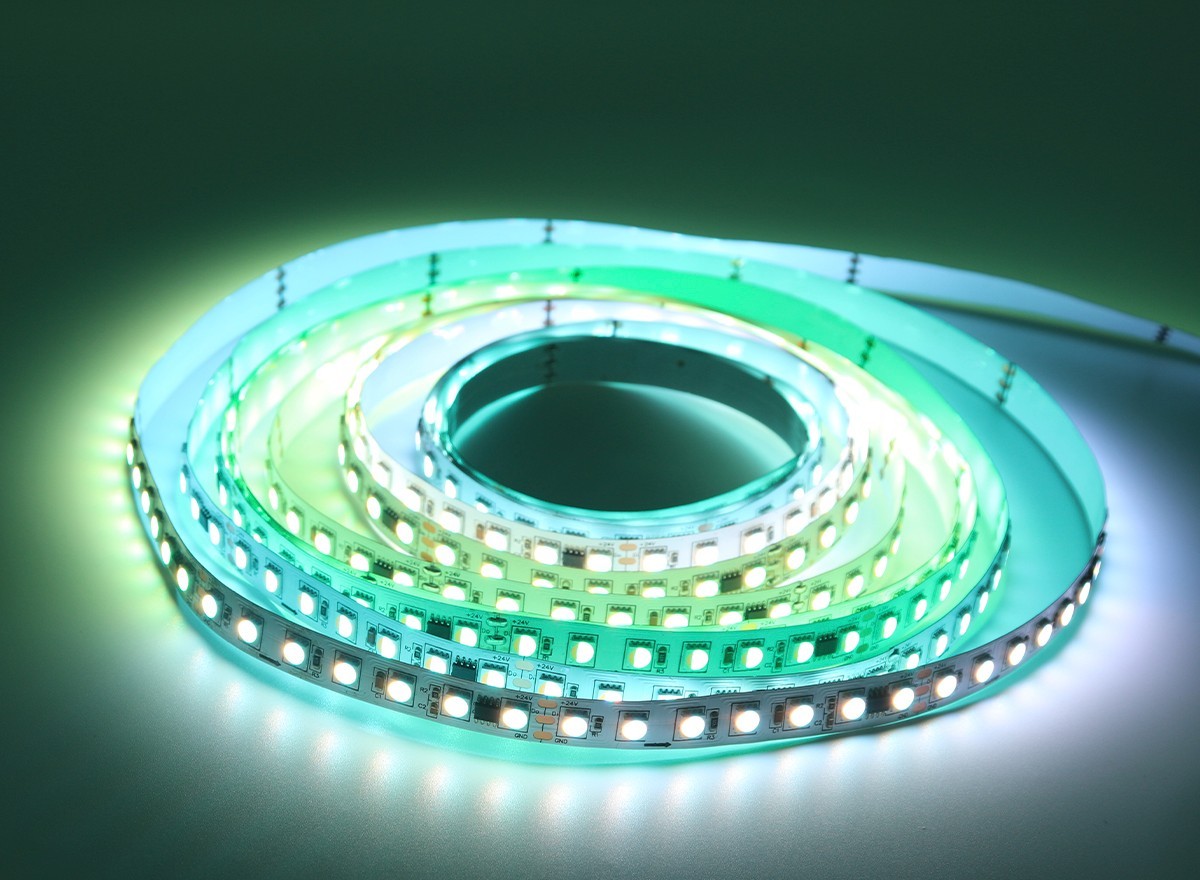

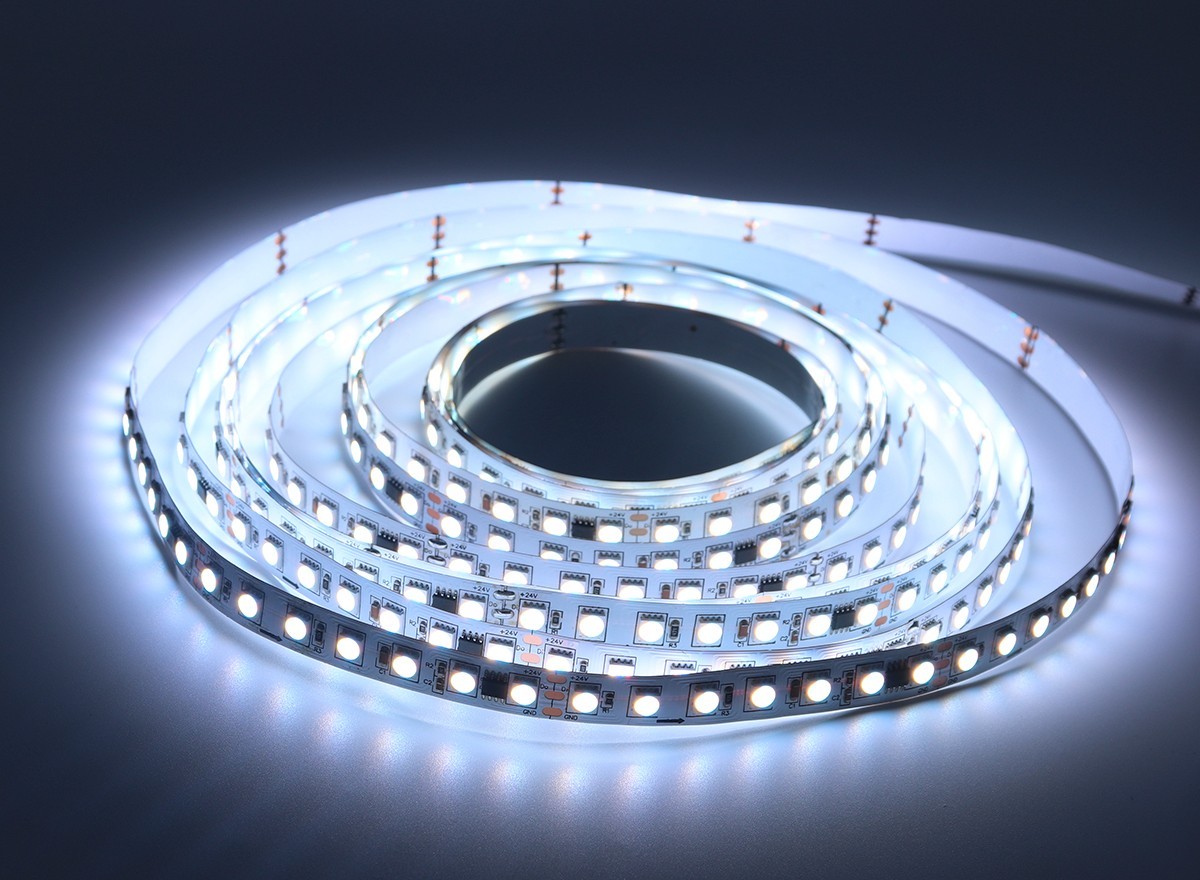

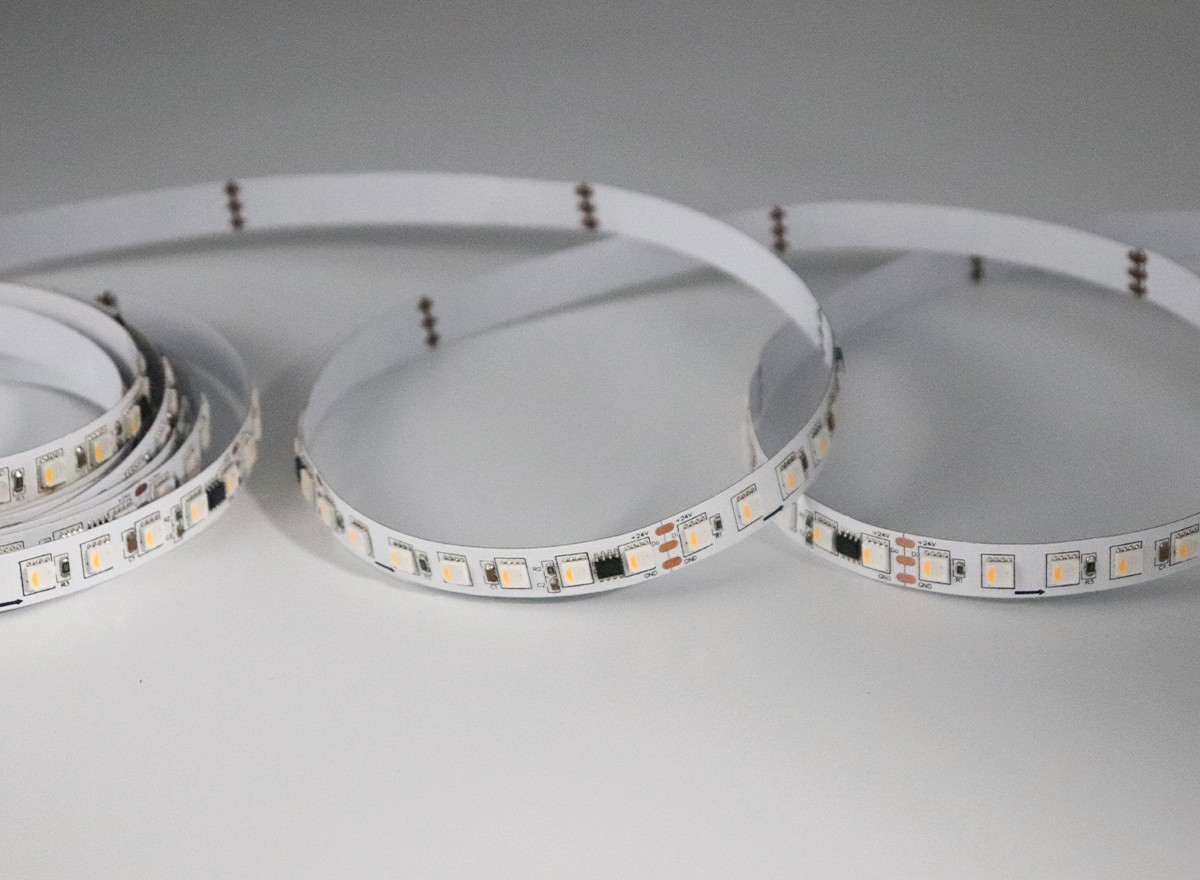

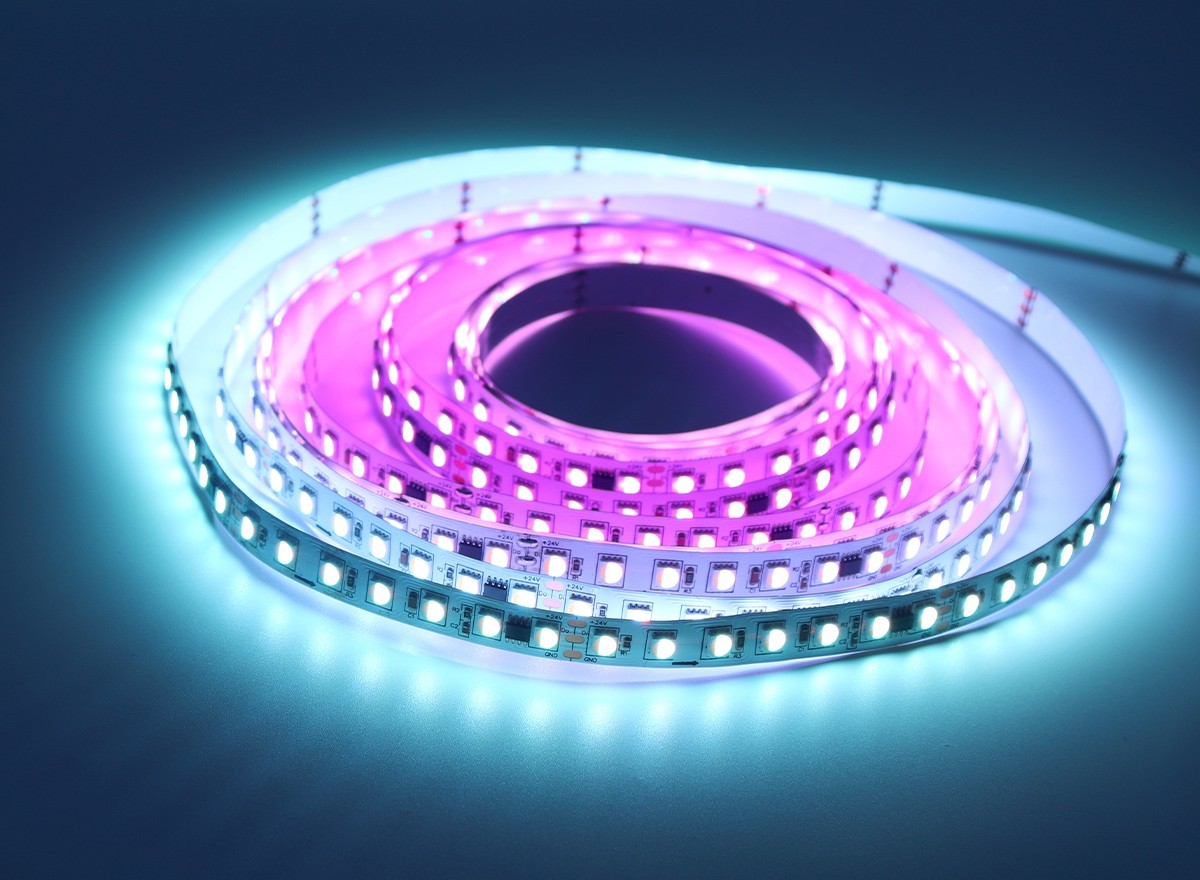

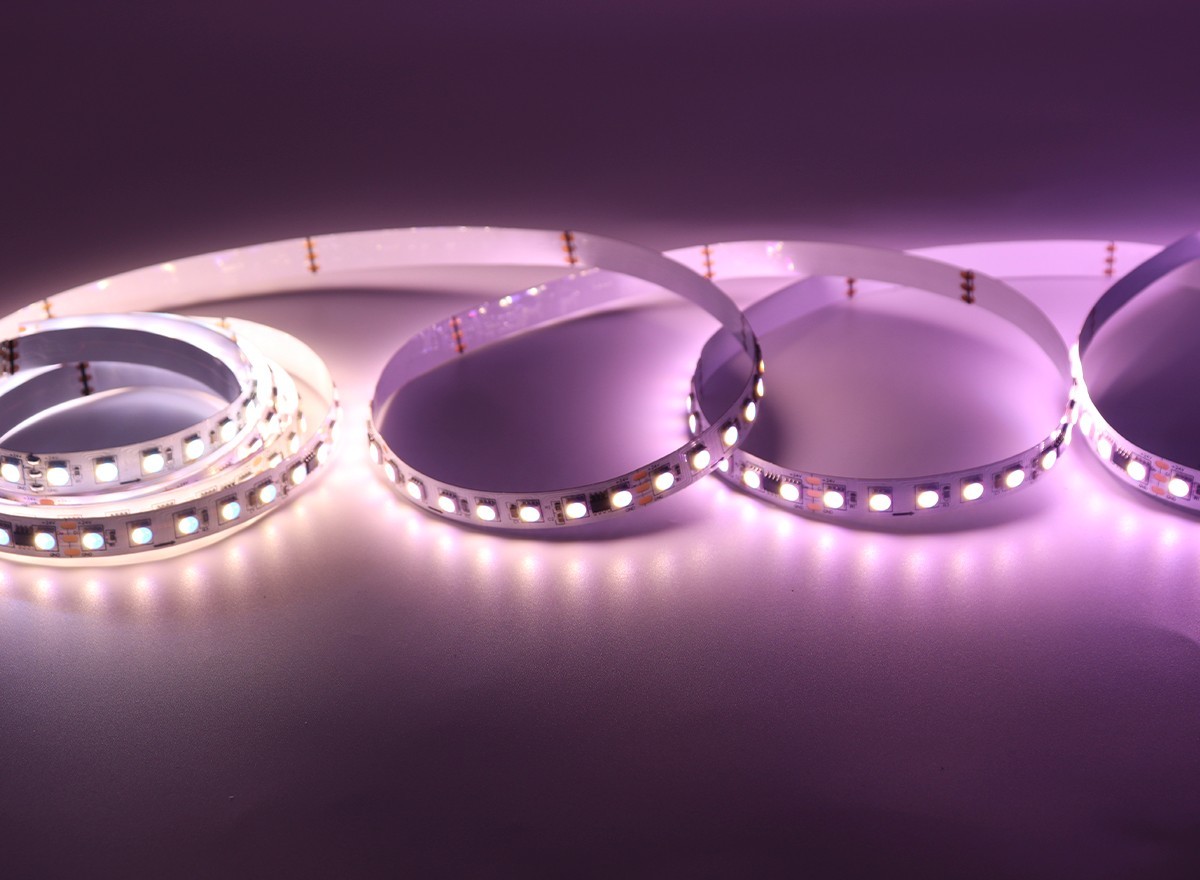

This 24V TM1814 strip uses SMD 5050 RGBW 4-in-1 LEDs on a 12mm PCB—84 LEDs/m with 12 pixels/m, each TM1814 driving 7 LEDs. The separate white channel gives true warm/natural/cool white instead of bluish RGB-mixed white, while the RGB channels still deliver chase, flow, and pixel-mapping effects. 24V input means lower current and longer runs than 5V/12V pixel tape, and TM1814 offers 256-level grayscale plus constant-current output for stable brightness. It works with RGBW SPI controllers: K-1000C, T-series, ESP32/WLED, Art-Net, and DMX512 decoders. Ideal for architectural cove lighting, hotel/retail decoration, channel letters, and media façades where RGB-only strips are not enough.
True RGBW: dedicated white chip (3000K/4000K/6000K) → pure white + rich color mixing.
24V / 7 LEDs per Pixel: lower current, less voltage drop, brighter continuous light bar than fine-pixel 5V strips.
TM1814 External IC: 4-channel constant current, 256 grayscale, 800 kbps single-wire, SPI/WS2811-class workflow.
12mm PCB, 83.3mm Cut: robust wide strip, easy segmentation for letters, coves, and profiles.
RGBW Controller Ready: K-1000C, T-1000S, WLED, Art-Net, Madrix/DMX SPI decoders; auto-run mode available.
|
Item |
Specification |
|---|---|
|
Product Name |
24V TM1814 5050 RGBW Addressable LED Strip |
|
LED Type |
SMD 5050 RGBW (4-in-1) |
|
IC Type |
TM1814 (External, SOP8) |
|
Channels |
R / G / B / W (4-channel) |
|
Protocol |
Single-wire NRZ, 800 kbps |
|
Input Voltage |
DC 24V |
|
LED Density |
84 LEDs/meter |
|
Pixel Density |
12 Pixels/meter |
|
LEDs per Pixel |
7 LEDs / 1 IC |
|
Cutting Unit |
7 LEDs = 83.3 mm |
|
PCB Width |
12 mm |
|
White CCT |
3000K / 4000K / 6000K |
|
Power Consumption |
~25 W/m (84LED/m TM1814 RGBW) |
|
Grayscale |
256 levels/channel |
|
Constant Current |
6.5–38 mA/channel (IC settable) |
|
PWM Refresh |
~1000 Hz |
|
Breakpoint Function |
No (standard TM1814) |
|
Auto Run |
Yes (with auto-effect controller) |
|
Controller Support |
K-1000C, T-1000S, WLED, Art-Net, DMX512 RGBW SPI decoder |
|
Wiring |
24V, GND, DIN (DO to next) |
|
Waterproof Rating |
IP20 / IP65 / IP67 / IP68 |
|
Beam Angle |
120° |
|
Lifespan |
30,000–50,000 hrs |
|
Working Temp. |
-20°C ~ +45°C / +60°C (supplier-dependent) |
