Ideal for bars, stages, retail displays, gaming rooms, and architectural outlines. Stable signal transmission, strong color consistency, and easy controller integration make it a proven choice for engineers and resellers.

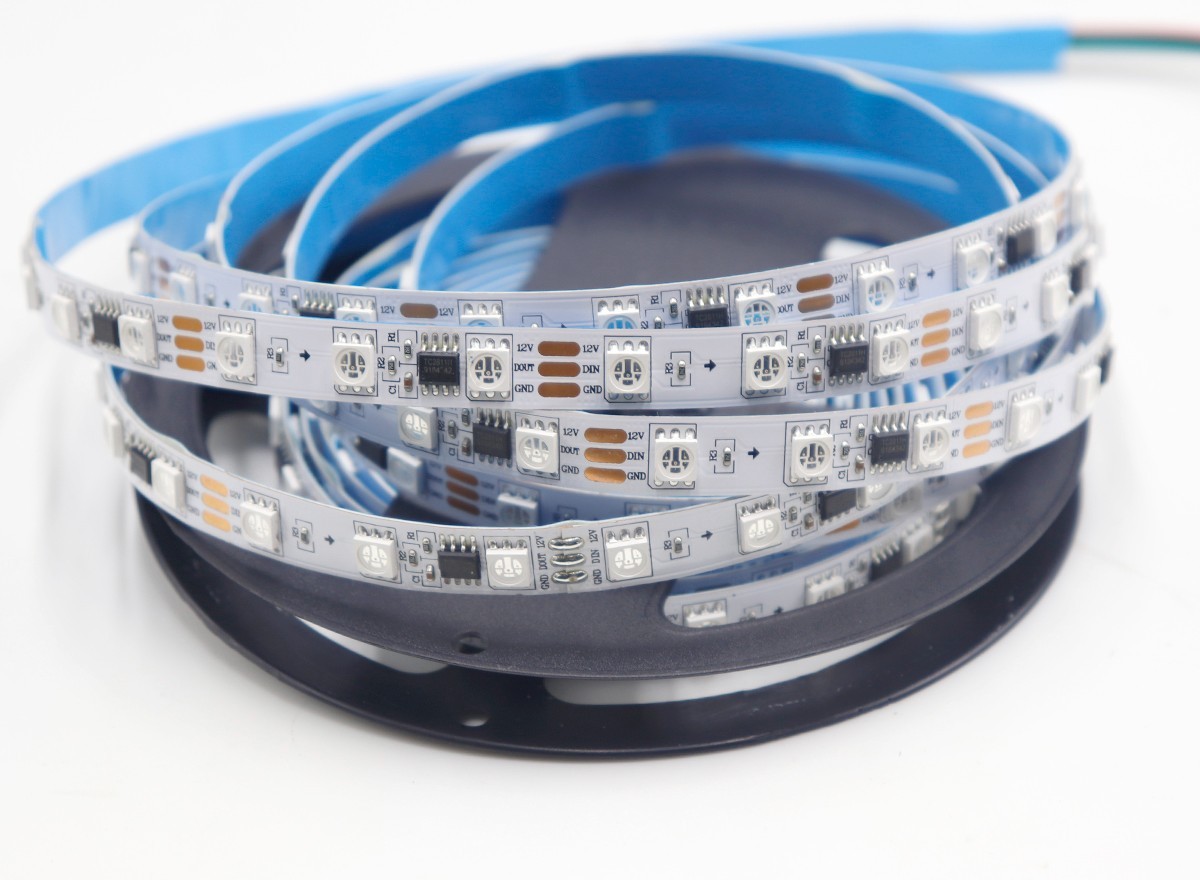

UCS1903B Addressable IC: 20 pixels/m, 1 IC controls 3×5050 RGB, smooth gradient and chase effects.
Bright 5050 RGB: higher brightness than 2835 pixel strips, great for visible-distance decoration.
DC12V Engineering Friendly: less voltage drop than 5V strips, longer run with stable performance.
10mm Flexible FPC: easy to install in aluminum profiles, signage, coves, and curved structures.
Cuttable & Cascadable: cut every 3 LEDs (50mm), DIN→DOUT cascade, works with SPI/UCS1903 controllers.
|
Item |
Specification |
|---|---|
|
Model |
UCS1903B-5050RGB-60D-12V-10mm |
|
LED Type |
SMD 5050 RGB |
|
IC Type |
UCS1903B (SPI, external IC) |
|
Input Voltage |
DC 12V |
|
LED Density |
60 LEDs/m |
|
Pixel Density |
20 pixels/m (3 LEDs / pixel) |
|
Cutting Unit |
3 LEDs ≈ 50 mm |
|
PCB Width |
10 mm FPC |
|
Power |
14.4 W/m (typ. 12–15 W/m) |
|
Current |
≈ 1.2 A/m |
|
Gray Scale |
8-bit × 3CH (256/CH) |
|
Refresh Rate |
High refresh, no visible flicker |
|
Signal Interface |
3-pin: VCC / GND / DIN (DOUT cascade) |
|
Controller |
UCS1903 / SPI addressable controller |
|
Beam Angle |
120° |
|
PCB Color |
White / Black |
|
IP Rating |
IP20 bare board (IP65/IP67/IP68 optional) |
|
Length |
5 m/reel |
|
Life Span |
30,000 h+ |
|
Application |
Signage, bar, stage, gaming setup, retail, architecture outline |
