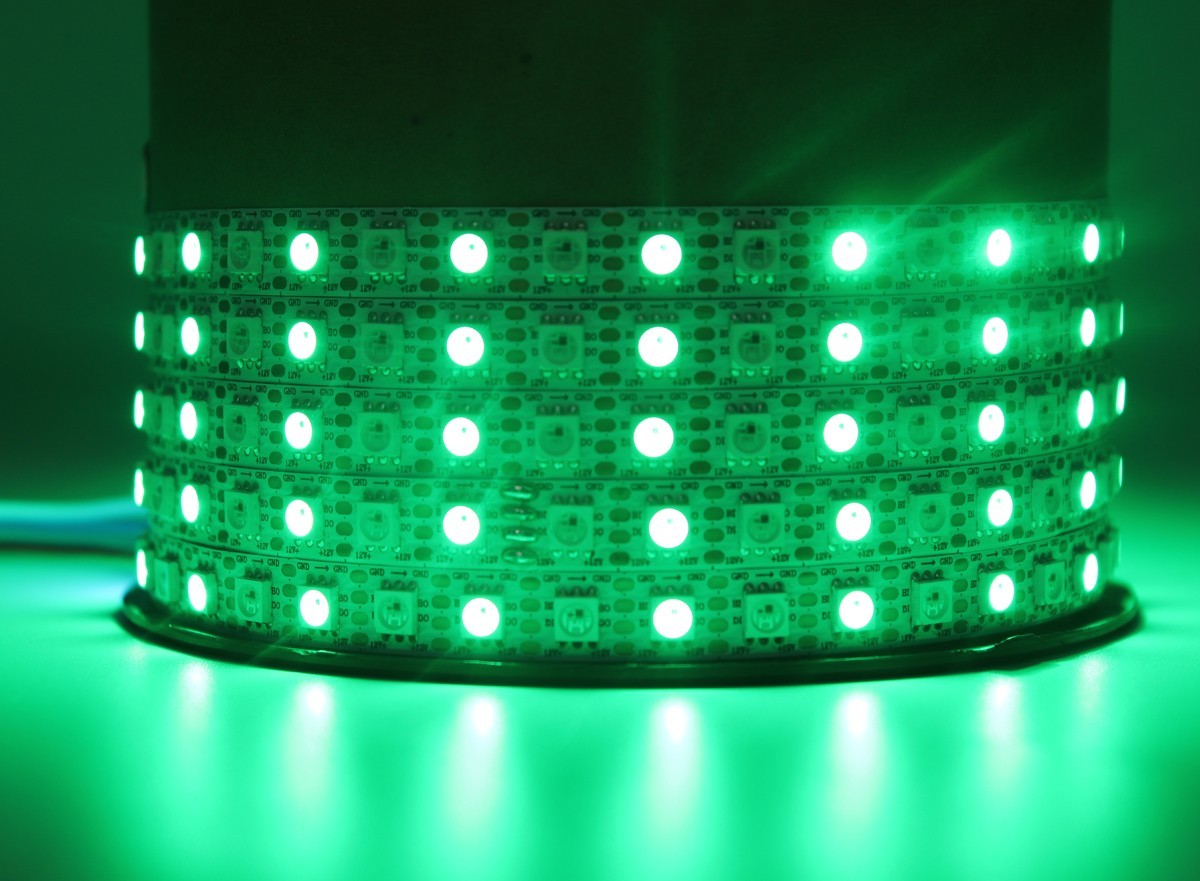

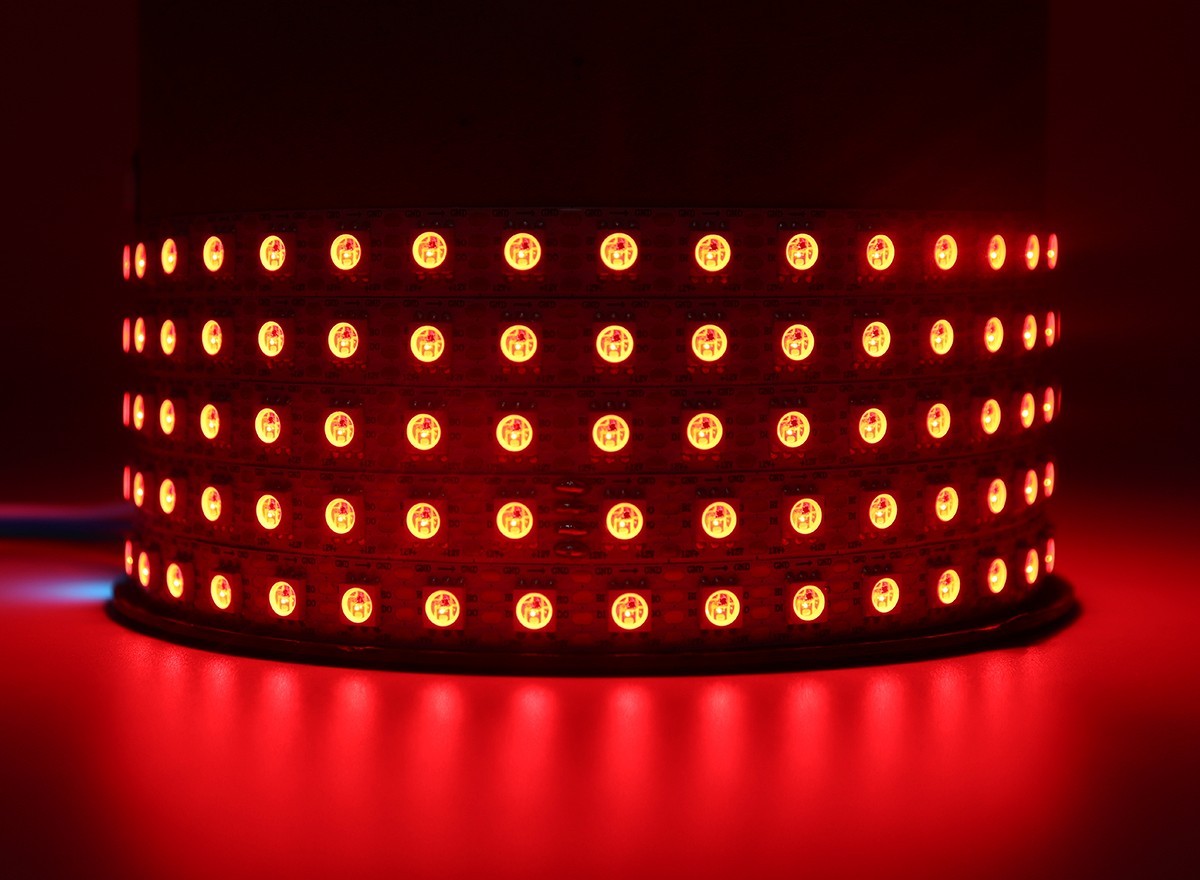

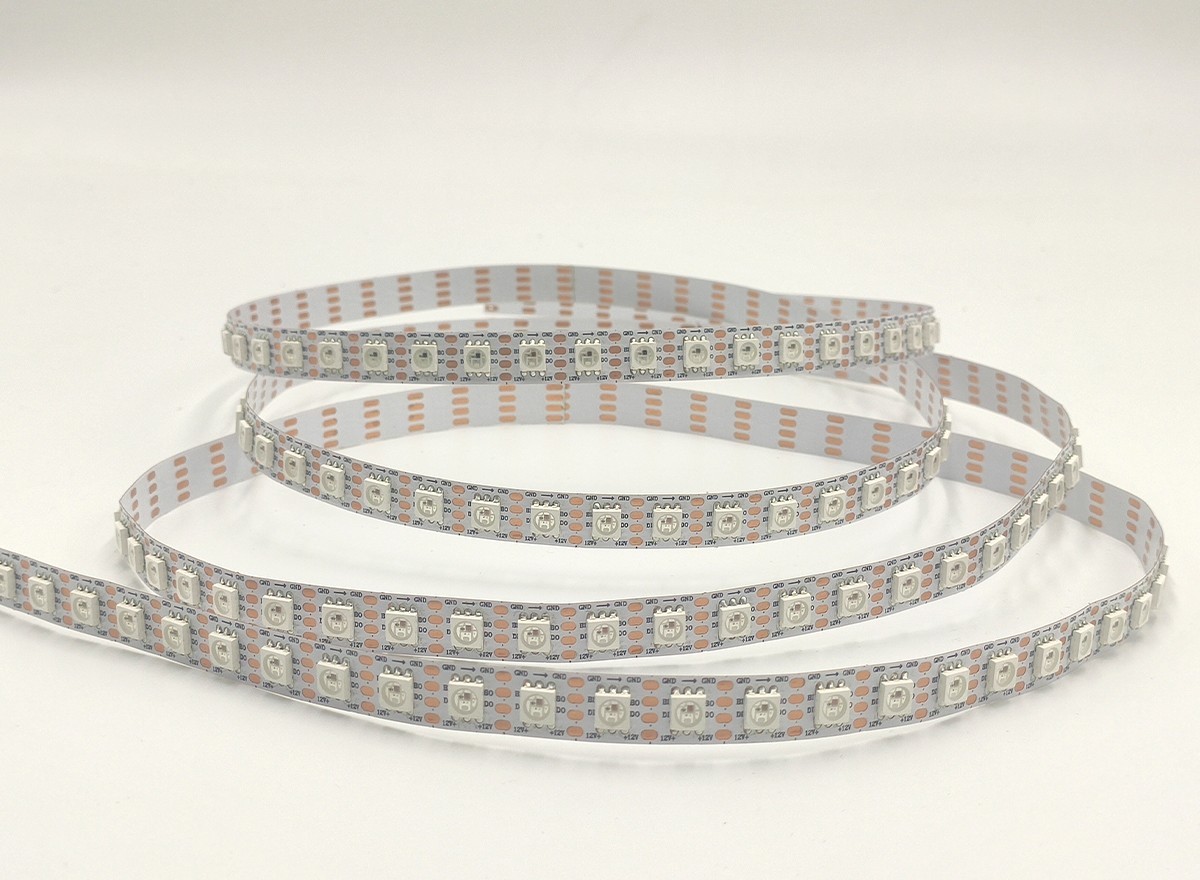

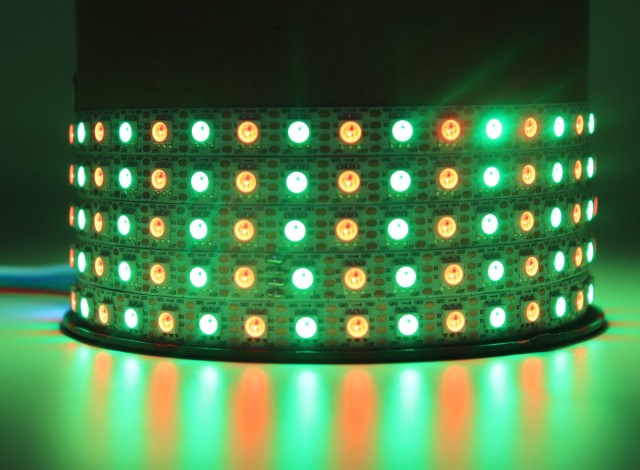

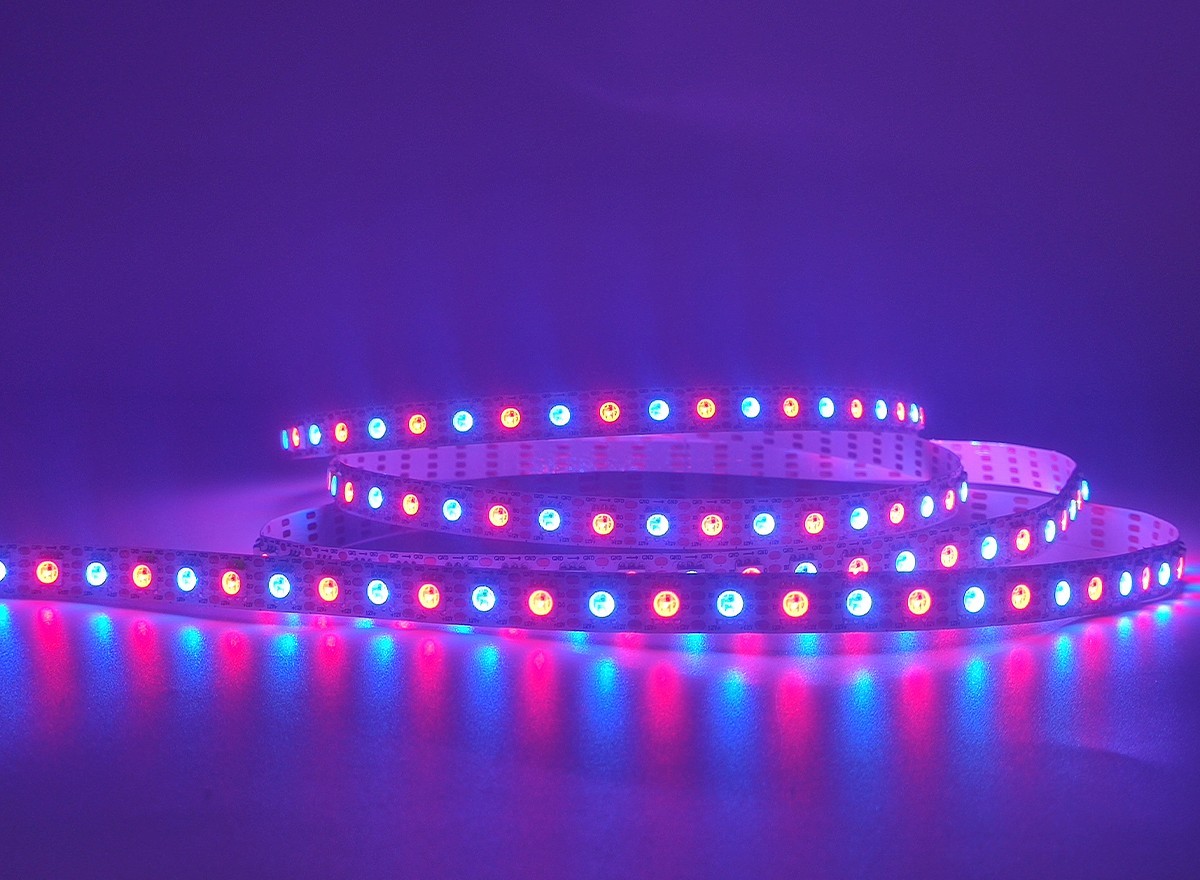

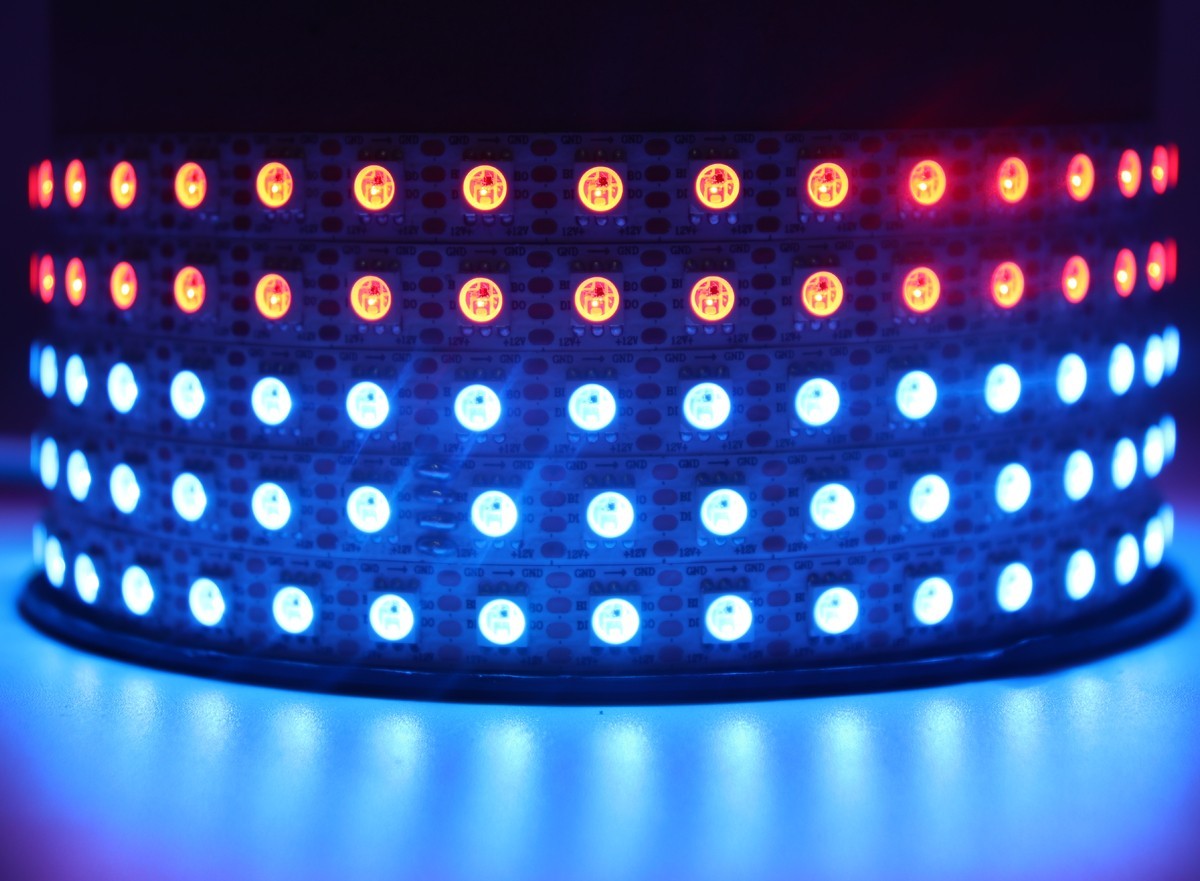

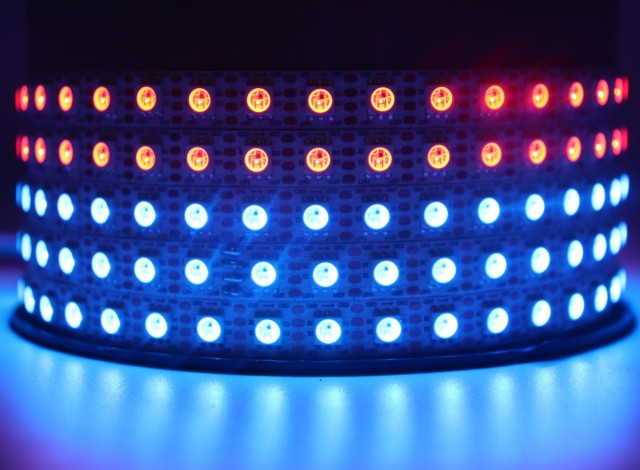

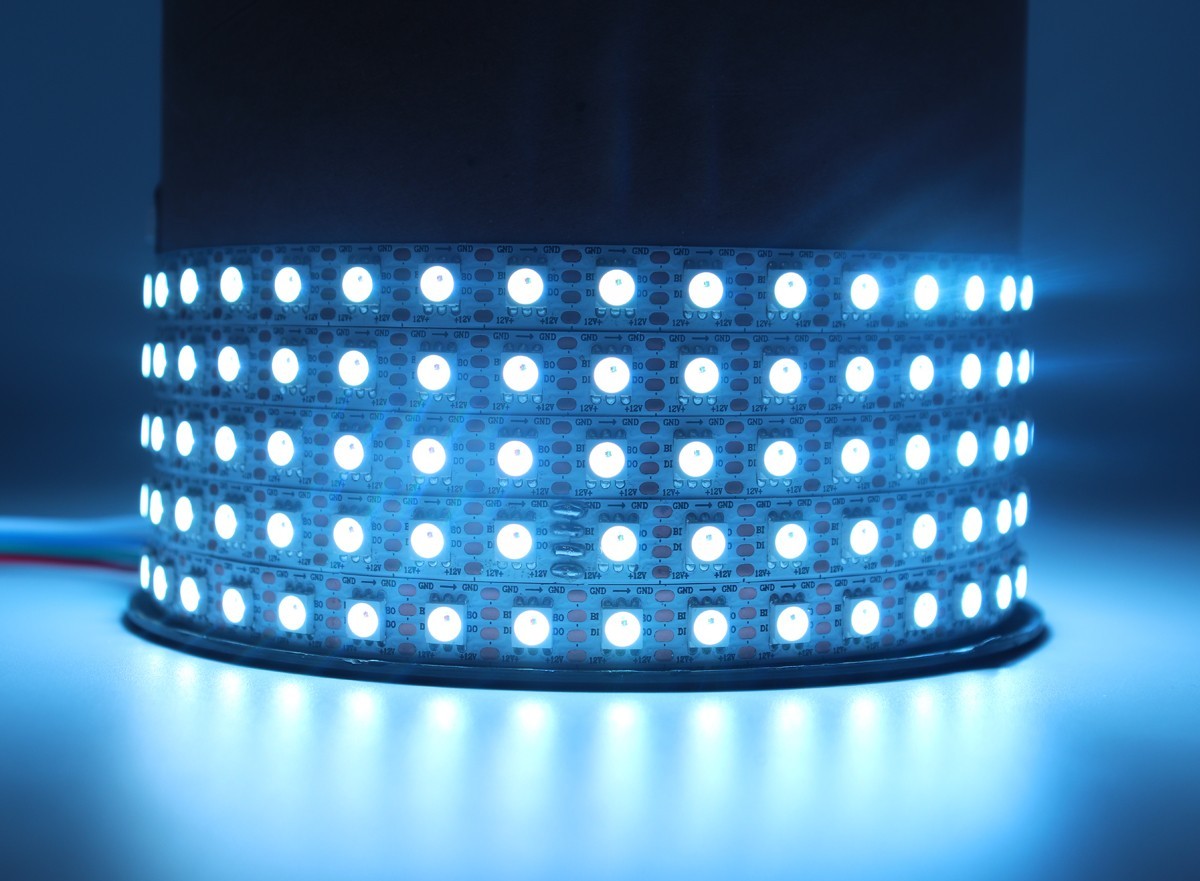

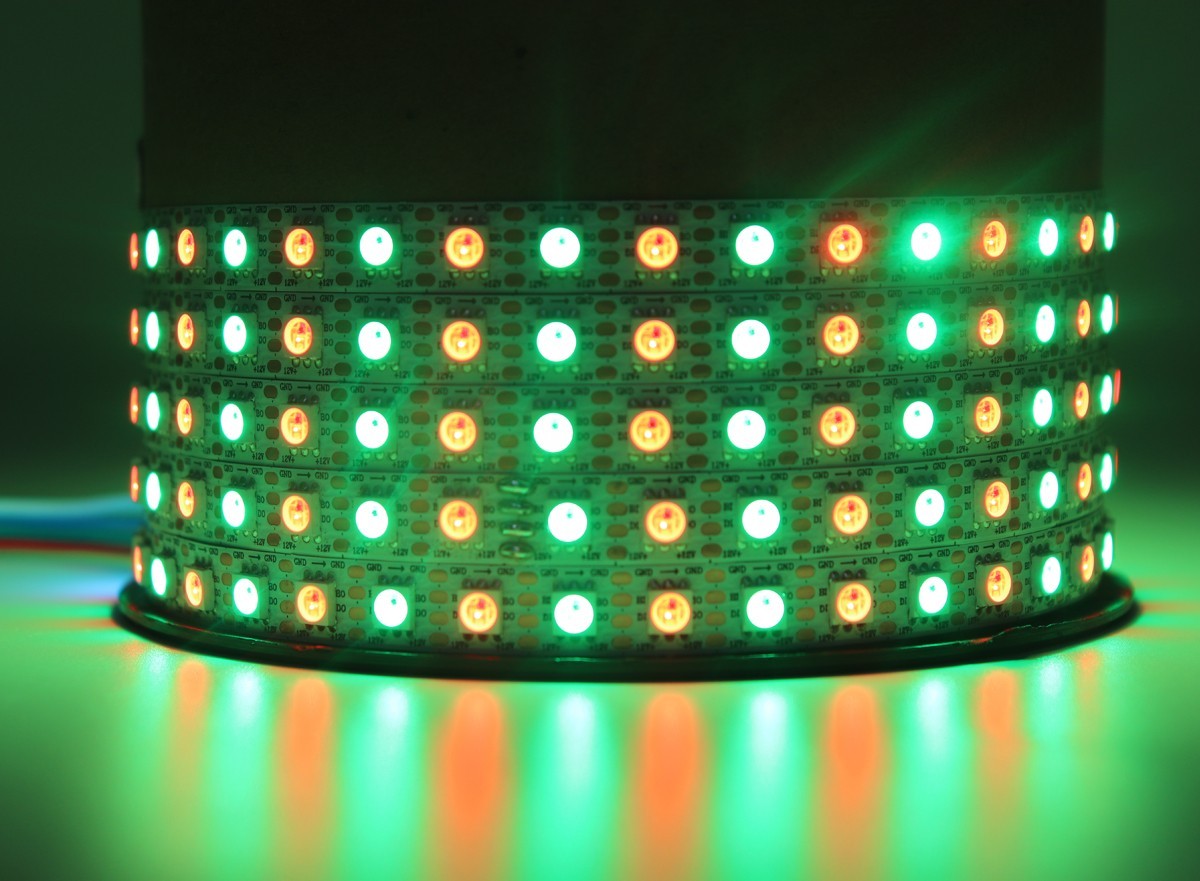

Balanced density, 12V stability, true pixel control. This DC12V SK6813 5050 RGB strip delivers 96 addressable pixels per meter—each SMD5050 RGB LED carries a built-in SK6813 IC, so every point is individually controllable. The 12V bus cuts current roughly in half versus 5V strips, reducing voltage drop on longer runs, while the breakpoint-continue / backup-data layout keeps the tail lit if one pixel fails. A 10mm FPC fits standard aluminum profiles, coves, and channel letters. Drive it with K-1000C, T-1000C, ESP32/WLED, Arduino, SPI→DMX decoder, or Art-Net/Madrix for chase, rain, gradient, text, and video-mapping. Ideal for KTV walls, DJ booths, hotel façades, retail logos, and stage props.
96 Pixels/m, 1 LED = 1 IC – Denser than 60/m, lighter load than 144/m; smooth mid-density pixel art.
SK6813 @ 12V – WS2815-class 12V pixel IC; lower current, longer runs, less brightness fade than 5V SK6812.
Breakpoint Continue / Backup Data – One dead pixel auto-bypasses; rest of strip keeps rendering.
10mm Standard FPC – Easy to source profiles/diffusers; cut every 10.42mm (1 LED).
Full Controller Ecosystem – SPI pixel controller, Arduino/FastLED, ESP32/WLED, K-1000C, T-1000C, DMX/SPI decoder, Art-Net/Madrix.
|
Parameter |
Specification |
|---|---|
|
Product Type |
Individually addressable RGB pixel LED strip |
|
LED Type |
SMD5050 RGB (built-in SK6813 / SK6813-12V) |
|
Voltage |
DC 12V (11.5–12.5V recommended) |
|
LED Density |
96 LEDs/m |
|
Pixel Density |
96 pixels/m (1 LED = 1 pixel) |
|
Signal |
Data + backup/dual-signal (breakpoint continue) |
|
Power |
~14.4 W/m (0.15W/LED) or ~28.8W/m (0.3W/LED) — confirm bin |
|
PCB Width |
10 mm |
|
Cut Unit |
10.42 mm (1 LED) |
|
Color |
24-bit, 256 gray/chan |
|
Beam Angle |
120° |
|
Roll |
5 m/reel |
|
Controllers |
K-1000C, T-1000C, Arduino, ESP32/WLED, SPI→DMX, Art-Net, Madrix |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Life |
50,000 hrs |
