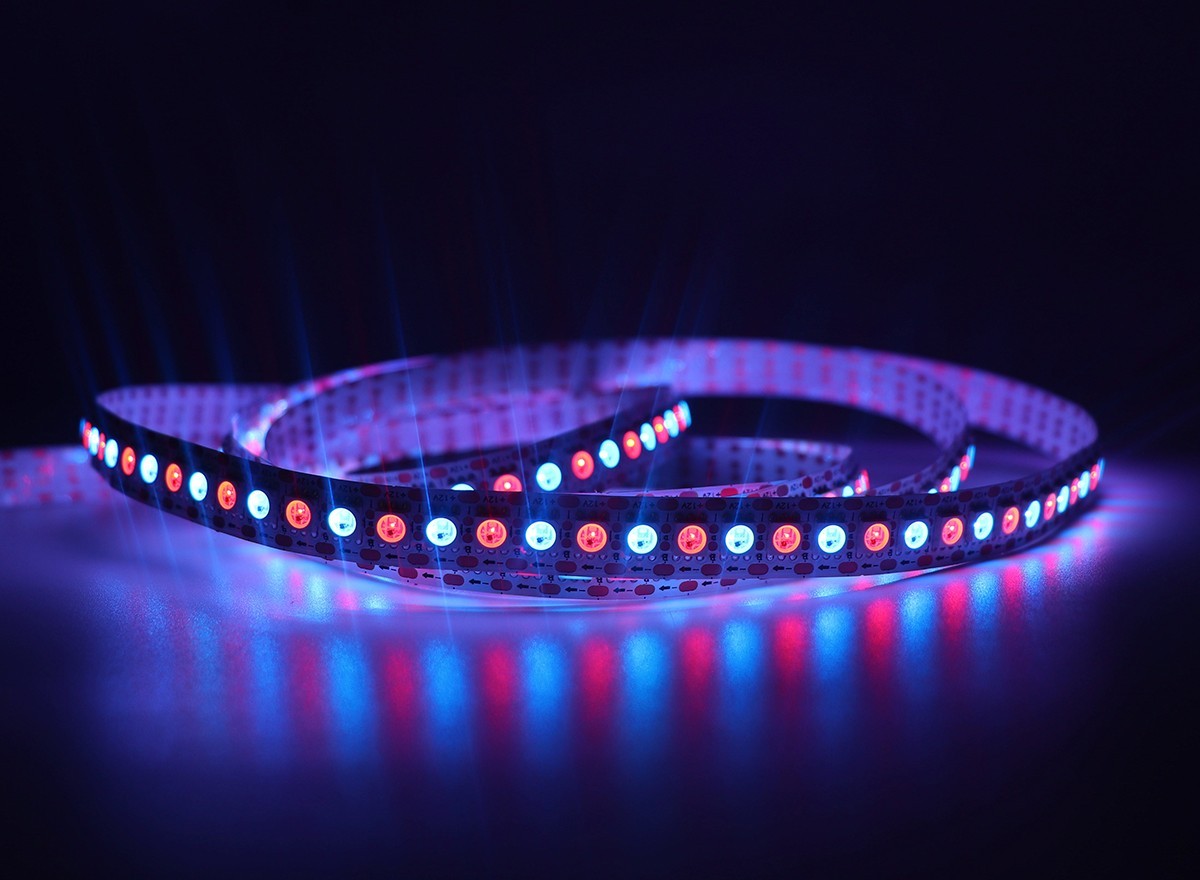

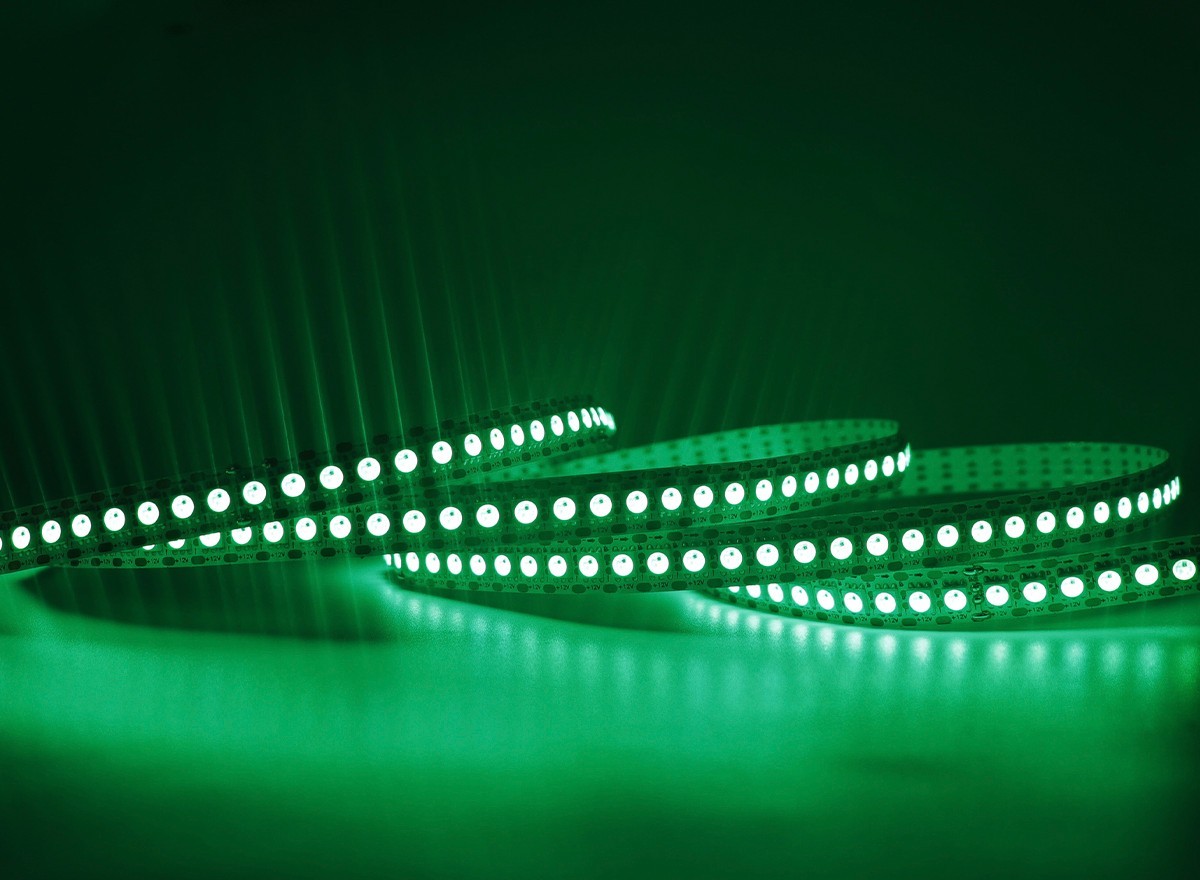

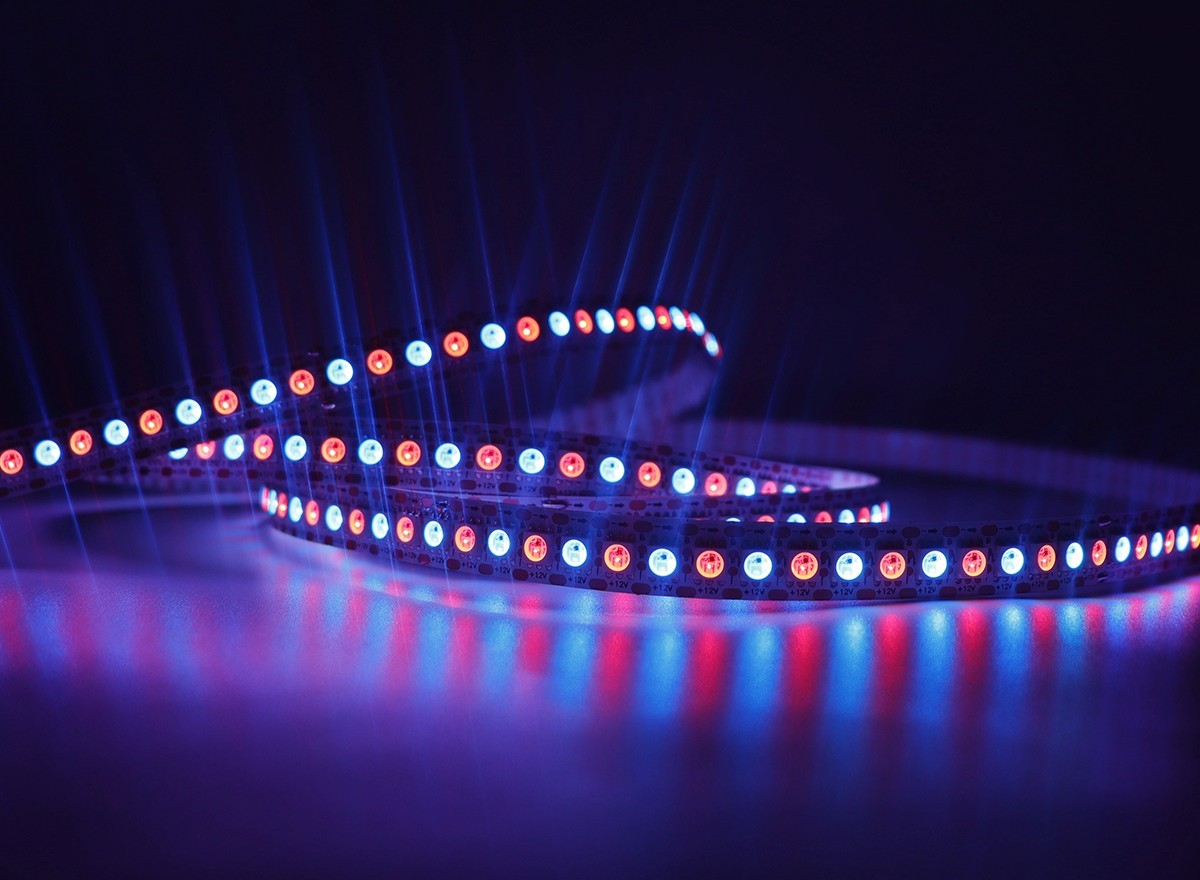

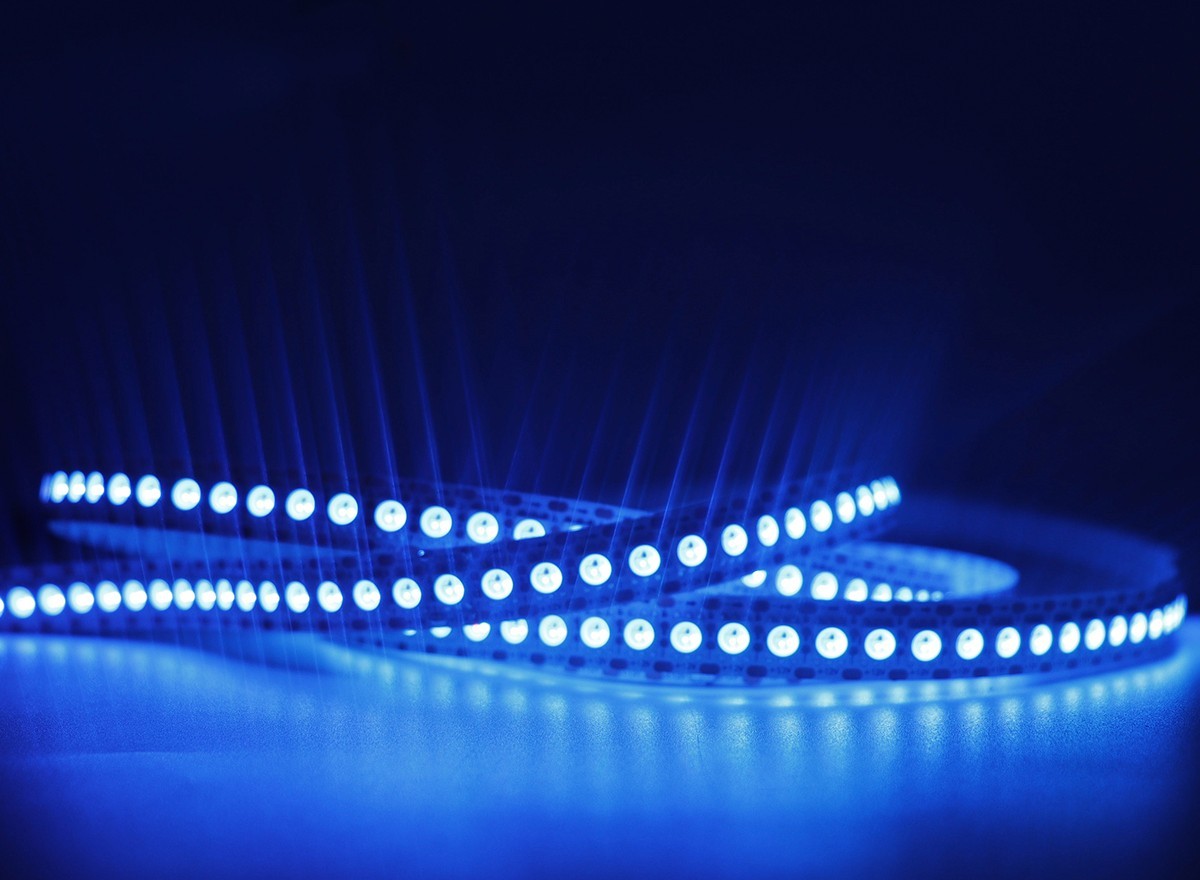

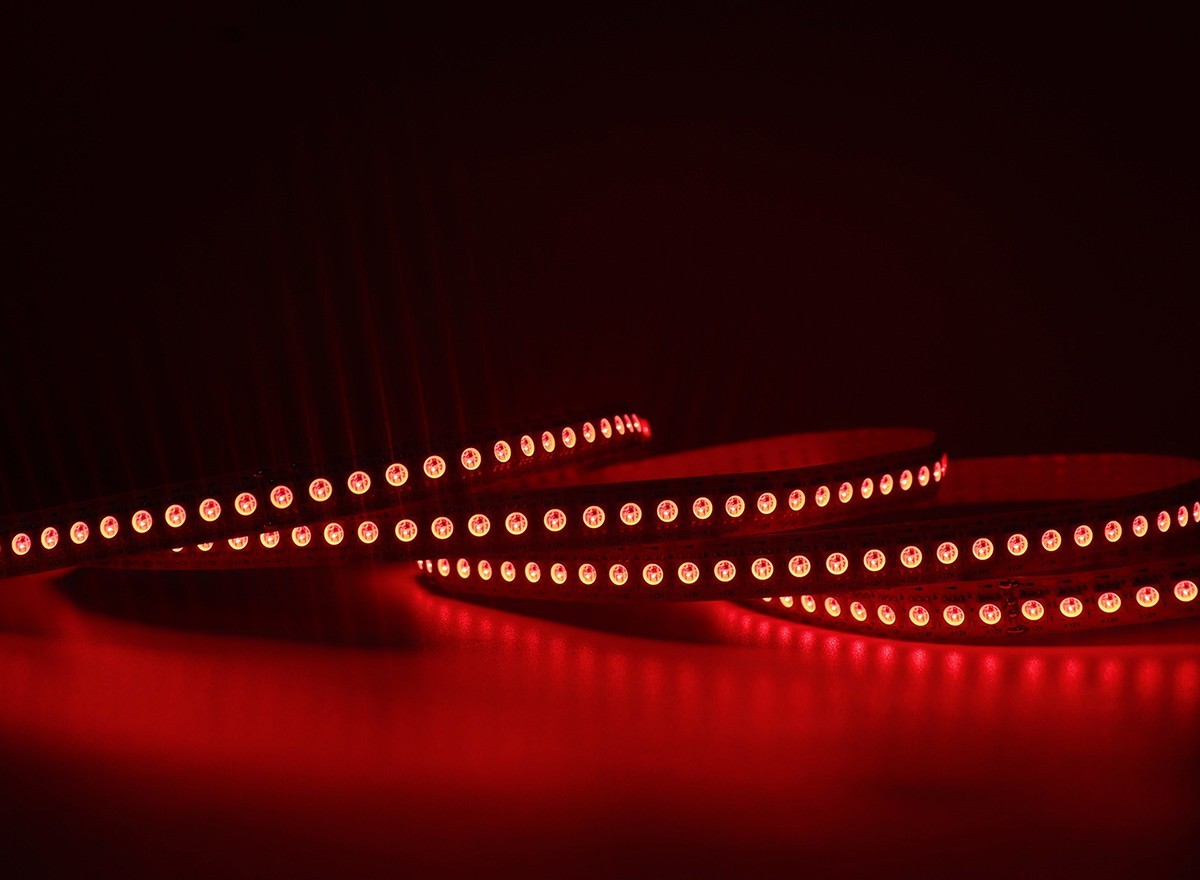

Ultra-high-density pixel lighting in a 12mm body. This DC12V SK6813 addressable RGB strip packs 144 SMD5050 RGB LEDs per meter—each LED has a built-in SK6813 IC, so every pixel is individually controllable. The 12V design reduces current and voltage drop versus 5V strips, while the breakpoint-continue / backup-signal architecture keeps the rest of the strip running if one pixel fails. Cut every 6.94mm for pixel-accurate layouts, and drive it with SP108E, K-1000C, Arduino, ESP32, DMX/SPI decoder, or Art-Net systems. Perfect for DJ booths, stage props, logo walls, pixel murals, retail displays, and architectural contour lighting where you need smooth chase, rain, text, and video-mapping effects.
144 Pixels/m, 1 LED = 1 IC – True single-point control; smooth gradients, text, rain, comet, and video effects.

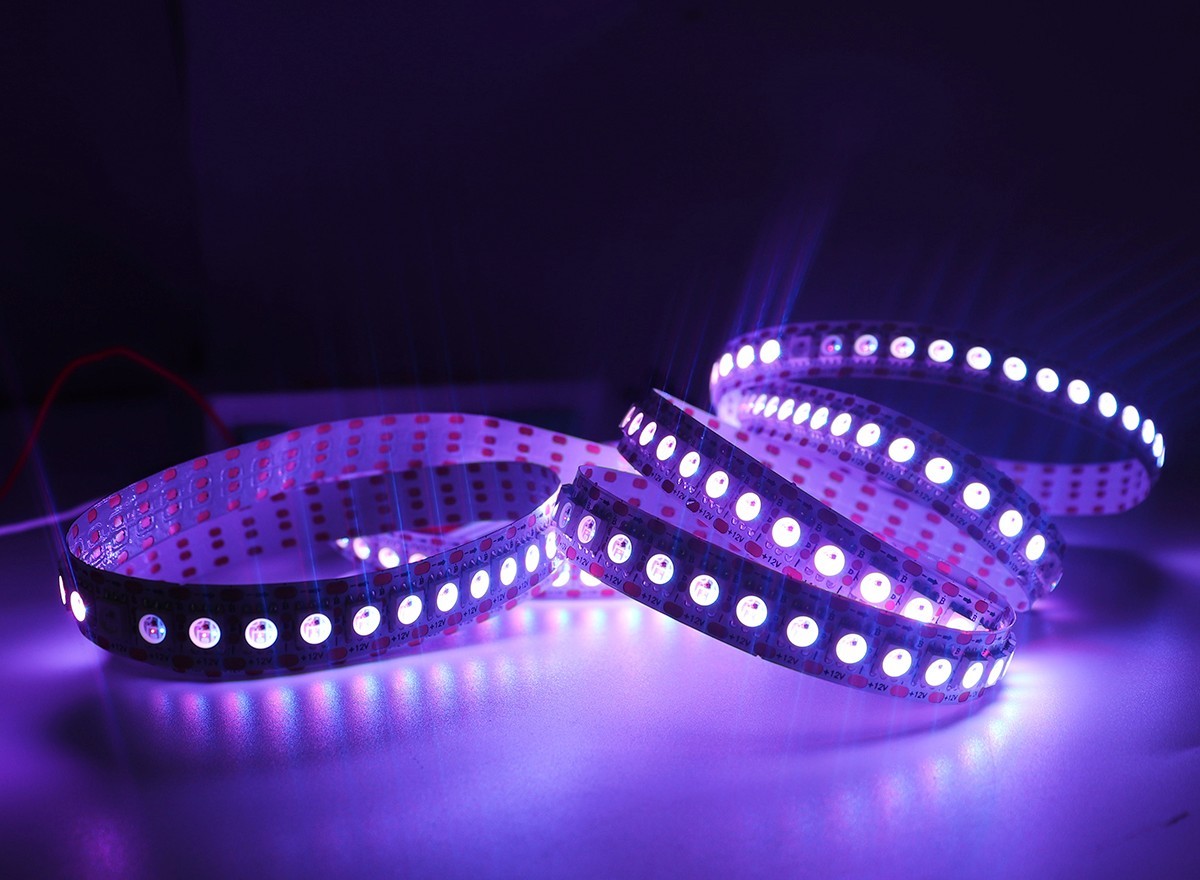

Built-in SK6813 @ DC12V – WS2815-class 12V pixel strip; less voltage drop, longer runs than 5V SK6812.

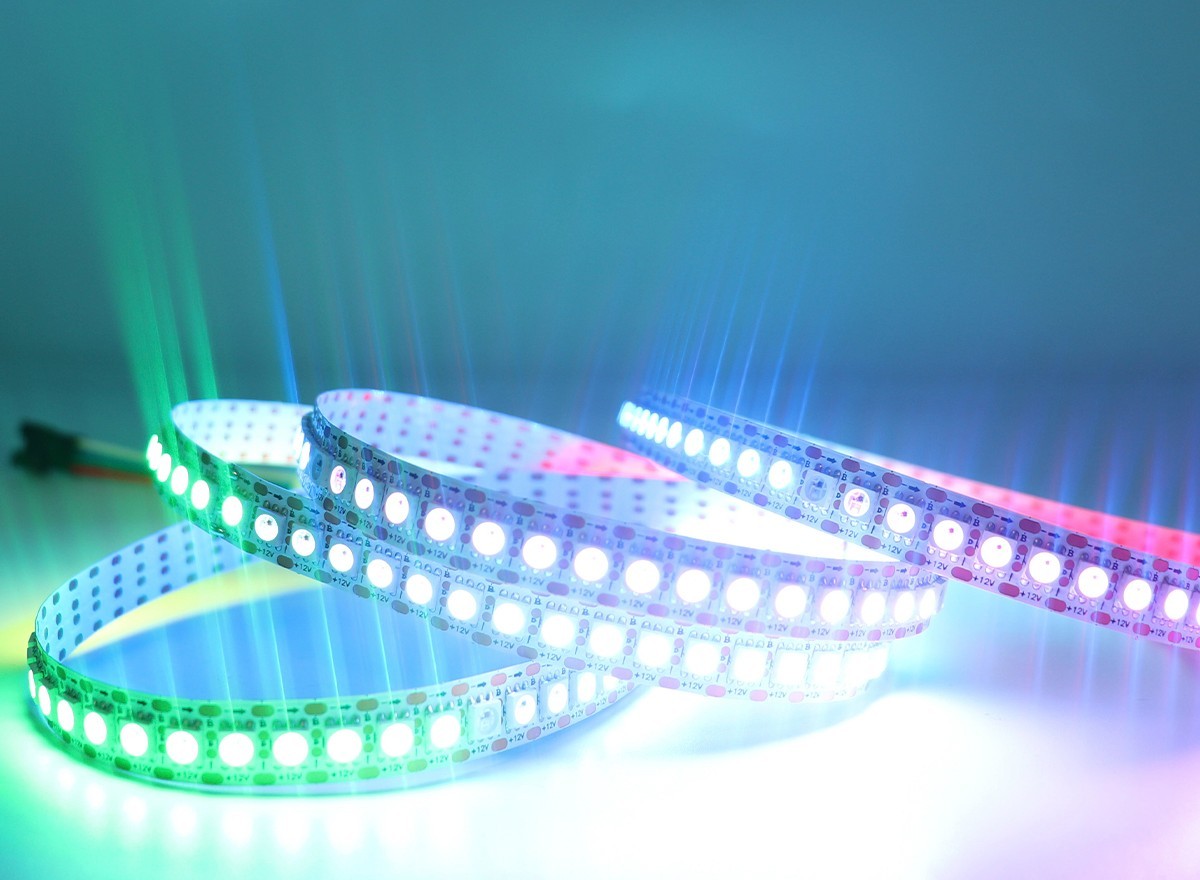

Breakpoint Continue / Backup Data – Damaged pixel doesn’t kill the whole strip (dual-signal or backup-line version).

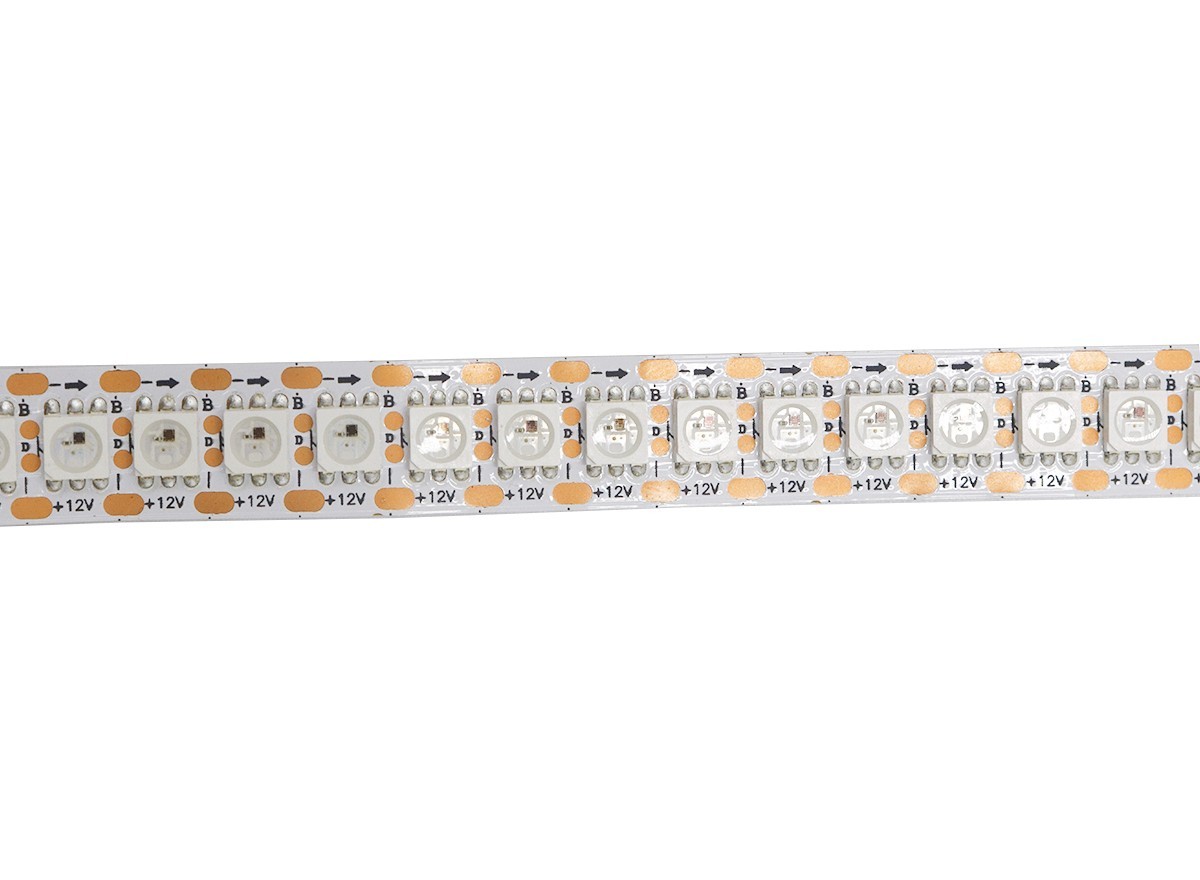

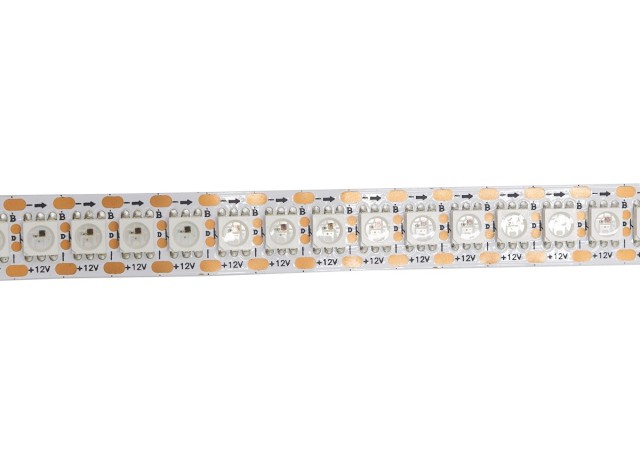

12mm Flexible FPC – 2oz/3oz copper option, 120° beam, cut every 6.94mm, IP20/IP65/IP67/IP68 optional.
Wide Controller Support – SPI pixel controller, Arduino/FastLED, ESP32/WLED, K-1000C, T-1000C, DMX decoder, Art-Net/Madrix.
|
Parameter |
Specification |
|---|---|
|
Product Type |
Individually addressable RGB pixel LED strip |
|
LED Type |
SMD5050 RGB (built-in IC) |
|
IC Type |
SK6813 / SK6813-12V (WS2815-class) |
|
LED Density |
144 LEDs/m |
|
Pixel Density |
144 pixels/m (1 LED = 1 pixel) |
|
Input Voltage |
DC 12V |
|
Power |
~21.6W/m (common) / up to 43.2W/m full white* |
|
PCB Width |
12 mm |
|
Cut Unit |
6.94 mm (1 LED) |
|
Color Depth |
24-bit, 256 gray levels/channel |
|
Signal |
Single-line data + backup/breakpoint-continue (model dependent) |
|
Beam Angle |
120° |
|
Roll Length |
5 m/reel |
|
Controllers |
SP108E, K-1000C, Arduino, ESP32, DMX/SPI decoder, Art-Net |
|
IP Rating |
IP20 / IP65 / IP67 / IP68 |
|
Lifespan |
50,000 hrs |
