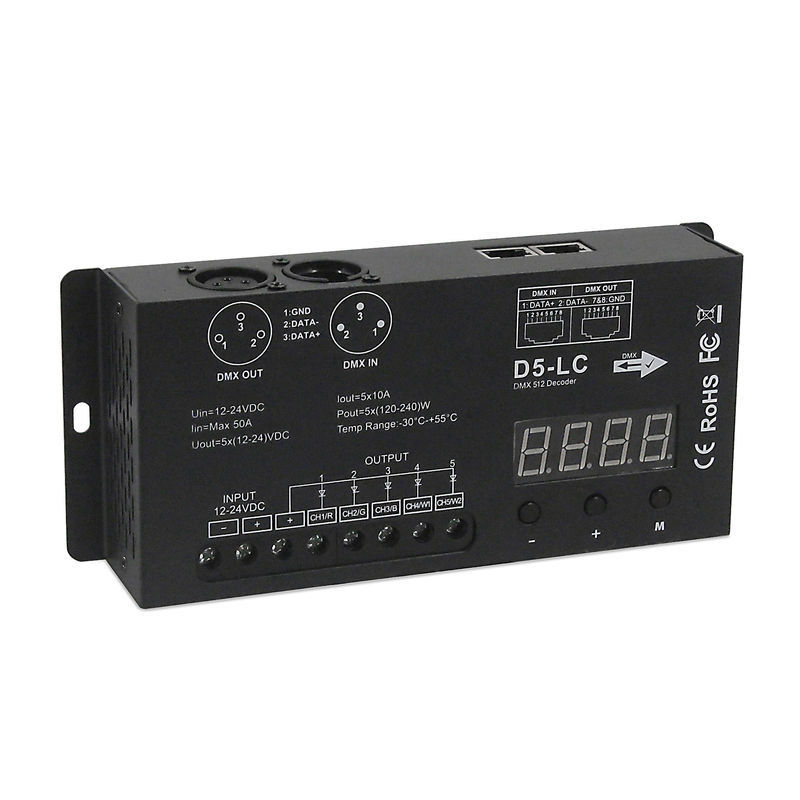

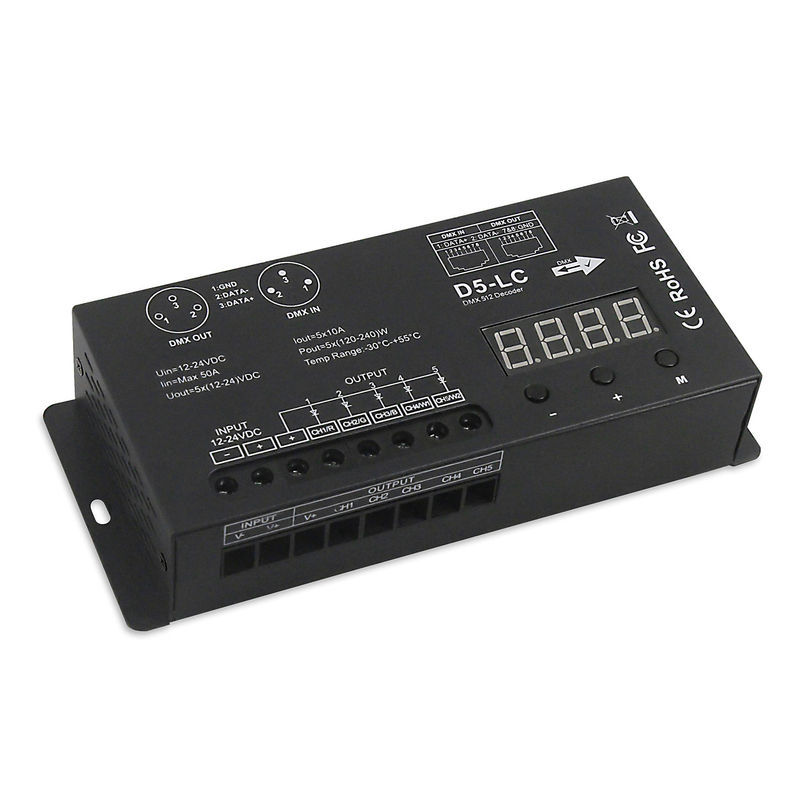

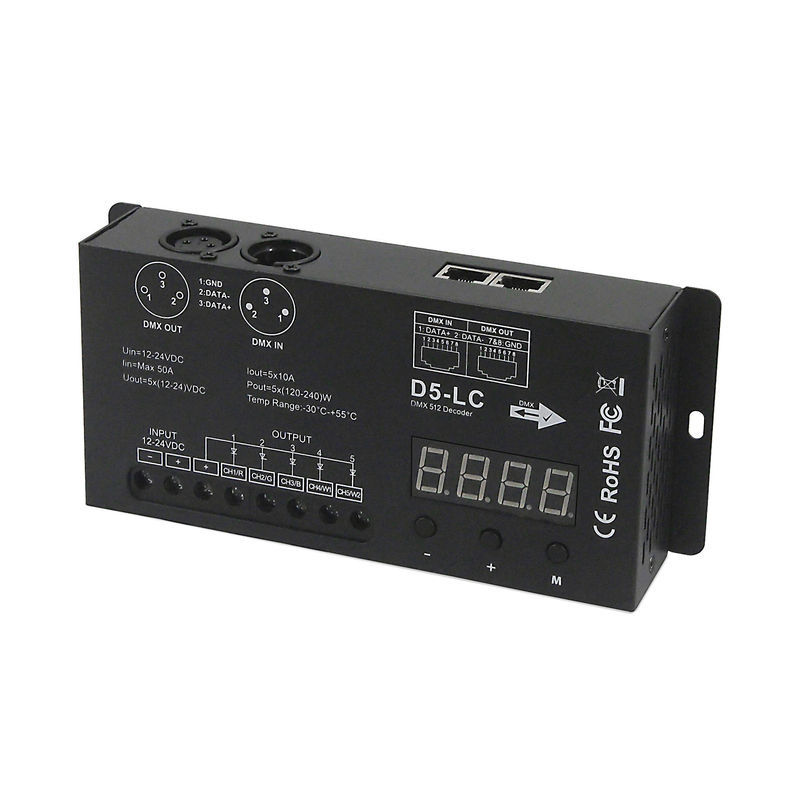

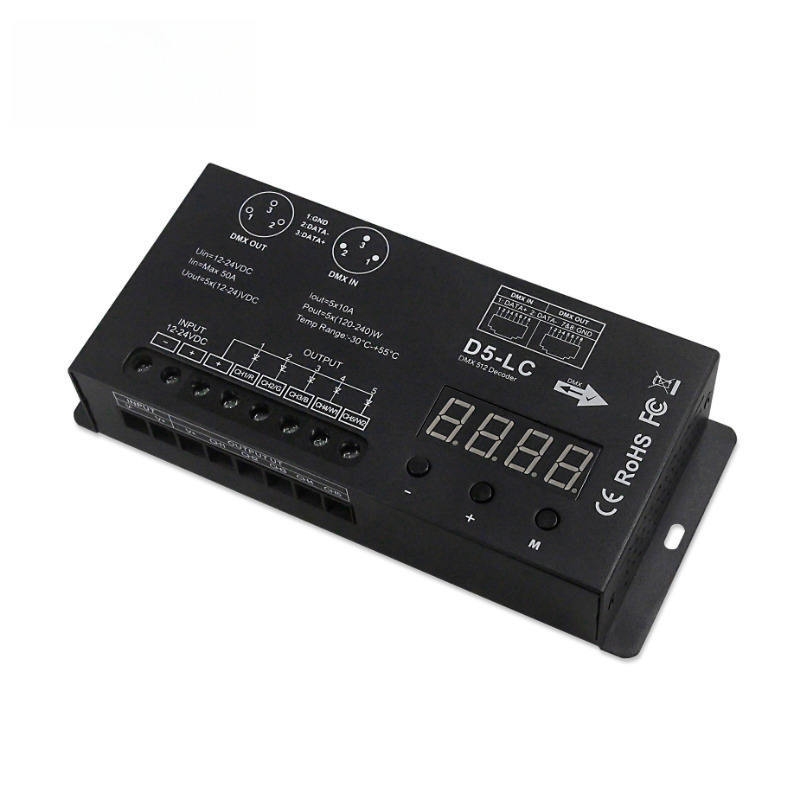

The built-in 4-digit display and intuitive buttons allow for easy DMX address setting. Equipped with standard XLR DMX IN/OUT ports, it supports seamless daisy-chaining. Whether for stage, architectural, or commercial lighting, the D5-LC delivers precise dimming and vibrant color control.
5-Channel Versatility: Supports RGB, RGBW, and CCT setups with 5 independent outputs (R/G/B/W/WW) for dynamic lighting effects.
High Power Capacity: Handles 12-24V DC input with a max current of 50A (5x10A/channel) and up to 1200W total output.
Precise DMX Control: Standard DMX 512 protocol with XLR IN/OUT ports ensures professional-grade signal transmission and addressing.

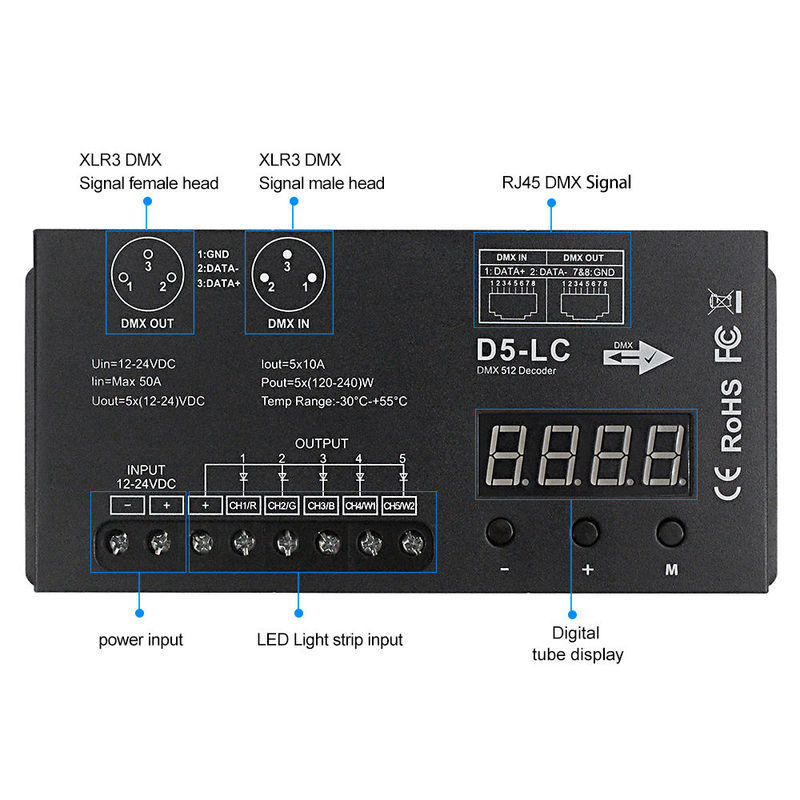

Digital Display & Easy Setup: Features a 4-digit LED display and manual controls (-, +, M) for straightforward DMX address configuration.
Durable & Reliable: Built with a sturdy metal housing, wide operating temperature (-30°C~65°C), and CE/RoHS/FCC certified for safety.
|
Parameter |
Specification |
|---|---|
|
Model |
D5-LC |
|
Product Type |
DMX 512 Decoder / LED Controller |
|
Input Voltage |
12-24V DC |
|
Max Input Current |
50A |
|
Output Channels |
5 Channels (CH/R, CH/G, CH/B, CH/W, CH/WW) |
|
Max Output Current |
5 × 10A |
|
Max Output Power |
5 × (120-240)W |
|
DMX Interface |
XLR 3-pin (DMX IN / DMX OUT) |
|
Display |
4-Digit LED Display |
|
Operating Temp. |
-30°C ~ +65°C |
|
Certifications |
CE, RoHS, FCC |
|
Enclosure |
Black Metal Housing with Mounting Bracket |
