The double-sided layout removes side shadows and creates smooth omnidirectional glow inside milky/transparent 40mm tubes. It works with SPI controllers, SD players, Art-Net and DMX-to-SPI decoders. Ideal for stage tubes, 3D pixel matrices, bar ceilings, atrium suspensions and architectural outline lighting.
True RGBW Output: SMD5050 RGBW + UCS2904 enables pure white, warm/cool white and advanced color mixing.

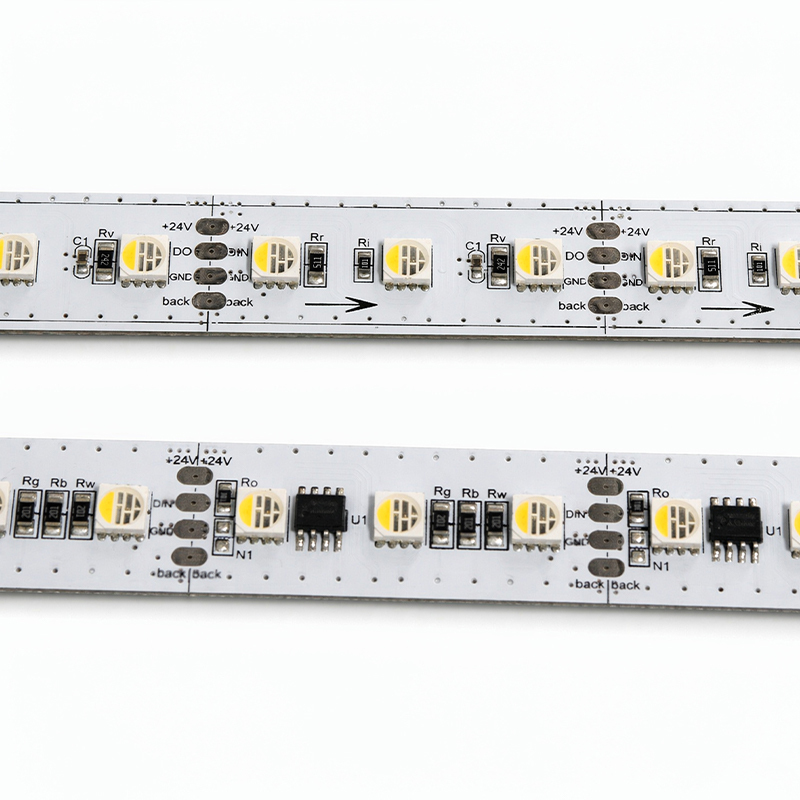

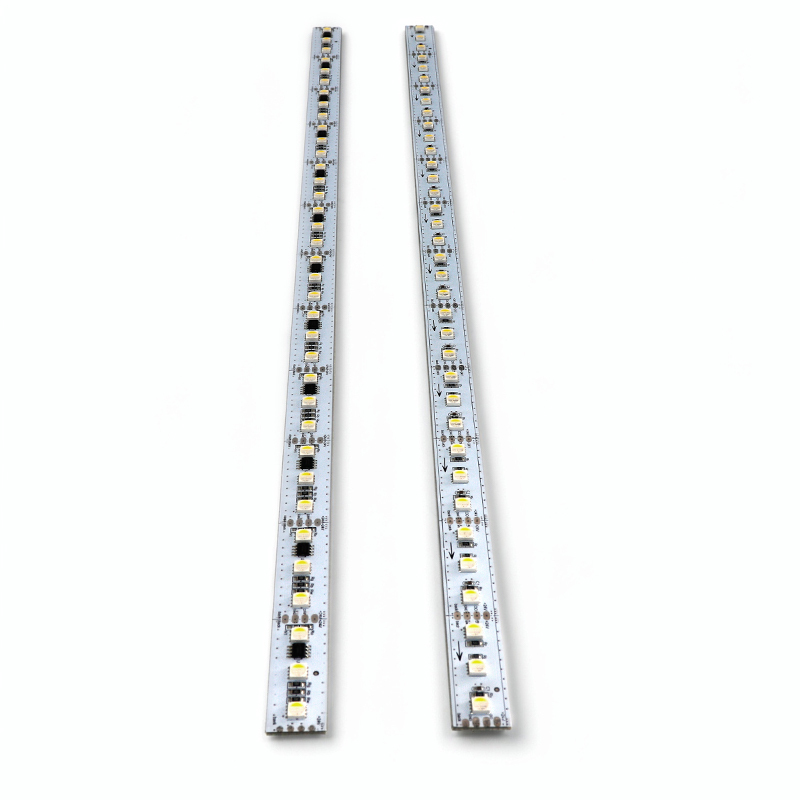

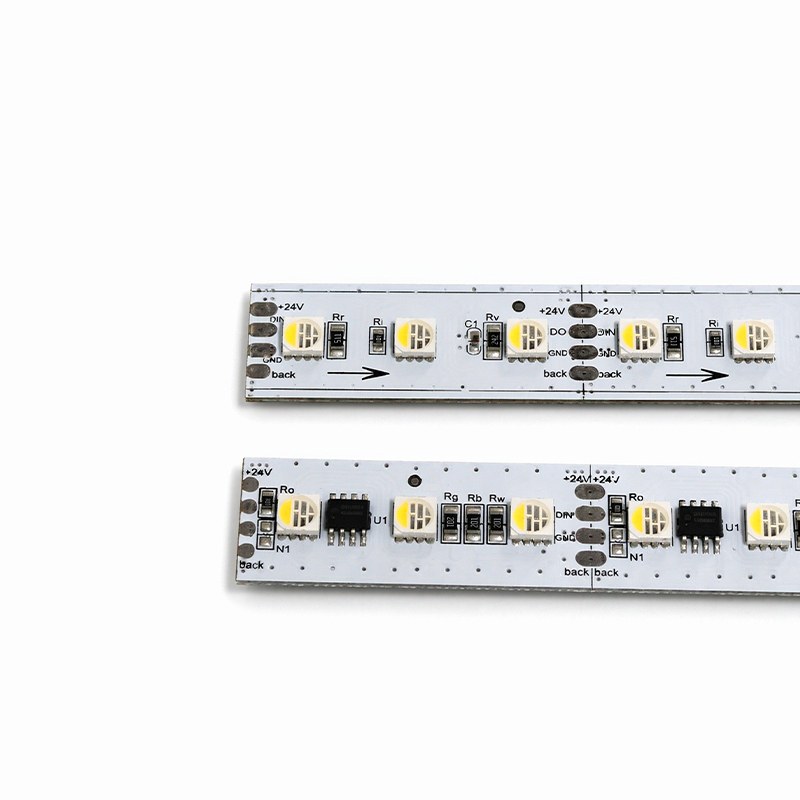

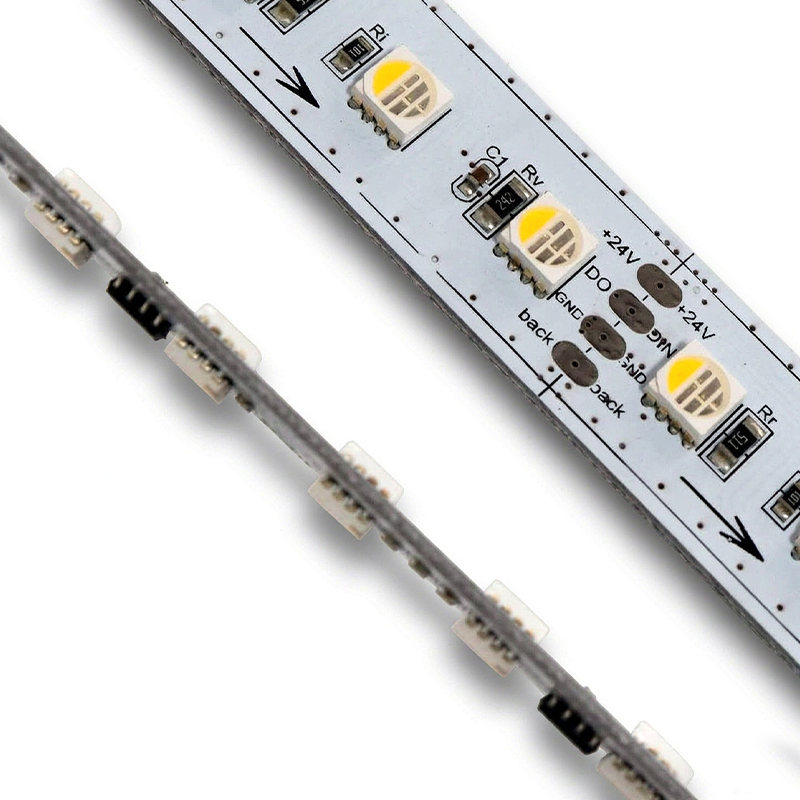

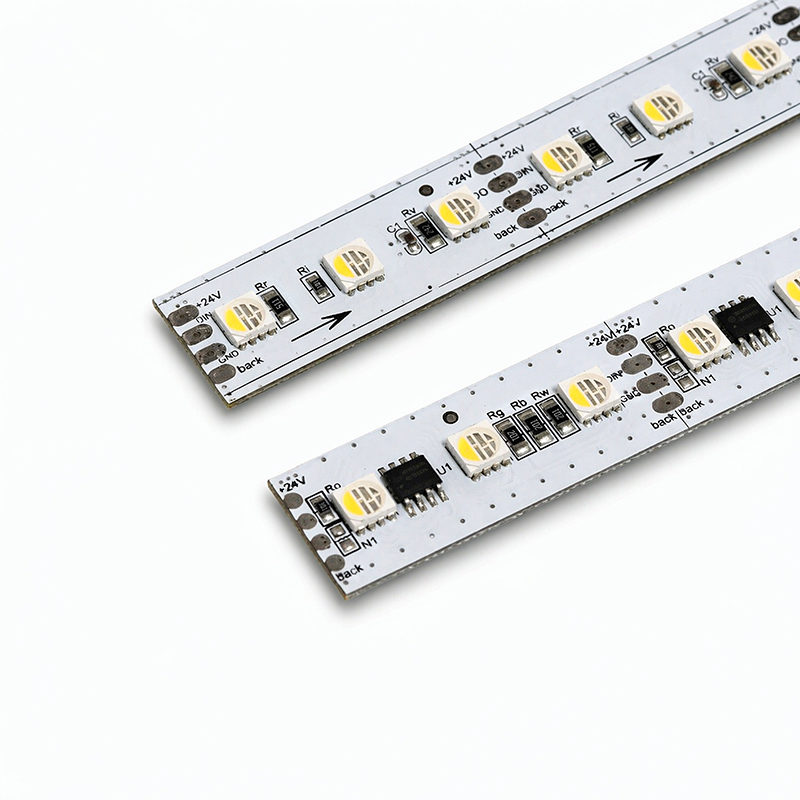

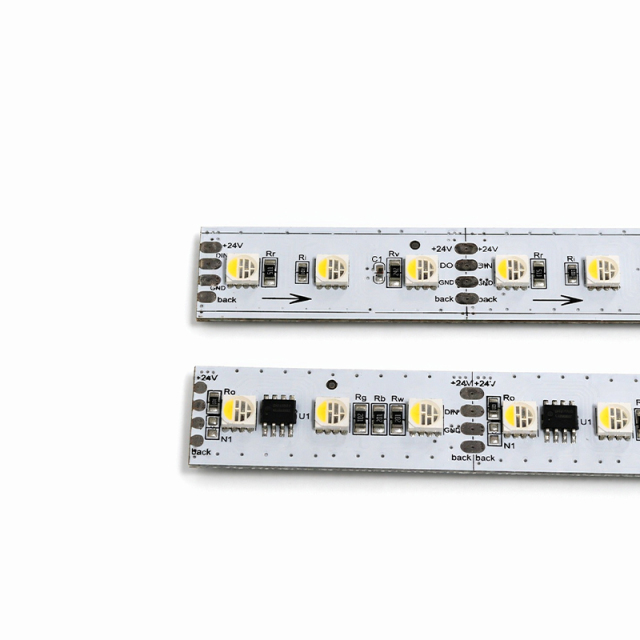

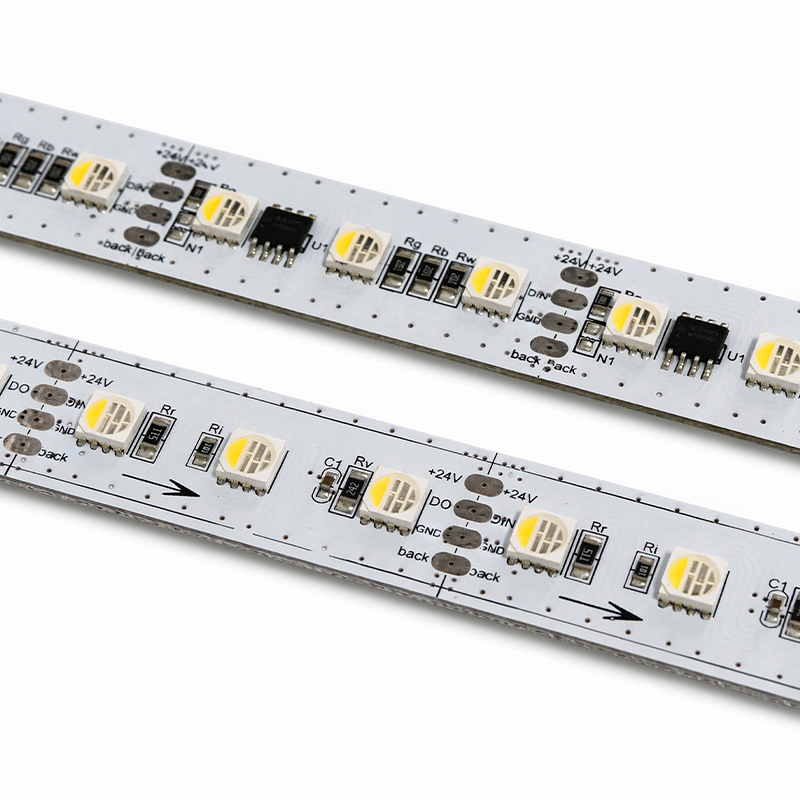

Double-Side 17.5mm FR4 Board: 72 LEDs per side, 144 LEDs/m, 360° illumination with no dead angle.
24 Pixels/m: 6 LEDs + 1 UCS2904 per segment, supports flowing, gradient, comet, video-mapping effects.
Stable DC24V System: Lower current than 12V pixel tubes, better for long runs and engineering installs.
Cloud-Tube Optimized: Matched to 40mm PC tube housing; SPI/DMX/Art-Net controller compatible.
Item: 40mm Cloud/Pixel Tube Dedicated LED Board
Board Width: 17.5mm
Board Material: FR4 / Glass Fiber PCB, double-sided
Tube Diameter: 40mm
Voltage: DC24V
LED Type: SMD5050 RGBW（RGB + W）
LED Qty: 144 LEDs/m（72/top side + 72/bottom side）
IC Type: UCS2904（external SPI RGBW IC）
Pixels: 24 pixels/m
LEDs per Pixel: 6 LEDs
Gray Scale: 256 levels × 4 channels
PWM Frequency: ≈1.2kHz / 1.8kHz（factory firmware dependent）
Power: ≈32W/m（cloud tube finished product） / 46W/m max for dense strip versions
Signal: SPI（DIN / DOUT / GND）
Controller: SPI SD controller, T-1000S, K-1000C, H807DMX, Art-Net, Madrix-compatible SPI
White Option: 2700K / 3000K / 4500K / 6500K
Cutting: by pixel segment only（not random cut）
Tube Cover: Milky white / transparent / black PC
IP Rating: IP20 bare board / IP65 / IP66 finished tube
Working Temp.: -25℃ ~ +45℃
Life: 30,000–50,000h
Use: 40mm pixel cloud tube, stage tube, 3D matrix tube
