High Power & Wide Voltage: Supports 12-48VDC input with 8A per channel (1152W max), compatible with most constant voltage LED strips.
Professional DMX512 & RDM: Standard DMX512 protocol with RDM support for remote address setting and status monitoring.
Precision 16-Bit Dimming: Offers 65536-level grayscale and adjustable PWM frequency (250Hz–16kHz) to eliminate video flicker.
Versatile Decoding Modes: Configurable for 1/2/4-channel output, ideal for RGB, RGBW, or 4-zone mono lighting control.
Robust Protection & Display: Built-in over-heat, overload, short-circuit, and reverse-polarity protection, plus a digital screen for easy

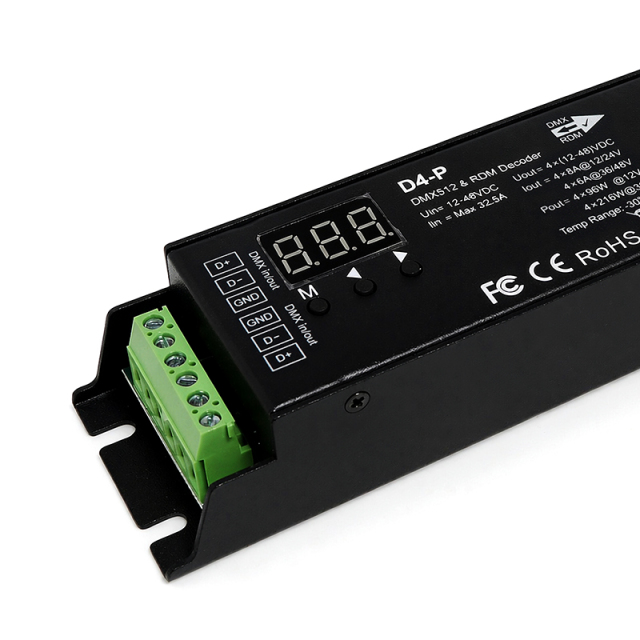

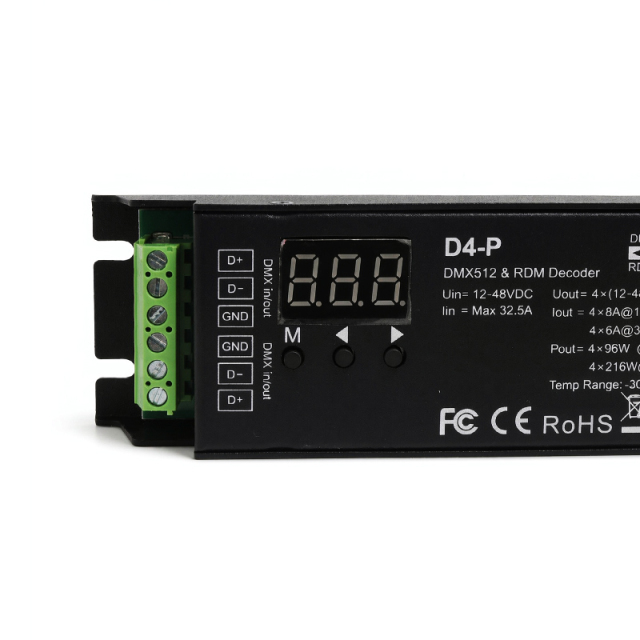

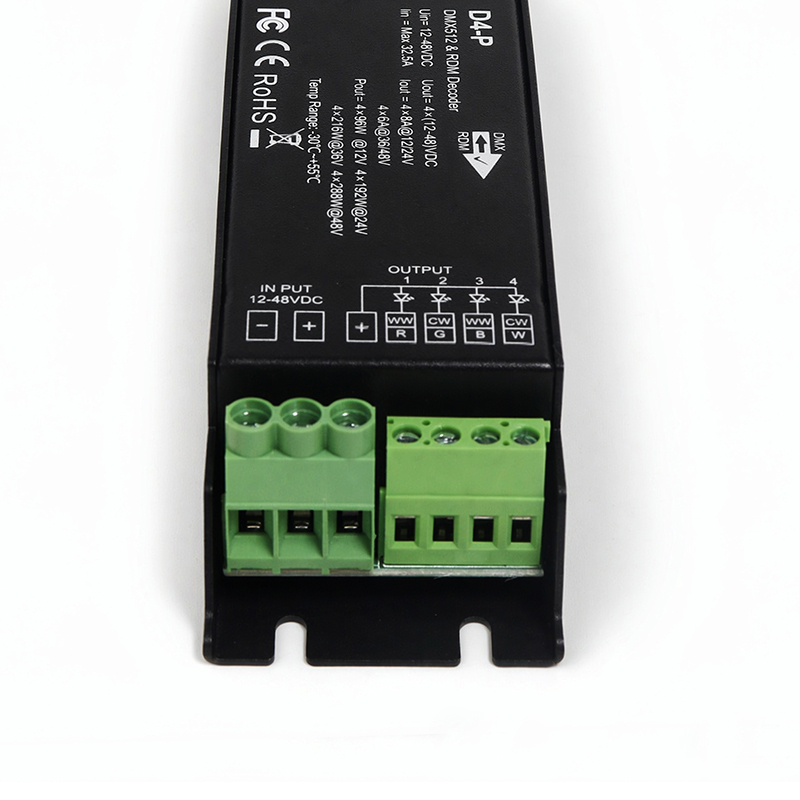

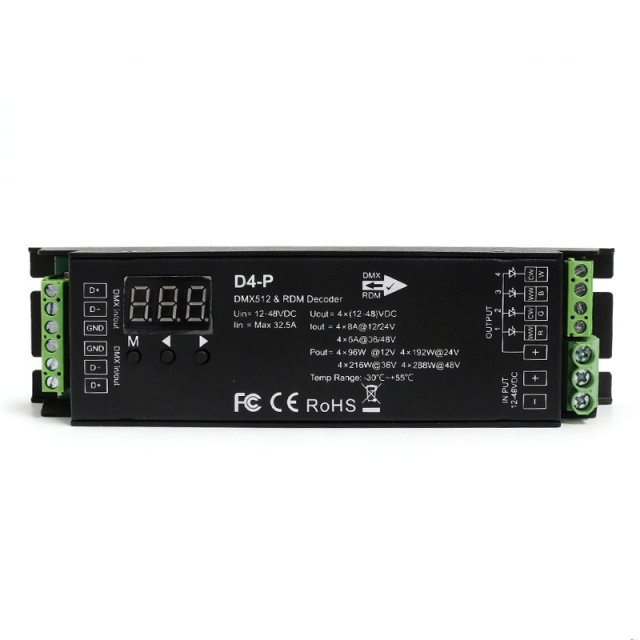

The Skydance D4-P is a professional 4-channel DMX512/RDM LED controller designed for high-power RGBW and single-color LED strips. With a wide 12-48VDC input and up to 8A per channel, it delivers stable, flicker-free dimming for stage, architectural, and commercial projects. Featuring 16-bit PWM, adjustable frequency (up to 16kHz), and RDM remote configuration, it ensures smooth performance and easy setup. Built-in over-temperature, overload, and short-circuit protection guarantees long-term reliability. Its compact design, intuitive digital display, and versatile decoding modes make the D4-P the ideal choice for installers and lighting designers demanding precision, power, and durability in one device."
|
Parameter |
Specification |
|---|---|
|
Model |
D4-P |
|
Input Voltage |
DC 12-48V |
|
Output Channels |
4 Channels (Constant Voltage) |
|
Max Output Current |
8A/CH (12/24V), 6A/CH (36/48V) |
|
Max Output Power |
1152W @ 48V |
|
Control Protocol |
DMX512 (1990/A), RDM |
|
DMX Channels |
1/2/4 Channels (Selectable) |
|
Grayscale Resolution |
8-bit (256) / 16-bit (65536) |
|
PWM Frequency |
250Hz – 16kHz (Adjustable) |
|
Dimming Curve |
Linear / Logarithmic |
|
Protection Rating |
IP20 (Indoor Use) |
|
Safety Features |
Over-temp, Overload, Short-circuit, Reverse Polarity |
|
Display |
Digital LED Display |
|
Dimensions |
175 × 46 × 32 mm |
|
Housing |
Plastic Shell |
