The integrated digital display and intuitive buttons allow for easy address setting and real-time monitoring. With DMX IN/OUT ports supporting signal cascade, it is ideal for complex stage, architectural, and commercial lighting setups. Built to operate reliably in -30°C to +55°C environments, the D4-LC combines durability with precision, making it an essential tool for lighting professionals seeking seamless DMX integration.
4-Channel DMX Control: Supports RGBW/CCT lighting with 4 independent channels, ideal for complex color mixing.
High Power Capacity: 12-24V DC input, 4x12A output (Max 48A), supporting up to 288W total load.
Digital Display & Easy Setup: Built-in 3-digit display with +/-/M buttons for quick DMX address configuration.

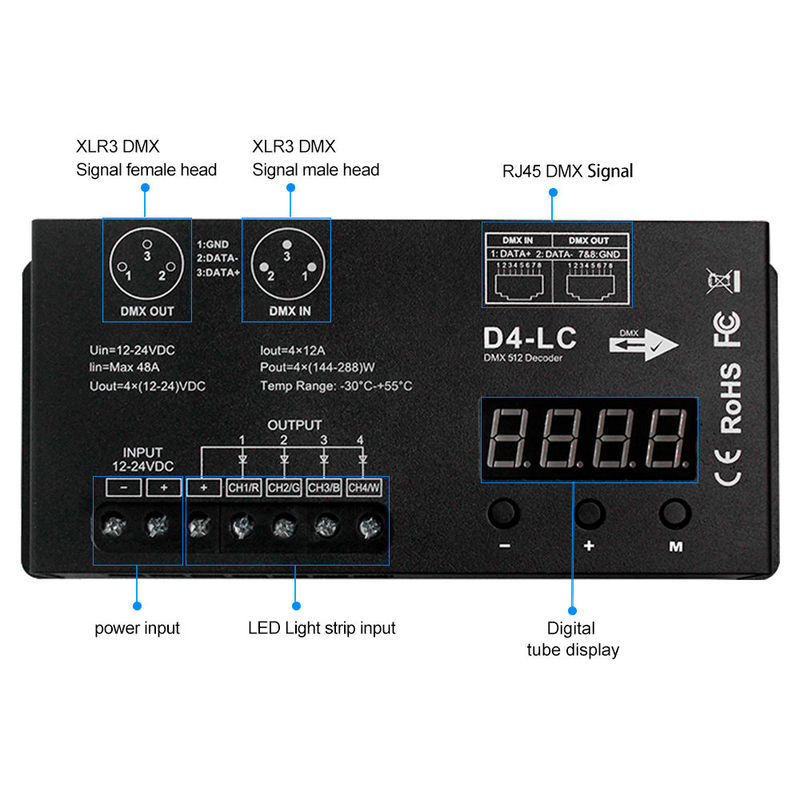

DMX Signal Cascade: Equipped with standard DMX IN/OUT ports (XLR & terminal) for seamless daisy-chain connection.
Wide Operating Range: Stable performance in extreme temperatures from -30°C to +55°C, ensuring durability.

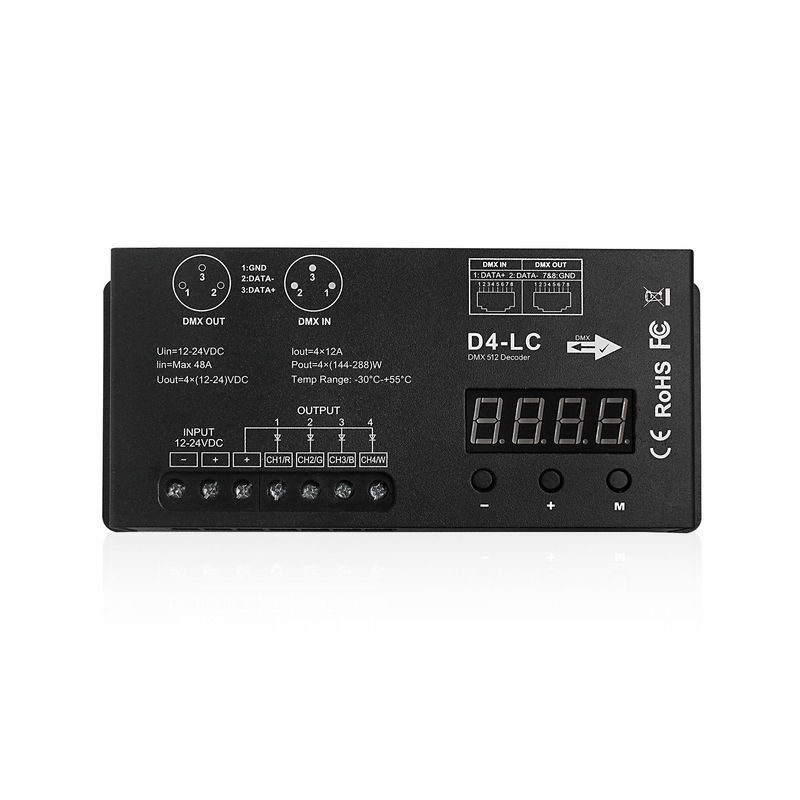

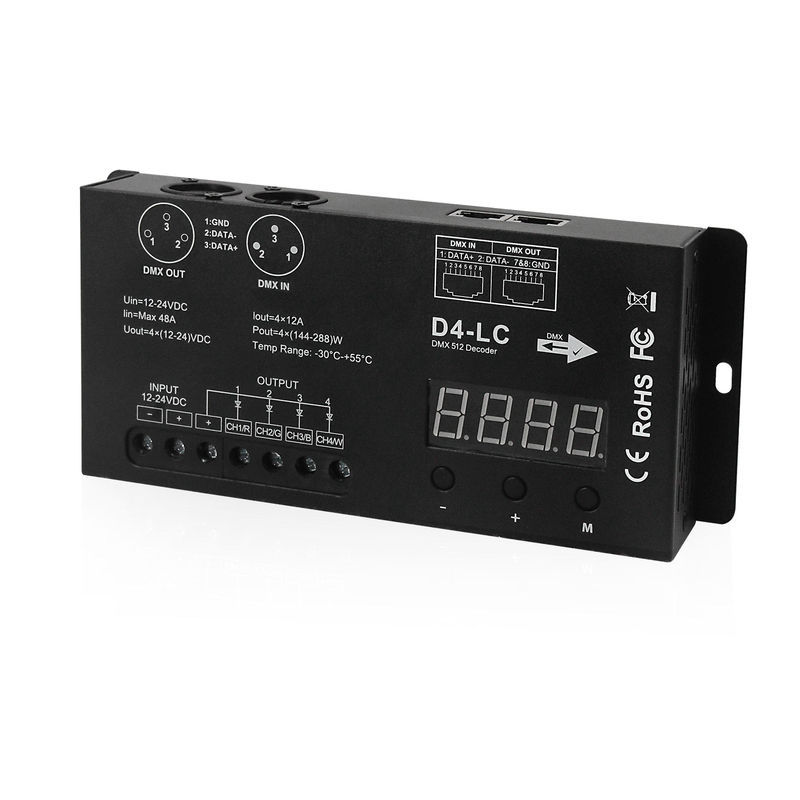

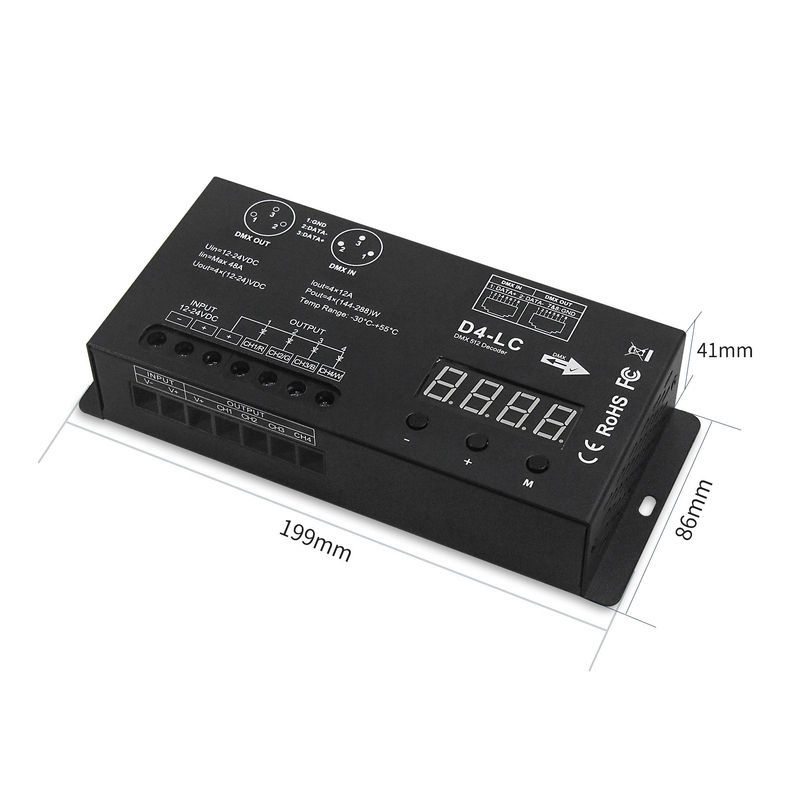

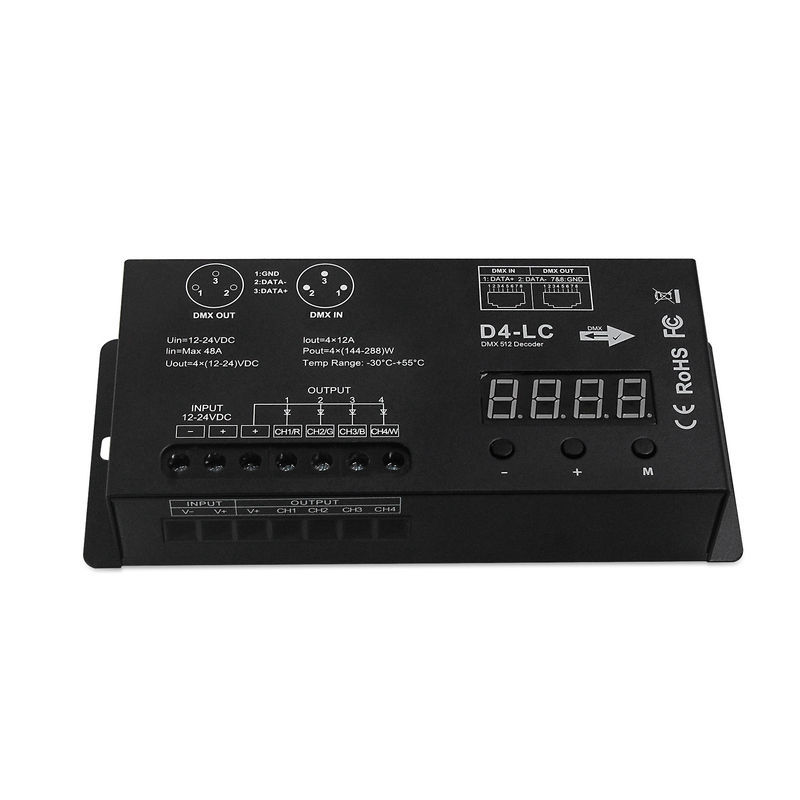

Model: D4-LC
Product Type: DMX 512 Decoder / LED Controller
Input Voltage: DC 12-24V
Max Input Current: 48A
Output Channels: 4 Channels (CH1/R, CH2/G, CH3/B, CH4/W)
Output Current: 4 x 12A
Output Power: 4 x (144-288)W
DMX Interface: DMX IN / DMX OUT (XLR & Screw Terminal)
Control Signal: DMX 512
Operating Temp: -30°C ~ +55°C
Display: 3-Digit Digital Display
Certifications: CE, RoHS, FC
Application: RGBW LED Strips, Stage Lighting, Architectural Decoration
