Common-Anode Design: Labeled “Common Anode/共阳”, for DC12V-24V LED/RGB loads (not AC HV dimmer).
3-Channel DMX Control: Occupies 3 DMX addresses (typical RGB mapping).

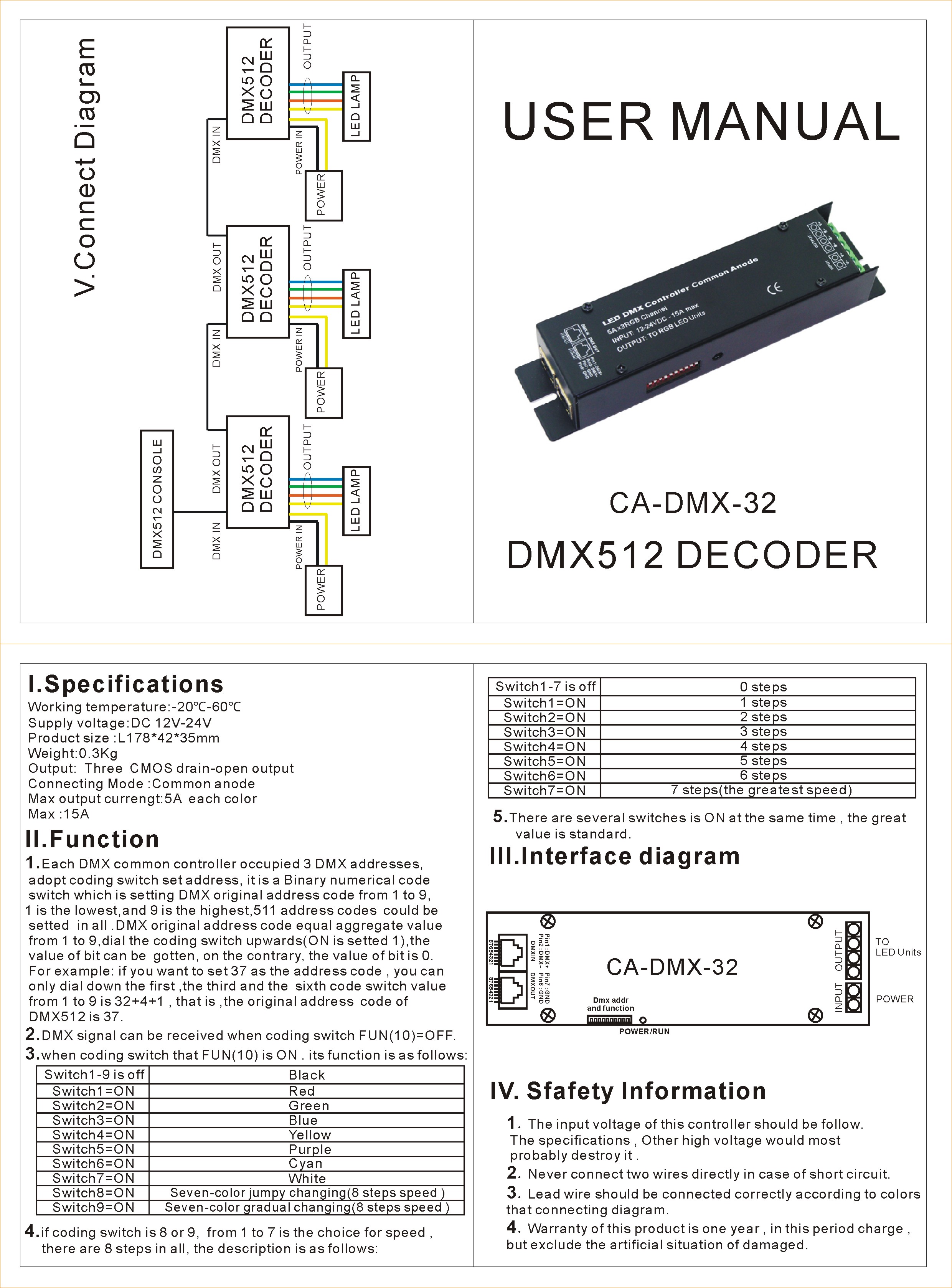

5A/Color Output: CMOS drain-open output; manual states 5A each color / max 15A reference.
DIP + FUN Modes: Binary address set; FUN/1-9 for Black/Red/Green/Blue/Yellow/Purple/White/jump/gradual; 8/9 + 1-7 for speed.
Daisy-Chain & CE Mark: DMX IN/OUT for chain wiring; CE-marked variant for export/regulated procurement.
|
Parameter |
Specification |
|---|---|
|
Model / Label |
CA-DMX-32 / DMX512 DECODER |
|
Type |
Common Anode LED DMX512 Decoder |
|
Control |
DMX512 (DMX IN/OUT) |
|
Supply Voltage |
DC 12V-24V |
|
Output |
3 channels, CMOS drain-open (RGB/color) |
|
Output Current |
5A each color; “Max:15A” per manual (treat as total-class/max reference; allow margin) |
|
DMX Footprint |
Occupies 3 DMX addresses |
|
Address Setting |
DIP binary (1/2/4/8/16/32/64/128/256) + FUN(10) |
|
FUN Behavior |
Switch1-9: Black/Red/Green/Blue/Yellow/Purple/White/7-color jump/7-color gradual; 8/9 + 1-7 = speed steps |
|
Working Temp. |
-20℃ ~ 60℃ |
|
Size |
178 × 42 × 35 mm |
|
Weight |
0.3 kg |
|
Application |
LED strip, RGB module, signage, architectural lighting, stage decor |
|
Marking |

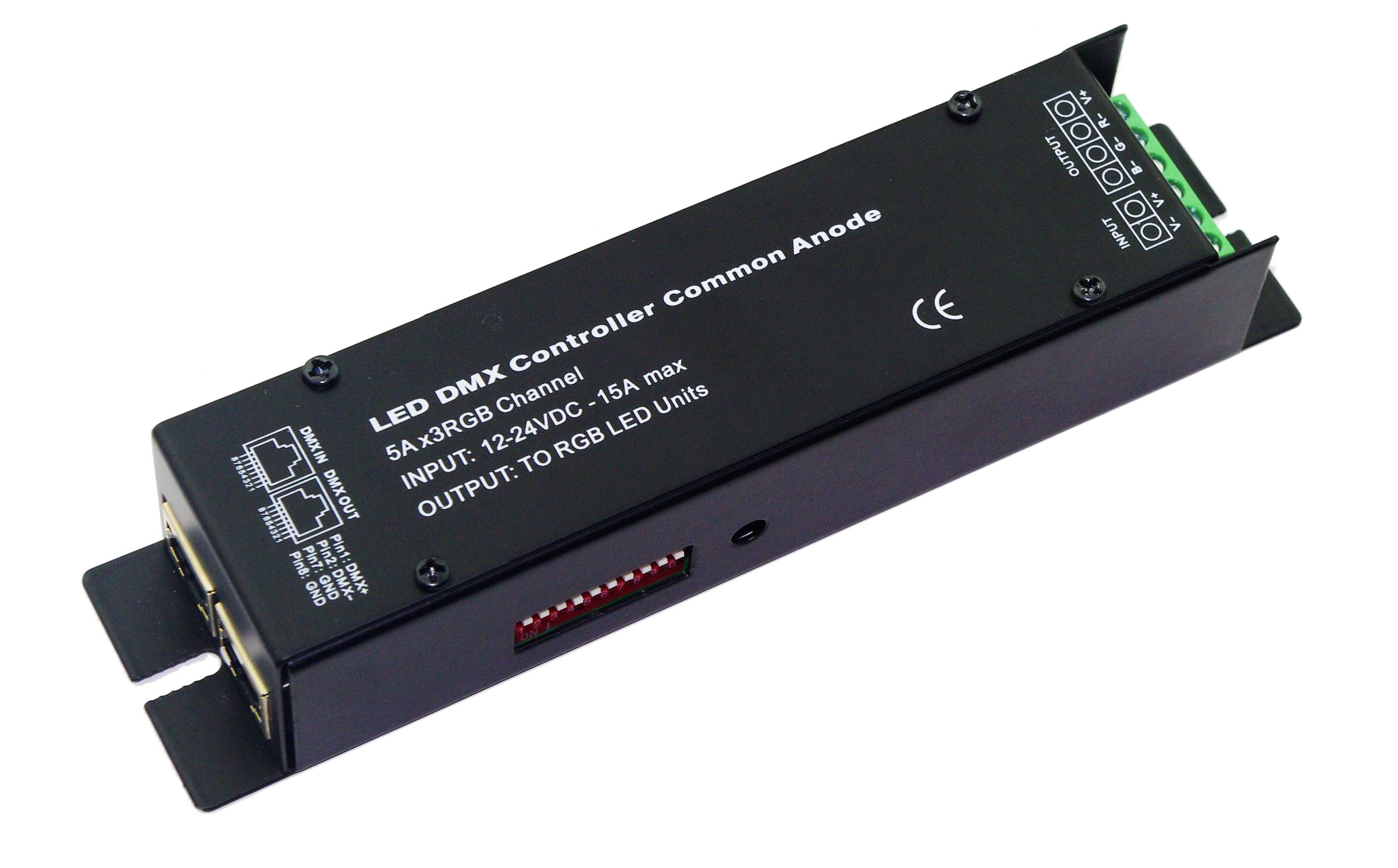

CE (per product photo) |
|
Safety |
DC/common-anode only; no AC/mains; observe polarity; no short; check DMX A/B & 120Ω termination |
