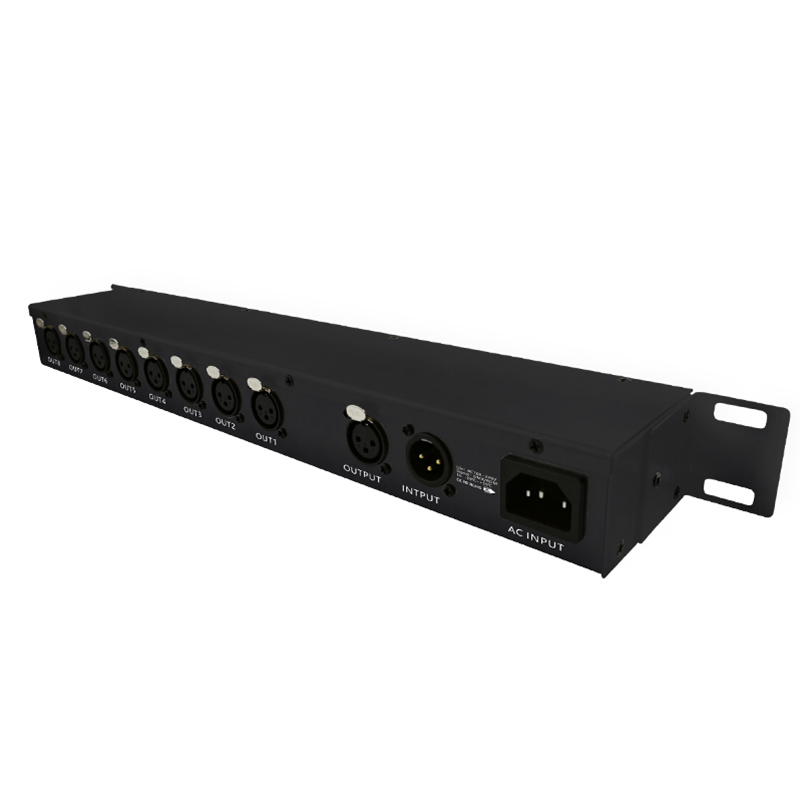

With a high isolation voltage of 3000VDC and reverse connection protection, the BC-818 safeguards your expensive fixtures from power surges and wiring errors. Compatible with international AC100-240V, it is ready for global deployment. Whether you are managing a complex stage rig or a large-scale installation, the BC-818 extends transmission range and stabilizes signal integrity, making it the reliable backbone of your lighting control system. Trust BC-818 to keep the show running flawlessly.
Total Electrical Isolation: Features 8 fully independent output channels optically isolated from the input and each other (3000VDC耐压), eliminating ground loops and crosstalk.
Signal Regeneration: Buffers and amplifies weak DMX data, effectively extending the transmission distance and ensuring data integrity for large venues.
RDM Bi-directional Support: Fully compliant with DMX512/1990 and RDM protocols, allowing two-way communication for remote fixture management and addressing.
Global Power Compatibility: Built-in AC100-240V wide voltage input, suitable for worldwide use without the need for external power converters.
Wiring Error Protection: Equipped with input/output reverse connection protection to prevent damage from incorrect cabling, saving time and costly repairs.
|
Model |
BC-818 |
|---|---|
|
Input Voltage |
AC100V-240V, 50/60Hz |
|
Protocol |
DMX512 / DMX512(1990) / RDM |
|
Input Channels |
1 (DMX/RDM Signal Input) |
|
Output Channels |
8 (Independent & Electrically Isolated) |
|
Isolation Method |
Photoelectric Isolation (Optocoupler) |
|
Isolation Voltage |
3000VDC |
|
Protection Function |
Input/Output Signal Line Reverse Connection Protection |
|
Operating Temp. |
-20℃ to 55℃ |
|
Dimensions (LxWxH) |
485 x 76 x 44 mm (Standard 19" Rack Adaptable) |
|
Application |
Stage Lighting, Architectural Lighting, Studios, Events |
