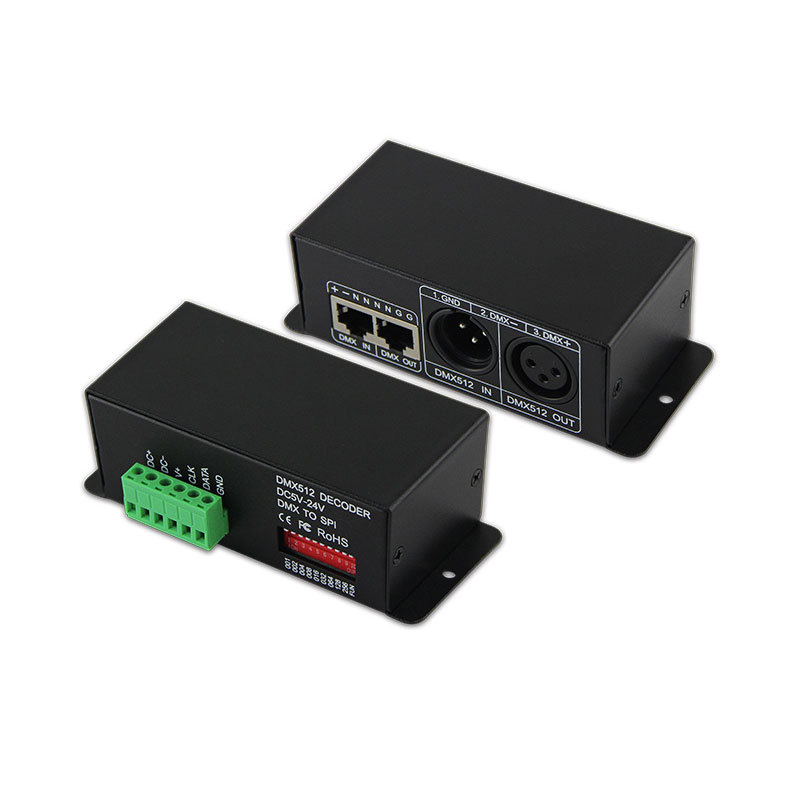

The decoder features a built-in standalone auto-changing mode, allowing LED strips to display dynamic effects such as color fading and chasing even without a DMX controller—ideal for testing or standalone decoration. It outputs TTL-level signals compatible with popular LED driver ICs, ensuring stable and accurate data transmission. Compact, reliable, and easy to integrate, the BC-802 is a perfect solution for stage lighting, architectural decoration, and LED pixel control systems.
Standard DMX512 Protocol Input – Fully compatible with DMX512/1990 consoles; DIP switch allows quick and precise DMX start address setting without software.
Wide Voltage Range – Automatically adapts to DC5V–24V power input, suitable for diverse LED pixel applications.
Built-in Auto-Changing Mode – FUN switch enables standalone operation with pre-programmed color-changing effects, no external controller required.
TTL Signal Output – Provides stable TTL-level data output, compatible with various SPI LED driver ICs for reliable pixel control.
Plug-and-Play Integration – Simple wiring, compact design, and robust signal decoding make it ideal for stage, architectural, and decorative LED projects.
|
Item |
Specification |
|---|---|
|
Product Model |
BC-802 |
|
Input Signal |
DMX512/1990 standard digital signal |
|
Output Signal |
TTL level (compatible with SPI/LED driver ICs) |
|
Input Voltage |
DC5V–24V auto-adaptive |
|
DMX Address Setting |
10-bit DIP switch (9-bit binary address + 1 FUN mode switch) |
|
DMX Channels |
3/4/5/6/7/8 channels (model-dependent) |
|
Standalone Mode |
Built-in auto-changing effects (color jump, gradual change, chase) |
|
Connectors |
DMX IN/OUT (XLR-3 or RJ45), DC input, TTL output (DATA/CLK/RCK/GND) |
|
Operating Temperature |
-30°C to +65°C |
|
Dimensions |
Approx. 125 × 52 × 22 mm (may vary by sub-model) |
|
Compatible LED ICs |
LPD6803, LPD8806, P9813, WS2801, TM1809, TLS3001, WS2811, etc. (select correct sub-model) |
|
Termination |
90–120Ω resistor recommended at DMX line end |
